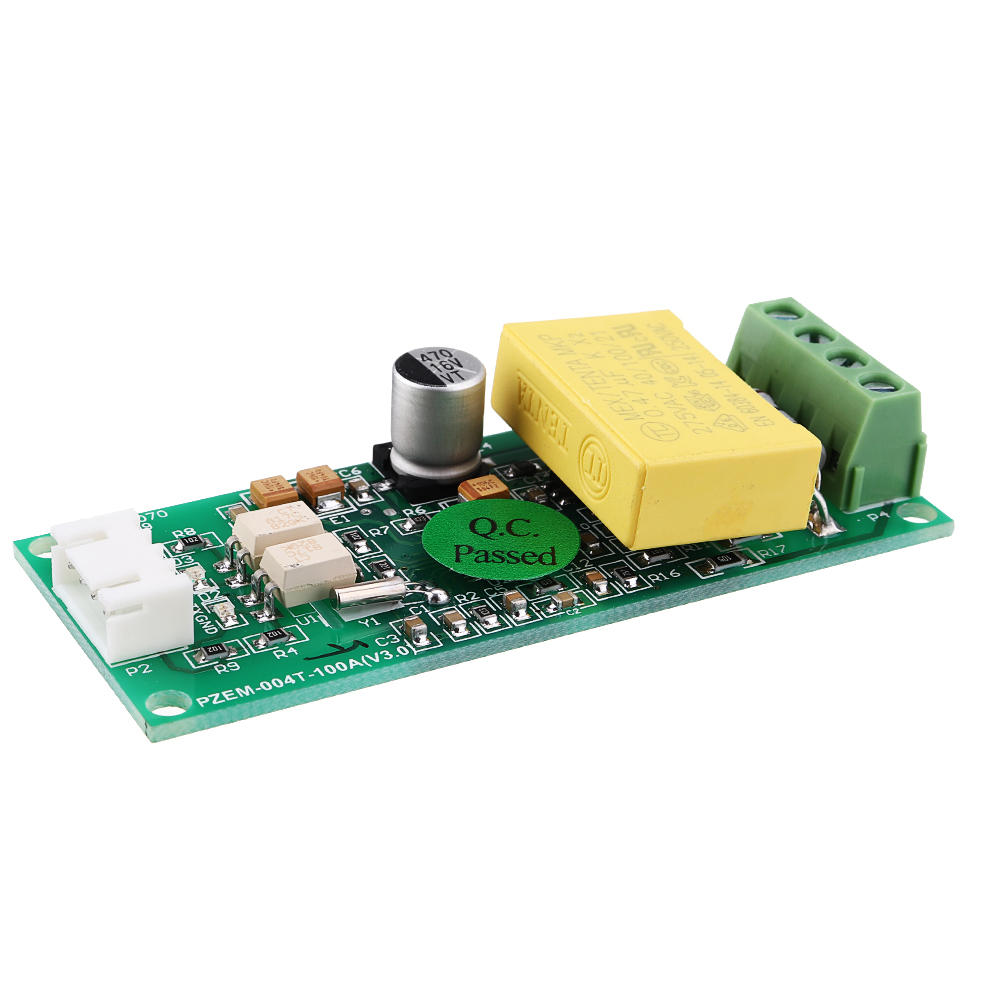

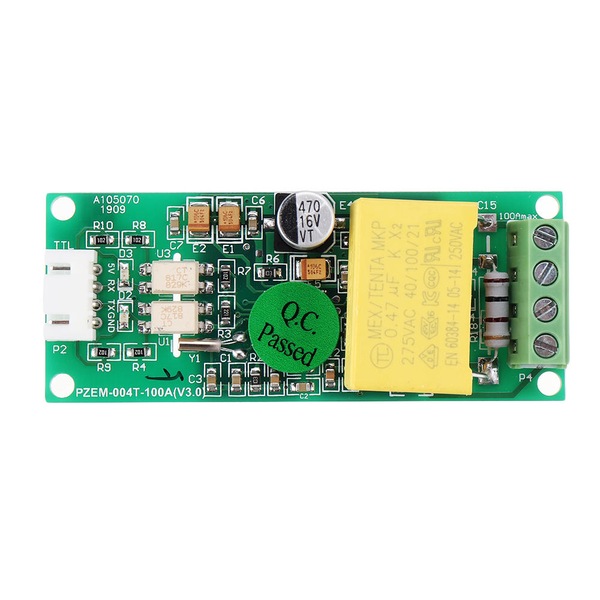

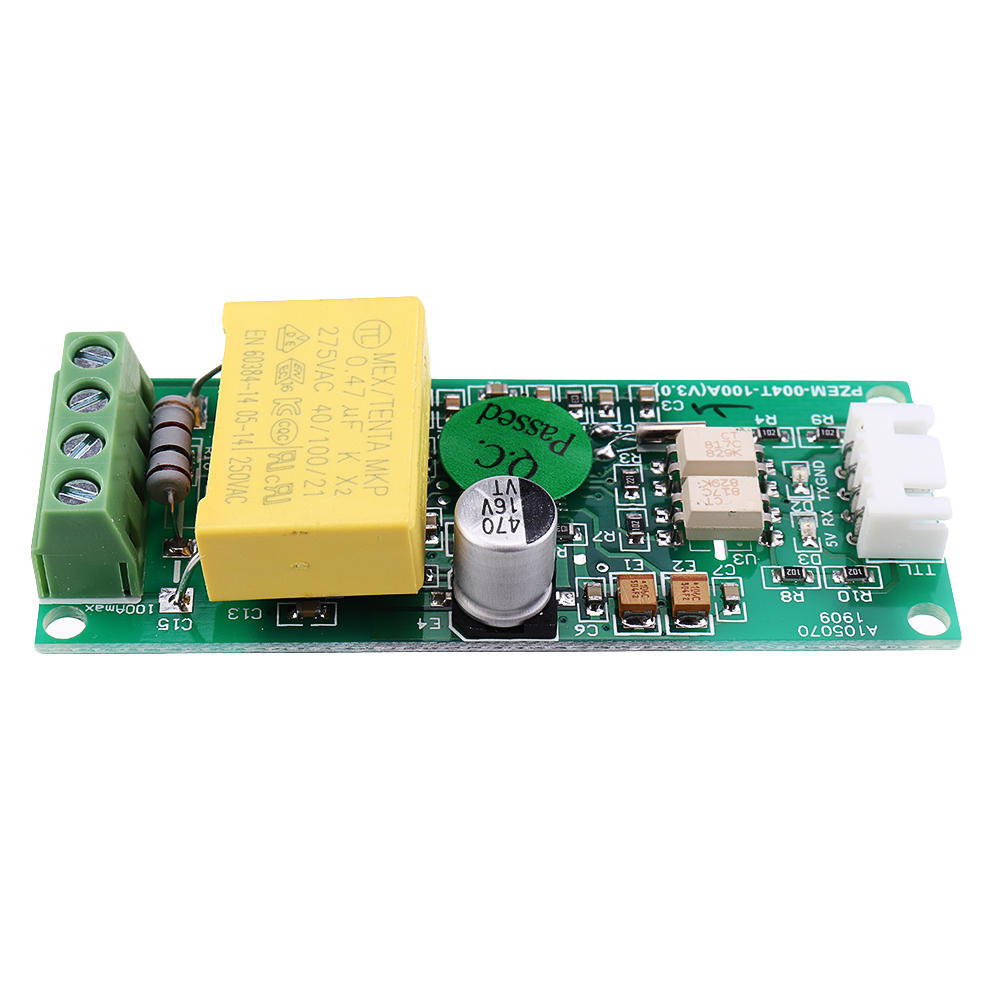

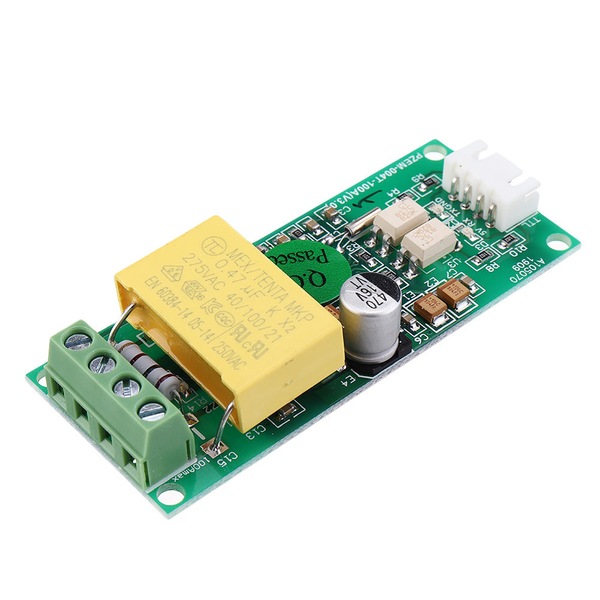

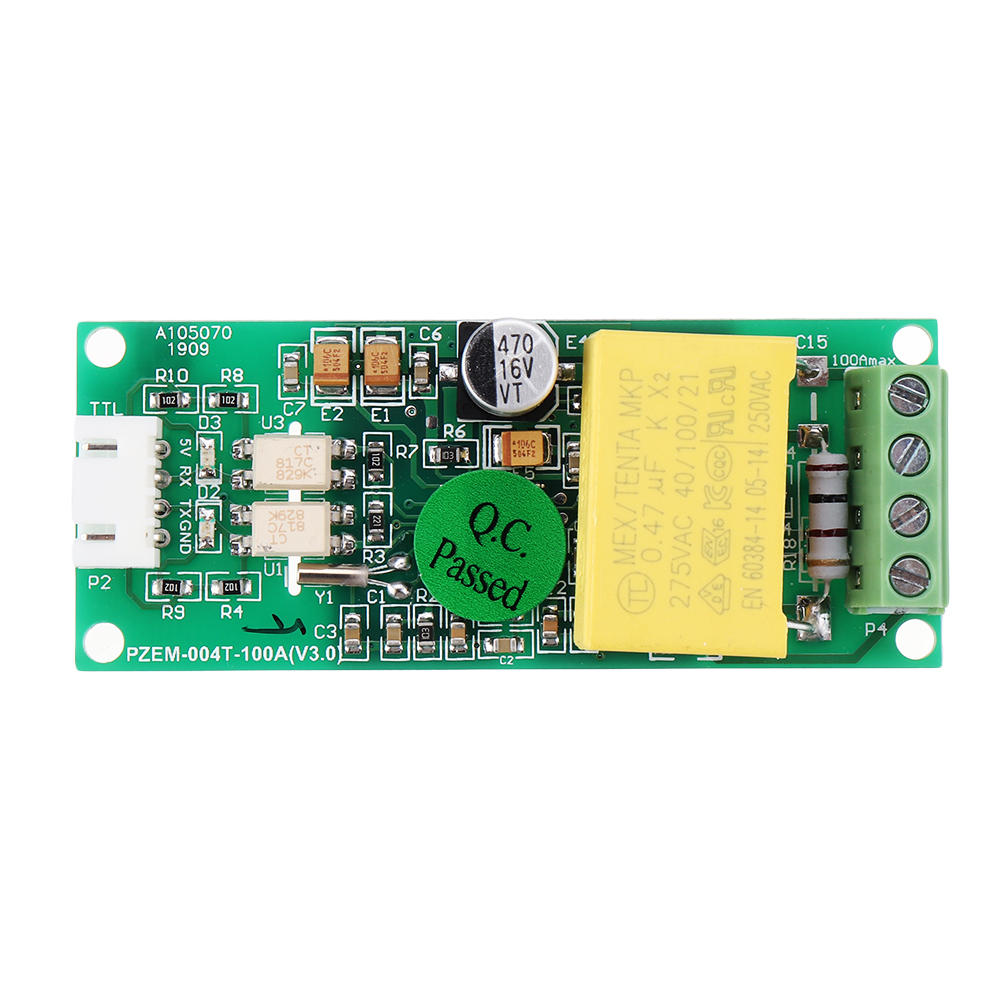

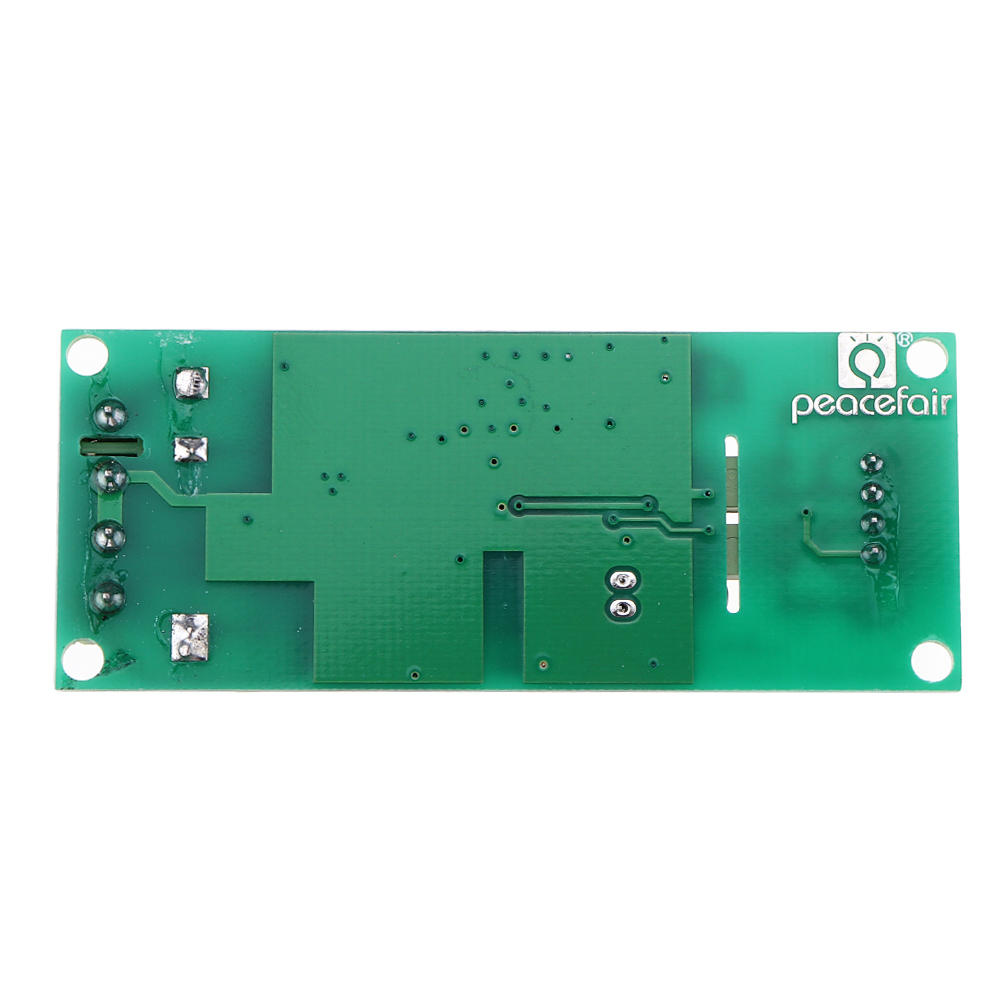

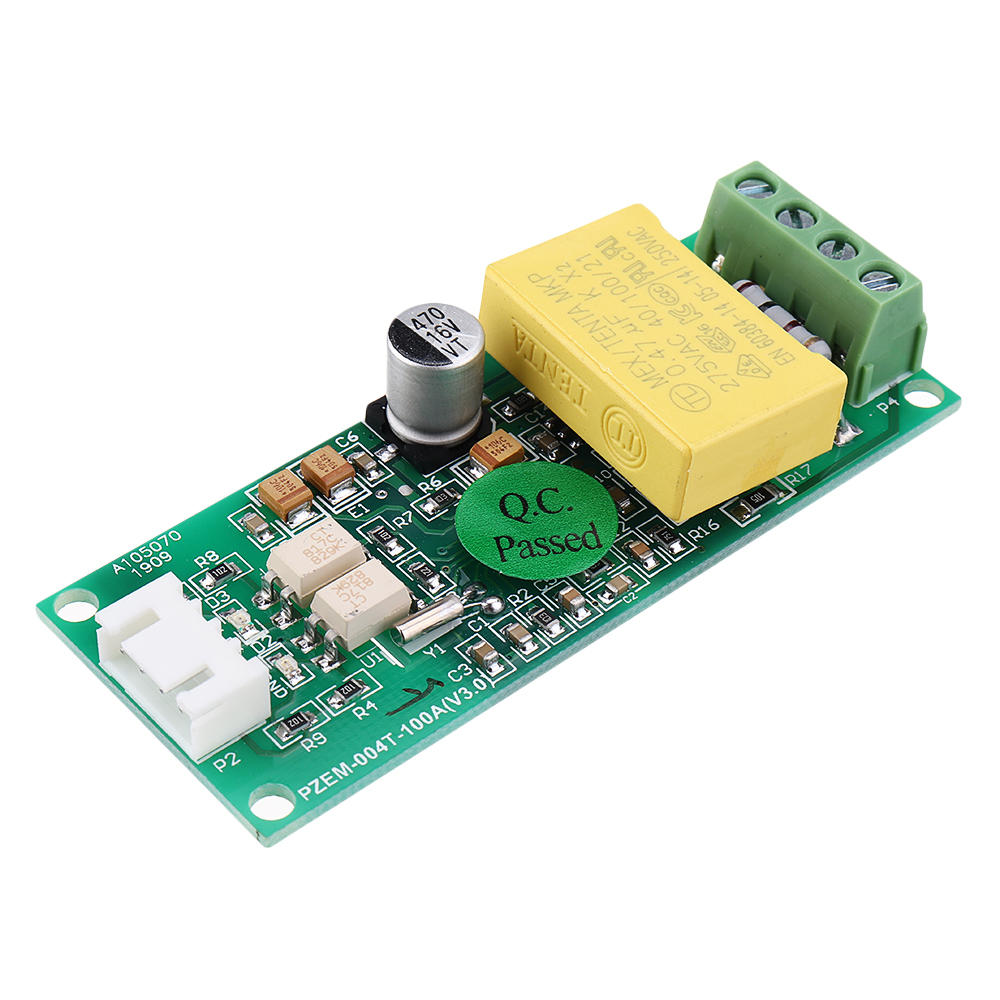

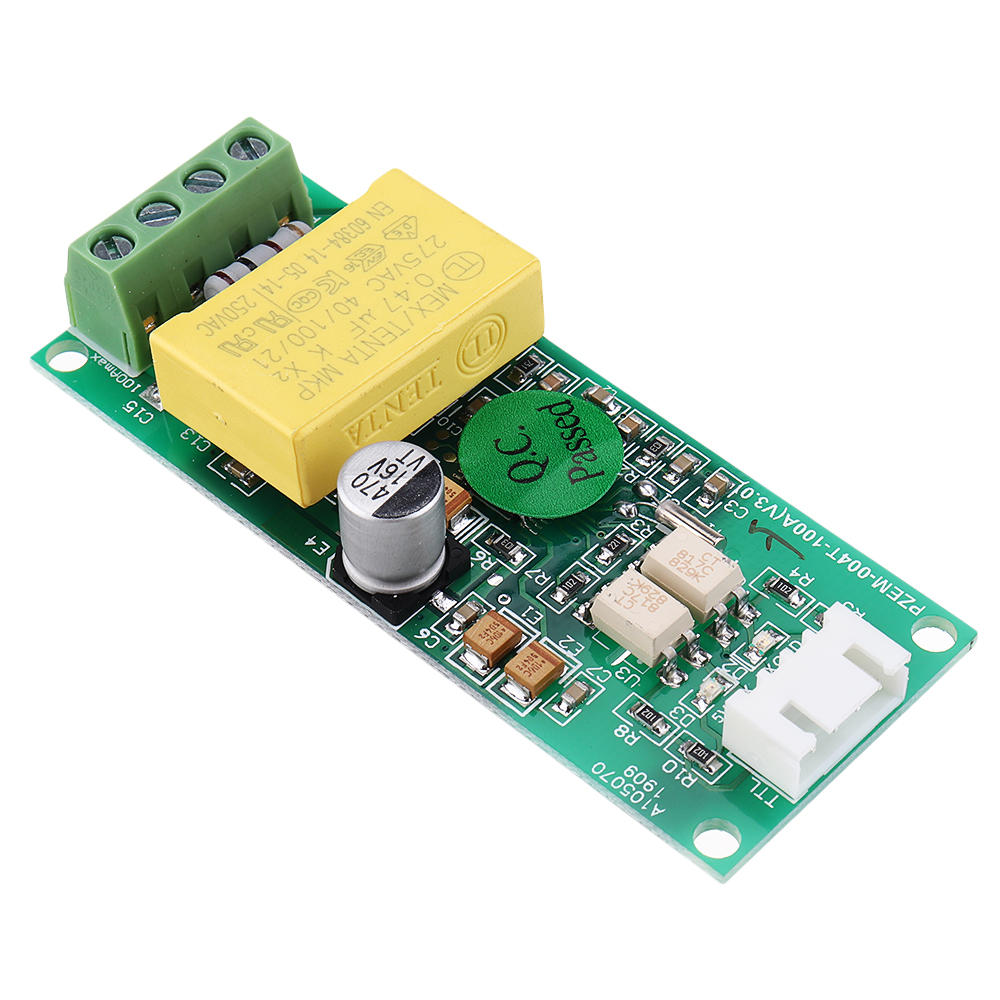

PZEM-004T 0-100A AC220 TTL Serial Communication Module Voltage Current Power Frequency Modbus-RTU

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$44.93

Collect 44 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Take 10% Off Purchases Over $29
Exclusive to Supperstore (Direct Import) products only. Expires 11.59pm 29/06/2025. Excludes Shipping.
Sold & shipped by Supperstore (Direct Import)
Secure ways to pay at checkout

Feature:

FunctionMeasuring rangeStarting current/powerResolutionMeasurement accuracyDisplay format
10A100A10A100A
Voltage80-260V?0.1V0.5%?
Current0-10A0-100A0.01A0.02A0.001A0.5%<1000W displays 1 decimal place, such as: 999.9W; >=1000W, only displays integers, such as: 1000W
Active power0-2.3KW0-23KW0.4KW0.1W1%?
Power factor0.00-1.00?0.011%?
Frequency45HZ-65HZ?0.1HZ0.5%?
Active energy (power clear, software clear)0-9999.99KWH?1WH0.5%<10kWh, the display unit is Wh (1kWh=1000 Wh), such as:
9999Wh; >=10kWh, display unit is kWh, such as: 9999.99kWh
Power overrun alarmThe active power threshold can be set, and the alarm state is set when the measured active power exceeds the set threshold.
Communication InterfaceTTL interface
Power supplyThe single-phase power frequency grid power supply is supplied to the main circuit through the RC capacitor, and the TTL output communication interface is isolated from the main circuit optocoupler and is a passive output. An external 5V power supply is required for communication.
NoteThe TTL interface of this module is a passive interface. It must be externally supplied with 5V power supply. That is, all four ports must be connected (5V, RX, TX, GND) during communication, otherwise communication cannot be performed.
Operating temperature-20°C~+60°C


Package includes:

1 x?TTL Serial Communication Module?
