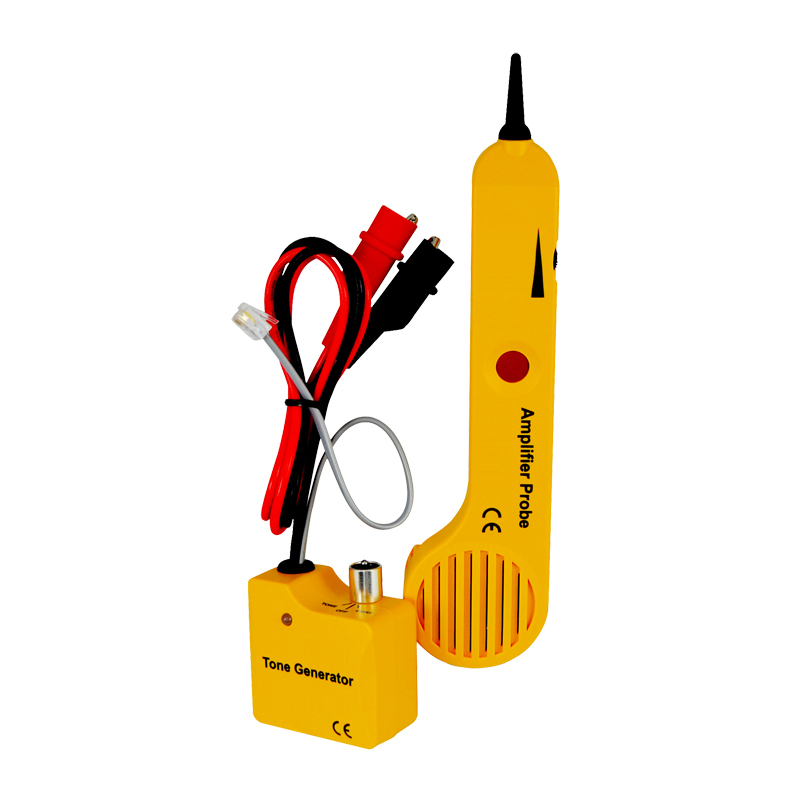

Rhino Cable Tracer - Tone Generator & Probe

The Amplifier Probe is designed to identify and trace wires or cables within a group without damaging the insulation. Work with any Tone Generator to identify wires, volume control for increased sensitivity and adjustable to suit work environment. Tone Generator is great tool for locating and Identifying cable pairs or individual conductors. This is also function as a continuity and polarity tester. Test results displayed on the three-colored led.

Alternating Tone                                   V

Connection                                           RJ11 connector, RJ45 connector (optional)

Operating Temperature & Humidity        0°C ~ 40°C, 80% Max

Over Voltage Protection                        100V DC

Power Source                                         Probe 9V battery, Tone Generator 9V battery

Probe Dimensions                                  270(L) x 50(W) x 25(H)mm

Probe Operating Frequency                   1Hz~12kHz

Receiver Distance                                     <50cm

Sensitivity Control                                      V

Single Tone                                                V

Tone Generator Dimensions                    64(L) x 58(W) x 34(H)mm

Tone Generator Operating Frequency      1kHz±15%

Waveform                                                  Square wave

Weight                                                         250g

Warranty (Years)                                         1
