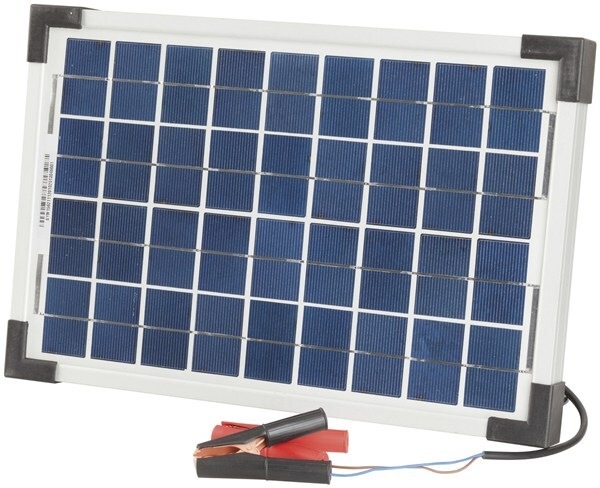

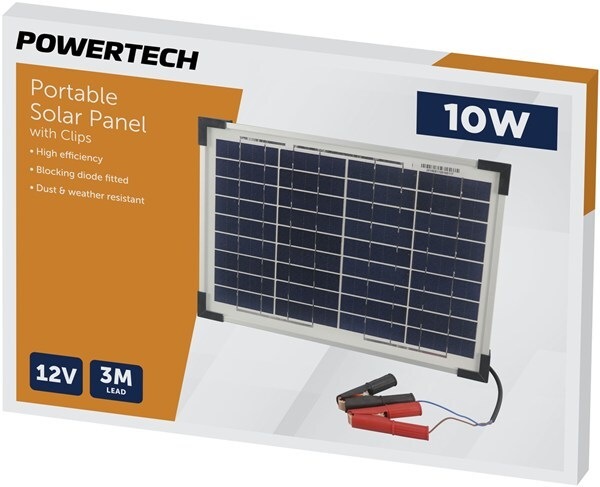

Quality solar panels with high efficiency and smaller footprint compared to our regular monocrystalline models. An easy way to keep your 12V batteries topped up and ready to go on your caravan, farm equipment, the spare car, or on the shed out the back. The dust and weather resistant panel features a robust frame, and is supplied with 3m long leads terminated with battery clips. Each version is fitted with a blocking diode, so they are suitable for direct connection to your battery as a trickle charger (take note of the minimum battery capacity), or as a low current charger to replace a load or current drain on the battery. A charge controller such as AA0348 is recommended on the 10W and 20W versions when there is not enough current drain to prevent over-charging of the battery.
| Specifications | |
| Maximum power (Pmax): | 10W |
| Rated voltage: | 12V |
| Voltage at Pmax (Vmp): | 17.4V |
| Current at Pmax (Imp): | 580mA |
| Open circuit voltage (Voc): | 21.8V |
| Short circuit current (Isc): | 610mA |
| Weight: | 1.15kg |
| Dimensions: | 385(W) x 253(H) x 30(D)mm |
*5 year warranty against materials and workmanship, and 20 year warranty for power output no less than 80%.
