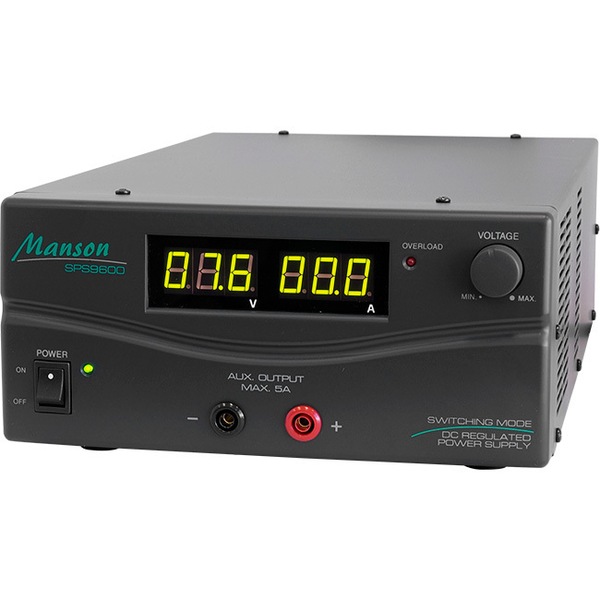

MANSON SPS9600G 60Amp 1-15V DC Power Supply Bench Top Dark Grey Total Max. Continuous Output

MANSON SPS9600G 60Amp 1-15V DC Power Supply Bench Top Dark Grey Total Max. Continuous Output

Hurry! 8 items left!

$636

Collect 636 Everyday Rewards points

Sold & shipped by Radio Parts

Secure ways to pay at checkout

(0)

Overview

This high current switching mode DC regulated dual outputpower supply is designed with a high efficient active power factor corrector. The constant current limiting protection allows the outpu current to remain stable but theoutput voltage decreases to a level that permits safe operatio of the power supply.

The remote sensing terminals are used to compensate for output line losses so that a precise regulation can be achieved for critical voltage application away from the power supply. The output voltage level can be externally controlled via the remote terminal. It is ideal for applications that need good quality highDC current network with precise point of voltage regulation.
The SPS-9600 has a small footprint for its 900W continuous maximum power and is suitable for a wide range ofapplications such as street blaster super high power car audios demonstration console, radio equipment and etc.

Features

Total max. continuous output current 60A (SPS-9600)

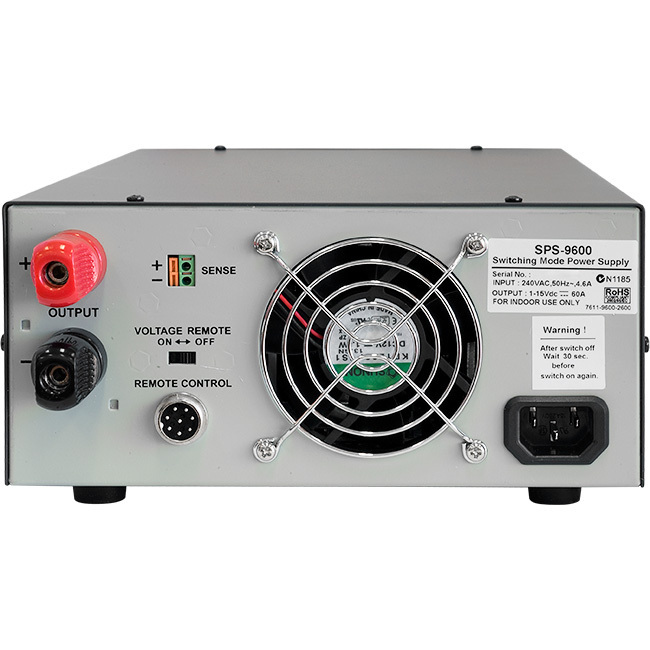

Main Output /Remote Sensing/ Remote Control/ terminals at the back
Front terminals 5A limiting
Adjustable output voltages 1 to 15V DC
Remote Sensing for remote point of regulation
Remote control terminals for output voltage
Light weight and small size
Overload / Over-temperature /Short Circuit Protections
Constant Current mode with LED indicator prevents overloading
Variable speed thermally controlled fan
High RFI stability
Power factor correction >0.97

Specifications

Variable Output Voltage	1V to 15V DC
Total Rated Output Current (Main Output + Front Output)	60A
Rated Output Current (Main Output)	60A
Rated Output Current (Front Output)	5A
Load Regulation (Main Output)	0.1% +5mV
Line Regulation (Main Output)	0.05% +3mV
Ripple & Noise (Peak-Peak)	40mV p-p
Input Voltage	230V AC
Efficiency	> 85%
Meter Type	LED Meter
Volt Meter Range	3 Digit Display
Amp Meter Range	3 Digit Display
Meter Accuracy	±1% +1 count
Protection Devices	Overload (Constant Current Limiting), Short Circuit, Over Temperature, OVP
Cooling System	Variable speed thermally control fan
Special Features	Remote sensing, Remote control
Approvals	CE - EMC:EN55022, CE - LVD:EN60950
Dimensions (W×H×D)	220mm × 110mm × 360mm
Weight	5.8kgs
Power Factor Correction	>0.97 at optimal load

Weight: 5.703
