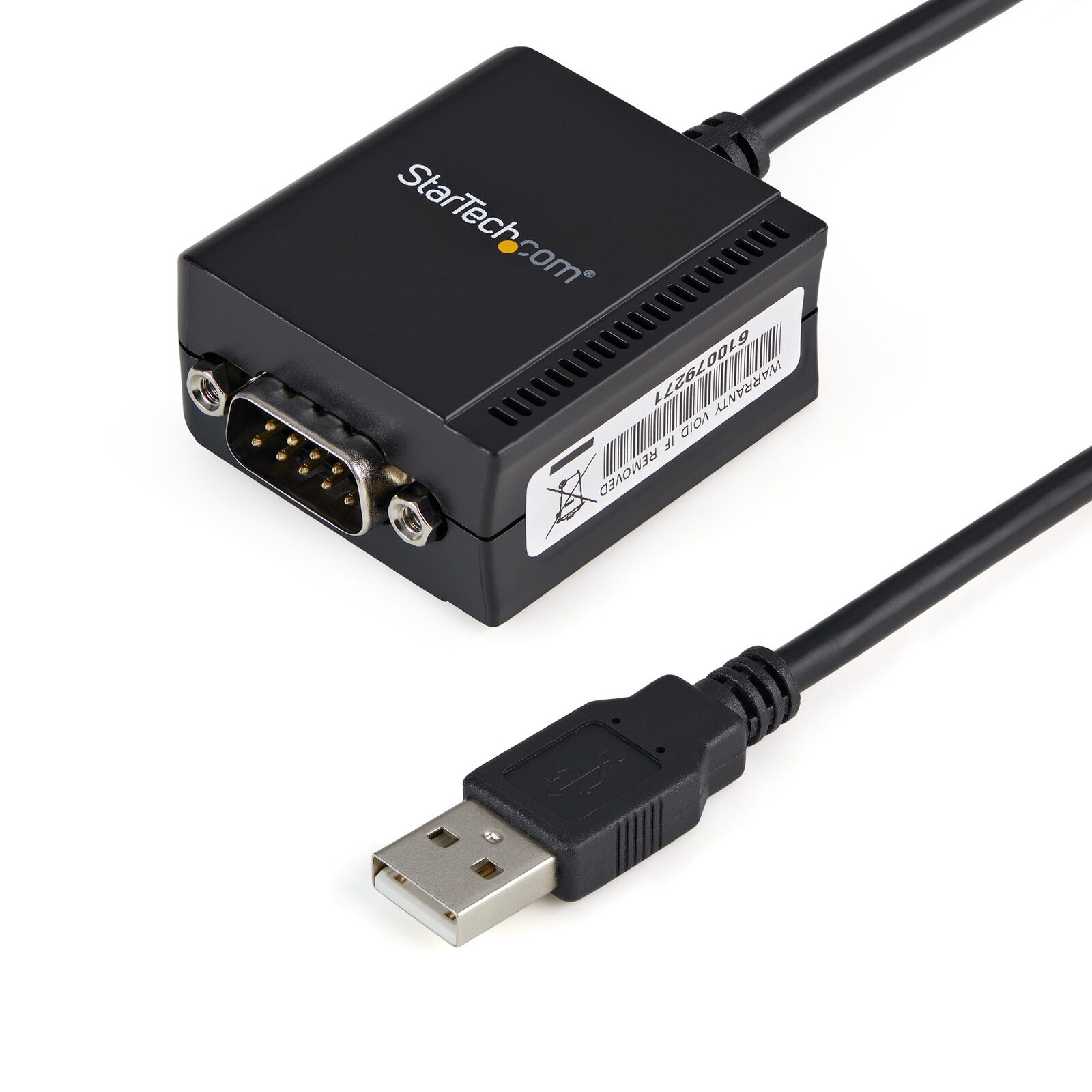

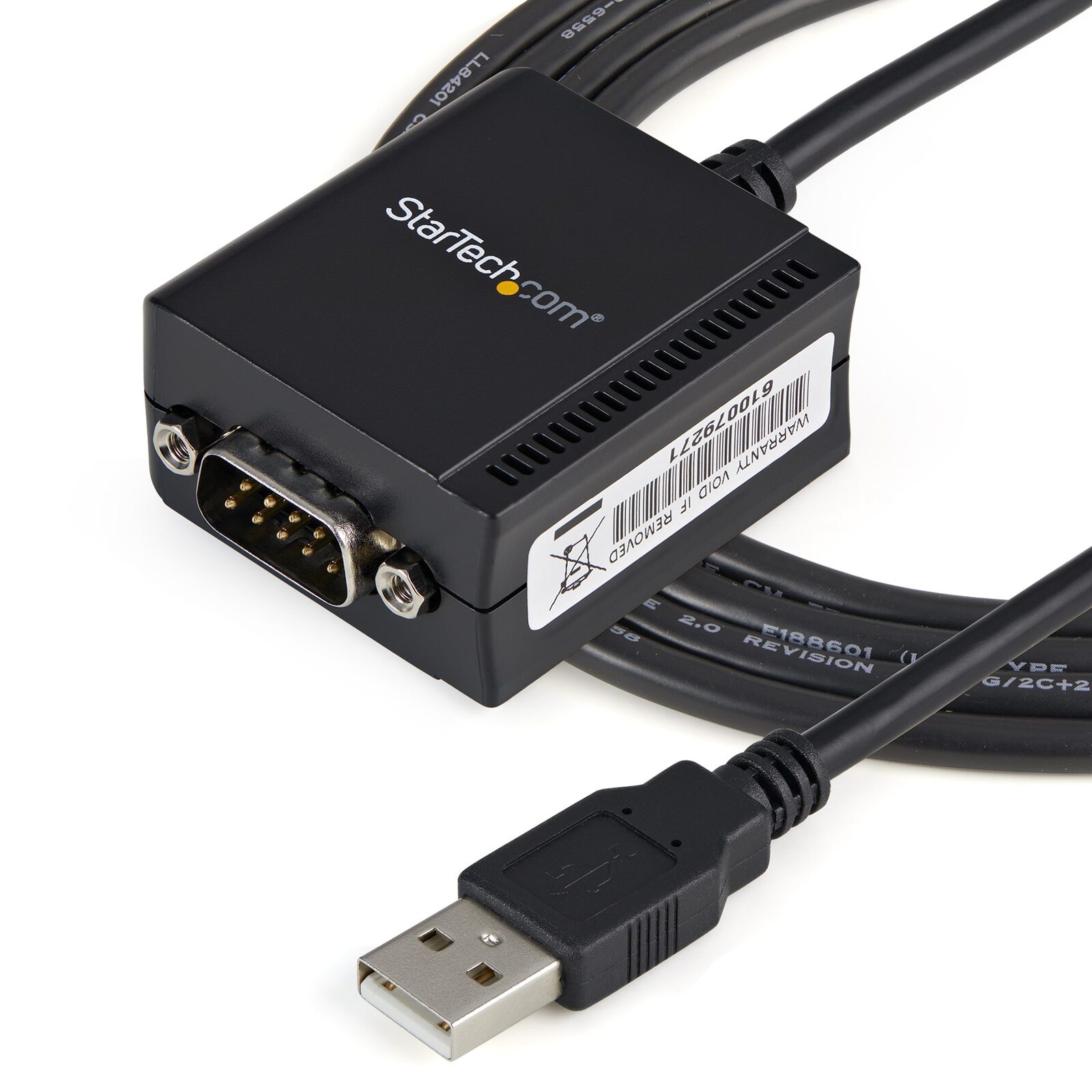

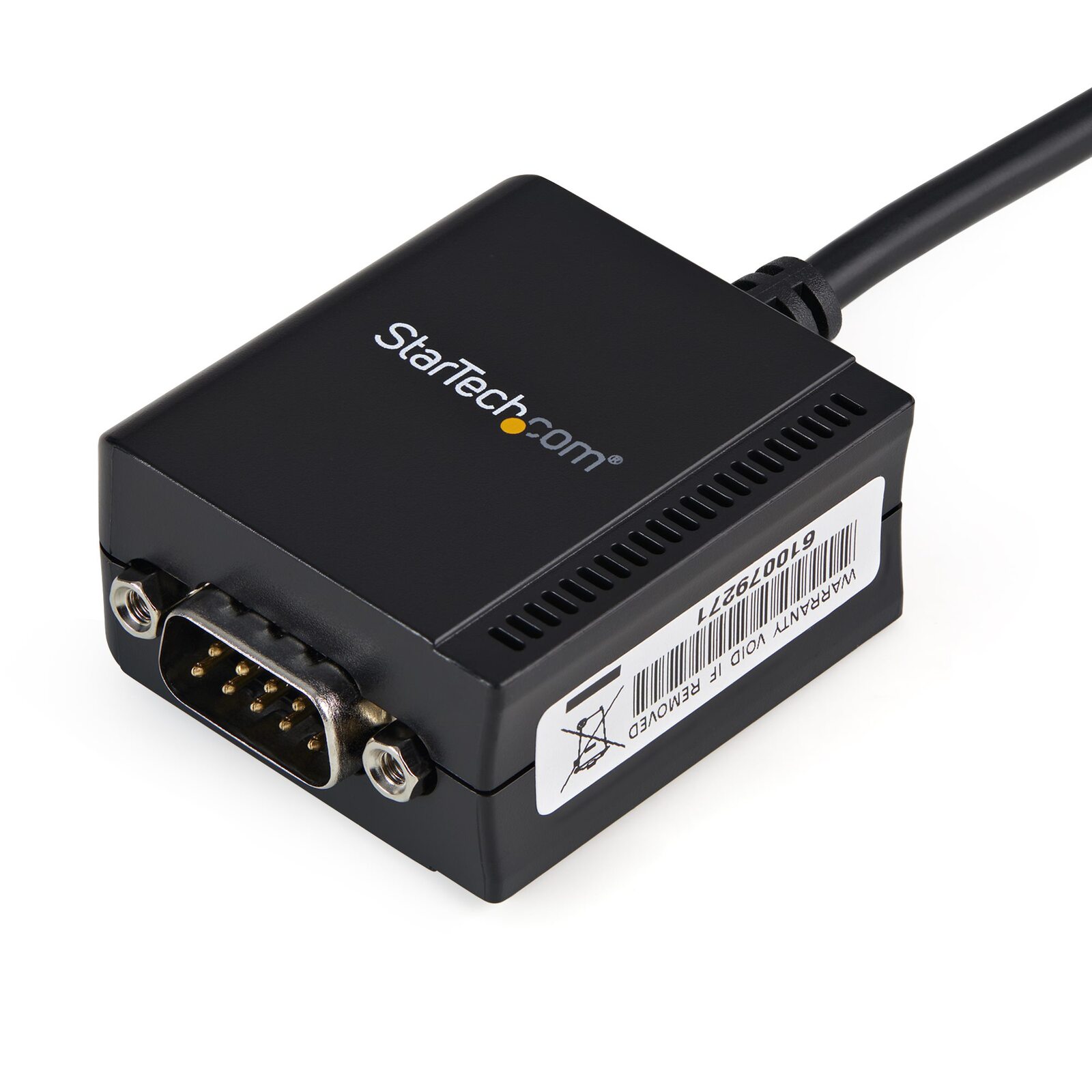

Star Tech 1 Port FTDI USB to Serial Adapter Cable with COM Retention

The ICUSB2321F 1-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into an RS232 serial DB9 port to connect, monitor and control your serial devices.

This compact adapter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. The ICUSB2321F uses the FTDI chipset which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.

Compatibility with a broad list of Operating Systems including Windows®, Windows CE, Mac OS and Linux, makes this product easy to integrate into mixed environments.


Specifications:

The ICUSB2321F uses the FTDI chipset which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions

Performance
FIFO  : 256 Bytes
Max Baud Rate  : 115.2 Kbps
MTBF  : 836981.2 hours
Parity  : None, Odd, Even, Mark, Space
Serial Protocol  : RS-232
Stop Bits  : 1, 2

Physical Characteristics
Cable Length  : 1.8 m [6 ft]
Color  : Black
Material  : Plastic
Product Height  : 2.2 cm [0.9 in]
Product Length  : 45 mm [1.8 in]
Product Width  : 41.5 mm [1.6 in]
Weight of Product  : 90 g [3.2 oz]

Power
Power Source  : USB-Powered

Software
OS Compatibility  : Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
macOS 10.6 to 10.15, 11.0
Linux Kernel 3.0.x - 5.4.x (LTS Versions Only)

Special Notes / Requirements
System and Cable Requirements  : One available USB 1.1 (or better) port

What's in the Box
Included in Package  : Driver CD
Instruction Manual
USB to RS-232 Serial Adapter

Performance
Data Bits  : 7, 8

Packaging Information
Shipping (Package) Weight  : 176 g [6.2 oz]
Package Width  : 14.5 cm [5.7 in]
Package Length  : 17.5 cm [6.9 in]
Package Height  : 32 mm [1.3 in]

Hardware
Ports  : 1
Port Style  : Cable Adapters
Interface  : Serial
Chipset ID  : FTDI - FT232RL
Bus Type  : USB 2.0

Environmental
Storage Temperature  : -20°C to 85°C (-4°F to 185°F)
Operating Temperature  : 0°C to 55°C (32°F to 131°F)
Humidity  : 5~95% RH

Connector(s)

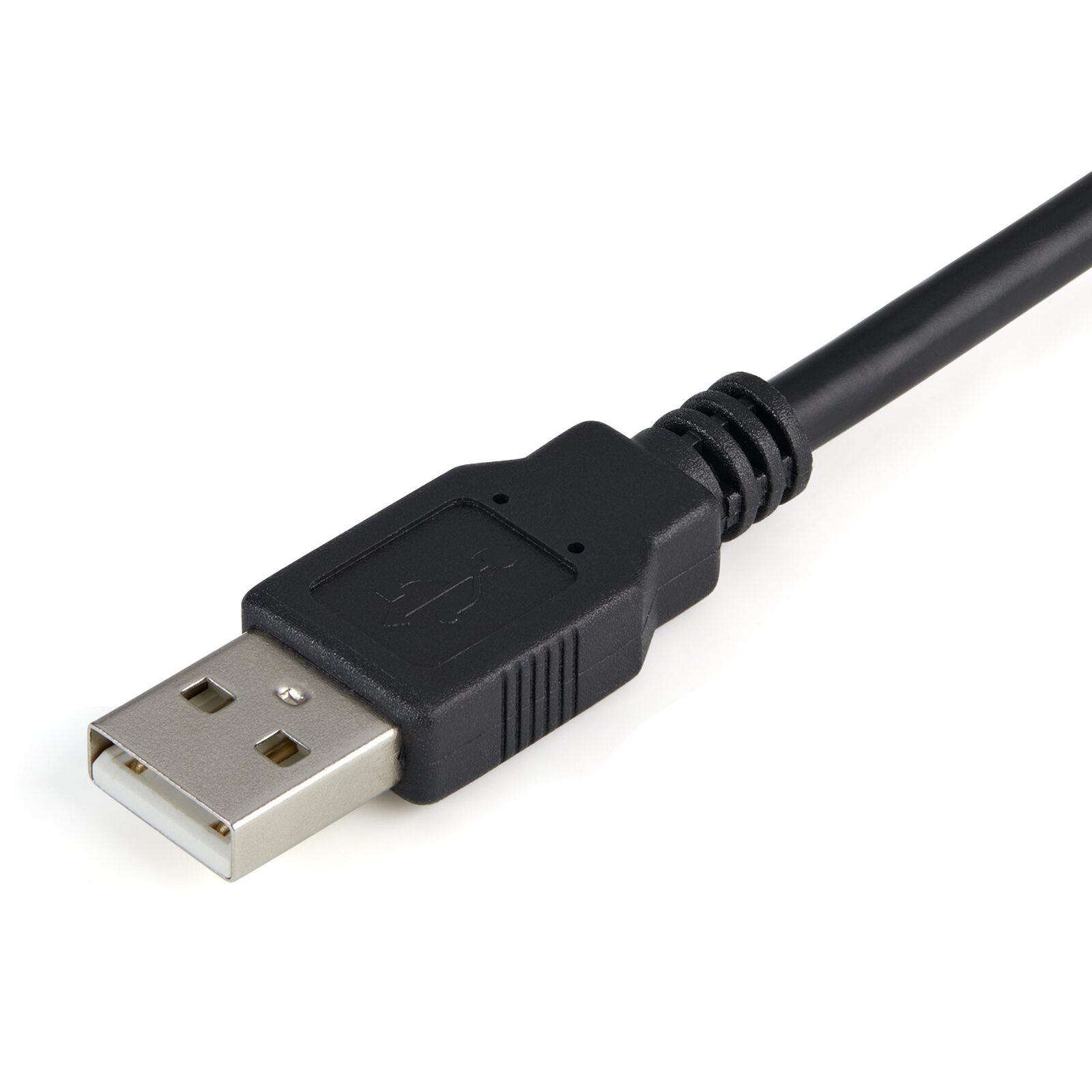

Connector Type(s)  : USB Type-A (4 pin) USB 2.0 Male
DB-9 (9 pin, D-Sub) Male

This item comes with a 2 Years warranty

GTIN: 065030843485
