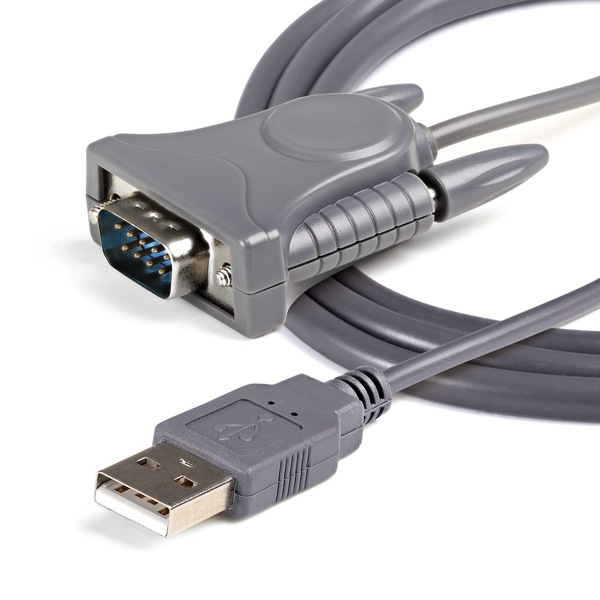

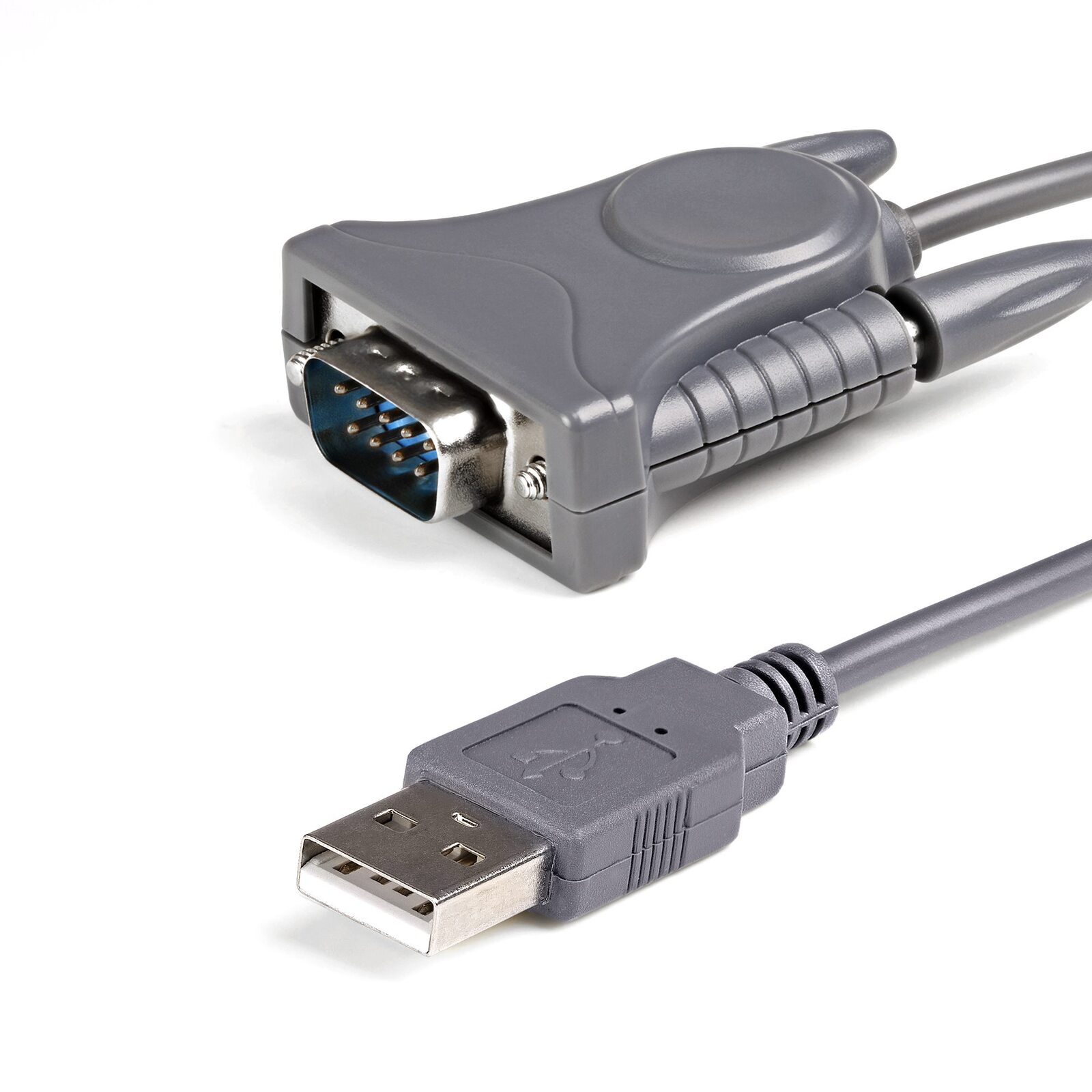

Star Tech USB to RS232 DB9/DB25 Serial Adapter Cable - M/M
The ICUSB232DB25 USB to RS232 DB9/DB25 Serial Adapter Cable (M/M) lets you connect 9-pin (DB9) or 25-pin (DB25) RS232 serial devices to your laptop or desktop computer through a USB port, as though the computer offered an onboard serial port. The integrated 3-foot (0.9 meter) cable allows it to be connected directly from the serial device to the computer without requiring additional cables.
A cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals, this high quality USB/RS232 Serial Adapter cable ships with a DB-9 to DB-25 adapter for connection to varied serial equipment.
Performance
Data Bits : 4, 5, 6, 7, 8
FIFO : 512 Bytes
Flow Control : None, Xon/ Xoff, Hardware
Max Baud Rate : 230.4 Kbps
Parity : None, Even, Odd, Mark, Space
Serial Protocol : RS-232
Stop Bits : 1, 1.5, 2
Physical Characteristics
Cable Length : 0.9 m [3 ft]
Color : Gray
Material : Plastic
Product Length : 91.5 cm [36 in]
Weight of Product : 75 g [2.6 oz]
Software
Microsoft WHQL Certified : Yes
OS Compatibility : Windows® PocketPC 2003 / 2000, Windows Mobile 5/6, CE 4.2/5.2, Embedded System 2009, XP Embedded, POS Ready 2009, 98SE, 2000, ME, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2016, 2019
macOS 10.6 to 10.15, 11.0
Linux 2.4.x to 4.11.x LTS Versions only
What's in the Box
Included in Package : 3ft USB to RS232 Cable

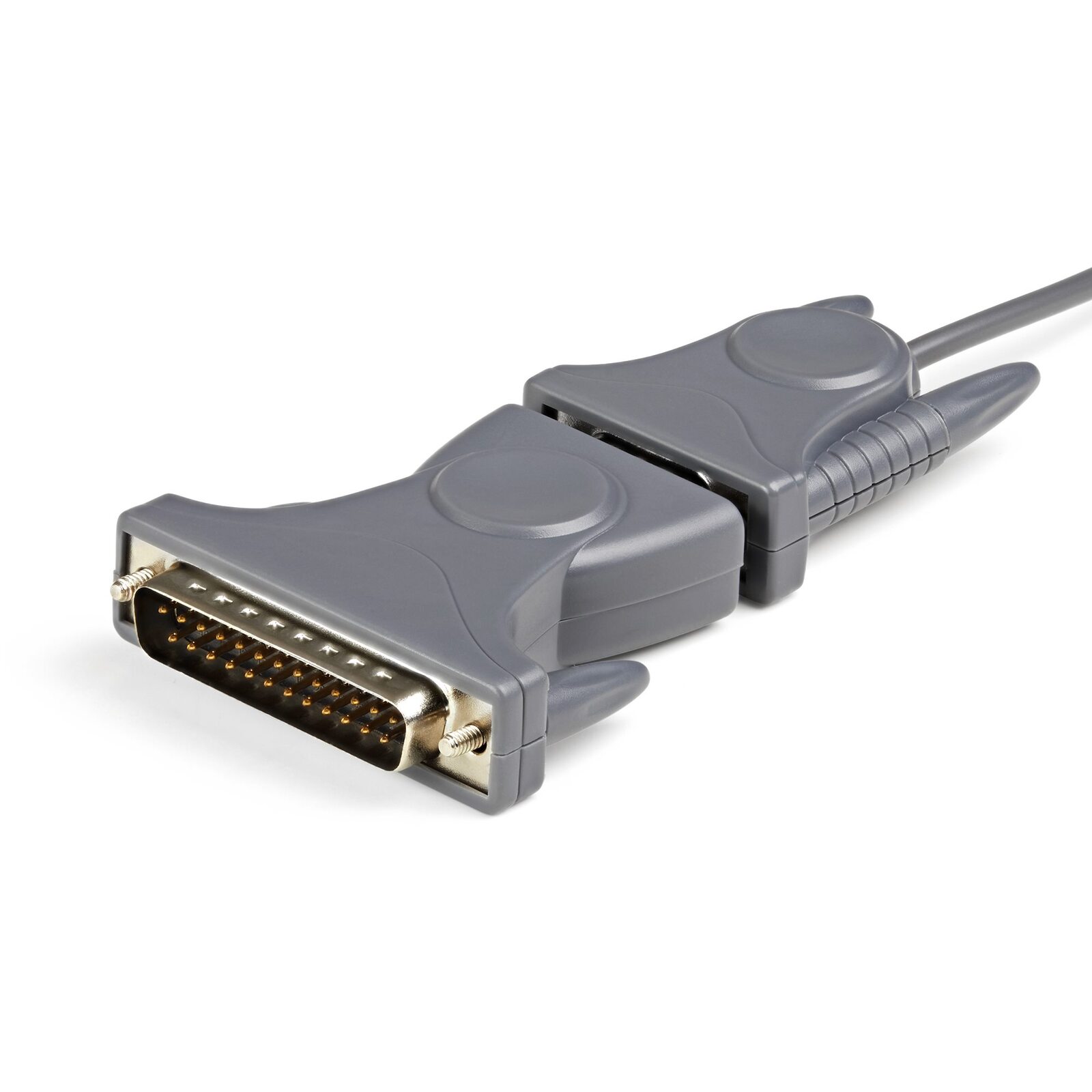

DB9 to DB25 Serial Adapter
Driver CD
Manual
Packaging Information
Shipping (Package) Weight : 143 g [5 oz]
Package Width : 14.3 cm [5.6 in]
Package Length : 17.2 cm [6.8 in]
Package Height : 32 mm [1.3 in]
Hardware
Ports : 1
Port Style : Cable Adapters
Interface : Serial
Chipset ID : Prolific - PL2303
Bus Type : USB 2.0
Environmental
Storage Temperature : -40°C to 85°C (-40°F to 185°F)
Operating Temperature : 0°C to 70°C (32°F to 158°F)
Humidity : 5~85% RH
Connector(s)

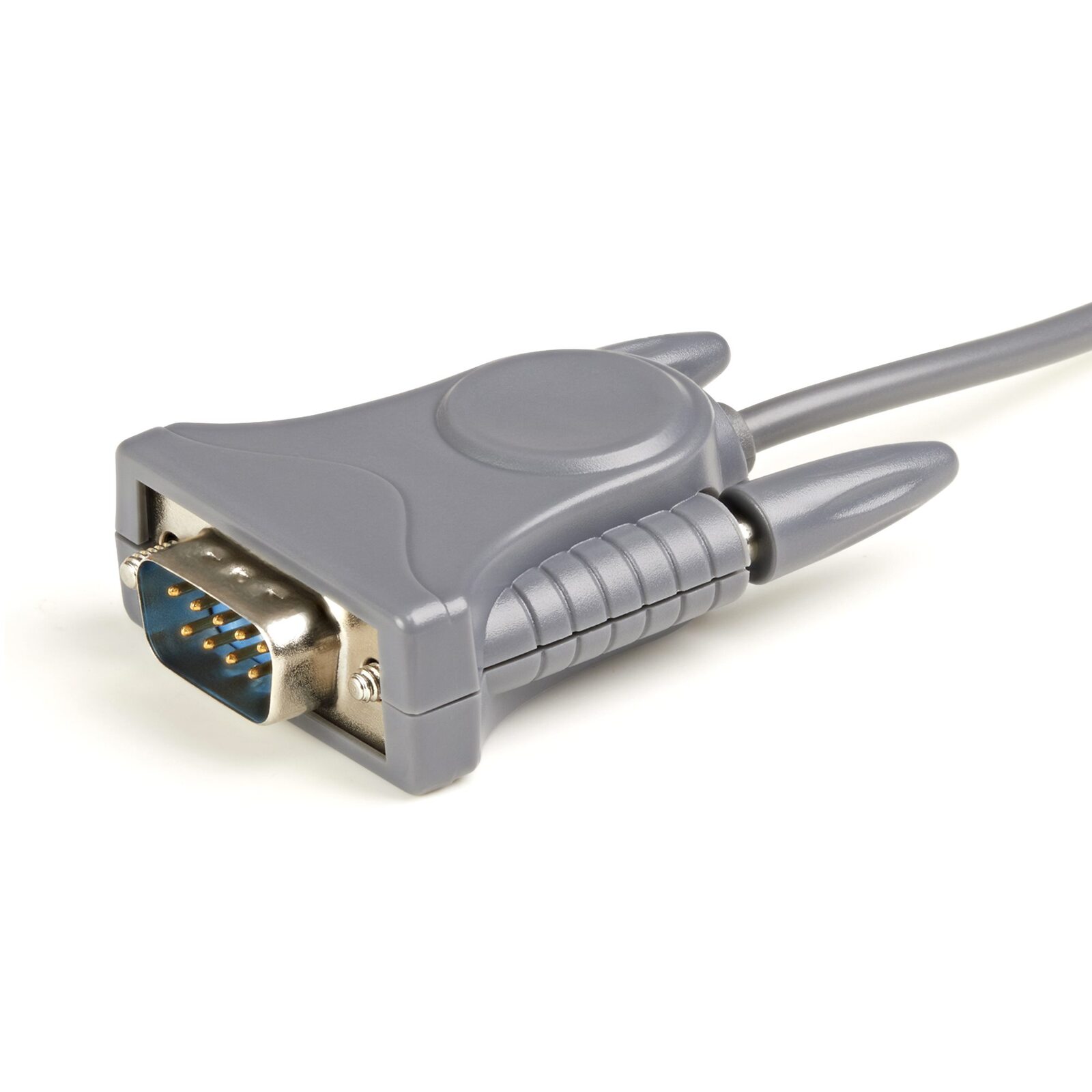

External Ports : DB-9 (9 pin, D-Sub) Male
DB-25 (25 pin, D-Sub) Male

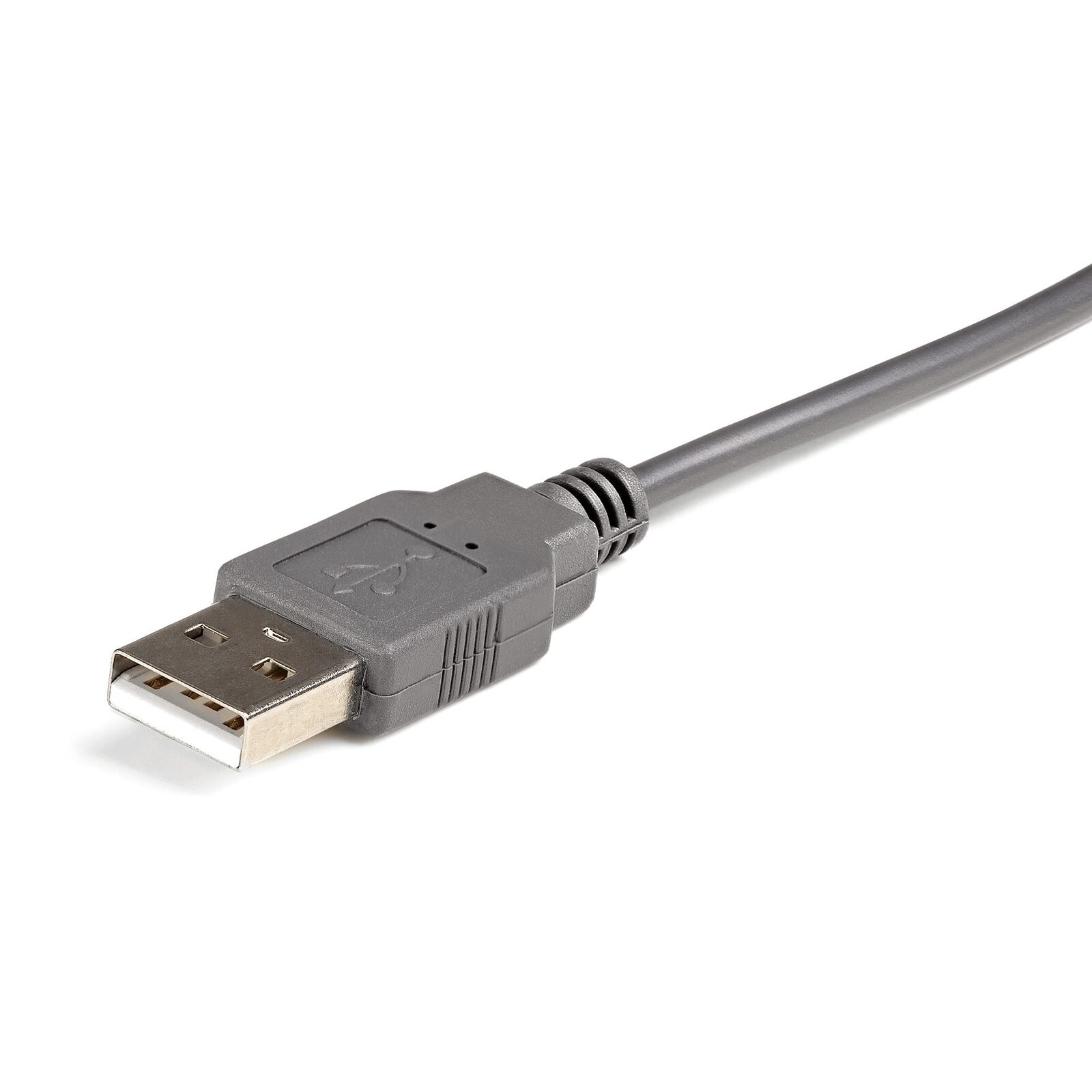

Connector Type(s) : USB Type-A (4 pin) USB 2.0 Male
This item comes with a 2 Years warranty
