TP-Link ES205GP Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+

Image 1
Image 2
Image 3
Limited Stock
$82.42

Collect 82 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Best Deal Computers
Secure ways to pay at checkout

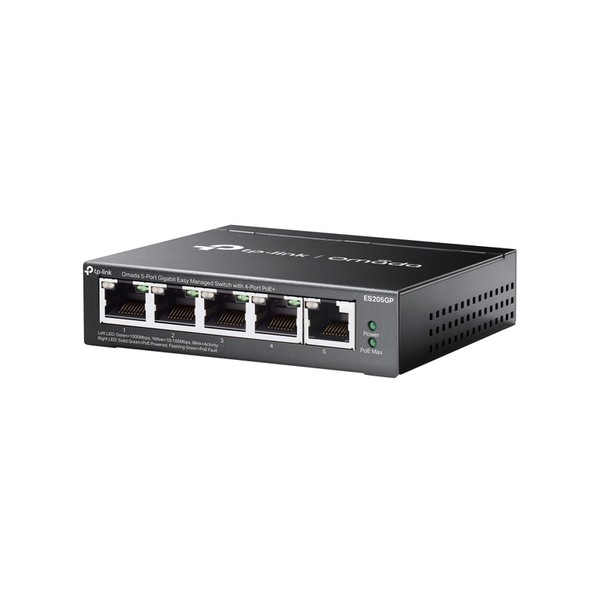

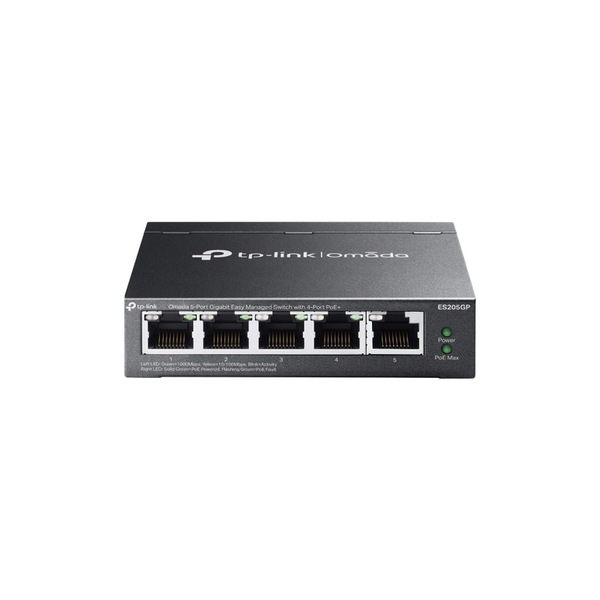

TP-Link ES205GP Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+

TP-Link ES205GP, Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+

Features:
  • 5x 10/100/1000Mbps RJ45 ports (4x 802.3at/af-compliant PoE+)
  • 65W Power Budget, with up to 30Wfor each PoE port*
  • Easy to Use: Supportsplug-and-play for instant connectivity and simple configuration for additional features
  • Centralised Cloud Management via the web or the Omada app†
  • Up to 250m PoE**, QoS?, PoE Auto Recovery†, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/wall mounting design
  • Learn more about OmadaPoE technology >
  • Learn more about Omada Cloud SDN>?
Specifications:

HARDWARE FEATURES

  • Interface :5x 10/100/1000 Mbps RJ45 Ports (Ports 1-4 Support 802.3at PoE+ and 802.3af PoE)
    Auto-Negotiation/Auto MDI/MDIX
  • Fan Quantity :Fanless
  • Installation :Desktop
    Wall Mount
  • Physical Security Lock :?

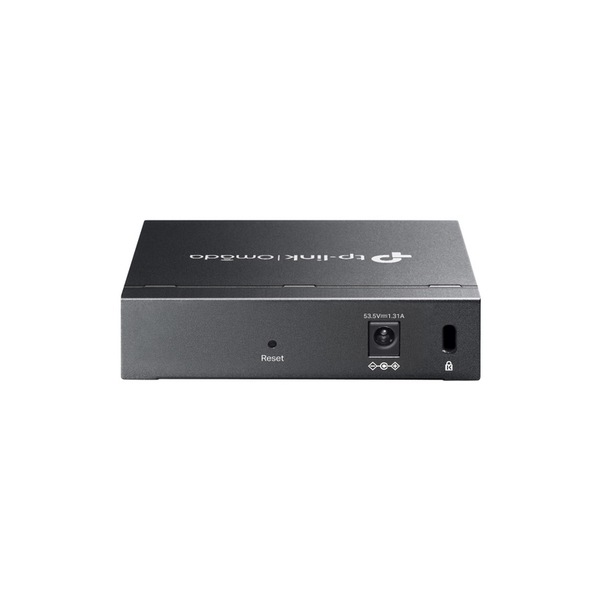

  • Power Supply :DC Power Adapter (Output: 53.5 VDC/ 1.31 A)
  • PoE Ports (RJ45) :Standard: 802.3af PoE and 802.3at PoE+ compliant
    PoE Ports: 4 ports
    PoE Budget: 65 W available for all PoE+ ports, 30W max per port
    PoE Auto Recovery†
    Up to 250m PoE transmission distance**
  • Dimensions ( W x D x H ) :3.9x3.9x1.0 in (100x98x25 mm)

PERFORMANCE

  • Switching Capacity :10 Gbps
  • Packet Forwarding Rate :7.4 Mpps
  • MAC Address Table :8K
  • Packet Buffer Memory :4 Mbit
  • Jumbo Frame :15 KB

SOFTWARE FEATURES

  • Quality of Service :Port-based/802.1p/DSCP QoS
    8 Priority Queues
    Priority Schedule Mode
    - WRR (Weighted Round Robin)
    Queue Weight Config
    Bandwidth Control
    - Port-Based Rating Limit
    Storm Control
    - Multiple Control Modes (kbps/pps)
    - Broadcast/Multicast/Unknown-Unicast Control?
  • L2 Features :Static Link Aggregation
    Loop Prevention / Loopback Detection
    Flow Control
    - 802.3x Flow Control
    Mirroring
    - Port Mirroring
    - One-to-One
    - Many-to-One
    - Ingress/Egress/Both
    Port Statistics
    - Port Mirror Status
    - Traffic Statistics
    802.1ab LLDP
  • L2 Multicast :IGMP Snooping
    - IGMP v1/v2/v3 Snooping
    - Fast Leave
  • VLAN :MTU VLAN
    Port-Based VLAN
    802.1Q Tag VLAN
    - Max 32 VLAN Groups
    - 4K VID
  • Transmission Method :Store-And-Forward

MANAGEMENT

  • Omada App :Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  • Centralized Management :Omada Cloud-Based Controller
    Omada Hardware Controller
    Omada Software Controller
  • Cloud Access :Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  • Zero-Touch Provisioning :Yes. Requires the use of Omada Cloud-Based Controller
  • Management Features :Web-based GUI
    DHCP Client
    Cable Diagnostics
    Automatic Device Discovery†
    Batch Configuration†
    Batch Firmware Upgrading†
    Unified Configuration†

OTHERS

  • Certification :FCC, CE, RoHS
  • Package Contents :ES205GP
    Power Adapter
    Installation Guide
    Rubber Feet
  • Environment :Operating Temperature: 0?~40? (32?~104?)
    Storage Temperature: -40?~70? (-40?~158?)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing

SKU: SWI-TPL-ES205GP
