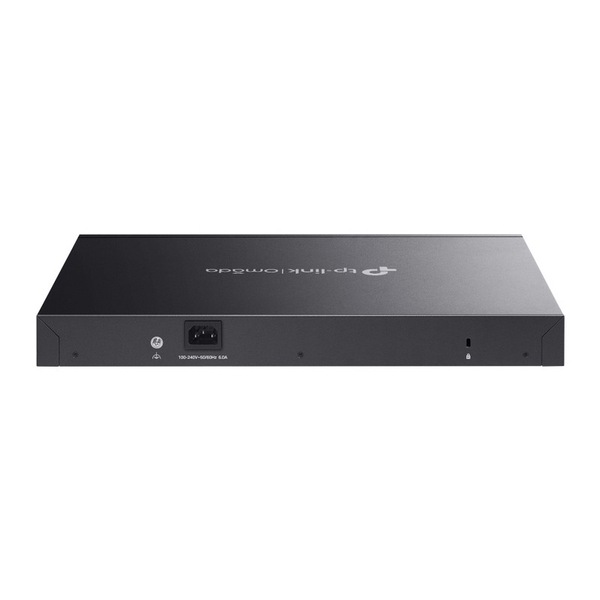

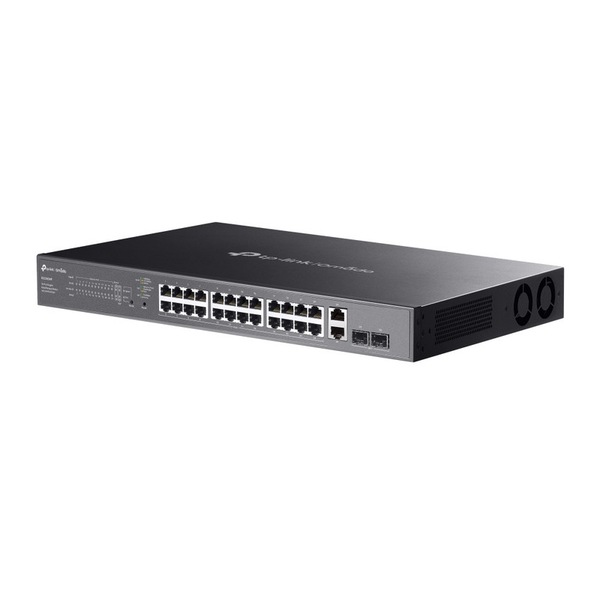

TP-Link ES228GMP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+

Image 1
Image 2
Image 3
Hurry! 10 items left!
$552.33

Collect 552 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Best Deal Computers
Secure ways to pay at checkout
Pay in 4 interest-free payments of $138.08 with PayPal

Popular Products

TP-Link ES228GMP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+

TP-Link ES228GMP, Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+

Features:
  • 26x 10/100/1000Mbps RJ45 ports (24x 802.3af/at-compliant PoE+)
  • 2x Gigabit SFP port
  • 384W Power Budget, with up to 30Wfor each PoE port*
  • Easy to Use: Supportsplug-and-play for instant connectivity and simple configuration for additional features
  • Centralised Cloud Management via the web or the Omada app
  • Up to 250m PoE**, QoS?, PoE Auto Recovery†, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Durable metal casing and rack-mountable design
  • Learn more about OmadaPoE technology >
  • Learn more about Omada Cloud SDN>?
Specifications:

HARDWARE FEATURES

  • Interface :24x 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)
    2x 10/100/1000 Mbps RJ45 Port
    2x Gigabit SFP Slot
    Auto-Negotiation/Auto MDI/MDIX
  • Fan Quantity :2
  • Installation :Rackmountable
  • Physical Security Lock :?
  • Power Supply :100-240V AC, 50/60Hz
  • PoE Ports (RJ45) :Standard: 802.3af PoE and 802.3at PoE+ compliant
    PoE Ports: 24 ports
    PoE Budget: 384W available for all PoE+ ports, 30W max per port
    Fast PoE & Perpetual PoE
    PoE Auto Recovery
    Up to 250m PoE transmission distance**
  • Dimensions ( W x D x H ) :17.3 x 13.0 x 1.7 in.(440 x 330 x 44 mm)
  • Surge Protection :±6kV

PERFORMANCE

  • Switching Capacity :56 Gbps
  • Packet Forwarding Rate :29.76 Mpps
  • MAC Address Table :8K
  • Packet Buffer Memory :4 Mbit
  • Jumbo Frame :15 KB

SOFTWARE FEATURES

  • Quality of Service :Port-based/802.1p/DSCP QoS
    8 Priority Queues
    Priority Schedule Mode
    - WRR (Weighted Round Robin)
    Queue Weight Config
    Bandwidth Control
    - Port-Based Rating Limit
    Storm Control
    - Multiple Control Modes (kbps/pps)
    - Broadcast/Multicast/Unknown-Unicast Control?
  • L2 Features :Static Link Aggregation
    Loop Prevention / Loopback Detection
    Flow Control
    - 802.3x Flow Control
    Mirroring
    - Port Mirroring
    - One-to-One
    - Many-to-One
    - Ingress/Egress/Both
    Port Statistics
    - Port Mirror Status
    - Traffic Statistics
    802.1ab LLDP
  • L2 Multicast :IGMP Snooping
    - IGMP v1/v2/v3 Snooping
    - Fast Leave
  • VLAN :MTU VLAN
    Port-Based VLAN
    802.1Q Tag VLAN
    - Max 32 VLAN Groups
    - 4K VID
  • Transmission Method :Store-And-Forward

MANAGEMENT

  • Omada App :Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  • Centralized Management :Omada Cloud-Based Controller
    Omada Hardware Controller
    Omada Software Controller
  • Cloud Access :Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  • Zero-Touch Provisioning :Yes. Requires the use of Omada Cloud-Based Controller
  • Management Features :Web-based GUI
    DHCP Client
    Cable Diagnostics
    Automatic Device Discovery
    Batch Configuration
    Batch Firmware Upgrading
    Unified Configuration

OTHERS

  • Certification :FCC, CE, RoHS
  • Package Contents :ES228GMP
    Power Cord
    Mounting Brackets
    Rubber Feet
    Screws
    Installation Guide
  • Environment :Operating Temperature: -5?~45? (23?~113?)
    Storage Temperature: -40?~70? (-40?~158?)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing

GTIN: 1210002600989
