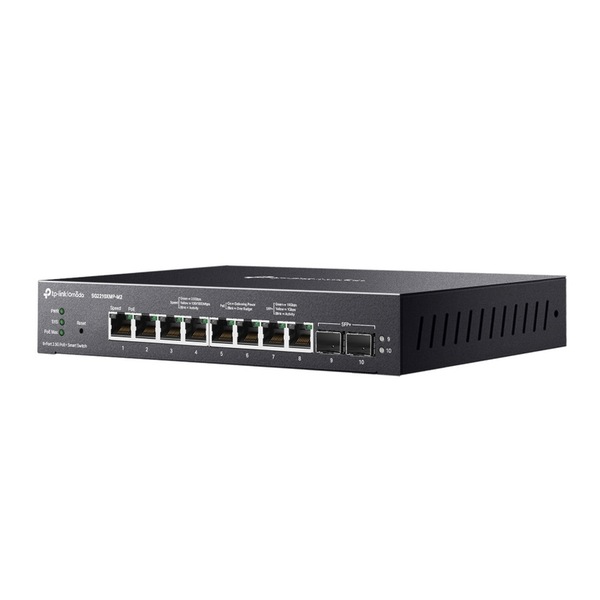

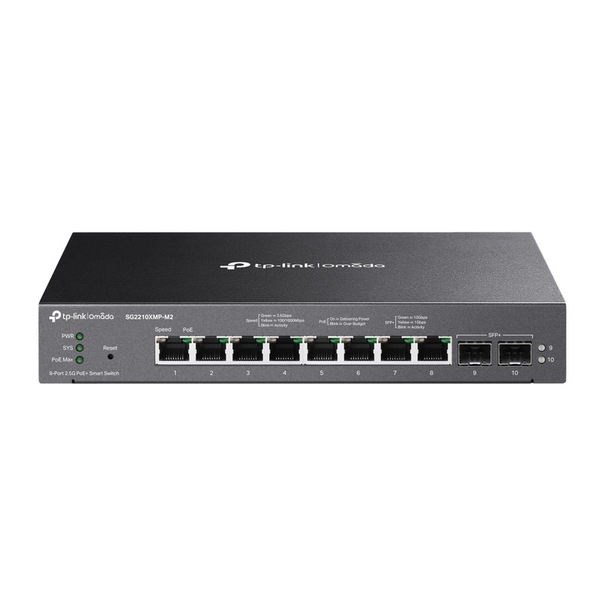

TP-Link SG2210XMP-M2 Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ Smart Switch 8-Port PoE+

Image 1
Image 2
Image 3
$438.05

Sold Out

Notify me when this product is back in stock

To understand how we handle your personal information, see our Privacy Collection Notice and Privacy Policy.

Shop More Products
Sold & shipped by Best Deal Computers

TP-Link SG2210XMP-M2, Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ Smart Switch with 8-Port PoE+

Features:
  • 8x 2.5 Gbps 802.3at/af-compliant PoE+ ports
  • 2x 10GSFP+ Slots
  • 160 W total PoE budget with up to 30 W PoE output per port*
  • Centralized cloud management via webor the Omada app†
  • Supports standalone management
  • Static Routing
  • Fanless design for quiet operation
  • Desktop/Wall-Mounting
  • Learn more about OmadaPoE technology >
  • Learn more about Omada Multi-Gig technology >
  • Learn more about Omada Cloud SDN>?
Specifications:

HARDWARE FEATURES

  • Interface :8x 100/1000/2500 Mbps RJ45 PoE+ Ports
    2x 10G SFP+ Slots
  • Fan Quantity :Fanless
  • Physical Security Lock :?
  • Power Supply :53.5VDC/3.37A Power Adapter
  • PoE Ports (RJ45) :Standard: 802.3at/af compliant
    PoE+ Ports: 8 Ports
    PoE Power Budget: 160 W*
  • Dimensions ( W x D x H ) :8.9 x 5.2 x 1.4 in (226 x 131 x 35 mm)
  • Mounting :Desktop/Wall-Mounting
  • Max Power Consumption :180.1 W (110V/60Hz) (with 160 W PD connected)
  • Max Heat Dissipation :614.58 BTU/hr (110V/60Hz) (with 160 W PD connected)

PERFORMANCE

  • Switching Capacity :80 Gbps
  • Packet Forwarding Rate :59.52 Mpps
  • MAC Address Table :16 K
  • Packet Buffer Memory :12 Mbit
  • Jumbo Frame :9 KB

SOFTWARE FEATURES

  • Quality of Service :802.1p CoS/DSCP priority
    8 priority queues
    Priority Schedule Mode
    - SP (Strict Priority)
    - WRR (Weighted Round Robin)
    Queue Weight Config
    Bandwidth Control
    - Port/Flow based Rating Limit
    Smoother Performance
    Storm Control
    - Multiple Control Modes(kbps/ratio)
    - Broadcast/Multicast/Unknown-Unicast Control
  • L2 and L2+ Features :32 IP Interfaces: Support IPv4/IPv6 Interface
    Static Routing: 32 IPv4/IPv6 Static Routes
    DHCP Server
    DHCP Relay
    - DHCP Interface Relay
    - DHCP VLAN Relay
    DHCP L2 Relay
    Static ARP
    Proxy ARP
    Gratuitous ARP
    Link Aggregation
    Spanning Tree Protocol
    Loopback Detection
    802.3x Flow Control
    Mirroring
    Device Link Detect Protocol (DLDP)
    802.1ab LLDP/ LLDP-MED
  • L2 Multicast :511 IPv4, IPv6 shared multicast groups
    IGMP Snooping
    Multicast VLAN Registration (MVR)
    Multicast Filtering
    Limited IP Multicast (256 profiles and 16 entries per profile)
  • Advanced Features :Automatic Device Discovery
    Batch Configuration
    Batch Firmware Upgrading
    Intelligent Network Monitoring
    Abnormal Event Warnings
    Unified Configuration
    Reboot Schedule
  • VLAN :VLAN Group
    - Max 4K VLAN Groups
    802.1Q Tagged VLAN
    MAC VLAN: 12 Entries
    Protocol VLAN
    GVRP
    Voice VLAN
  • Access Control List :Support up to 230 entries
    Time-based ACL
    MAC ACL
    IP ACL
    IPv6 ACL
    Combined ACL
    Rule Operation: Permit/Deny
    Policy Action
    - Mirroring
    - Redirect
    - Rate Limit
    - QoS Remark
    ACL Rules Binding
    - Port Binding
    - VLAN Binding
  • Security :IP-MAC-Port Binding
    AAA
    802.1X
    - Port based authentication
    - MAC (Host) based authentication
    - Authentication Method includes PAP/EAP-MD5
    - MAB
    - Guest VLAN
    - Support Radius authentication and accountability
    IP/IPv6-MAC Binding
    - 512 Binding Entries
    - DHCP Snooping
    - DHCPv6 Snooping
    - ARP Inspection
    - ND Detection
    - ND Snooping
    IP Source Guard
    - 253 Entries
    - Source IP+Source MAC
    IPv6 Source Guard
    - 183 Entries
    - Source IPv6 Address+Source MAC
    DoS Defend
    DHCP Filter
    Static/Dynamic/Permanent Port Security
    - Up to 64 MAC addresses per port
    Broadcast/Multicast/Unicast Storm Control
    Port Isolation
    Secure web management through HTTPS with SSLv3/TLS 1.2
    Secure Command Line Interface (CLI) management with SSHv1/SSHv2
    IP/Port/MAC based access control
  • IPv6 :IPv6 Static Routing and ACL
    IPv6 Dual IPv4/IPv6
    IPv6 Interface
    Multicast Listener Discovery (MLD) Snooping
    IPv6 neighbor discovery (ND)
    Path maximum transmission unit (MTU) discovery
    Internet Control Message Protocol (ICMP) version 6
    TCPv6/UDPv6
    IPv6 applications
    - DHCPv6 Client
    - Ping6
    - Tracert6
    - Telnet(v6)
    - IPv6 SNMP
    - IPv6 SSH
    - IPv6 SSL
    - Http/Https
    - IPv6 TFTP
  • MIBs :MIB II (RFC1213)
    Interface MIB (RFC2233)
    Ethernet Interface MIB (RFC1643)
    Bridge MIB (RFC1493)
    P/Q-Bridge MIB (RFC2674)
    RMON MIB (RFC2819)
    RMON2 MIB (RFC2021)
    Radius Accounting Client MIB (RFC2620)
    Radius Authentication Client MIB (RFC2618)
    Remote Ping, Traceroute MIB (RFC2925)
    Support TP-Link private MIB

MANAGEMENT

  • Omada App :Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  • Centralized Management :Omada Cloud-Based Controller
    Omada Hardware Controller
    Omada Software Controller
  • Cloud Access :Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  • Zero-Touch Provisioning :Yes. Requiring the use of Omada Cloud-Based Controller.
  • Management Features :Web-based GUI
    Command Line Interface (CLI) through telnet
    SNMPv1/v2c/v3
    SNMP Trap/Inform
    RMON (1,2,3,9 groups)
    SDM Template
    DHCP/BOOTP Client
    Dual Image, Dual Configuration
    CPU Monitoring
    Cable Diagnostics
    EEE
    SNTP
    System Log

OTHERS

  • Certification :CE, FCC, RoHS
  • Package Contents :SG2210XHP-M2 Switch
    Power Adapter
    Quick Installation Guide
    Rubber Feet
  • System Requirements :Microsoft® Windows® 98SE, NT, 2000, XP, Vistaâ„¢ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
  • Environment :Operating Temperature: 0-40 ? (32-104 ?);
    Storage Temperature: -40-70 ? (-40-158 ?)
    Operating Humidity: 10-90% RH non-condensing
    Storage Humidity: 5-90% RH non-condensing

SKU: SWI-TPL-SG2210X

Reference ID: 11949748
