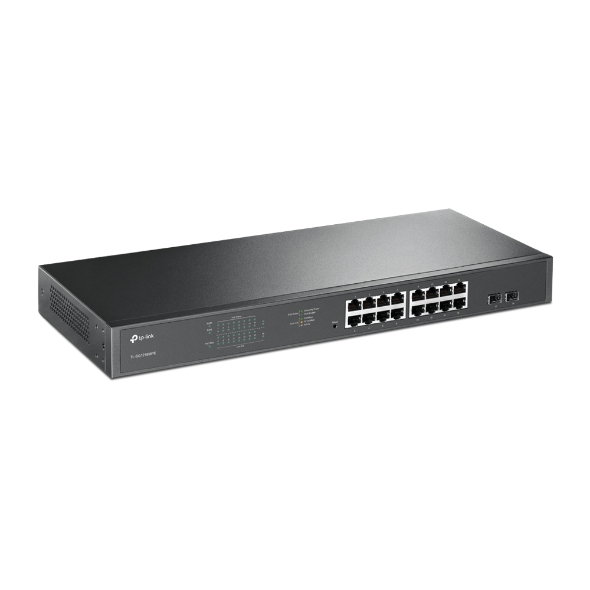

TP-Link TL-SG1218MPE 16-Port Gigabit PoE+ Easy Smart Switch, 16 Gigabit RJ45 Ports, 2 SFP Slots, 802.3at/af, 192W PoE Power, 1U 19-inch Rack-mountable TL-SG1218MPE

Image 1
Hurry! 18 items left!
$323.32

Collect 323 Everyday Rewards points

Log in to MyDeal to link your card
Secure ways to pay at checkout

NWTL-SG1218MPE


16 10/100/1000Mbps RJ45 Ports PoE/PoE+ Switch
PoE power budget is up to 192W, making it ideal for small to medium business surveillance system
Port Priority is able to guarantee the quality of sensitive application like video monitor
Intelligent power management can protect the switch from overload
QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV.


HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface 16 PoE+ 10/100/1000Mbps RJ45 Ports
2 Fiber Ports
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-X MMF, SMF
Fan Quantity 2 Fans
Physical Security Lock Yes
Power Supply 100-240V AC, 50/60 Hz
Backup Bandwidth 7.2 Gbps
PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant
PoE Ports: Port1- Port16
PoE Power Budget: 192W
Mac Address Table 8K
Dimensions ( W x D x H ) 17.3 7.1 1.7 in. (440 180 44 mm)
Mounting Rack Mountable
Max Power Consumption 18.73 W (220/50Hz. no PD connected)
217.22 W (220/50Hz. with 192W PD connected)
Max Heat Dissipation 63.89 BTU/h (no PD connected)
741.15 BTU/h (with 192W PD connected)


PERFORMANCE
Switching Capacity 36 Gbps
Packet Forwarding Rate 23.8 Mbps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 9 KB




GTIN: 6935364086923
