Product description

Product information:

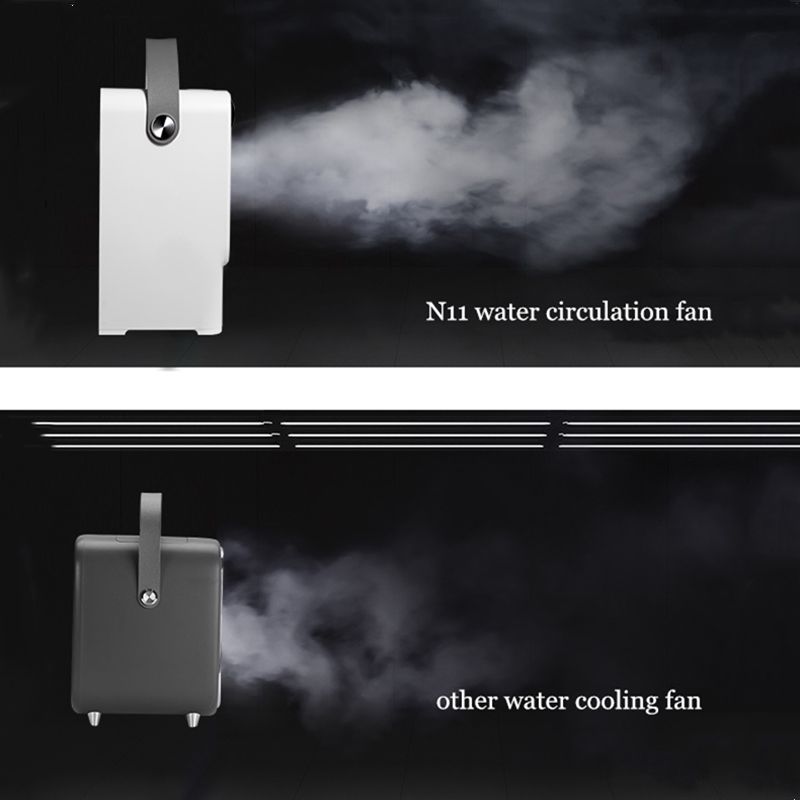

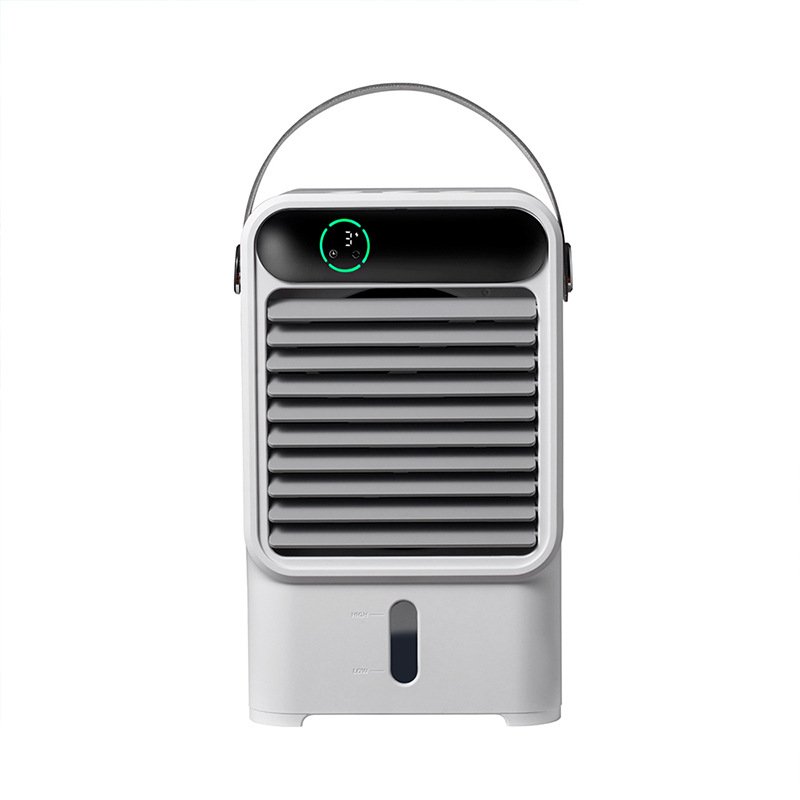

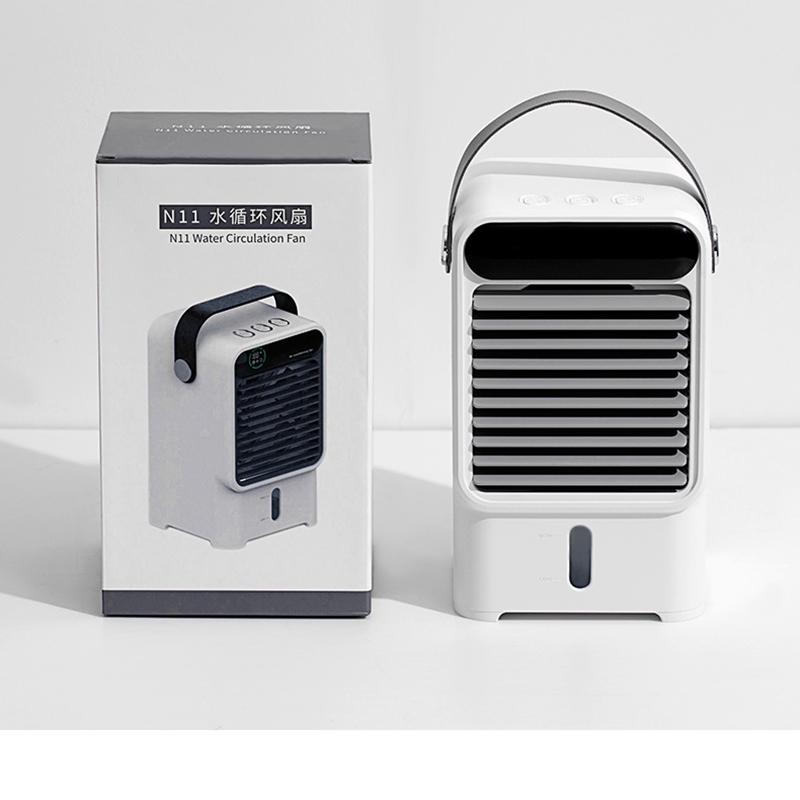

Product name: N11 water circulation fan

Product model: HND-N11

Material: ABS/PC/Electronic original device

Pump current: 0.2w

Use power: MAX 6W

Water usage time: about 6 hours

Working voltage: 5V=1A

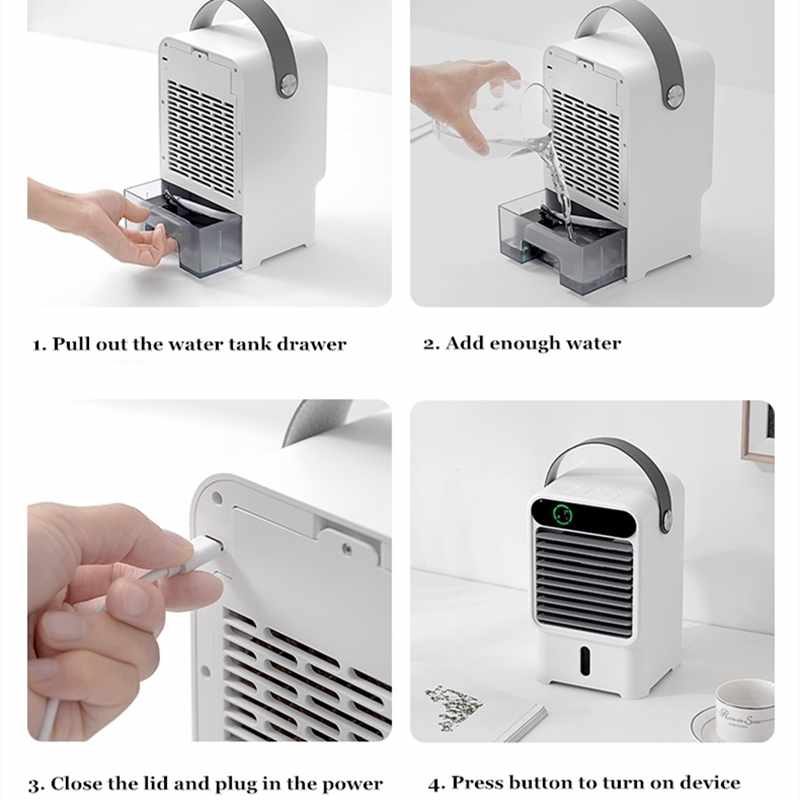

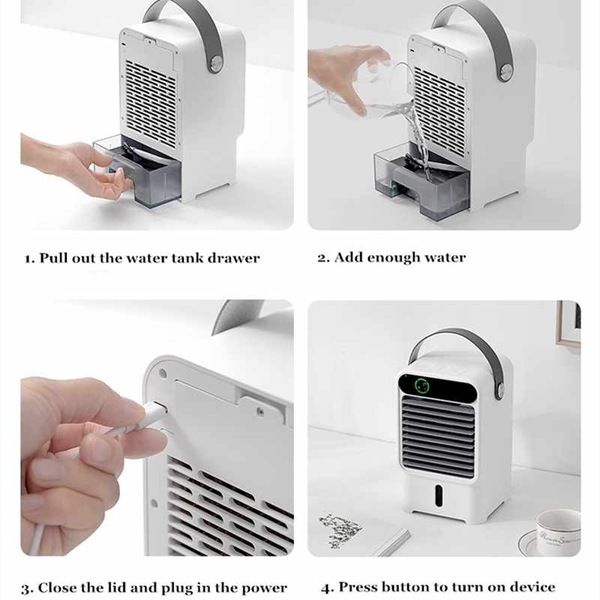

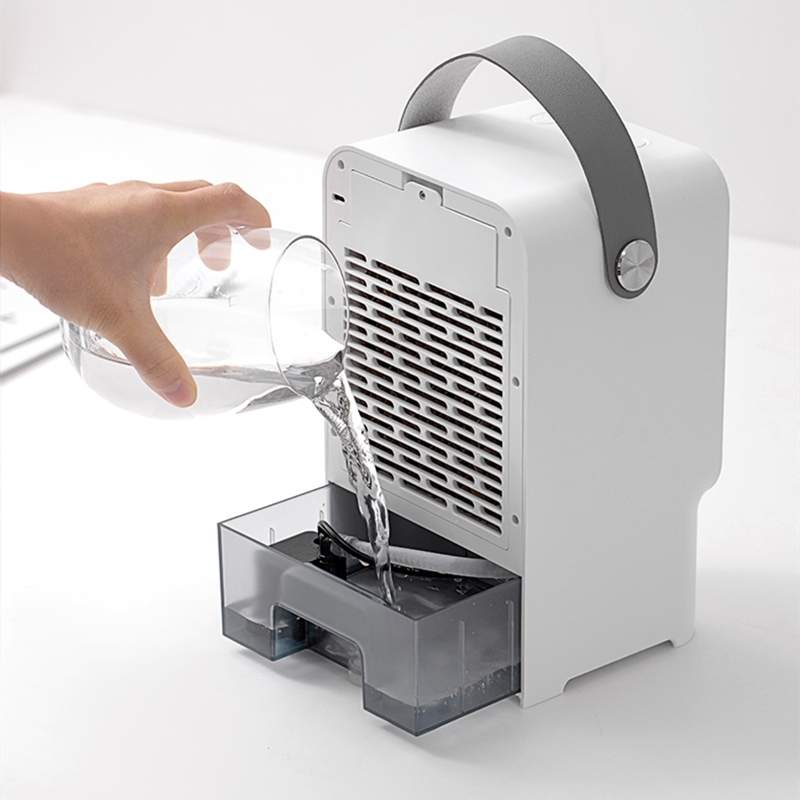

Water tank capacity: 500mL

Included in the product: host*1, data cable*1, manual*1

Button usage introduction:

�� Short press the fan button to turn on the machine. After turning on the display, the 4-circle indicator lights on the display will turn clockwise from the top light to turn on normally (equivalent to power-on self-test).

��The fan has 3 gears, press the first time to start, the first gear, the fan is 5V, the display shows 1; press the second time, the second gear, the fan is 7V, the display shows 2; press the third time, the 3rd gear, the fan 9V, the display shows 3; press the fourth time, all functions are turned off.

��When the product is turned on, no matter whether the fan, water pump, light and timing functions are turned on or off, long press the fan button, all functions will be turned off.

�� Short press the light button to turn on the ambient light, short press the light button again to turn off the ambient light, when the ambient light is turned on, the light logo on the display will light up. When the light is turned on or off, the digital display on the display will not change.

��Long press the light button for the timing function, long press for the first time, the timing is 2 hours, the display shows 2H; long press for the second time, the timing is 4 hours, the display shows 4H; long press for the third time, the timing is 8 hours, the display shows Screen hour 8H; long press for the fourth time, the timing function is turned off; when the timing function is turned on, the timing indicator of the display screen lights up, when long press the light button to adjust the timing, the display value is displayed according to the timing time, and switches after 1.5 seconds is the value of the wind speed gear.

�� Short press the water pump button, the water pump is turned on, and the water pump is a 5V brush motor; short press the water pump button again, the water pump is turned off; when the water pump is turned on, the display cycle mark starts, and when the water pump function is turned on or off, the digital display on the display does not occur. any changes.

��After the display screen of this product works for 3 minutes, the screen will automatically turn off, and the button will be operated, the screen will light up first, and then the button will be operated again, and the product will execute the next command.
