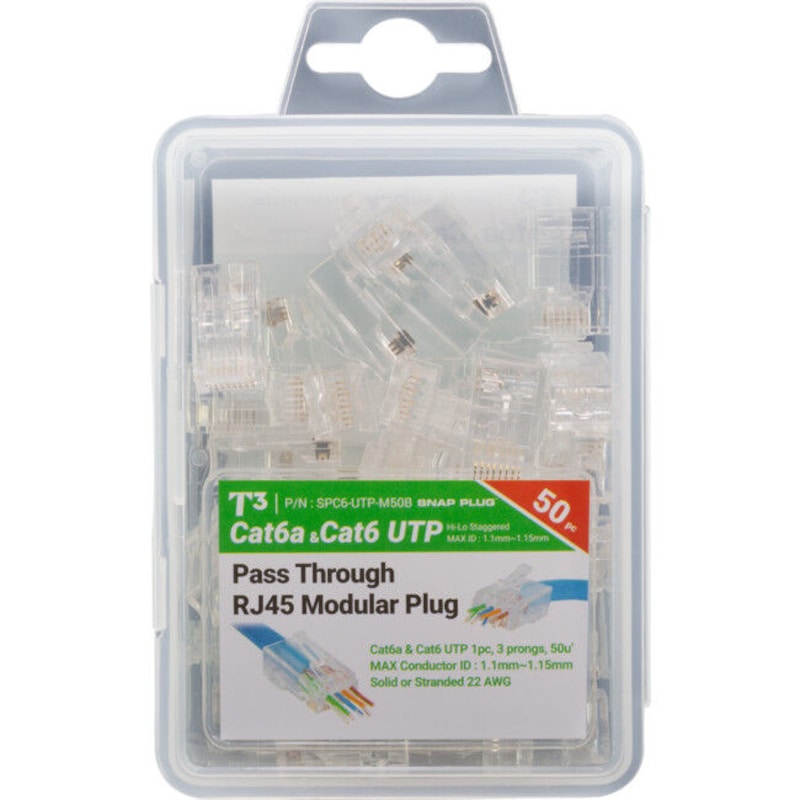

UTP RJ45 CAT6A SOLID SNAP PLUG

Image 1
Image 2
Image 3
$54.95

Collect 54 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Bourne Superstore
Secure ways to pay at checkout

{tab Features}

The T3 SNAP PLUG™ and SNAP PLUG Tool are designed to simplify the process of terminating RJ45 modular plugs. It is a time-consuming process to assemble traditional RJ45 modular plugs, and the most difficult part would be putting the wire into the conductor in the correct order. The thicker the conductor is, the more difficult the job is going to be.

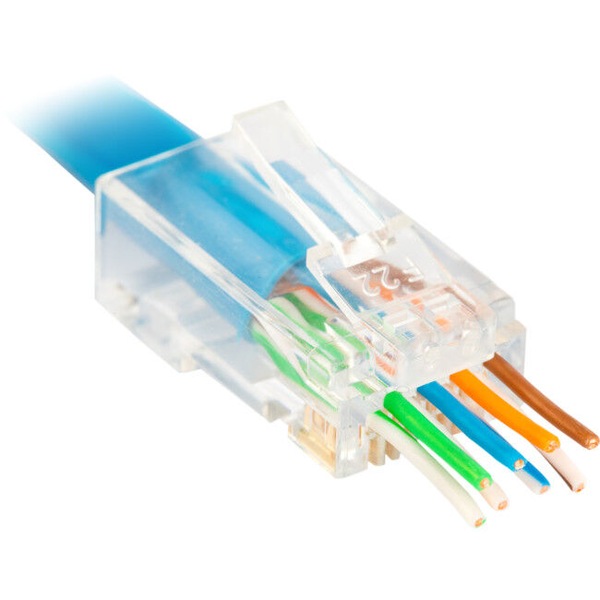

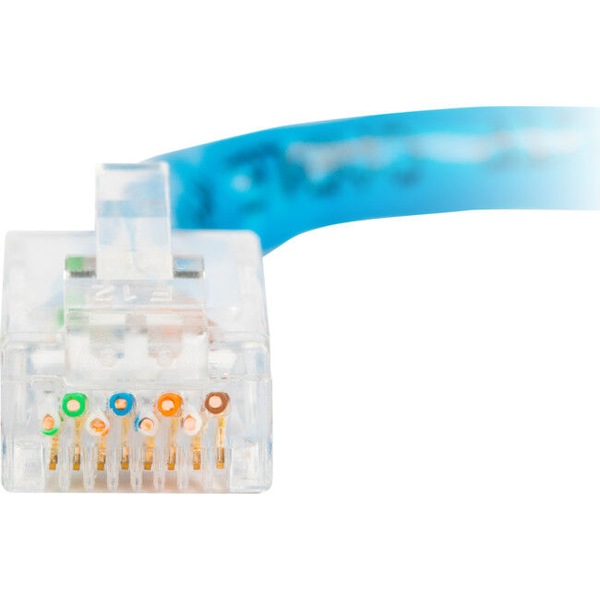

The T3 SNAP PLUG™ enables the conductors to pass through the connector itself, making it a lot easier to verify wiring order before crimp, reducing possible errors and waste of materials, save time and effort on terminating RJ45 connectors.
Use the SNAP PLUG TOOL to crimp and trim in a single step, making professional wire termination fast and easy.

Specifications
  • Cat6A UTP 1 piece 3 prongs
  • 50-micron fully gold-plated contacts
  • Max conductor ID: 1.1mm - 1.15mm Solid or stranded 22 AWG
  • Compliant with PoE and PoH standards
  • Meets ANSI/TIA specifications

{tab FAQ}

I have a Platinum Tools crimper EZRJPROHD that was designed for the Platinum Tools EZ connectors. Can I use this crimper on the T3 Snap Plug?
The T3 products are designed with tight tolerances to work perfectly together. Platinum Tools manufacture their EZplugs in the US as opposed to Taiwan, so their matching crimper is designed to work with just their connectors. Having said this, in our samples, the Platinum crimper stillworked with T3 connectors. Below is a picture of the end result. Note the slight indentation (damage) on the T3 connector left by the Platinum Tools crimper. Please be aware, as the crimp tool is not designed for otherplugs, if you use it very often, your crimp tool will be worn out quickly.

{/tabs}

GTIN: 9328202035158
