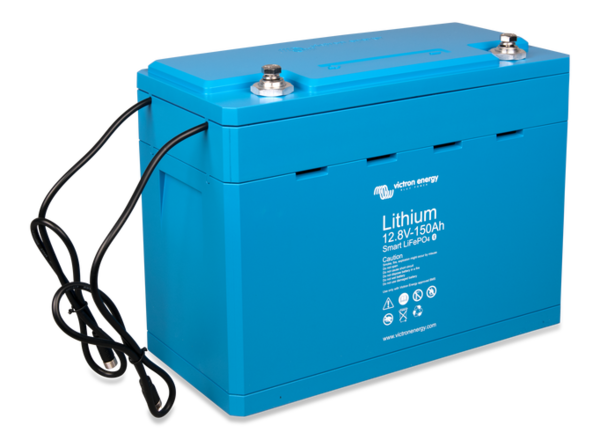

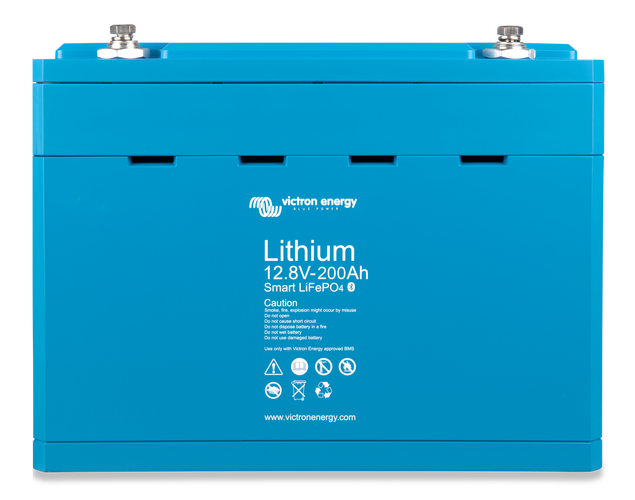

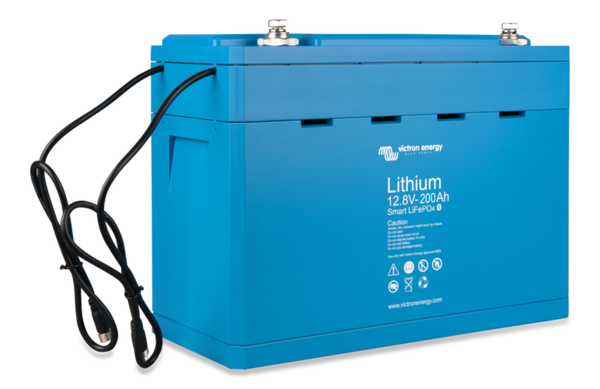

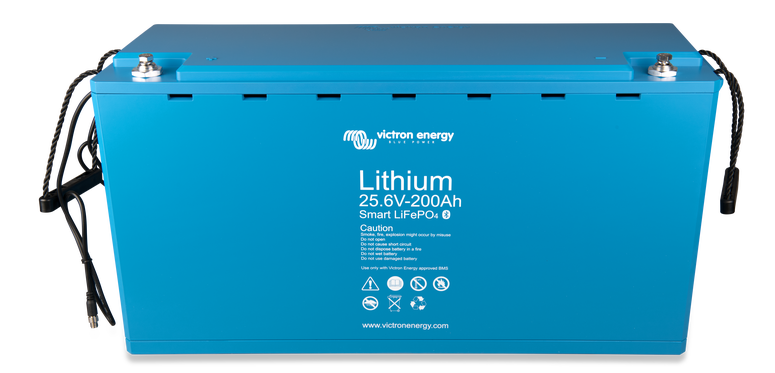

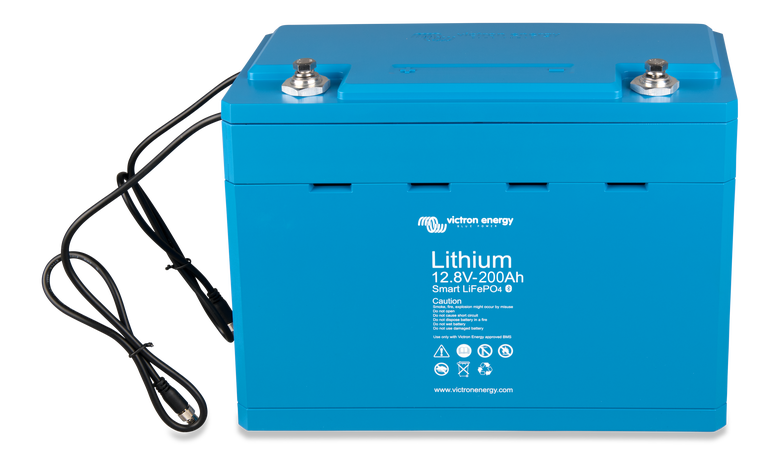

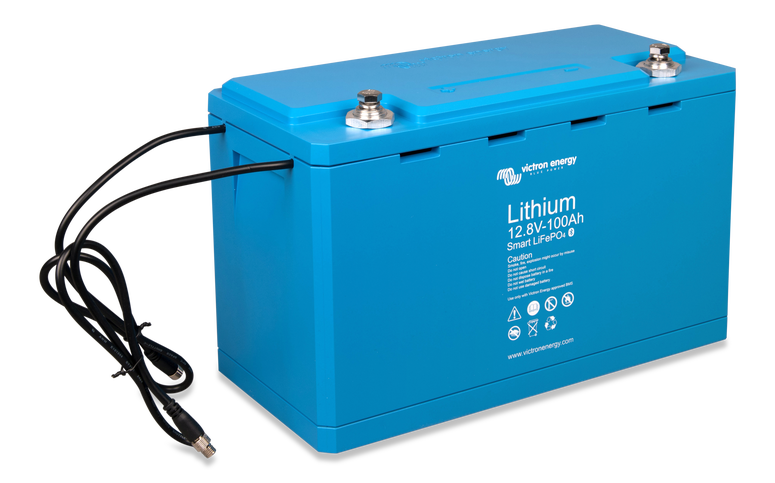

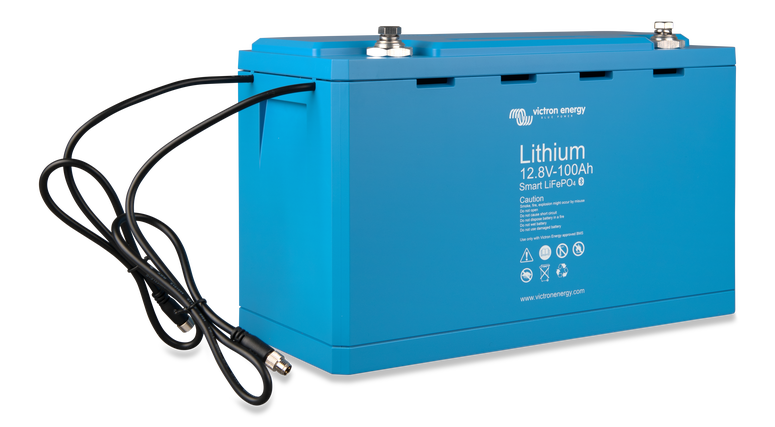

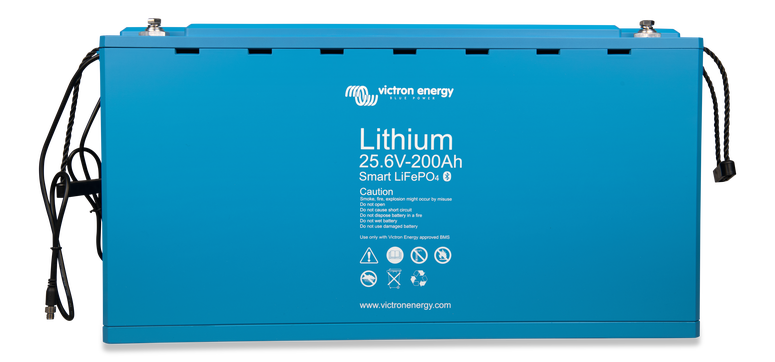

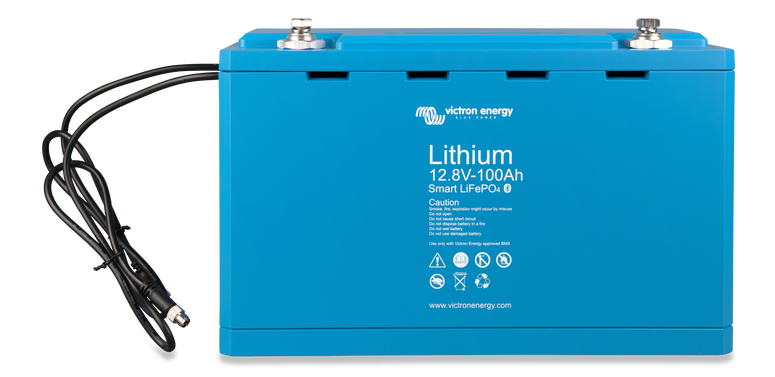

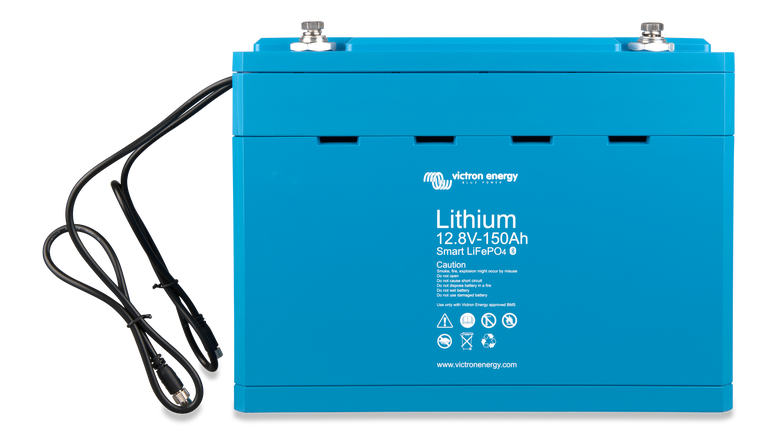

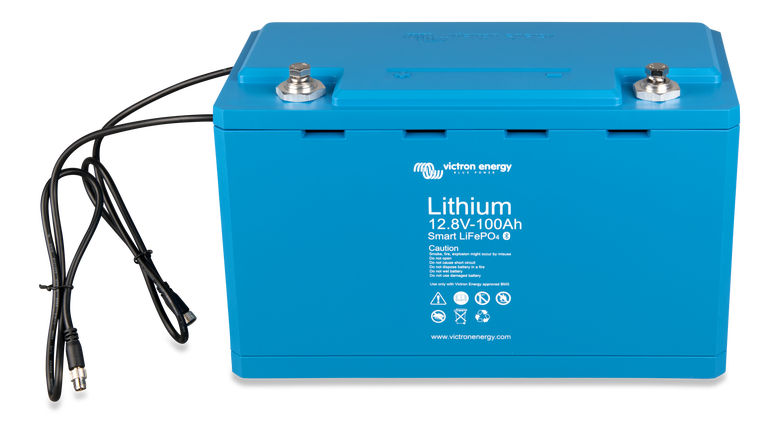

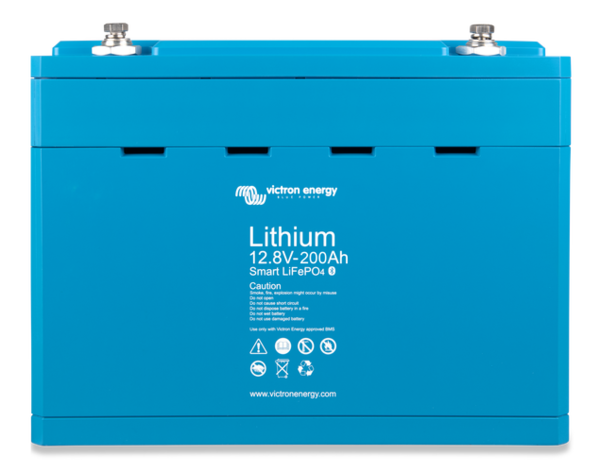

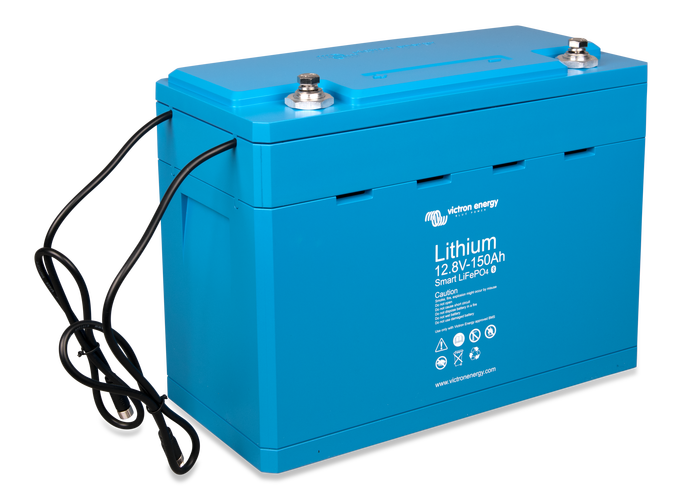

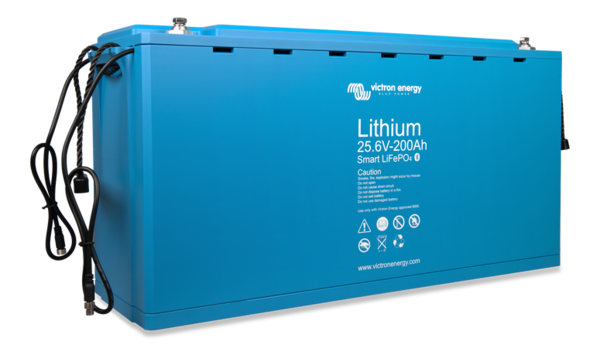

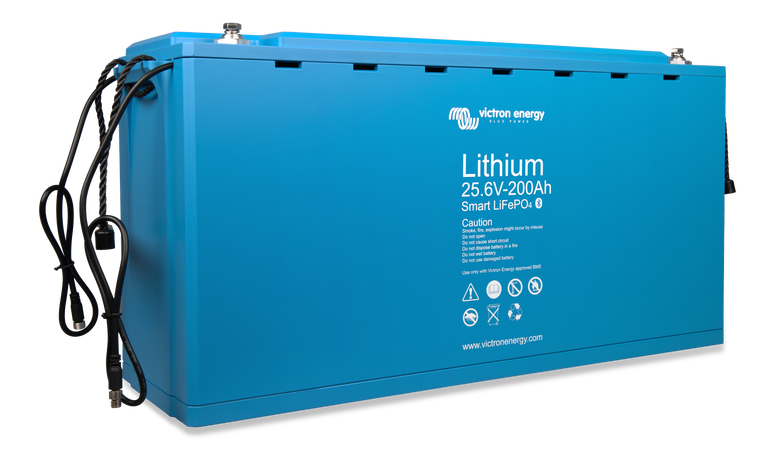

Victron Smart Lithium LiFePO4 battery 12V 24V Solar 4WD Caravan /w Bluetooth
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 1833 Everyday Rewards points
Dispatch in 2 business days
Collect 1833 Everyday Rewards points
Dispatch in 2 business days

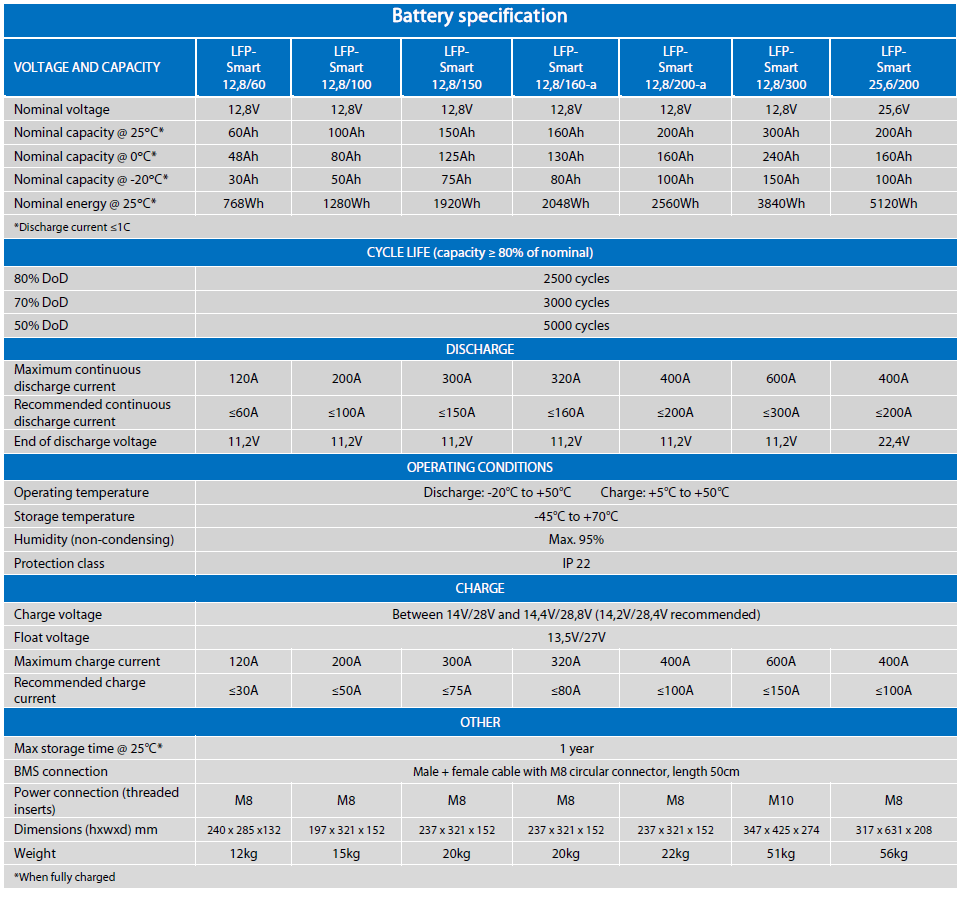

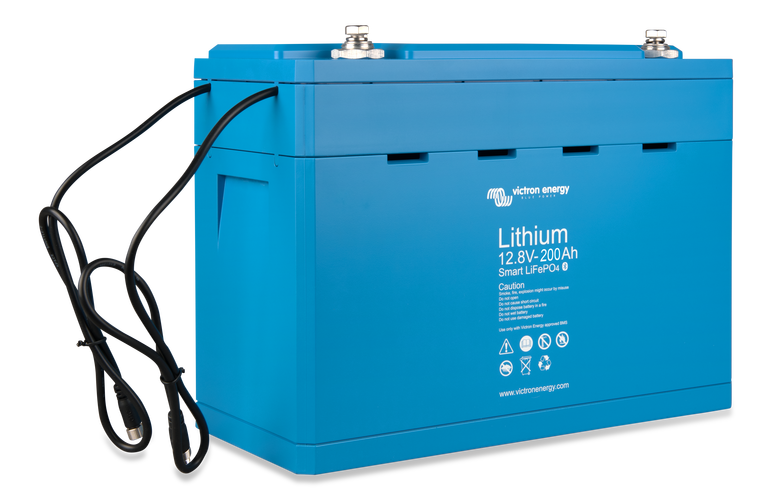

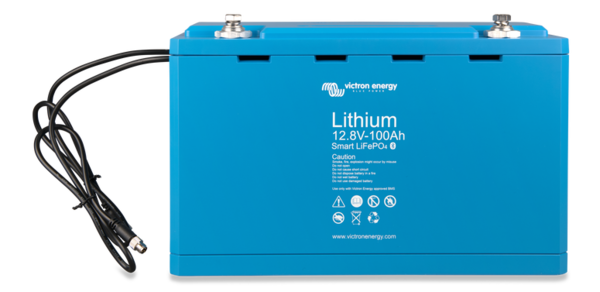

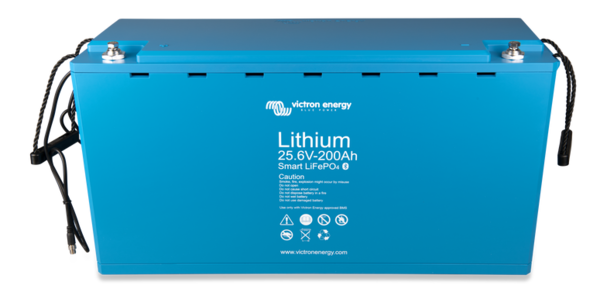

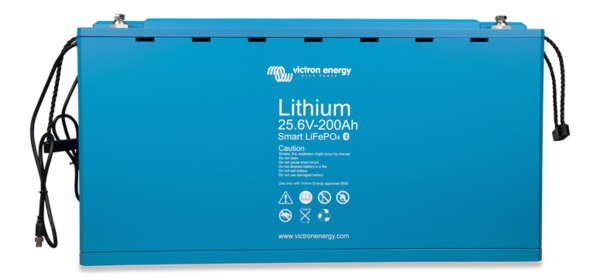

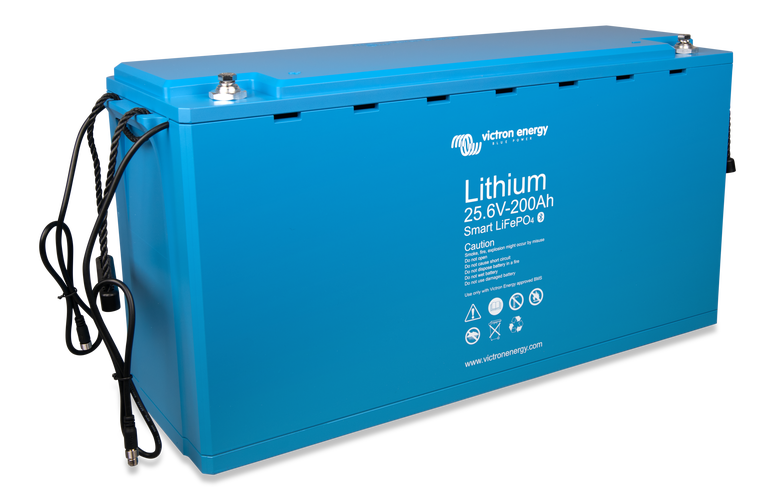

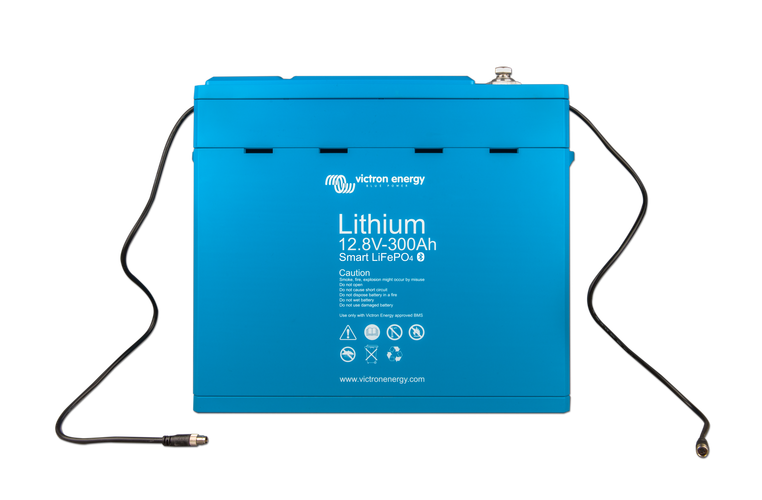

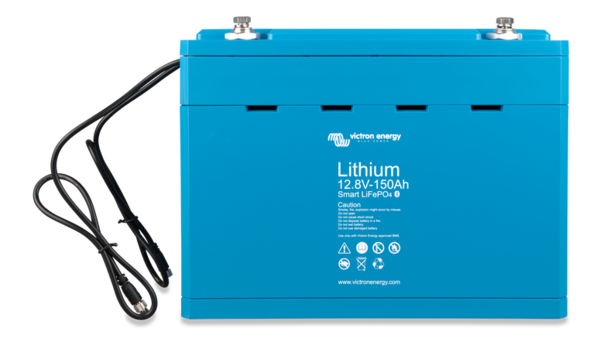

Victron LFP (Please see the 2nd image or tab for battery specification)
Â
Why lithium-iron-phosphate (LifePO4 or LFP)?
Battery Chemistry | Safty | Power Density* | Energy Density** | Cycles | Cost |
---|---|---|---|---|---|
Iron Phosphate (LFP) | High | High | Medium | High | Medium |
Nickel Manganese (NMC) | Medium | Medium | Medium | Low | Low |
Manganese (LMO) | Medium | Medium | Medium | Low | Low |
Titan ate (LTO) | High | High | Low | High | Medium |
Cobalt Oxide | Low | Low | High | Low | Low |
Power Density* is how quickly energy can be consumed | |||||
Energy Density** is storage campacity |
Â
VS Lead-acid Battery (AGM GEL)
A lead-acid battery will fail prematurely due to sulfation:
• If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged).
• If it is left partially charged or worse, fully discharged (yacht or mobile home during wintertime).
A LFP battery does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This is a major advantage of LFP compared to lead-acid. Other advantages are the wide operating temperature range, excellent cycling performance, low internal resistance and high efficiency (see below). LFP is therefore the chemistry of choice for demanding applications.
Life Cycles
Efficient
In several applications (especially off-grid solar and/or wind), energy efficiency can be of crucial importance. The round-trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average leadacid battery is 80%. The round-trip energy efficiency of a LFP battery is 92%. The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy is required (battery operating in 70% to 100% charged state). In contrast, a LFP battery will still achieve 90% efficiency under shallow discharge conditions.
Weight
Expensive?
LFP batteries are expensive when compared to lead-acid. But in demanding applications, the high initial cost will be more than compensated by longer service life, superior reliability and excellent efficiency
See more 24v lithium batteries here.
Part Number | BAT512110610 |
---|---|
Manufacturer | Victron Energy |
 ![]() |
 12,8 & 25,6 Volt lithium iron phosphate batteries Smart |
