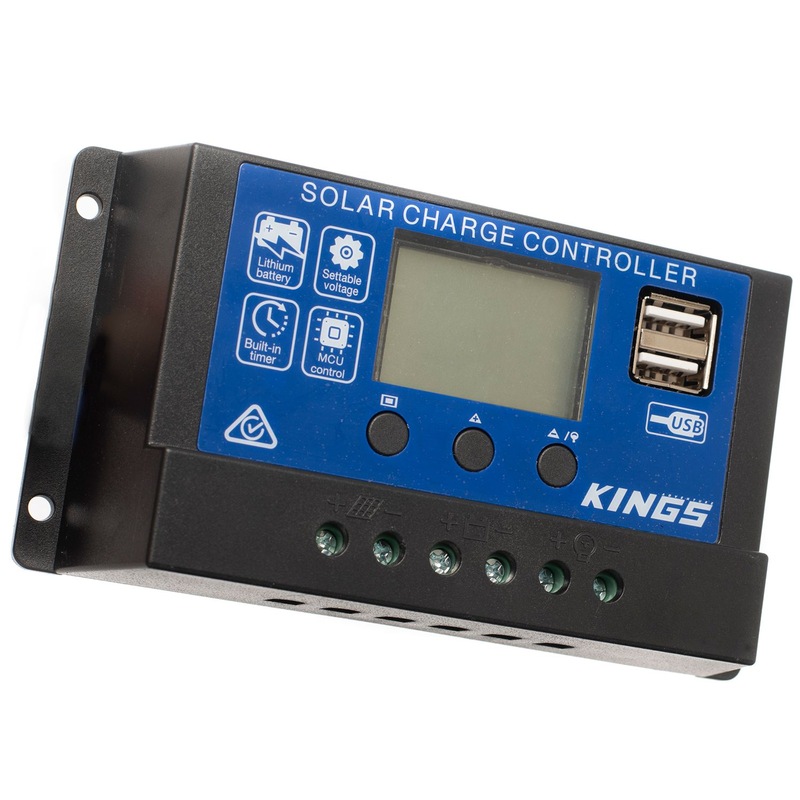

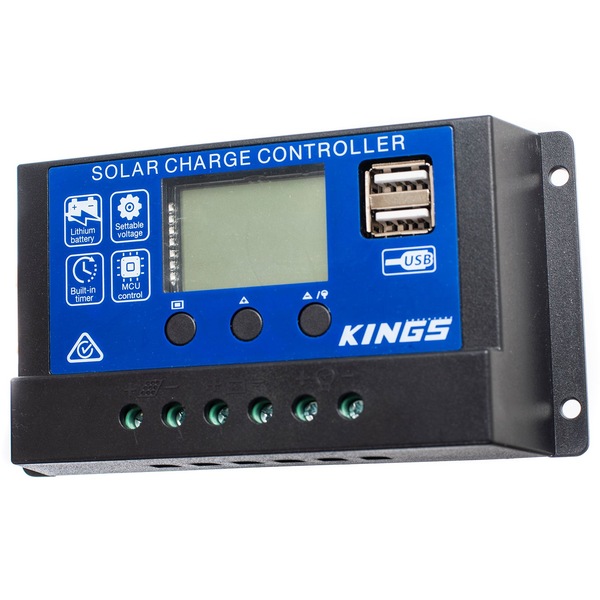

Adventure Kings 15A PWM Solar Regulator Controller 12V battery voltage output

Adventure Kings 15A PWM Solar Regulator Controller 12V battery voltage output

Price
$29.95
Collect 29 Everyday Rewards points
Log in to MyDeal to link your card
Shipping
$10.00 Australia-wide (per item)

24-48 hour dispatch
Quantity
Maximum item limit (50) has been reached.

Regulates Solar Output to Charge & Maintain 12v Batteries

• Simple Circuitry for Trouble Free Operation

• 3 Stage Charging – Boost, Equalise & Float

• PWM Technology, Easy To Connect / DIY

• Lcd Display + USB Ports, Built In Protections

15A PWM SOLAR CONTROLLER 3 STAGE CHARGING LCD DISPLAY BUILT IN PROTECTIONS PWM TECHNOLOGY


A Controller is a must for safeguarding your battery from the high voltage output of solar panels. This controller uses Pulse Width Modulation (PWM )to reduce the solar input voltage to a safer, lower output voltage, ideal for charging 12V batteries. Along with this, the PWM employs a 3-stage charging program: boost, equalise and float. Keeping your battery charged properly and ready to operate at peak performance.

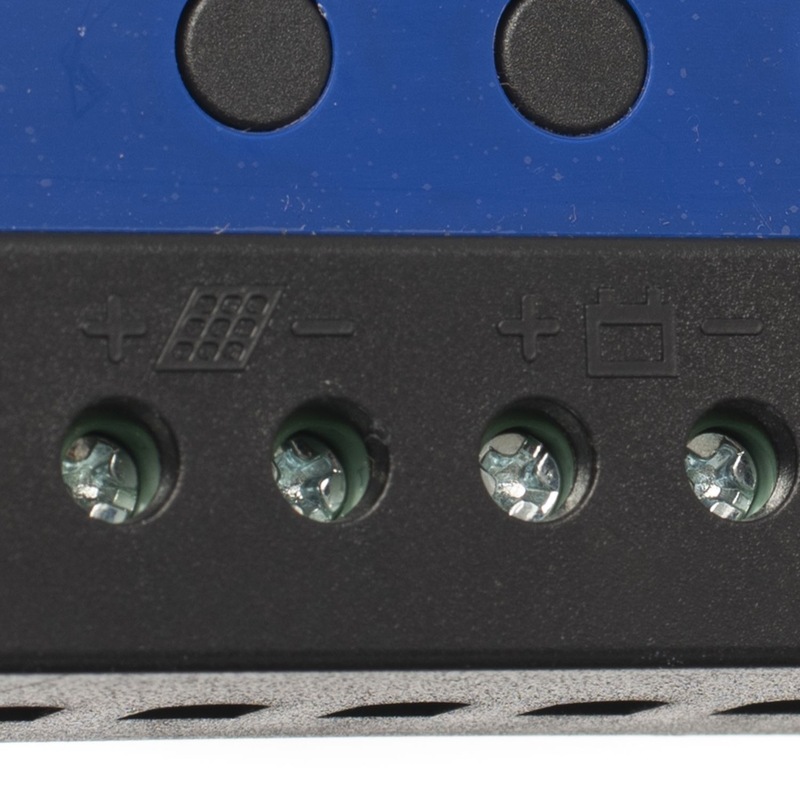

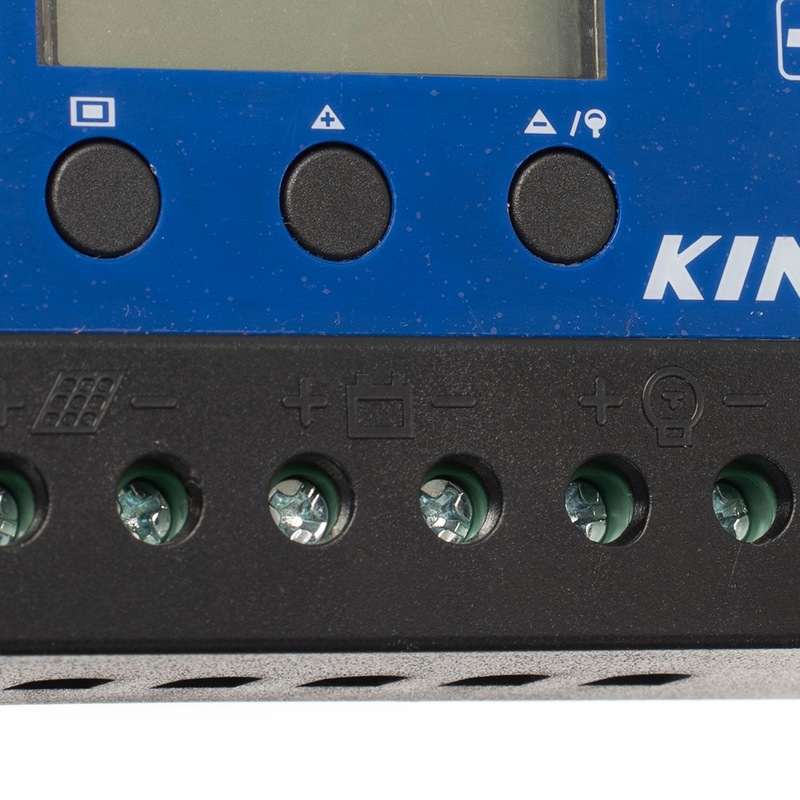

If you have a solar panel without it's own regulator, add this PWM Controller to your setup to safely and effectively charge your battery. Utilising screw in terminals, you can easily connect up to your solar panel and 12V system. The LCD screen allows you to easily change settings to best suit your setup.

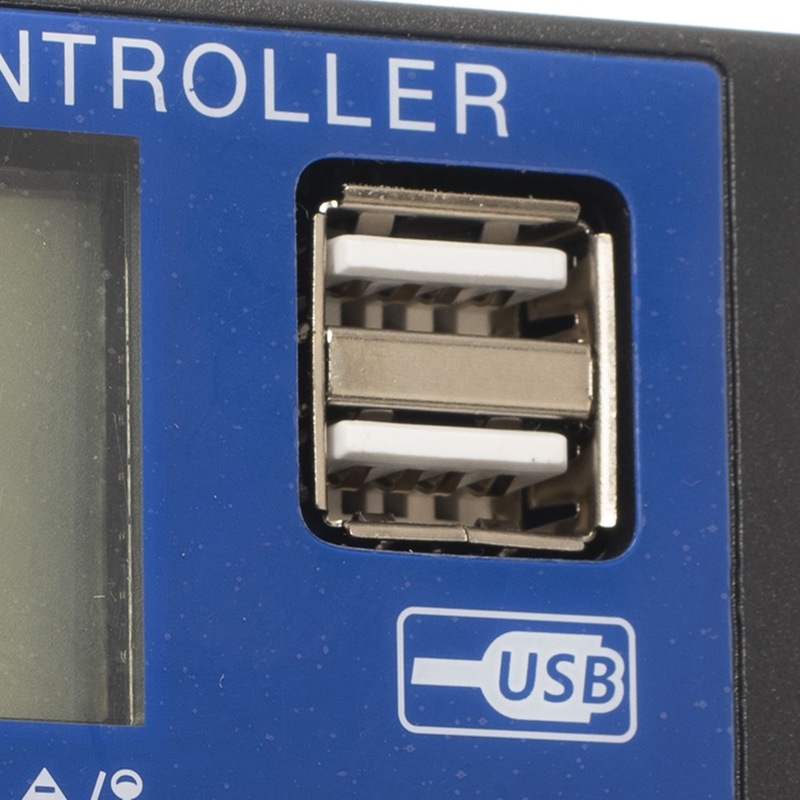

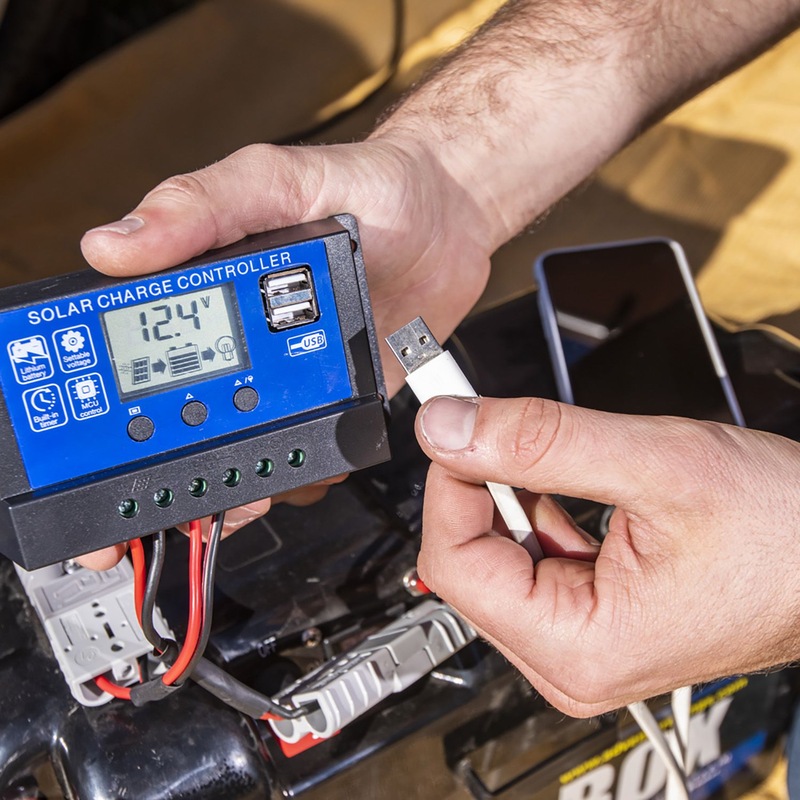

Equipped with an LCD screen so you can keep an eye on charging performance and battery voltage while it’s connected, it even features two USB ports so you can charge your devices directly from the PWM Controller.


Overcharge, over-discharge, overload, short-circuit, reverse-connection protection and transient voltage suppression diode to protect.

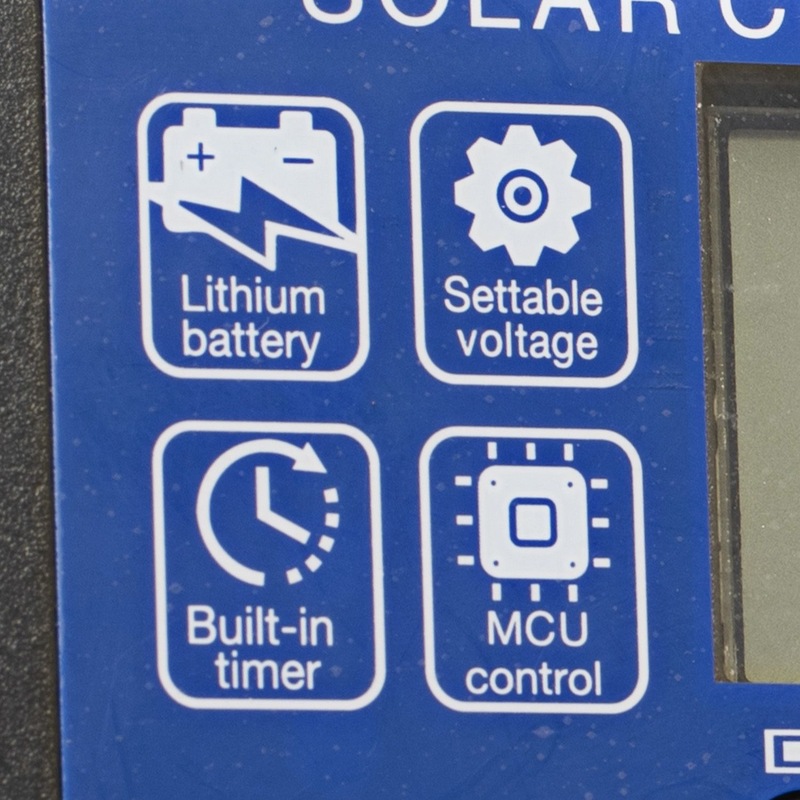

With the ability to charge sealed lead acid, AGM, gel and even lithium batteries* plus user adjustable settings and the option to use a load circuit this is a feature packed controller that’ll work well in any setup!


Plugs/wiring not included.





Specifications:


• Dimensions : 133 x 70 x 34mm


• Mounting Holes: 126 x 49mm


• Max Solar Input: <50V


• Float Charge: 7 – Default, Adjustable


• Discharge Stop: 7 – Default, Adjustable


• Discharge Reconnect: 6V – Default, Adjustable


• USB Output: 5V / 2A


• Weight: 154g

GTIN: 660989709204

Estimated Delivery Time Frame: 5-10 business days
