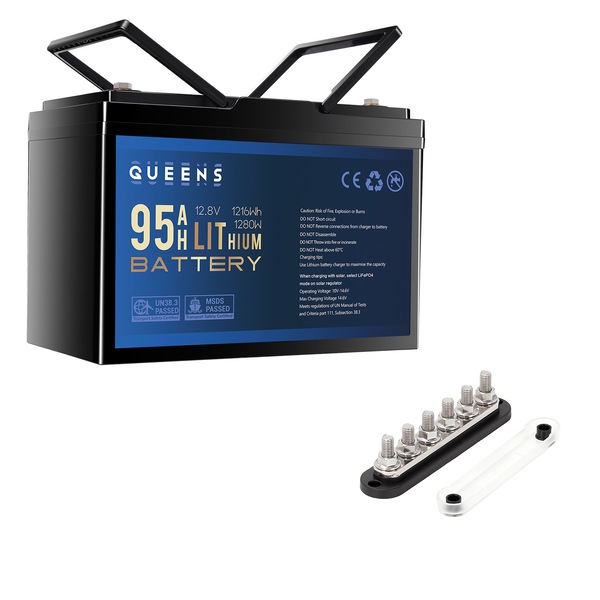

QUEENS 12V 1216Wh 100A Lithium Battery + Bus Bar M8 Power Distribution Terminal Block (6 GANG 300A Black)

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Shop More Products

Popular Products

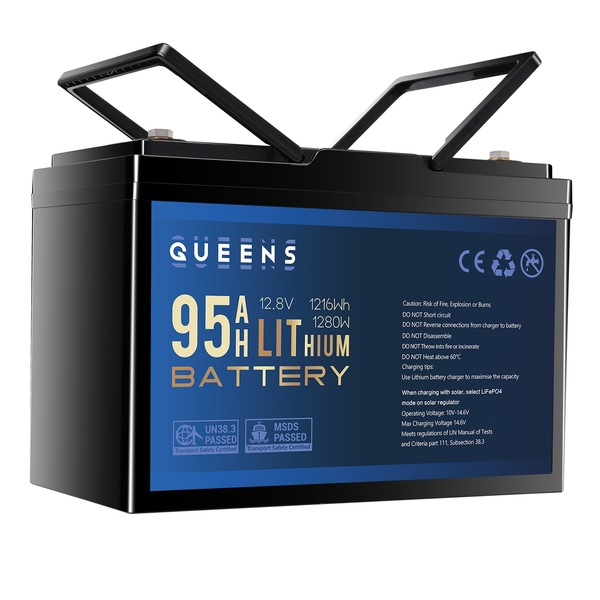

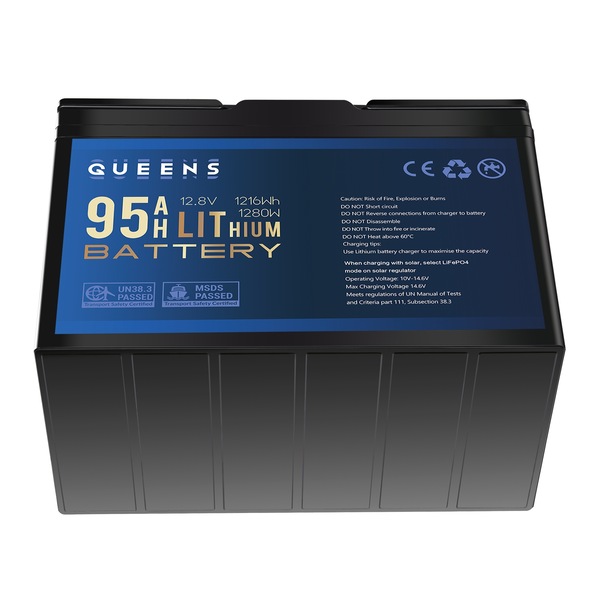

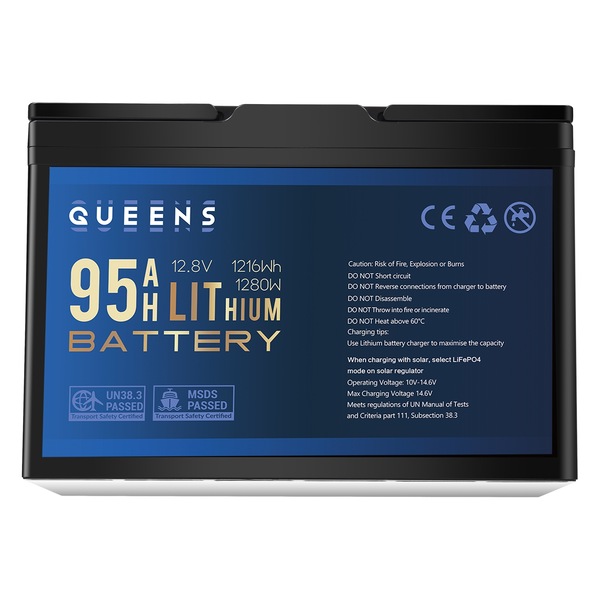

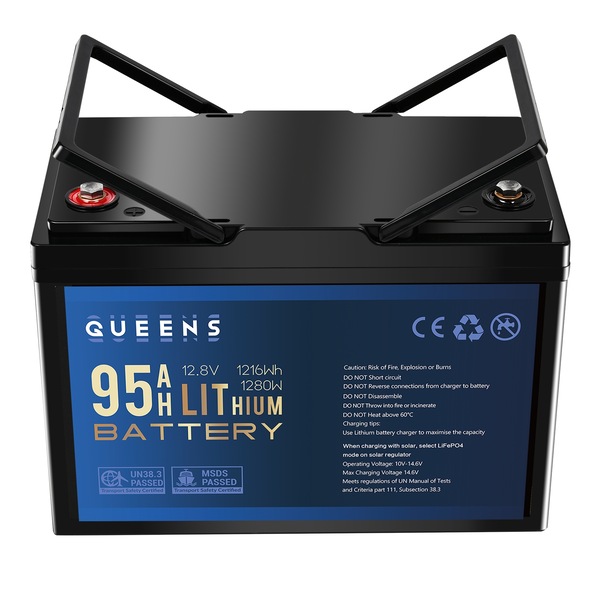

Product 1: QUEENS 12V 1216Wh 100A Lithium Battery

  • Specifications

    • Brand: QUEENS
    • Nominal Voltage: 12.8V
    • Nominal Capacity: 95Ah
    • Rated Energy: 1216Wh
    • Approx Life Cycles: ≥3000
    • Battery Manage System: 100A
    • Standard Charging Current: 50A
    • Max. Charging Current: 100A
    • Standard Discharge Current: 100A
    • Max. Continuous Discharge Current: 100A
    • Max. Discharge Current 5 sec: 200A

    • Charger: 14.6V 50A
    • Charging Voltage: 13.6-13.8V
    • Overcharge Protection: 14.8V
    • Overcharge Recovery: 14.2V
    • Overdischarge Protection: 10V
    • Overdischarge Recovery: 11.2V

    • Charge Temperature : 0°C to 45°C
    • Discharge Temperature : -20°C to 60°C
    • Storage Temperature: -10°C to 50°C
    • Charge Method: CC/CV
    • Charging Way: LiFePO4 Charger, Solar Panel, Generator
    • Battery Cells: Prismatic
    • Case Material: ABS Plastic
    • Battery Type: LiFePO4 Lithium Battery
    • Battery Model: Standard
    • Battery Shape: General
    • Certifications: UN38.3
    • Protection Class: IP65
    • Warranty in Years: 2

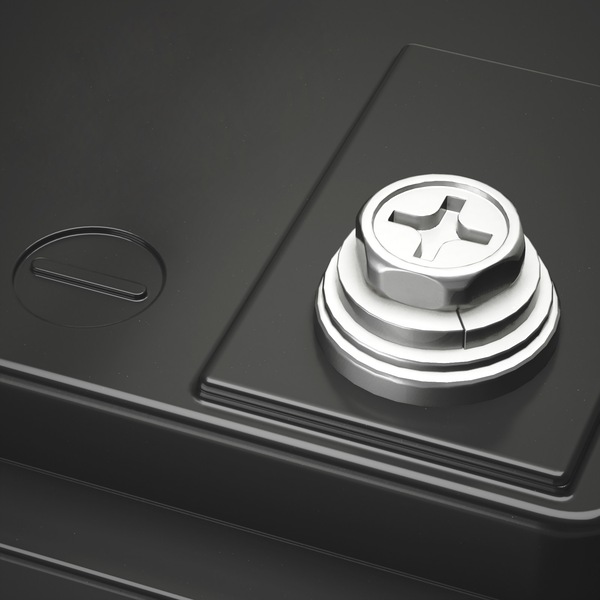

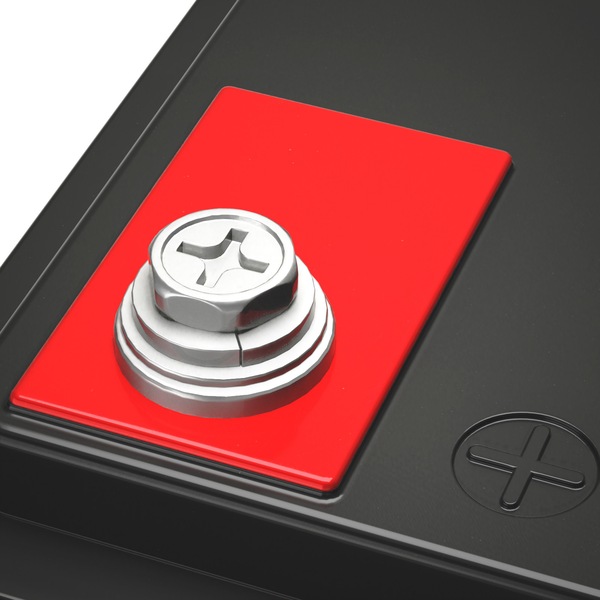

    • Bolt Type: M8
    • Bolt Material: Iron nickel-plated
    • Cell Grouping: 4S2P
    • Parallel Connection: No
    • Series Connection: No

  • Dimensions & Weight

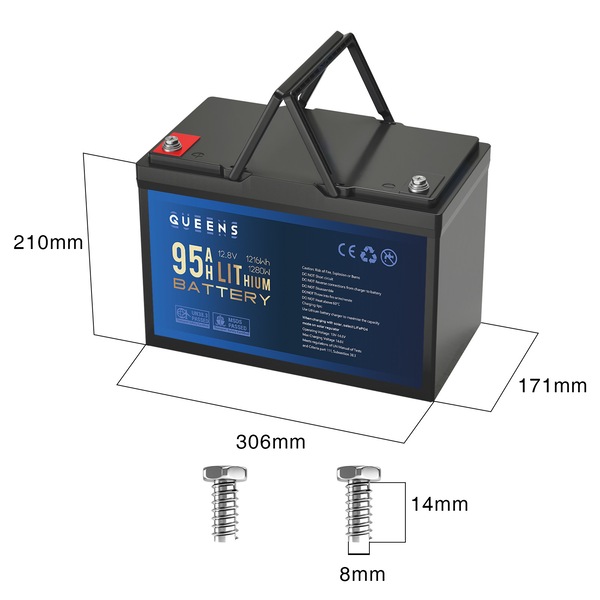

    • Product Size: L306 x W171 x H210mm
    • Package Size: L360 x W220 x H276mm
    • Bolt Terminal Size: Hexagon x 14mm
    • Bolt Terminal Perimeter: 25.12mm
    • Net Weight: 10.8kg
    • Gross Weight: 11.8kg

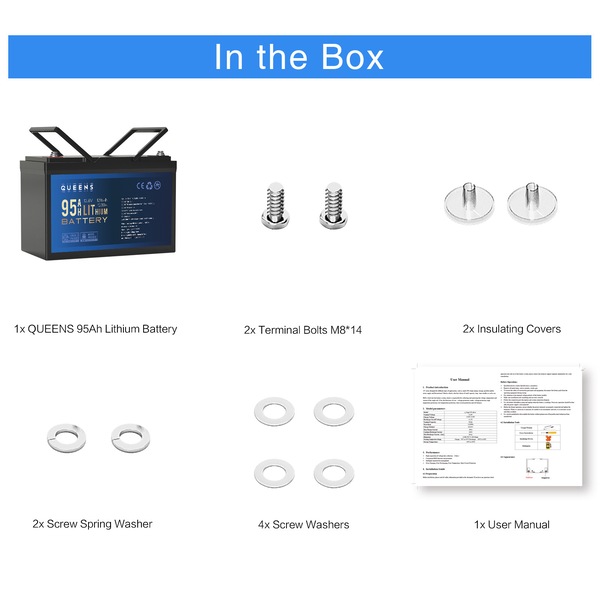

  • Package List

    • 1x QUEENS 95Ah Lithium Battery
    • 2x Terminal Bolts M8*14
    • 2x Insulating Covers
    • 2x Screw Spring Washer
    • 4x Screw Washers
    • 1x User Manual

    Product 2: Bus Bar M8 Power Distribution Terminal Block (6 GANG 300A Black)

  • Specifications

    • Continuous Rating Voltage Max: 300A 300V AC/48V DC
    • Mounting Holes Accepts: Accepts #10 (M5) Screws
    • Number of Terminal Studs: 6
    • Number of Screw Terminals: 0
    • Terminal Type: 3/8''(M10)Stud
    • Base Material: UL94-VO Rated, Glass Reinforced Thermoplastics
    • Bus Material: Nickel Plated

    Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait.
