7" VIDEO INTERCOM SYSTEM WITH PICTURE MEMORY

7" VIDEO INTERCOM SYSTEM WITH PICTURE MEMORY

Hurry! 6 items left!
Price
$714
Collect 714 Everyday Rewards points
Log in to MyDeal to link your card
Shipping
Free Shipping

Quantity
Maximum item limit (6) has been reached.

Aiphone JVS-1V Video Intercom System

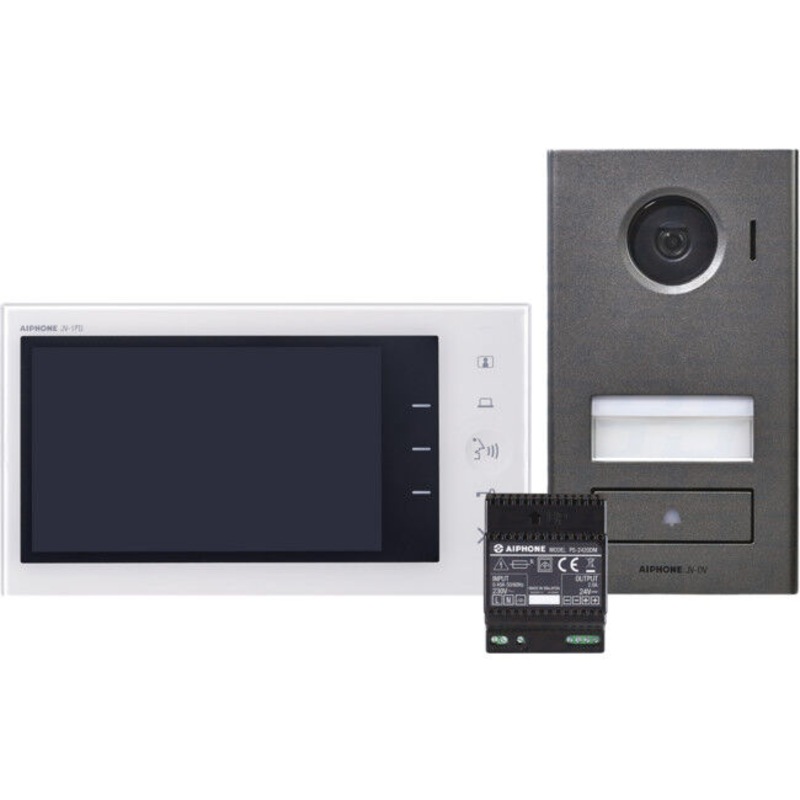

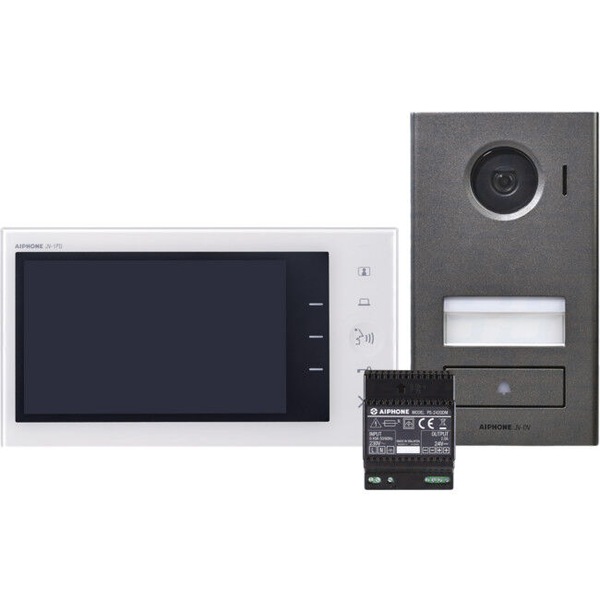

The JVS-1V Kit includes:

  • 1 × JV-1MD Master Monitor Station
  • 1 × JV-DV Vandal Resistant Surface Mount Door Station
  • 1 × 24V 2A Power Supply

This compact video intercom set has an attractive design that complements most interiors.

The JV Series Video Intercom comes in two convenient box sets.

JVS-1V and JVS-1F simply select your door station, then add an optional expansion station for a complete 1x2 system.
System comes with a power supply.

The Master station features a 7″ screen to view visitors and configure settings. The electrostatic touch buttons to the right of the screen allow users to unlock the door and activate an exterior device. There are multiple call tone options available for the station. Communication with the door station can either be hands-free or push-to-talk. Still images from past calls can be viewed and deleted from the station. The station can store up to 30 images. Wiring for the system is 2-conductor between the JV-1MD and the door station (Aiphone 871802 PE insulated 18/2 cable is recommended).



Key Features:
  • Video monitoring
  • One output to control a secondary device like a light or gate
  • Simple daisy chain wiring
  • Hands-free or push-to-talk communication
  • Electrostatic touch buttons
  • Simple two-wire connection to the door
  • Store up to 30 call images
  • Expand the system with a JV-1FD station
With advanced functionality and refined design, enrich your space with the 7″ JV Series Video Intercom
Seamless Elegance for Everyday Living.

Achieving a refined, noise-free, flat design by eliminating microphone or speaker slots from the front.





Illuminated Nameplate

A harmonious integration of nighttime lighting and nameplate in a sleek and practical design.







Picture Memory

The Picture Memory function is employed by the Master Monitor Station. Record an image automatically by pressing the call button on the Door Station. Verification of visitors during the absence is possible.




Note: Following functions are not available: Manual Recording, Protect to overwrite recordings, Play recordings on other devices





Door Release


The Output Signal to release door lock is selectable from three ways. Choose appropriate one to suit the installation.







Option Output

The optional output is adopted for controlling external devices such as Light, Garage gate, and other Electrical Lock etc. The duration time is selectable.





System Configuration
Installations using two room stations


IInstallations using a single room station



*1. Room to room communication is not available.
*2. PT (AC transformer) is required when selecting dry contact.



System Components
Boxed sets
JVS-1V
JVS-1F

Boxed sets

JVS-1V: JV-1MD, JV-DV, PS2420
JVS-1F: JV-1MD, JV-DVF, PS2420

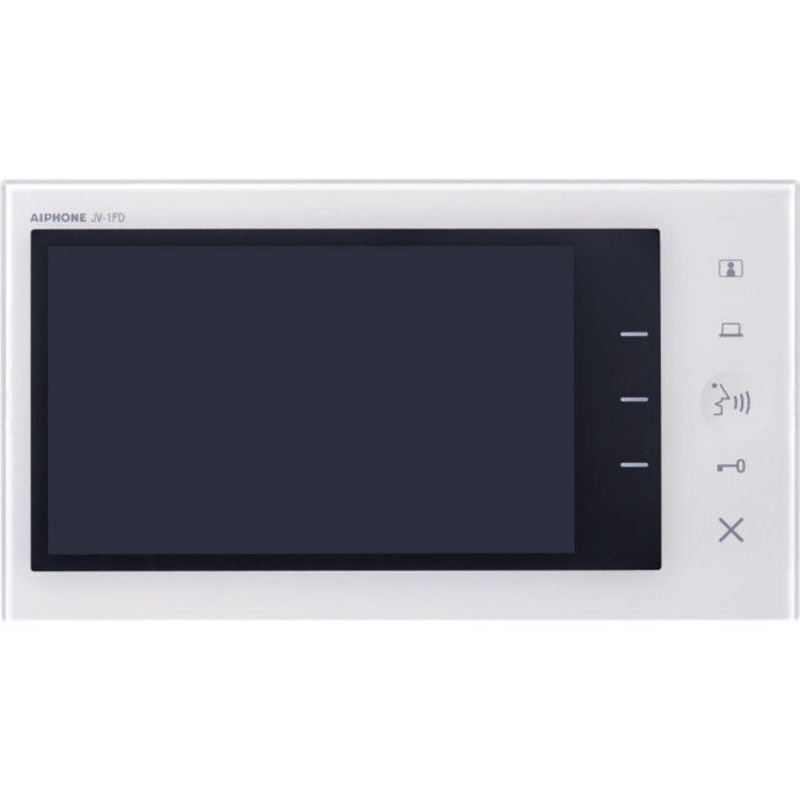

Master station
JV-1MD

Master monitor station

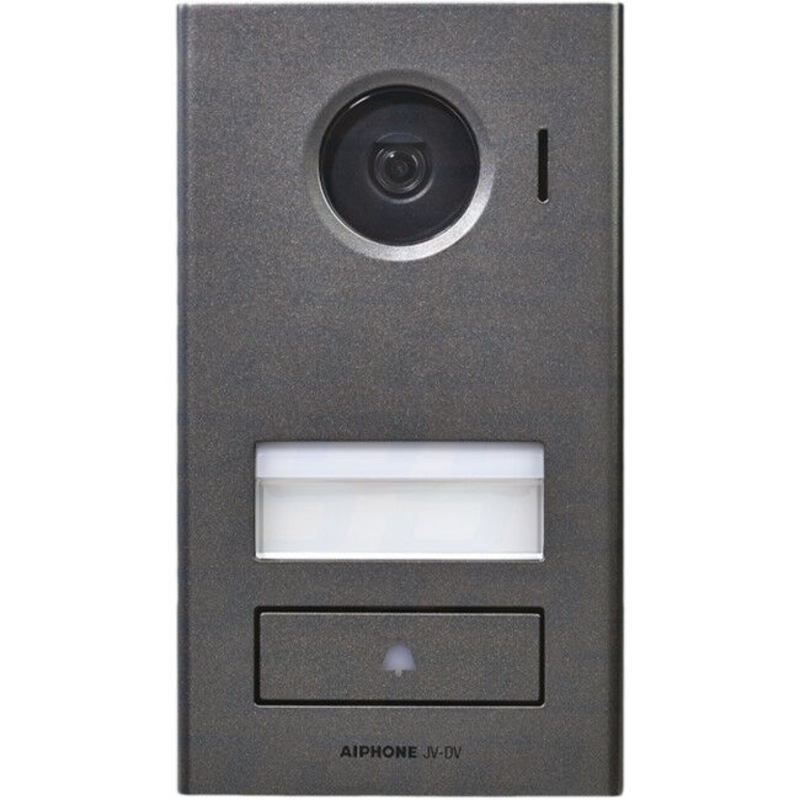

Door station
JV-DV

Door station

JV-DVF

Door station

System Capacity
  • 1 × Door Station
  • 2 × Internal Video Stations
Optional Expansion monitor station
JV-1FD

Expansion monitor station








MPN: JVS1V

Estimated Delivery Time Frame: 5-7 business days
