Description:

1. Compared with the traditional meter, this product looks small and beautiful, light weight, easy to install!

2. The traditional maximum current meter is 4 times the rated current, the product is smart meters, overload capacity

Up to 12 times the base reference current

3. This product is measured by LCD digital power, no reset button, to avoid human tampering with the data!

Features:

Rated current: 5A

Maximum current: 32A

Pulse frequency: 500imp / kwh

LCD display with backlight

Pulse LED indicates working of meter. Pulse output with optical coupling isolation

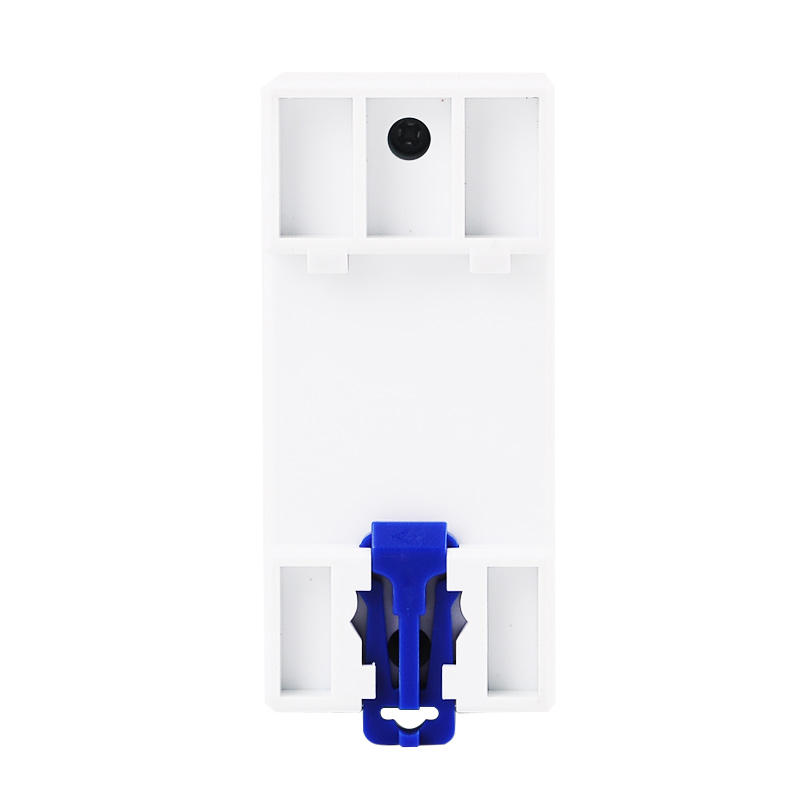

35mm din rail installation

Specification:

Voltage:230V

Supply:AC

Display Type:LCD

Output Voltage:230V

ACDIY Supplies:Electrical

Measuring Energy Range:99999.9

Phase:Single Phase

Accuracy Class:1

Max Operating Current:20A - 49A

OperatingTemperature:-10 to 50��

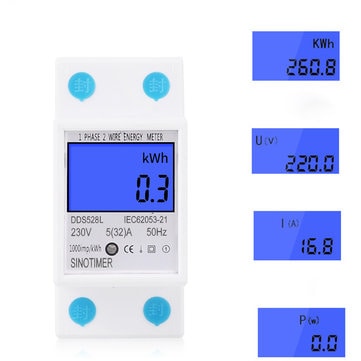

Display:Voltage,Current,Frequency,Power,Energy

Package includes:

1 x Energy Meter

1 x User Manual
