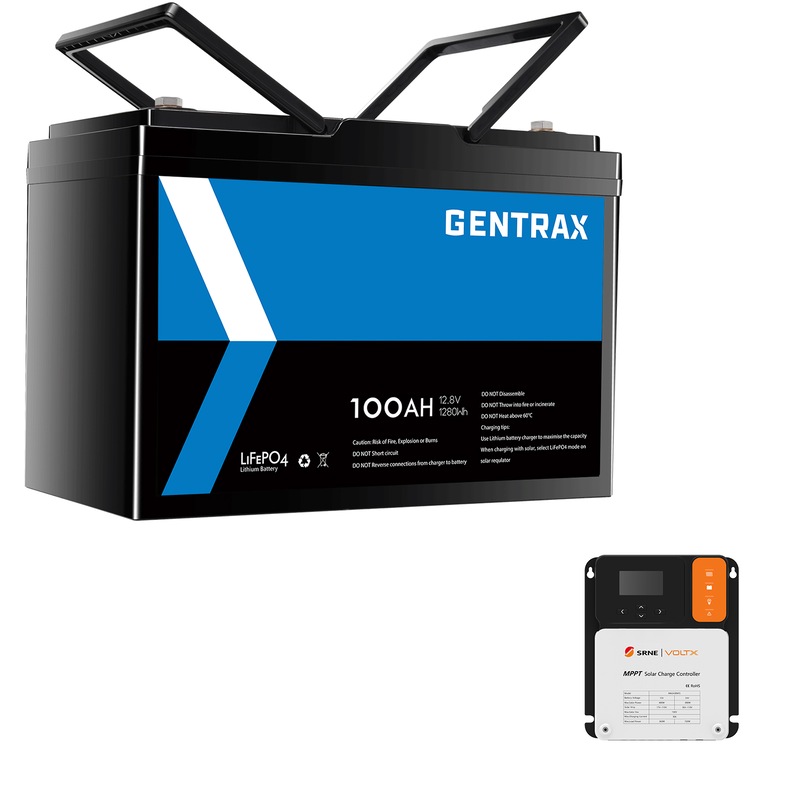

Gentrax 12V 100Ah Lithium Battery + SRNE VoltX 30A MPPT Solar Charge Controller 12V/24V

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$569

Collect 569 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Ozzie Energy
Secure ways to pay at checkout
Pay in 4 interest-free payments of $142.25 with Learn More

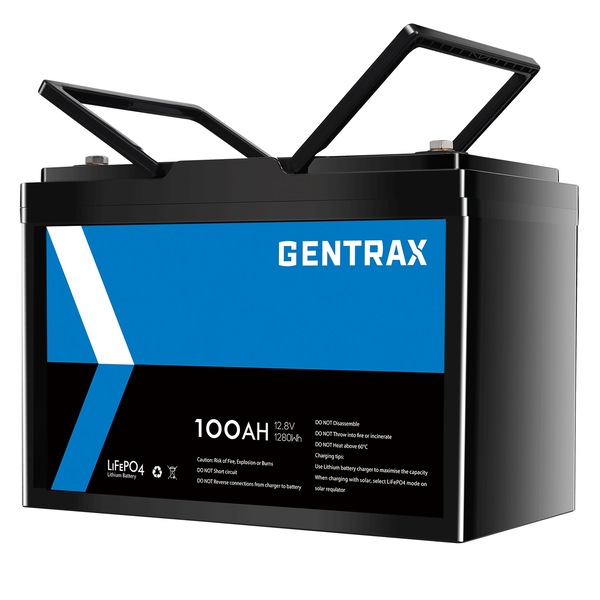

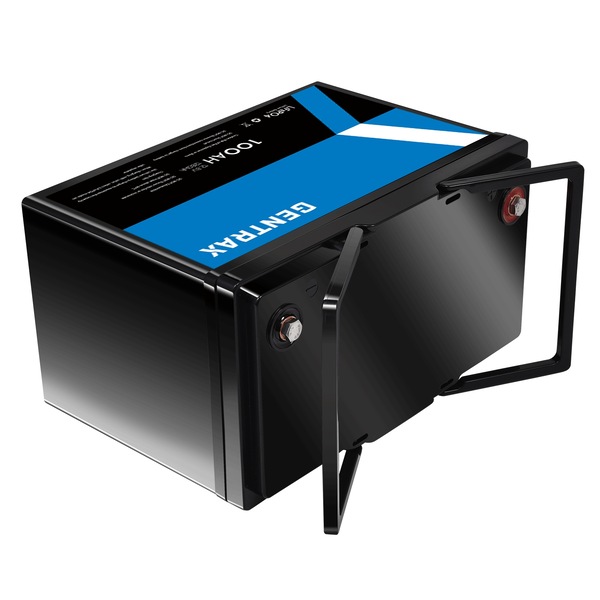

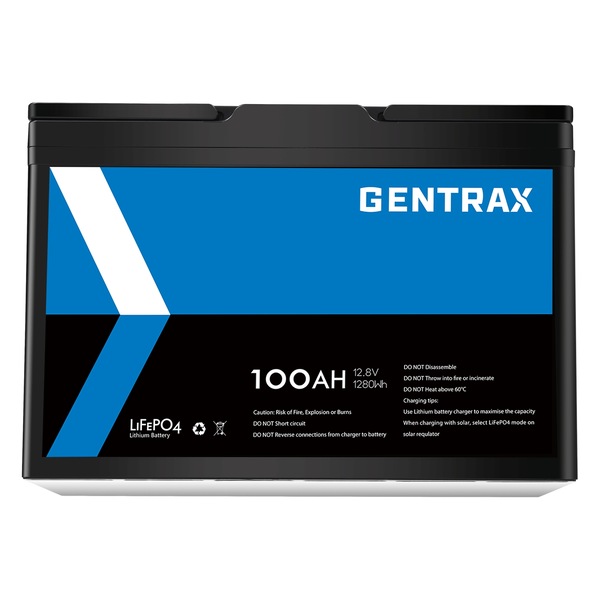

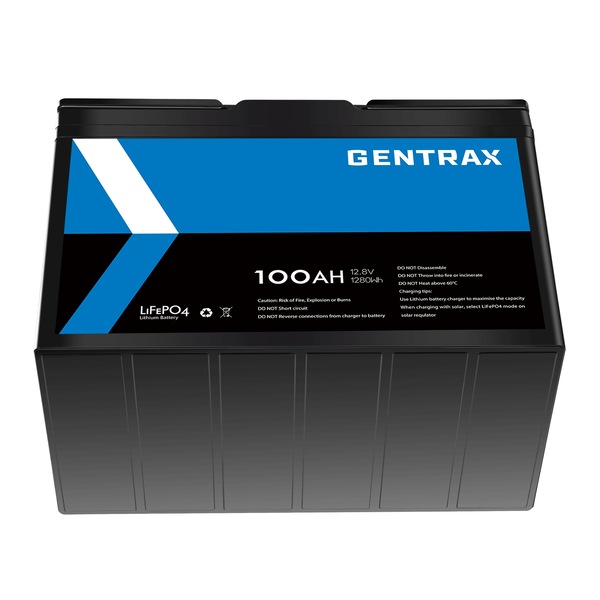

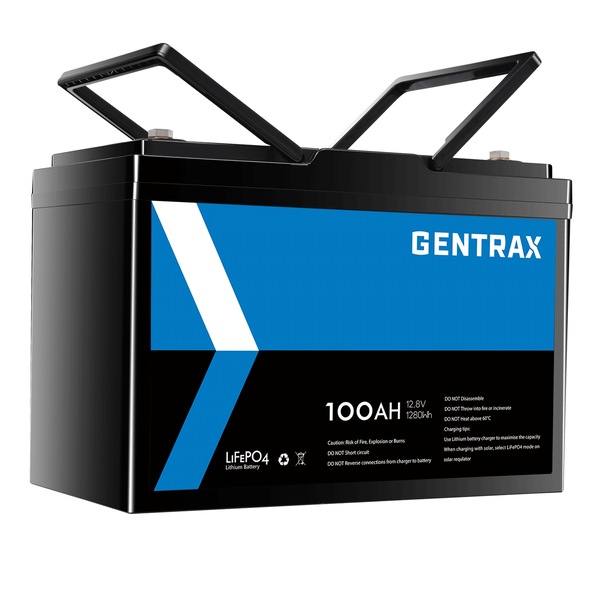

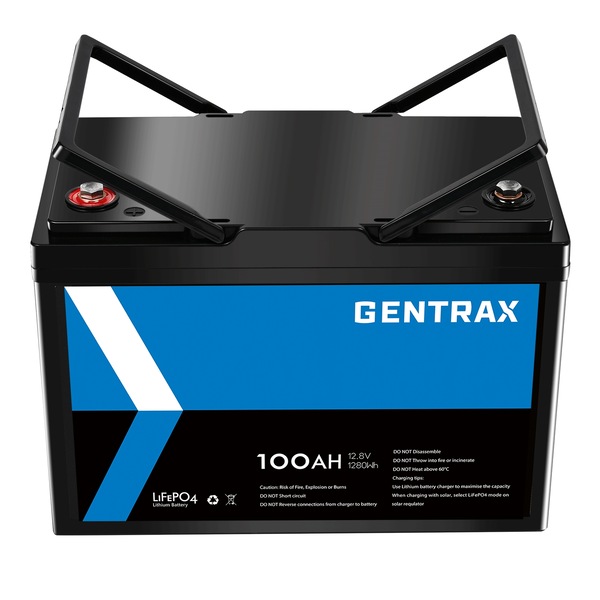

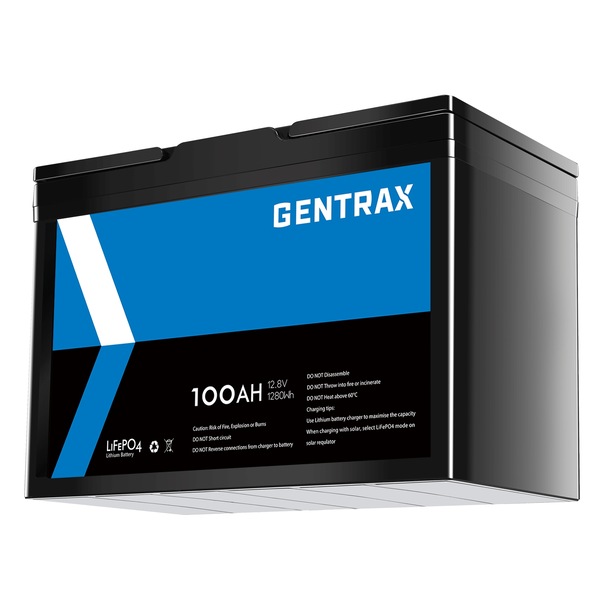

MODEL1: 1* 12V 100Ah Lithium Battery
Nominal Voltage: 12.8V
Charge Voltage Range: 14.2-14.6V
Discharge Cut-off voltage: 10V
Nominal Capacity: 100Ah
Watt Hour: 1280wh
Charge Method: CC/CV
Max. Charge Current: 100A
Continuous Discharge Current: 100A
Max. Discharge Current (5sec): 200A
Dimensions: L: 306 x W: 169x H:215mm
Storage Temperature: -10°C to 50°C
Working Temoerature Range: Charge 0°C to 45°C; Discharge: -20°C to 60°C
Warranty: 2 years

MODEL2: 1* SRNE VOLTX 30A MPPT Solar Charge Controller 12V/24V
ELECTRICAL PARAMETERS
Static power consumption: ≤30mA
Battery Type: USE/FLD/GEL/LI/SLD(Default)
System voltage: 12V/24V
Battery's operating voltage range: 8V-32V
Rated charging current: 30A
Maximum PV Input Current: 27A
Maximum solar panel power: 400W/12V; 800W/24V
Maximum PV open-circuit voltage: 150V
MPPT operating voltage point range: (Battery Voltage +2)~110V
MPPT tracking efficiency: >99%
Charging conversion efficiency: 85%-98% (10%-100% of rated power)
Rated load current: 30A
Bluetooth communication: Built-in
CAN communication: RV-C Protocol
Grounding type: Co-negative design and negative grounding
Cooling mode: Natural Cooling
Parallel connection for charging: No
Charging voltage line loss compensation: No
Support full settings: Yes
Constant voltage output setting: Yes
Charging temperature compensation of lead-acid battery: Yes
Temperature protection: Yes
Overload/short-circuit protection: Yes
Load pre-start: Yes

ENVIRONMENTAL DATA
Protection grade: IP32
Operating ambient temperature range: -35°C~ 65°C (no derating within 45°C if well ventilated)

MECHANICAL SPECIFICATIONS
Dimension: 260*216*83.2mm
Mounting hole spacing: 200 mm
Weight: 2.3kg
Fixed hole position: Φ10mm

GTIN: 9355348083149
