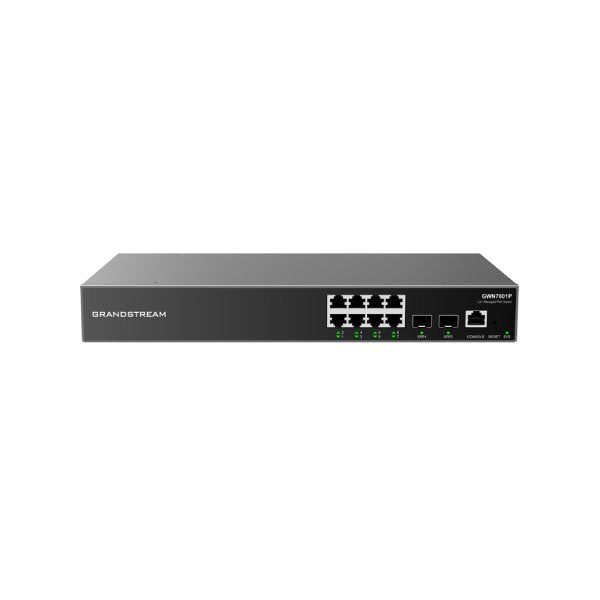

GRANDSTREAM GWN7801P 8 PORT GIGABIT POE MANAGED SWITCH

The Grandstream GWN7800 series are Layer 2+ managed network switches that allow small-to-medium enterprises to build scalable, secure, high performance, and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP Snooping for network performance optimization, and comprehensive security capabilities against potential attacks.

The PoE models provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The GWN7800 series can be managed in a number of ways, including the local web user interface of the GWN7800 series switch. The series is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform. The enterprise-grade GWN7800 series are the ideal managed network switches for small-to-medium businesses.

FEATURES

8 Gigabit Ethernet ports and 2 Gigabit SFP ports

Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models

Supports deployment in IPv6 and IPv4 networks

Provides quaternary binding of IP, MAC, VLAN & port; ARP Inspection, IP Source Guard,

DoS protection, port security & DHCP snooping

Local Web UI to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform

Built-in QoS allows for prioritization of network traffic

SPECIFICATIONS

Manufacturer's Code: GWN7801P

Network Protocol: IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s

Gigabit Ethernet Ports: 8

Gigabit SFP Ports: 2

Console: 1

# of PoE Ports: 8

Integrated Power Supply: 150W

Max Output Power per PoE Port: 30W

Max Total PoE Output Power: 150W

PoE Standards: IEEE 802.3af/at

Auxiliary Ports: 1x Reset Pinhole

Forwarding Mode: Store-and-forward

Total non-blocking throughput 10Gbps

Switching Capability: 20Gbps

Forwarding Rate: 14.88M packets per second

Packet Buffer: 4.1MB

Switching: 8K static, dynamic and filtering MAC addresses; 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN; VLAN virtual interface; GVRP (pending); 8 link aggregation groups; Spanning tree, 64 instances for STP/RTSP/MSTP

Multicast: IGMP Snooping, MLD Snooping, MVR

QoS/ACL: Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets (pending); Port priority; Priority mapping; Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ; Traffic shaping; Rate limit; 1.5K ACL for Ethernet, IPv4 and IPv6

DHCP: DHCP server, DHCP relay, Option 82, 60,160 and 43

Maintenance: CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, alert, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test

Security: User hierarchical management and password protection, HTTPS, SSH, Telnet; 802.1X authentication; AAA authentication including RADIUS, TACACS+; Storm control; Port isolation, port security, sticky MAC; Filtering MAC address; IP source guard, DoS attack prevention, ARP inspection; DHCP Snooping; Loop protection including BPDU protection, root protection and loopback protection; Kensington Security Slot (Kensington Lock) support

Mounting: Desktop/Wall-Mount

LEDs: 1 x tri-color LED for device tracking and status indication, 10x green-color LEDs for data ports, 8x yellow-color LEDs for PoE ports

Fan: None

Environmental: Operation: 0°Cto 45°C, humidity 10-90% RH(Non-condensing)

Dimensions: 330mm(L)*175mm(W)*44(H)

PACKAGE CONTENTS

1 x Grandstream Gwn7801P 8 Port Gigabit Poe Managed Switch
1 x IEC Power Cord
