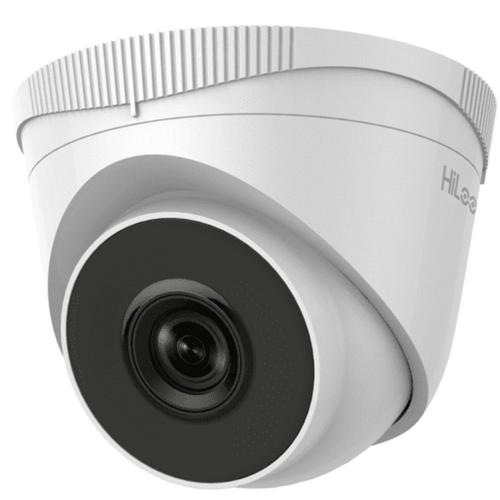

HiLook IPC-T250H (2.8mm) 5MP/2K+ Outdoor Turret POE Camera
HiLook IPC-T250H: 5 MP IR Fixed Network Turret Camera
- 1/2.7" progressive scan CMOS
- 2560 × 1920@ 15fps
- 2.8 mm/4 mm/6 mm fixed lens
- H.265+, H.265, H.264+, H.264
- Dual stream
- 3D DNR (Digital Noise Reduction)
- Up to 30 m IR range
- PoE (Power over Ethernet)
- IP67
Camera
Image Sensor
1/2.7" Progressive Scan CMOS
Min. Illumination
Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
Shutter time
1/3 s to 1/100, 000 s
Slow shutter
support
Lens
2.8 mm, horizontal FOV 100°, vertical FOV 74°, diagonal FOV 130°
4 mm, horizontal FOV 75°, vertical FOV 55°, diagonal FOV 98°
6 mm, horizontal FOV 49°, vertical FOV 37°, diagonal FOV 60°
Lens Mount
M12
Adjustment Range
Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°
Day& Night
IR Cut Filter
Wide Dynamic Range
120 dB
Digital noise reduction
3D DNR
Compression Standard
Video Compression
H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile
Baseline Profile/Main Profile/High Profile
Video bit rate
32Kbps~8Mbps
Max. Image Resolution
2560×1920
Frame Rate
50Hz: 12.5fps (2560 × 1920), 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1280, 1280 × 720)
60Hz: 15fps (2560 × 1920), 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1280, 1280 × 720)
Sub Stream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement
BLC, 3D DNR
Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
BLC
Support
Day/Night Switch
Auto, scheduled, day, night
Network
Alarm Trigger
Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour
General Function
Heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
System Compatibility
ONVIF (Profile S, Profile G),ISAPI
Interface
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
General
Operating Conditions
-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption
12 VDC, 0.4 A, Max: 5 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, Max: 7 W
Weather Proof
IP67
IR Range
Up to 30m
Dimensions
Camera: Ø 112 mm × 81.4 mm (Ø 4.4" × 3.2")
With package: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight
Camera: approx. 400 g (0.9 lb.)
With package: approx. 600 g (1.3 lb.)
- MPN: IPC-T250H
