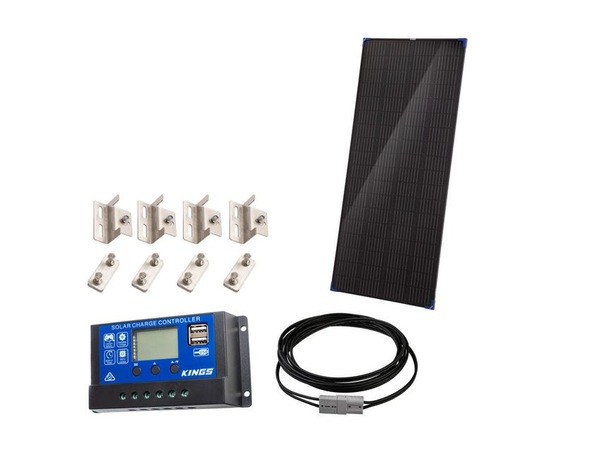

Kings 200W Fixed Solar Panel + 6m Extension Lead + Solar Panel Mounting Brackets + 15A PWM Solar Controller

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$158.85

Collect 158 Everyday Rewards points

Log in to MyDeal to link your card
$55.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
Pay in 4 interest-free payments of $39.71 with Learn More

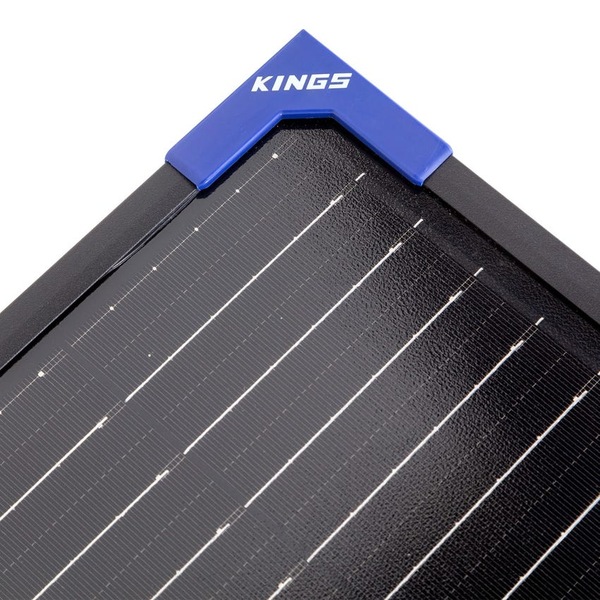

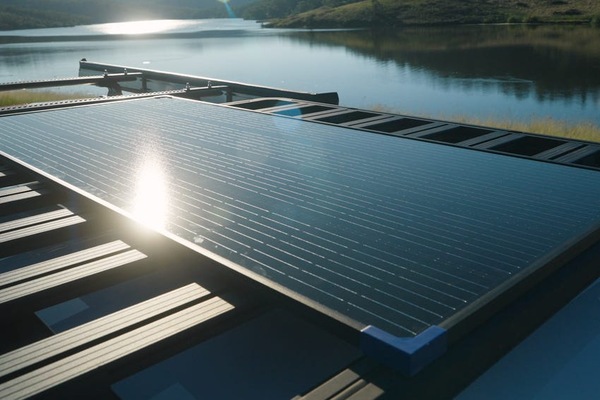

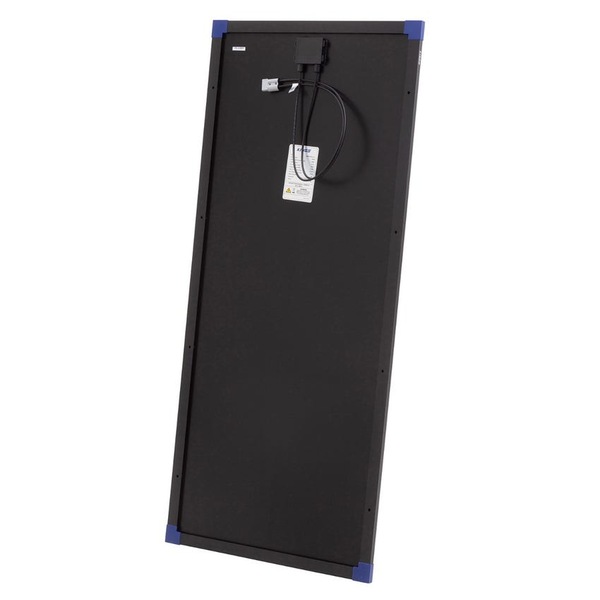

The Adventure Kings 200W fixed solar panel is great for permanent roof mounting on 4WDs, utes, vans, camper trailers, caravans and even boats! It has a 3.2mm thickened glass panel with a reinforced custom aluminum frame, ensures durability when fixed mounted on a vehicle. The slim custom extruded frame reduces wind resistance.

• With the ability to parallel, join two panels together to boost your charging capacity. This ensures your big battery banks stay fully charged, providing a reliable power source for energy-intensive appliances like Inverters, Induction cooktops and off grid air conditioners. measuring at 70cm wide, by 156.5cm high and just 2cm thick including the corner protectors fits neatly on most vehicle roof racks. Two side by side will perfectly fill the roof rack of most common wagons.

• A Controller is a must for safeguarding your battery from the high voltage output of solar panels. This controller uses Pulse Width Modulation (PWM )to reduce the solar input voltage to a safer, lower output voltage, ideal for charging 12V batteries. Along with this, the PWM employs a 3-stage charging program: boost, equalise and float. Keeping your battery charged properly and ready to operate at peak performance.

• equipped with an LCD screen so you can keep an eye on charging performance and battery voltage while it’s connected,. Utilising screw in terminals, you can easily connect up to your solar panel and 12V system. The LCD screen allows you to easily change settings to best suit your setup.

• Designed for portable solar the 2.5mm2 copper cables minimise voltage drop. Each wire is individually insulated, plus there’s an extra 1mm thick PVC protective sheath that covers both cables. The sheath is heat and water resistant and offers extra abrasion resistance too! securely mount your Adventure Kings 110W or 160W Fixed Solar Panel to your roof rack or other flat surface with the Adventure Kings Solar Panel Mounting Brackets Kit! Made with tough stainless steel and using threaded alloy blocks

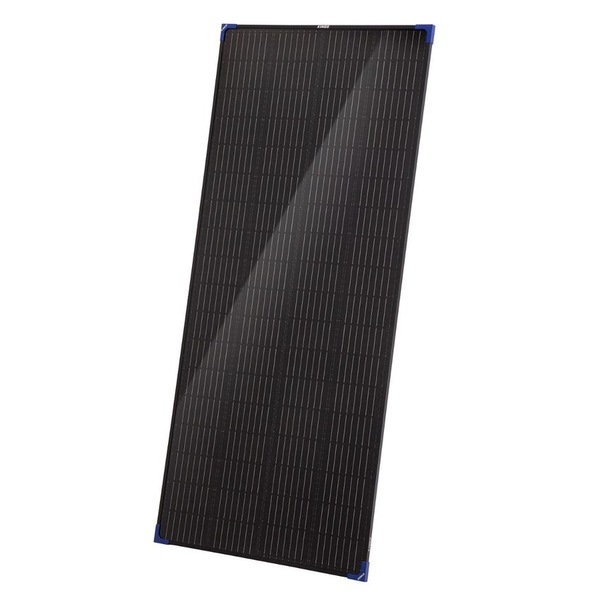

KINGS 200W FIXED SOLAR PANEL
Up to 16.67A of charge at 12V


perfect choice for the roof of your 4WDs, utes, vans, camper trailers, caravans and even boats!


Output 200W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 24.20V
ISC (Short Circuit Current) 11.01A
Note VOC and ISC can vary by up to +/-1v and +/-1A Review regulator for max voltage and current rating
VMP (Maximum Power Voltage) 21.20V
IMP (Maximum Power Current) 9.83A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.39%/°C
Pmax Temperature Coefficient -0.44%/°C
Standard Test Condition 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect (Anderson Style) Plug
Dimensions 70 x 156.5 x 1.8 cm
Weight 11.6 kg

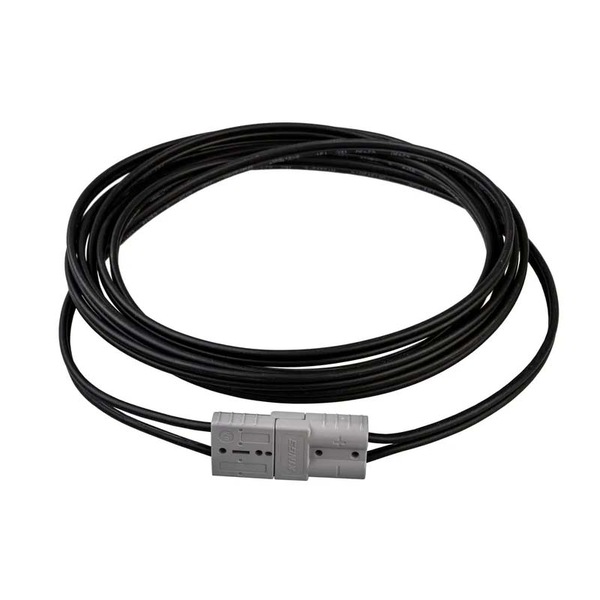

KINGS 6M SOLAR EXTENSION LEAD  2.5mm2 Copper


Length 6m
Conductor Material Multi-Strand Copper 51x0.25
Conductor Cross Sectional Area (each wire) 2.5mm2
Insulation Material 0.8mm PVC
Outer Sheath material 1mm PVC
Outer Diameter 9.3mm
Recommended Maximum Current 20A
Operating Temperature Range -5°C~+70°
Plug Type Anderson-style Quick Connect
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Maximum Rated Voltage 300V

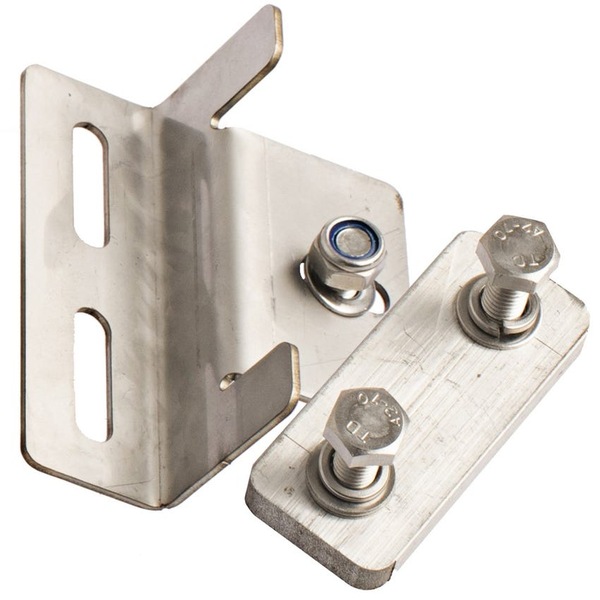

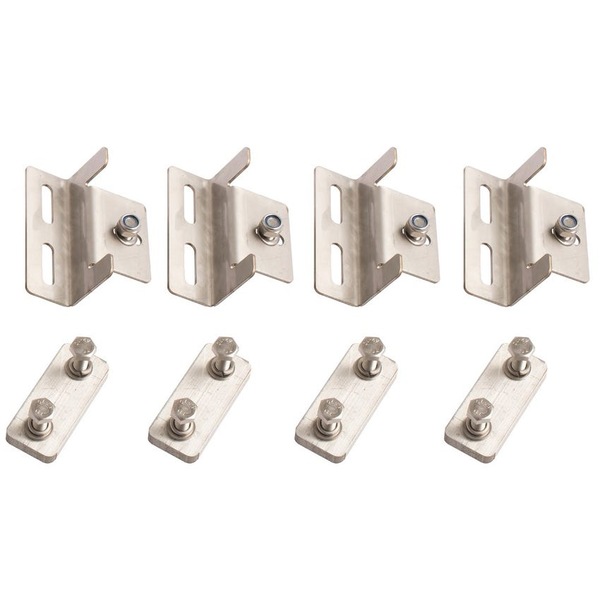

SOLAR PANEL MOUNTING BRACKETS | To Suit Kings 110W Fixed Solar Panel | Mounting Hardware Incl. | Stainless Steel


Bracket Material Folded Stainless Steel
Mounting Hardware Stainless Steel
Weight (four brackets combined) 800gm

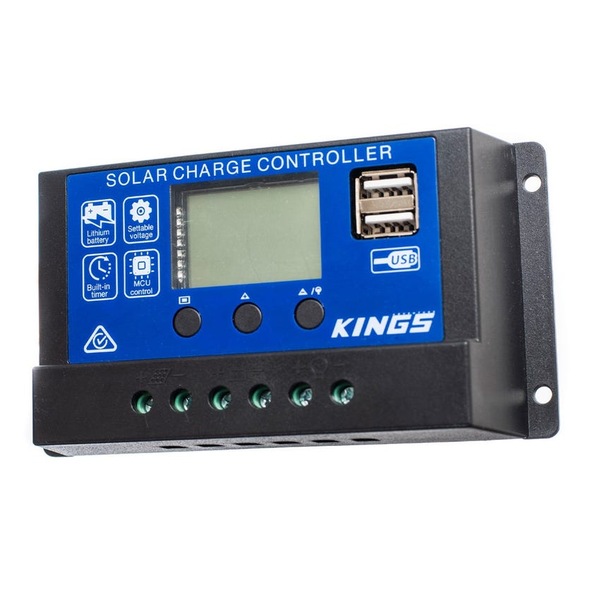

15A PWM SOLAR CONTROLLER


Dimensions 133 x 70 x 34mm
Mounting Holes 126 x 49mm
Max Solar Input <50V
Float Charge 13.7 – Default, Adjustable
Discharge Stop 10.7 – Default, Adjustable
Discharge Reconnect 12.6V – Default, Adjustable
USB Output 5V / 2A
Weight 154g

MPN: SC-CO-200WFX-6MLEAD-110WBRACKET-PWNREG
