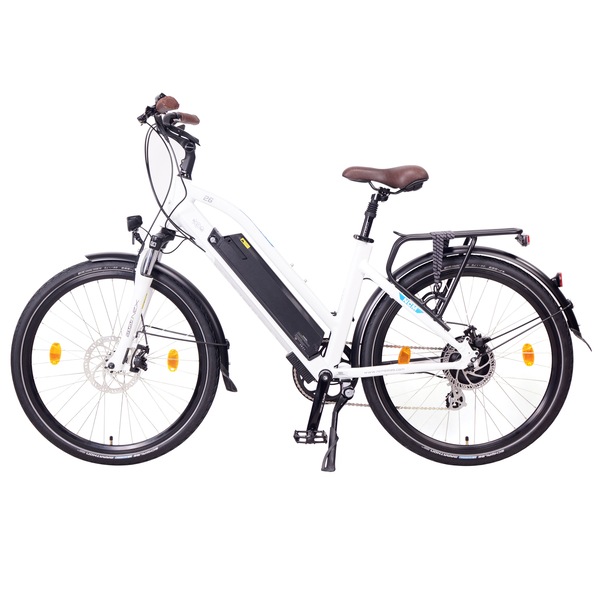

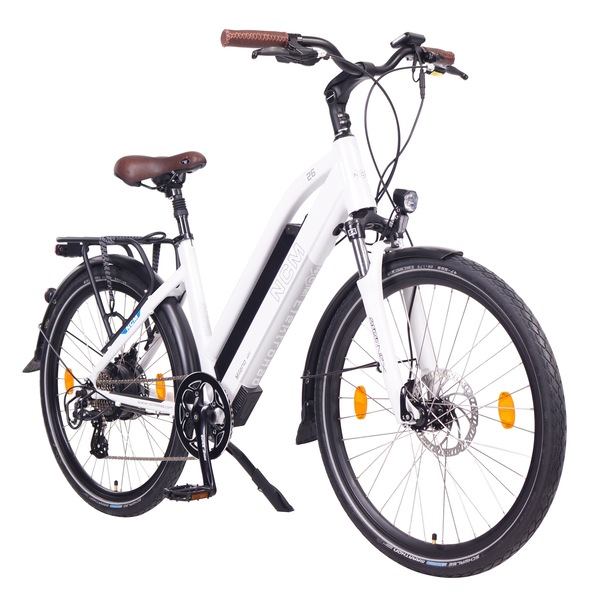

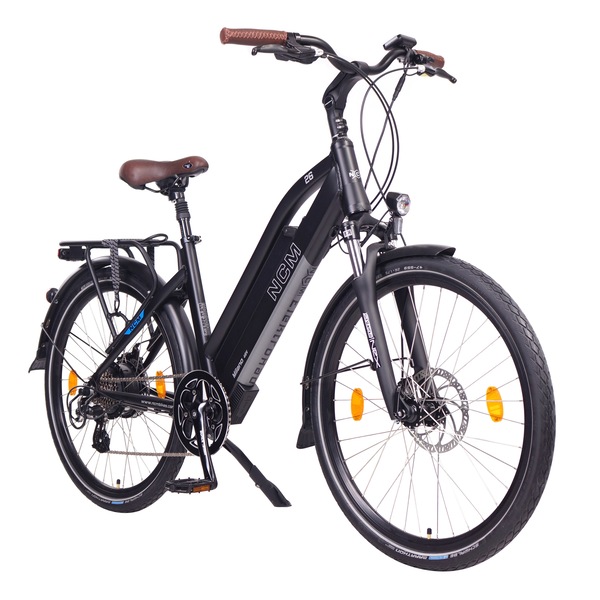

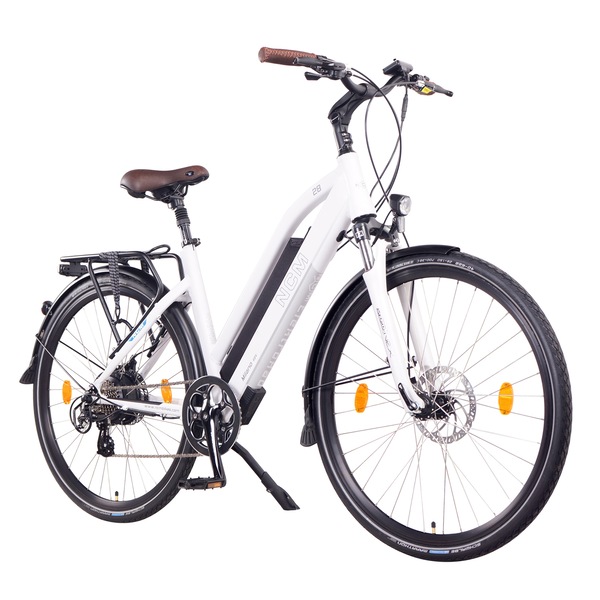

NCM Milano Trekking E-Bike, City-Bike, 250W, 48V 13Ah 624Wh Battery

2 Reviews

Out of Stock!

Price	$1499 RRP $1,899.00 You save $400.00 (21%)

Enter your email to receive a notification when this item is back in stock

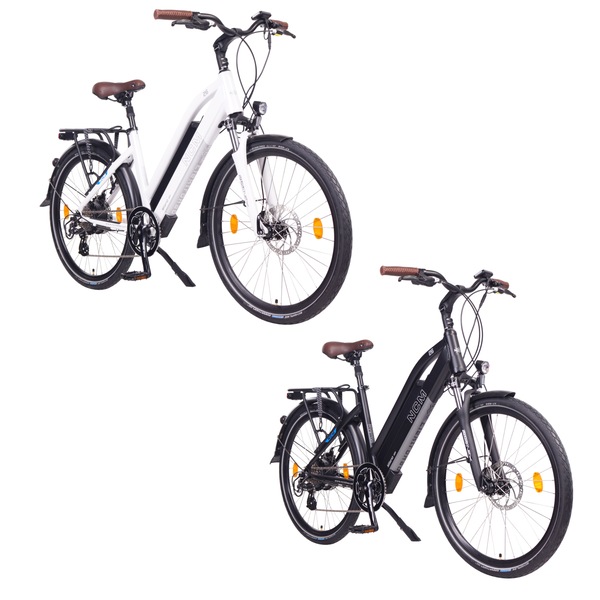

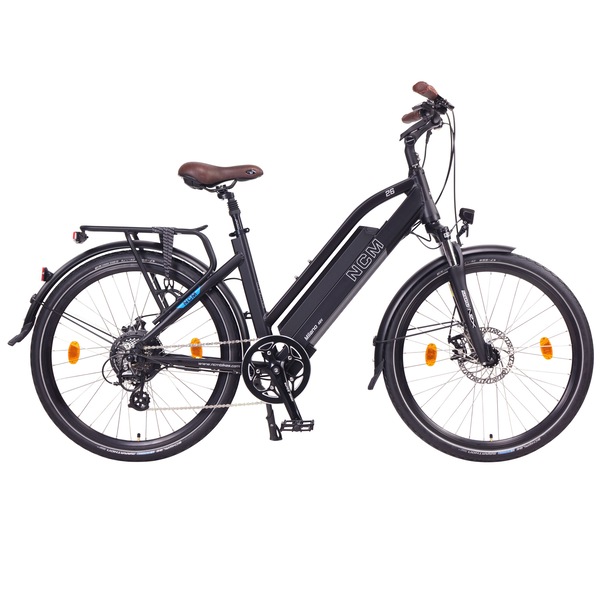

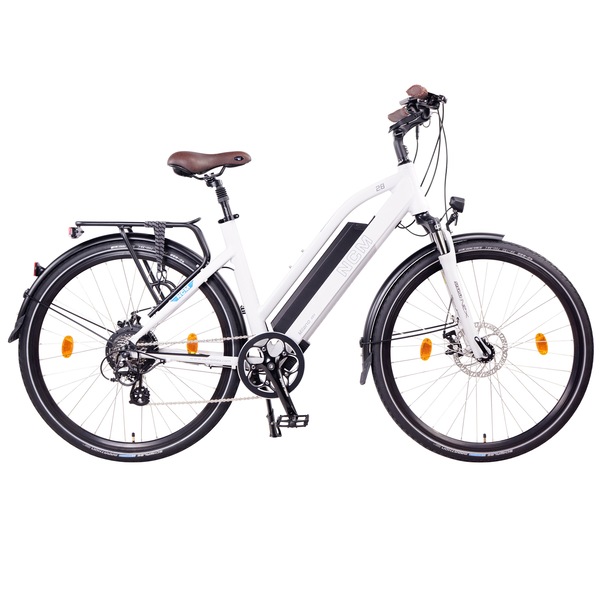

NCM Milano 26" / 28"

Inspired by the city of art and fashion, the NCM Milano is practical fashion and artful practicality. Focusing on comfort and style, this E-bike is designed with an aluminium step-through frame for ease of getting on, and a fully adjustable handlebar and saddle for improved ergonomics. The low top tube, while making the bike sturdy and easy to mount, also serves the purpose of protecting your battery from accidental impacts from above.

Adjustable handlebar & strong DeHawk battery

Ergonomic bicycle Grips
Confortable sitting posture
Easy handling of the components
Adjustable handlebar for a good driving position
All important controls easily accessible

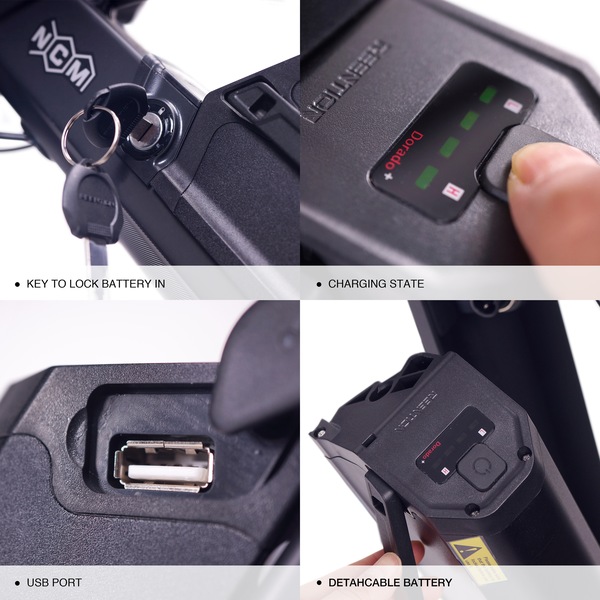

supplied with 48V to deliver a high output power
over 600Wh capacity for a longer distance
reach up to 120km (depending on the conditions)
battery integrated in the frame for better aesthetics
easily removable battery so you can charge it anywhere
A built-in USB port with 5V to charge mobile phones

Safe braking performance

Front Brake:

Reliable mechanical disc brake system. The 180 mm brake disc ensures powerful and safe braking at all speeds.

Rear Brake:

Reliable mechanical disc brake system from Tektro. The 160 mm brake disc ensures powerful and safe braking at all speeds.

Das-Kit System

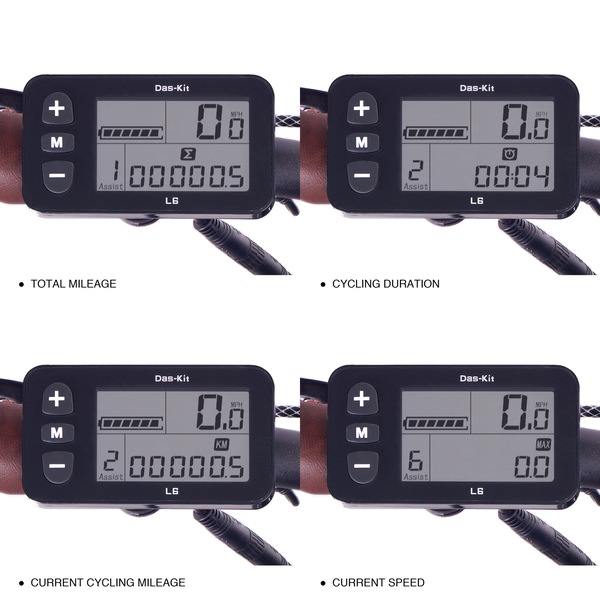

Das-Kit system with a high-contrast LCD display provides all important information at a glance and can also

be read easily in direct sunlight. The LCD display gives good feedback, is extremely robust and easy to use.
The additional power can be individually controlled via six support levels.
It is protected against dirt and splash water.

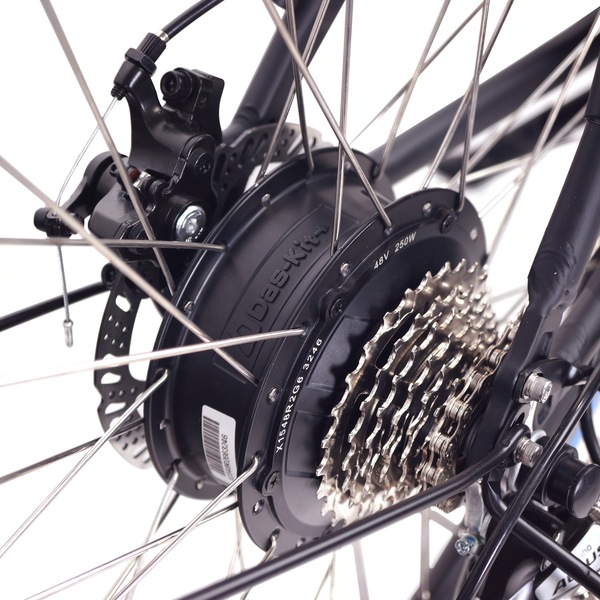

The rear engine delivers a full torque up to 55 Nm with 250W rated power and 48V voltage.

A large display shows all necessary settings.

6 support levels and a pushing aid of up to 6km/h are adjustable.

The display's control buttons are deliberately placed on the left side - close to the left hand - so the driver can easily switch between support levels or displays without having to lift his hand off the handlebars.

Quality inspection and final adjustment:

In order to ensure our high quality standard, our bicycles are subjected to a functional test at the factory. This can lead to dust deposits on the tyres and the seat post. Our bikes are only delivered pre-assembled, a final fine adjustment and inspection by the buyer or a third party is necessary (costs incurred for this cannot be covered). Before driving, please check all screws for strength and carry out a fine adjustment of the gears and brakes. Check the tyre pressure. Depending on the bicycle model, the final assembly and inspection of the components should take between 60 and 90 minutes.

Comparison

The brand introduces itself:

NCM Bikes, founded in 2014, has quickly become one of the largest pedelec and e-bike brands in Europe with the goal of expanding the market significantly in the near future. NCM is the perfect brand to start your pedelec experience whether you are an avid cyclist or a relative newcomer, we are committed to providing you with a range of high quality.. Our innovative technologies ensure that we can differentiate ourselves from the competition and continue to offer the latest technologies. Our goal is to help improve the environment through an friendly driving experience and the promotion of a fun and active lifestyle.

NCM Milano 48V 13Ah Details

General Information

Weight: 26”= 27kg/ 28”= 27kg
Type: E-Trekking
Wheel size: 26” / 28"
Load capacity: Max. 125kg
Maximum speed: 25km/h

Electric parts

Motor: Das-Kit, X15 Rear-drive motor, 48V 250W, 25km/h
Controller: Das-Kit, CT5-I5, 48V 15A

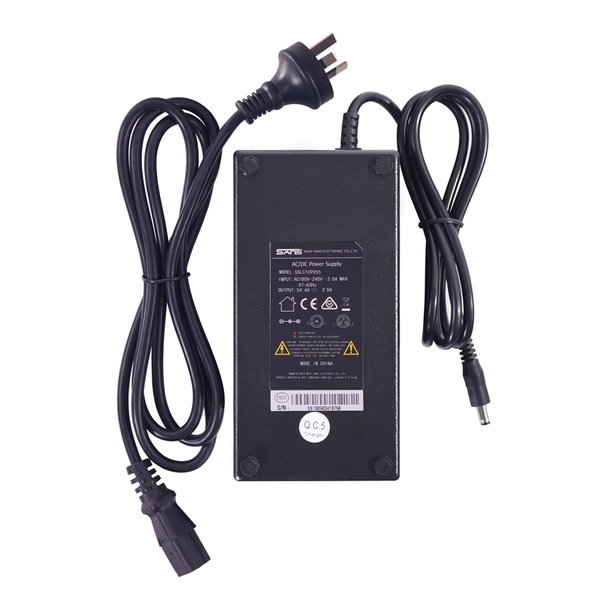

Charger: 48V 2A included (round plug) DC482AU
Battery: DEHAWK I5-4813H,48V 13AH, 624WH, with USB port
Average range: 40-120km depending on assistance level
Display: LCD Das-Kit L7 display with many functions, 6km/h walk assist
Front/Rear Light: Spanninga, Kendo, 48V, 30 Lux Spanninga, / Solo, with 2xAA batteries

Bike parts

Frame: Alu. 6061, 26"*457MM /28"*480MM
Handelbar: Promax MA579 adjustable
Fork: Suntour, NEX 26” / 28”
Brake Levers: Tektro, left with brake sensor
Brakes F/R: Tektro Mechanical Disc Brakes, MD-M280

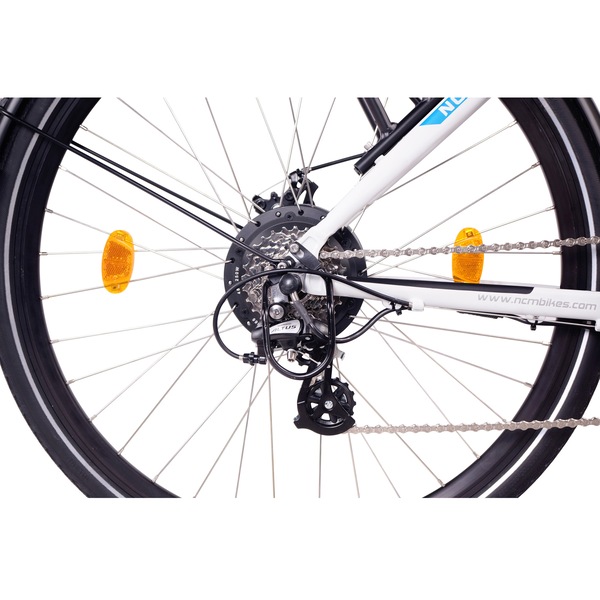

Chain derailleur: Shimano, Altus M310, 7 speed
Crank set: Prowheel, OUNCE-248AC, 48T
Gear shift: Shimano, Altus M310, 7 speed
Pinion: 7-speed screw ring, 14-28T
Tyre: Schwalbe Marathon 26"*1.75 / 28"*1.5 700C black

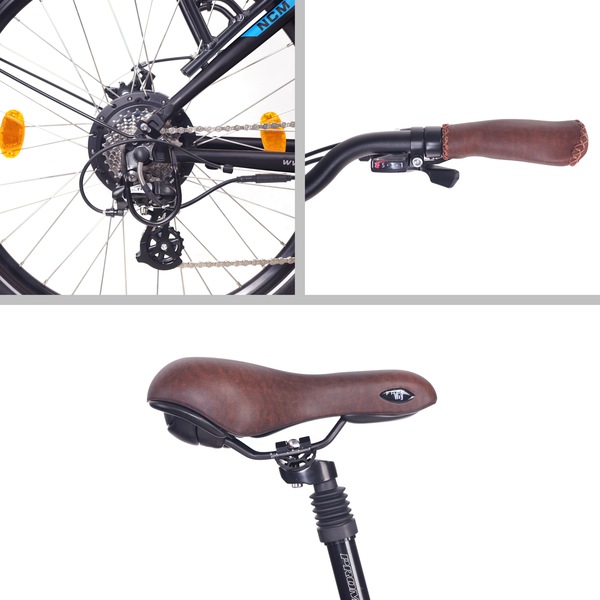

Saddle: Selle Royal, gel saddle, brown (imitation leather)
Seatpost: Promax, SP-884, with suspension, 27.2*300MM
Handles: Selle Royal, brown (imitation leather)
Pedals: Wellgo, B087, black

Warranty

1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
2 year warranty on the bike frame
Apart from manufacture defects that could be present, parts that wear due to normal use (such as tyres, brake pads, chains, etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.

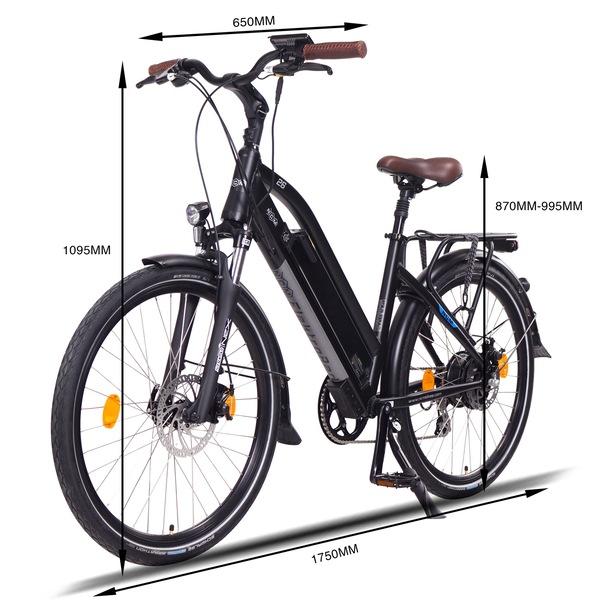

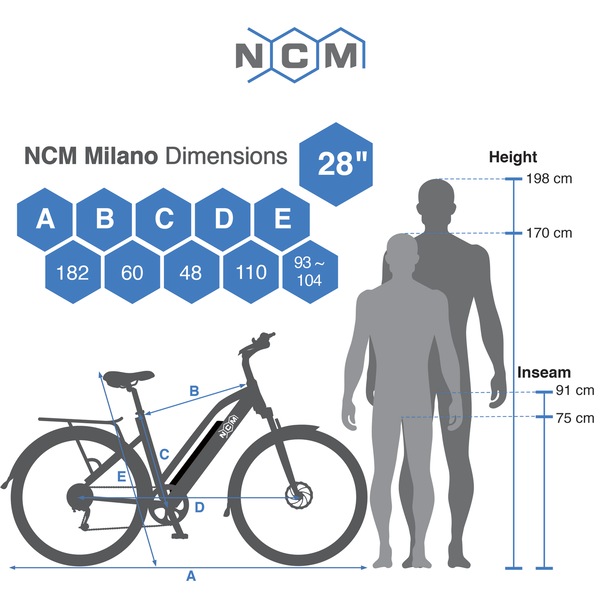

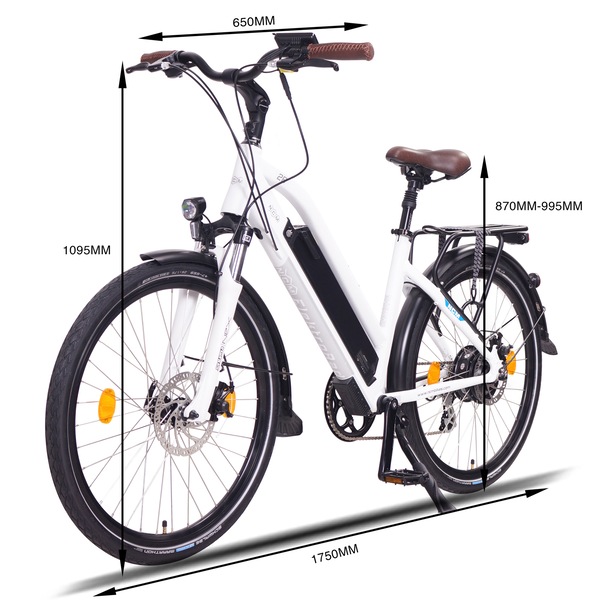

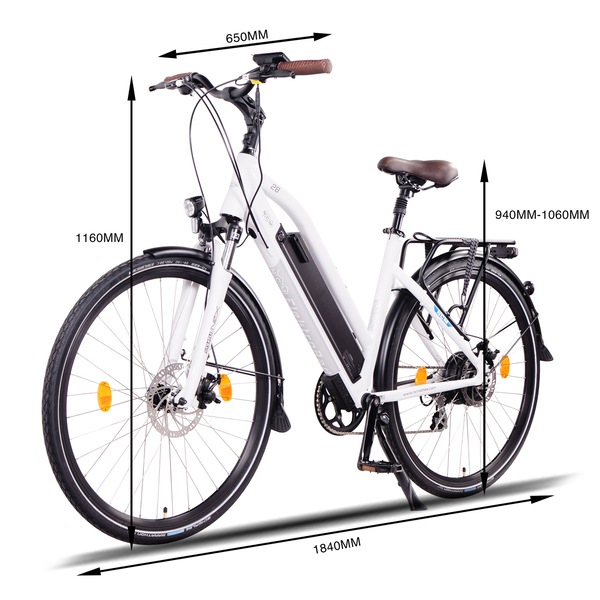

NCM Milano Dimensions

Please note: These values are minimum and maximum values for the bike to be properly rideable. The bike will be most comfortable near the middle of the range indicated. The minimum value should be treated as the absolute minimum, as anything lower may result in the rider not being able to reach the pedal at the bottom of the crank cycle. Using inseam length is much more accurate and appropriate for bike sizing than height. The frame size of a bike is generally governed by the length of the seat tube.
Using inseam length is much more accurate and appropriate for bike sizing than height. The frame size of a bike is generally governed by the length of the seat tube.
The frame size of a bike is generally governed by the length of the seat tube.
