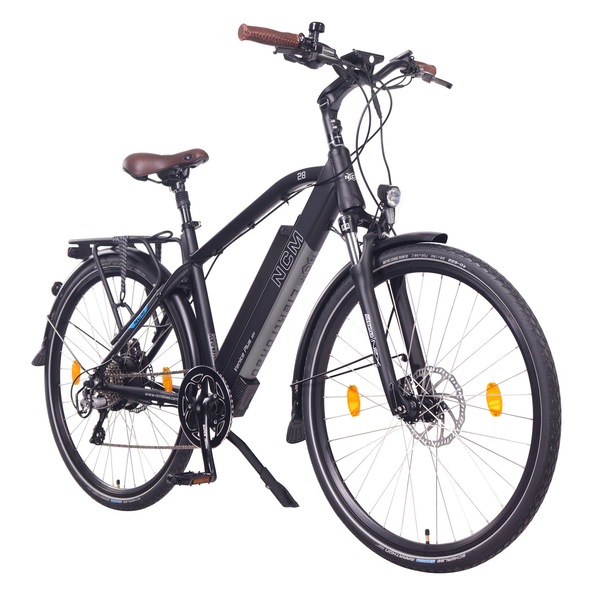

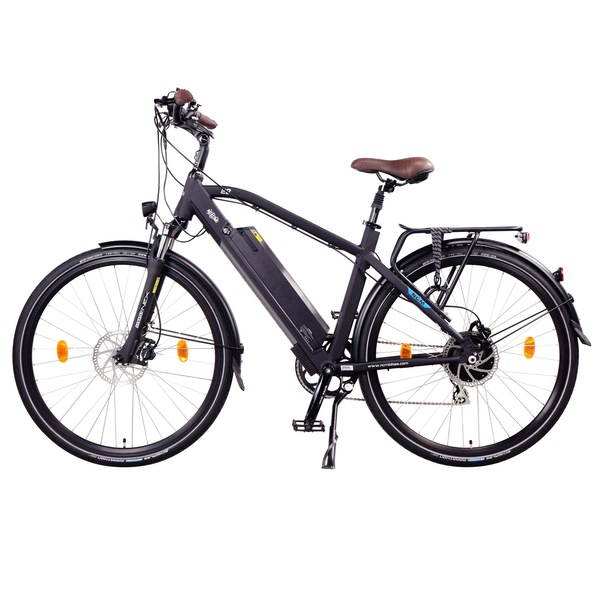

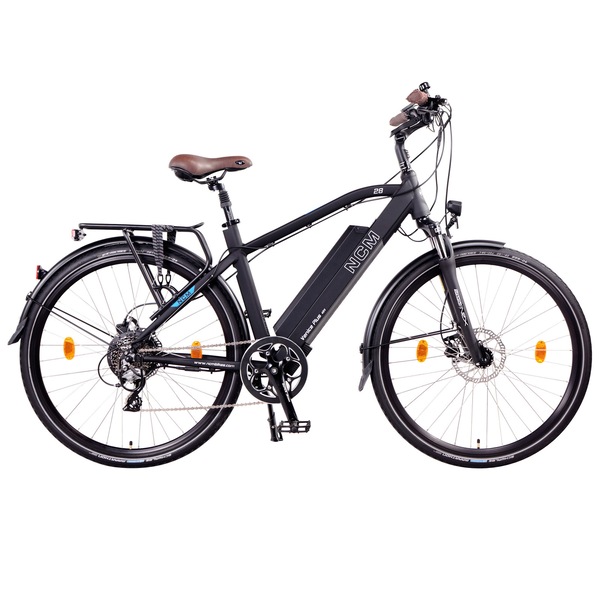

Leon Cycle is the manufacturer of NCM and ET.Cycle Electric Bikes. Buy from Leon Cycle & we will gurantee for our product quality, & warranty.
General Information
Weight: 28”= 27kg
Type: E-Trekking
Wheel size: 28"
Load capacity: Max. 125kg
Maximum speed: 25km/h
Model: Ui5M-48
Battery Information
Lithium-ion Battery
Model: i5-4816H
Ratings: DC 48V, 16Ah, 768Wh
Electric parts

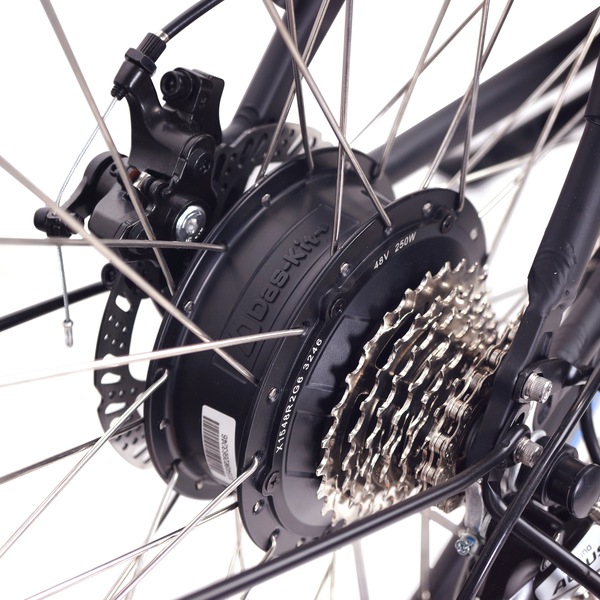

Motor: Das-Kit, X15 Rear-drive motor, 48V 250W, 25km/h
Controller: Das-Kit, CT5-I5, 48V 15A
Charger: 48V 3A included (round plug) DC483AU

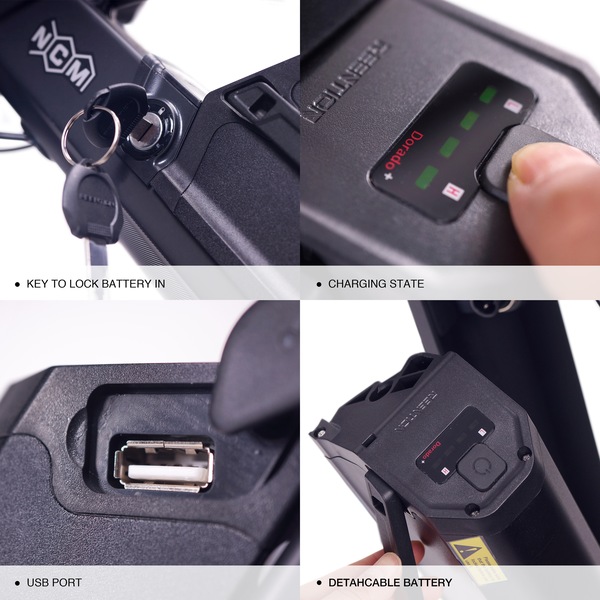

Battery: DEHAWK I5-4816H,48V 16AH, 768WH, with USB port
Average range: 50-130km depending on assistance level

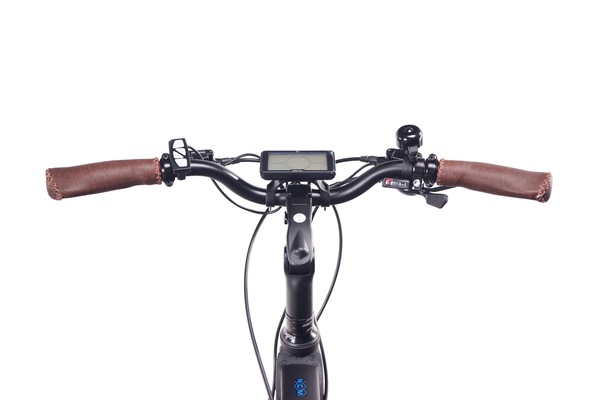

Display: LCD Das-Kit C7 display with many functions, 6km/h walk assist
Front/Rear Light: Spanninga, Kendo, 48V, 30 Lux over the bike battery / Spanninga, Solo with 2xAA batteries
Bike parts
Frame: Alu. 6061, 28"*480MM
Handelbar: Promax MA579 adjustable
Fork: Suntour, NEX 28”
Brake Levers: Tektro, with brake sensors on both sides
Brakes F/R: Tektro hydraulic Disc Brakes

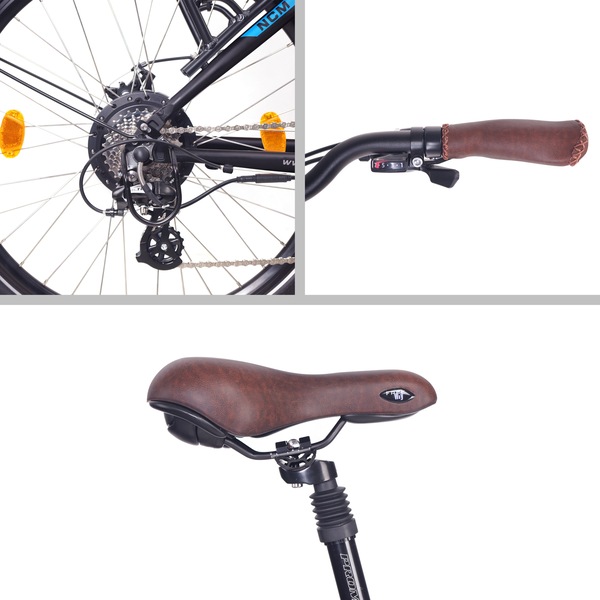

Chain derailleur: Shimano, Altus M310, 8 speed
Crank set: Prowheel, OUNCE-248AC, 48T
Gear shift: Shimano, Acera M360, 8 speed
Pinion: 8-speed screw ring, 11-32T
Tyre: Schwalbe Marathon 28"*1.5 700C black
Saddle: Selle Royal, gel saddle, brown (imitation leather)
Seatpost: Promax, SP-884, with suspension, 27.2*300MM
Handles: Selle Royal, brown (imitation leather)
Pedals: Wellgo, B087, black
Warranty
Disclaimer: Once you received the e-bike, we recommend to have it assembled by a professional in bike shops near you and also get your bike serviced after 1 month of use to ensure all aspects of the bike are set and calibrated correctly.
Estimated Delivery Time Frame: 5 - 10 business days
