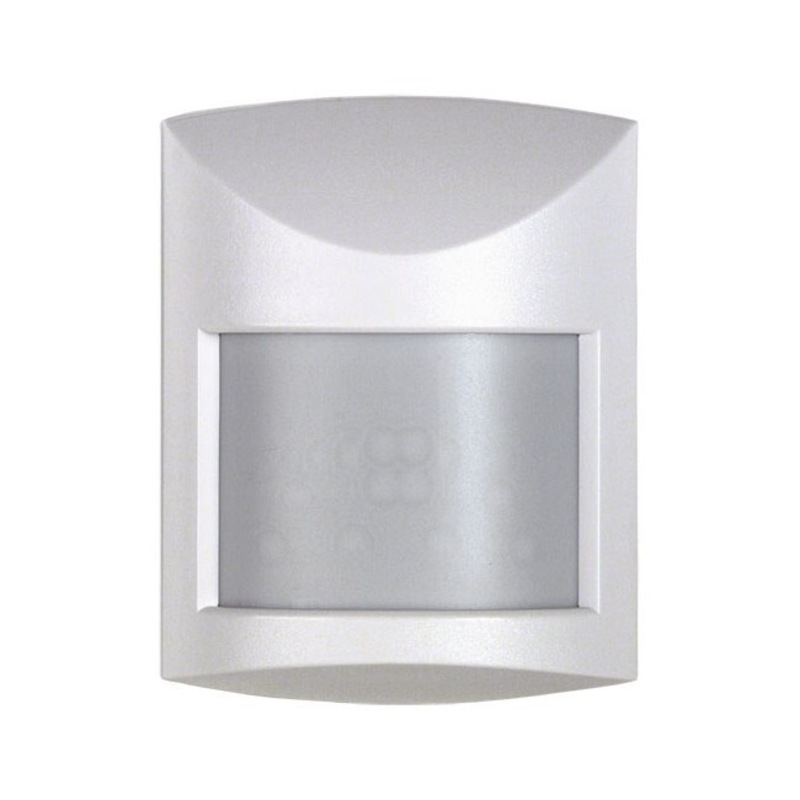

Ness Quantum Quad Element Passive Infra Red PIR Detector White Light Immunity

Quantum-Q is Australian designed and made using precision S.M.D. technology. With enhanced 15 meters wide-angle coverage, selectable Pulse Count and Sensitivity adjustments providing the flexibility to use the Quantum-Q in most environments.
Perfect for most domestic and commercial installations, Quantum-Q detector offers quality, performance, and reliability at the right price.


• Quad element pyro sensor
• 15m x 15m wide angle coverage
• Adjustable Pulse Count
• Adjustable Range
• High R.F. and E.S.D. immunity
• High white light immunity
• High quality patented Fresnel lens
• Front cover tamper protection
• Totally silent solid state relay with high immunity to magnetic fields
• Optional mounting bracket available
• 9~15VDC Operation

Specification:

• Mounting Height: 1.1m min, 3.1m max, 2.1m~2.3m optimal
• Coverage: Up to 15m x 15m  90°
• Detection Zones: 20 quad element zones
• Pulse Count: Selectable 1–2 or 3–4
• Range: Selectable High/Low. 15m max./12m max
• Sensor: Quad element pyroelectric
• Alarm Indication: Red LED
• Relay Output: Solid state relay, normally closed contacts, 100mA max.
• Tamper Output: Normally closed switch
• Warm Up Time/Alarm Time: 30 seconds / 5 seconds
• Operating Voltage/Current: 9 ~ 15V DC / 7mA
• Operating Temperature: 0º-50ºC
• Dimensions: 85H x 66W x 45D mm
