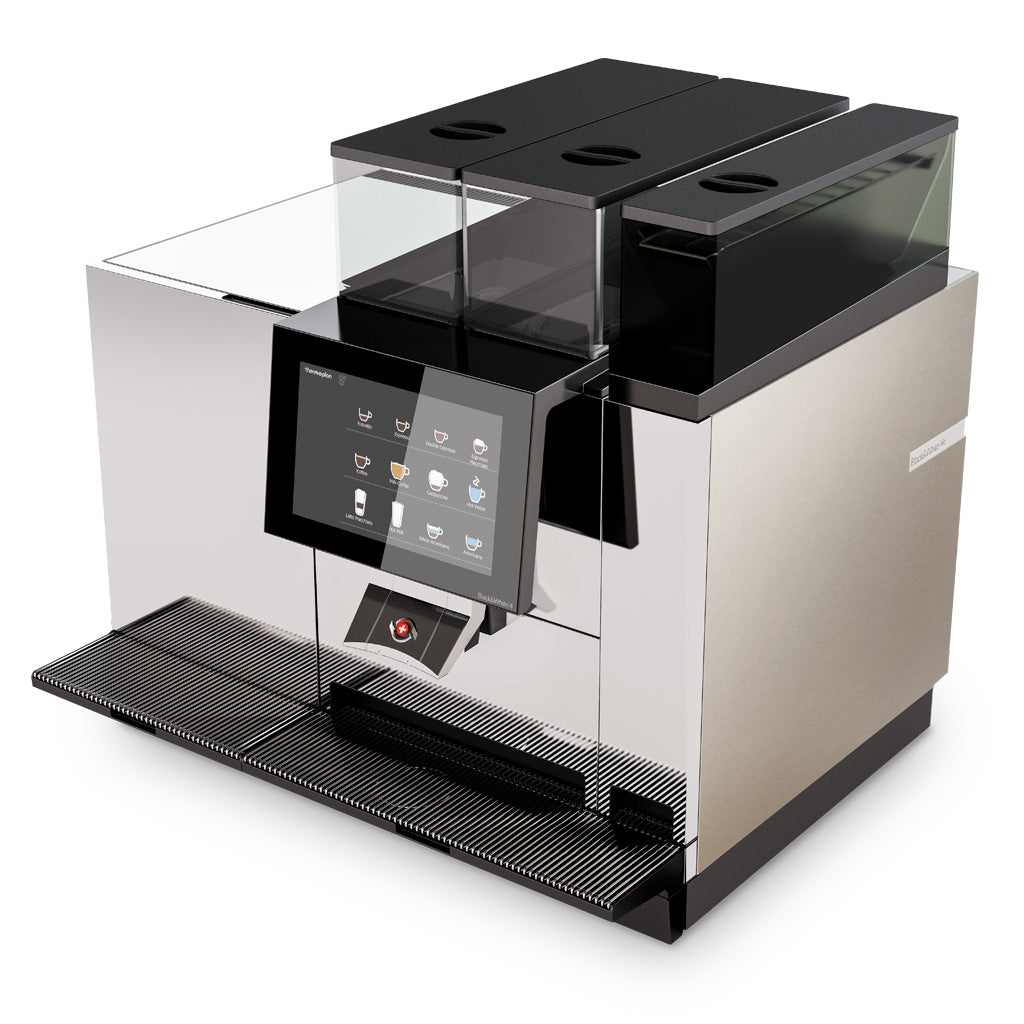

The Thermoplan Black&White4 compact CTMPRL Automatic Coffee Machine is a state-of-the-art coffeemaker, designed for the discerning coffee lover. With its automatic features and compact size, this machine can make the perfect cup of coffee every time, providing a convenient and efficient coffee experience.
Preparation
Brief description
The fully automatic coffee machine BW4 CTM P/CTM P RL prepares coffee specialties as well as milk-based coffee beverages in constantly high quality. The
cooling unit RL integrated on the left side holds a maximum of 9 liters of chilled milk in the plastic milk container. Alternatively, the milk supply can come from
the original package. On the right, there is the only 92 mm-wide powder unit with a capacity for 2 kg of chocolate powder for vending machines.
Special Features
The superior coffee system delivers coffee excellence in portafilter quality at the push of a button. With the modular system is the coffee machine
BW4 CTM P/CTM P RL equipped with the modular system developed by Thermoplan. The modules (mechanical and hydraulic module) can be exchanged
and serviced in the shortest amount of time reducing downtimes to a minimum. The fully automatic machine is equipped with a innovative milk foam technology developed by Thermoplan. At the touch of a button, the BW4 CTM P/CTM P RL creates milk foam, which can be customised to individual needs (consistency and temperature is variable).
Operation
Central operating and information unit is the capacitive 10'' touchscreen display. The cover glass is made of 3 mm-thick tempered glass and is resistant
against scuffs and scratches. There are approximately 25 language versions of the software available in order to simplify operation of the machine. The four
programmed user groups (self-service, barista, manager, technician) have different application authorisations and setting options which are regulated with
access codes.
Cleaning
The fully automatic coffee machine has an automatic cleaning system. The cleaning intervals are pre-programmed for simplification and to ensure quality of the
beverages. A complete cleaning cycle lasts approximately 17 minutes. The cleaning process is performed for the coffee and milk foam system each in closed
circuits. The use of cleaning keys simplifies handling and ensures exact cleaning agent dosing. The cleaning process for the powder unit must be performed
after 7 days. Once this process is manually started it is automatically performed and a sequence of the cleaning steps which must be performed manually are
shown on the display. The outer surface of the fully automatic coffee machine can be cleaned with a conventional, mild cleaning agent, however.
Overview of the advantages
* Superior coffee system
* Modular machine assembly
* Innovative milk system technology
* Straightforward, ergonomic design
* Touchscreen with capacitive 10" display
* Intuitive operation
* Efficient tablet cleaning circuit cleaning system
* Resource-saving operation
Additional options * ThermoplanConnect telemetry system
* Touchless order
* Interface for payment connection (compatible with coin checker,
coin exchanger, credit card payment, automatic beverage registration, etc.)
* Customer-specific outer material and machine color
* Lockable containers (bean hopper, refrigerator, powder front, aroma drawer, grounds drawer)
* 2 types of milk
* Water tank operation
* 1 or 2 coffee grinders
* Grounds chute
Features
Dimensions (W x D x H) CTM P 412 x 600 x 646 mm Weight 67 kg
CTM P RL 692 x 600 x 646 mm Weight 92 kg
Coffee outlet height 85 - 172 mm (manually adjustable)
96 - 192 mm (automatic)
Bean hopper ~1.7 kg each
Refrigerator RL 9 litre
Syrup unit 1 - 4 syrup flavors
Power connection 220 - 240 volt / 50 - 60 hz / 13 amps / 1 phase
220 - 240 volt / 50 - 60 hz / 16 amps / 1 phase
220 - 240 volt / 50 - 60 hz / 32 amps / 1 phase
380 - 415 volt / 50 - 60 hz / 16 amps / 3 phase
Water connection 3/8>>, pressure 2-4 bar / 30-60 psi, no chlorine, TDS 70-200 ppm, hardness 5-8o dH (8-14o fH),
pH 6.8-7.4, alkalinity < 100 ppm, iron < 0.25 ppm
Capacity per hour | 240 espressos Amount depends on cup size and machine setting |
Bean hopper |
~1.7 kg |
Powder container |
2 kg |
Refrigerator |
9 litres |
Electrical connection |
1 Phase 220-240 VAC / 50-60 Hz 5800-7100 W / 32 A 220-240 VAC / 50-60 Hz 2700-3100 W / 13 A 3 Phasen 380-415 VAC / 50-60 Hz 5800-7100 W / 3x16 A |
MPN: RAN3641S
