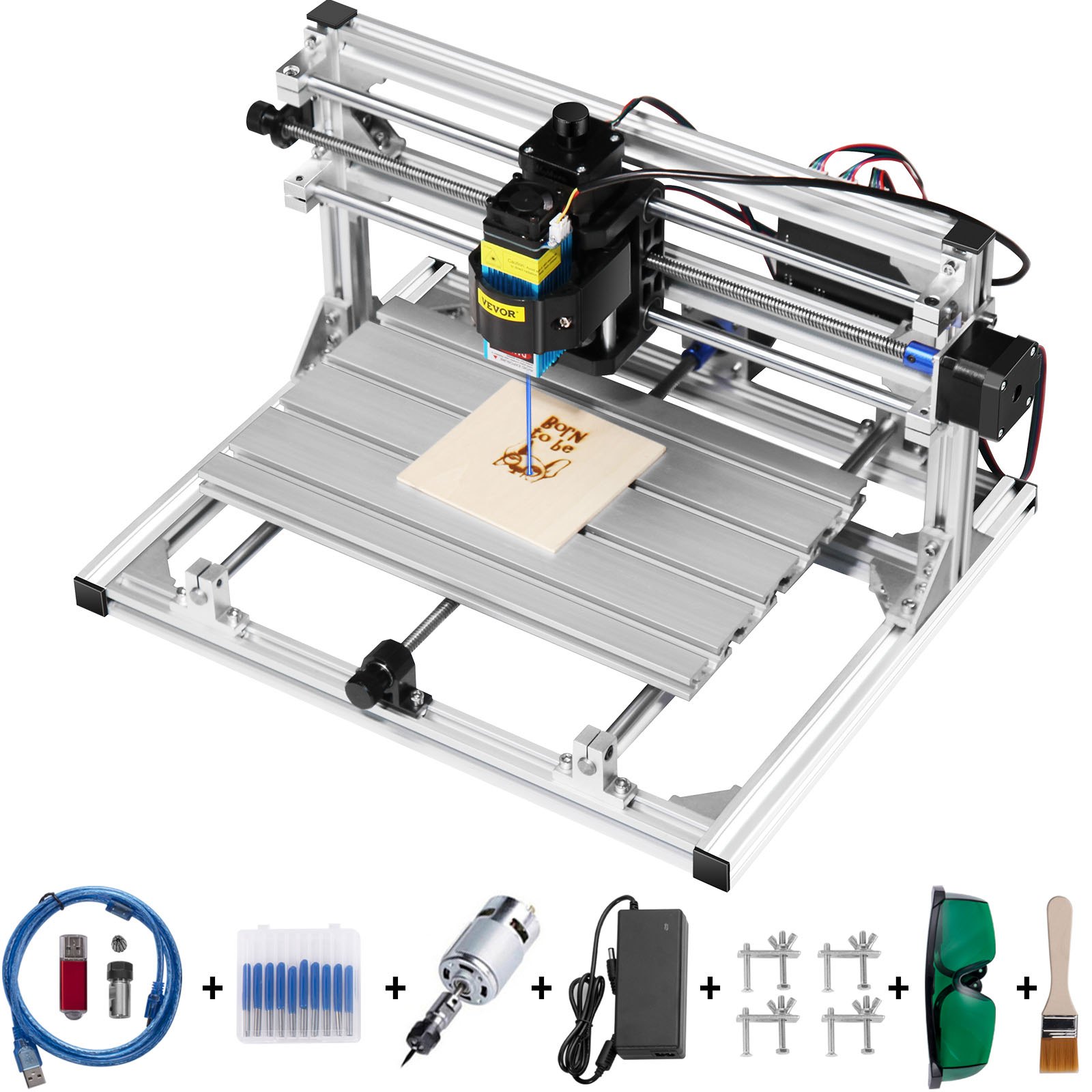

CNC 3018 DIY 3 Axis Engraver Kit With 5500mw Laser Engraver Milling Machine For Wood PVB PCB

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Hurry! 5 items left!
$564.99

Collect 564 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Potiva Deals
Secure ways to pay at checkout
Pay in 4 interest-free payments of $141.25 with Learn More
CNC 3018 DIY 3 Axis Engraver Kit With 5500mw Laser Engraver Milling Machine For Wood PVB PCB
About this item
  • CNC 3018 Router Machine: The 5500mW laser driver interfaces support PWM, TTL functions for full function laser engraving. We provide a detailed user manual, assembly instructions, and installation video for your convenience. You can enjoy the delight of engraving plastics, soft aluminum, acrylics, PVC, PCB, and many more.

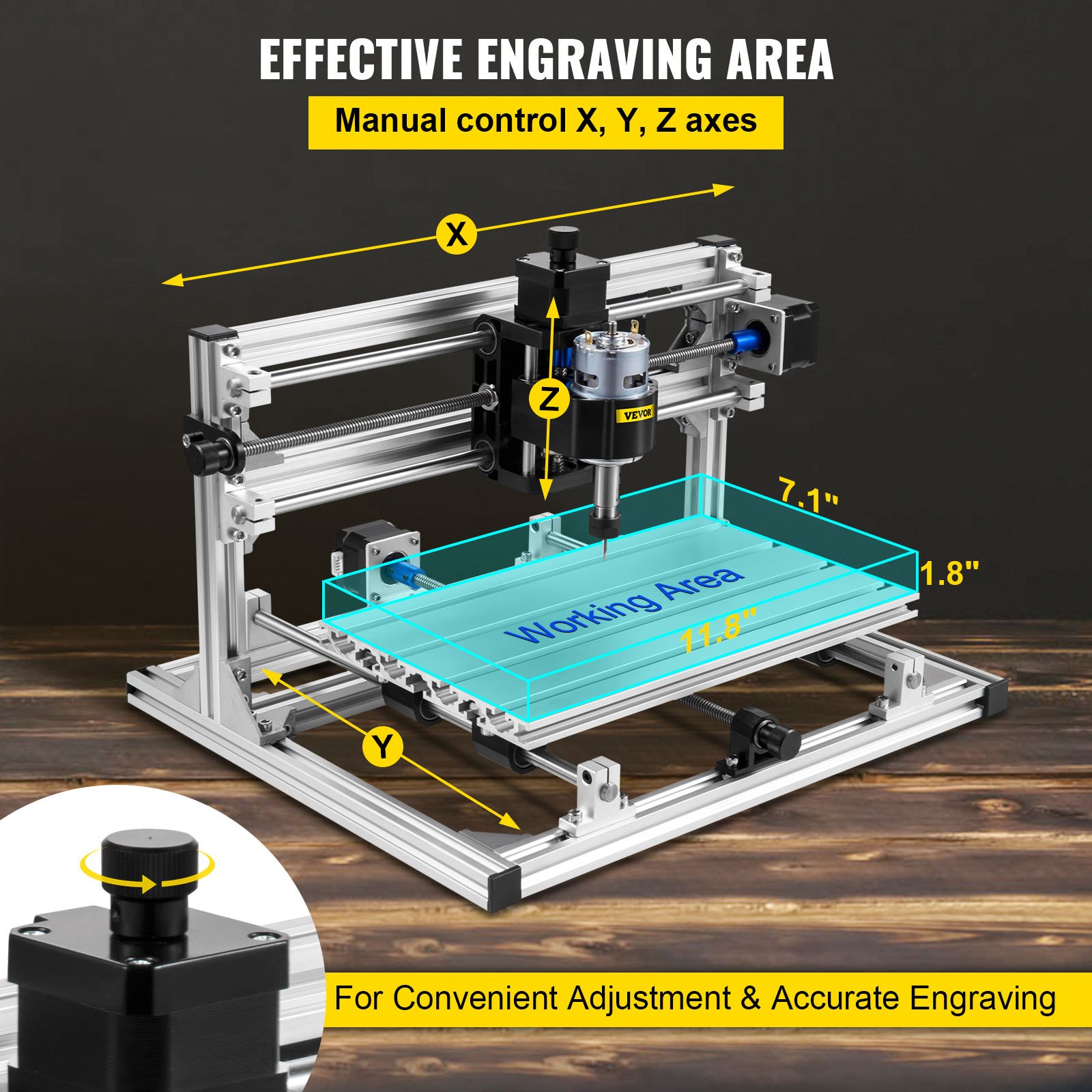

  • Large Working Area: The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. Three refined axes are designed to achieve plane engraving. With the knob, the axes can be moved manually, which facilitates the carving tool settings. The driving units consist of stainless steel screw rods. It uses double copper nuts to clear round trip errors.
  • Excellent Motor: This CNC engraving machine is equipped with three stepper motors(1.3A; 12V; 0.25 Nm torque) and 775 DC(12-24V) 24V spindle motors with a rotational speed of 10000 r/min. And the engraver supports Windows 7, Windows 8, Windows 10, Linux, macOS system, and other software to directly import JPG, BMP, PNG, DXF format files for engraving.
  • Upgraded Control Board: The integrated GRBL control features full functionality and stability. And the advantages of the offline controller lies in the following ones: 1. No need to connect to the computer; 2. Arbitrary selection of offline files for engraving. 3. Manually adjust the X, Y, and Z axes position as the engraving starting point, manually turn on or off the spindle.4. High precision: less than 0.003 inches.

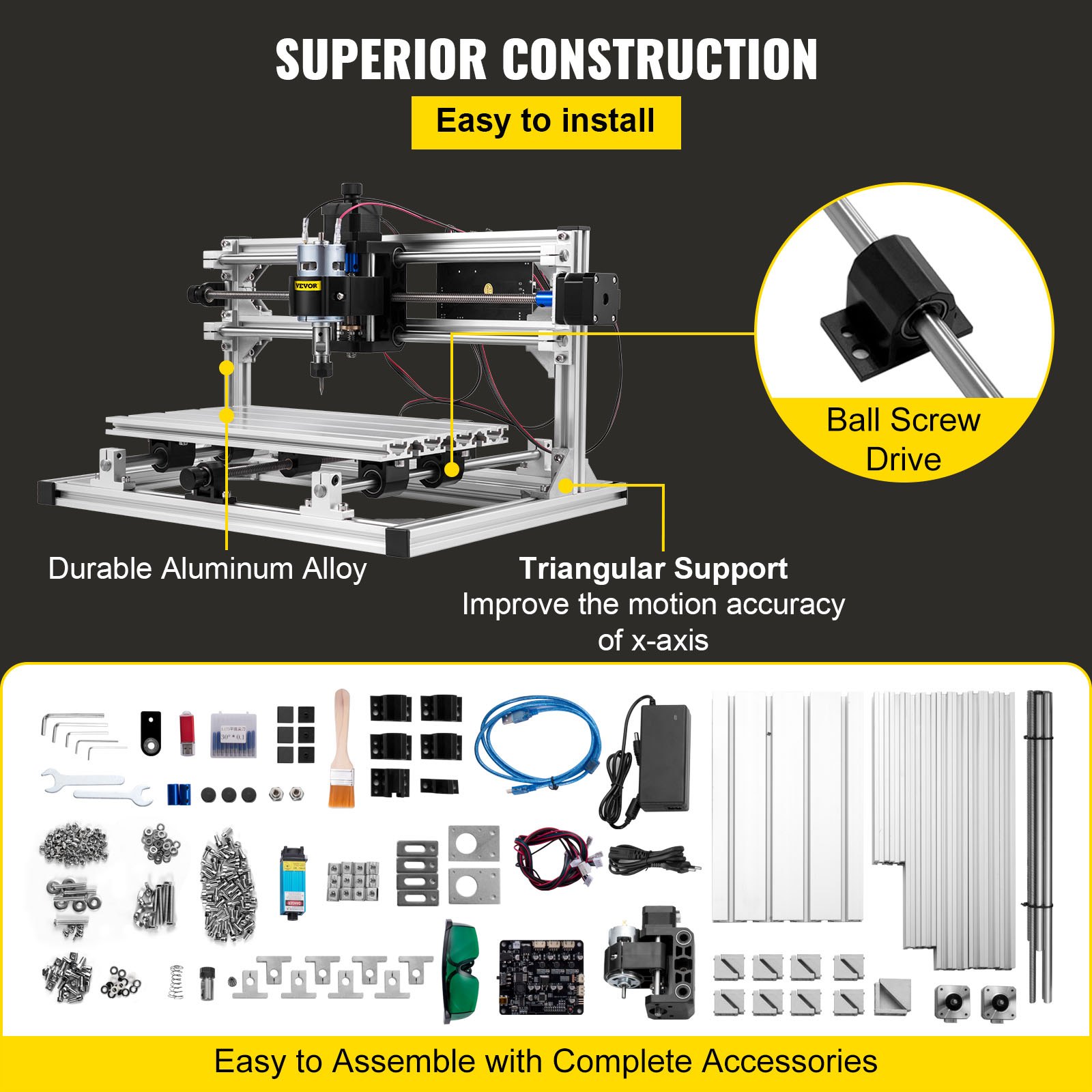

  • Sturdy Material: The frame is mainly made of aluminum alloy and Bakelite materials, with high strength and precision. The thickened side plates can improve the accuracy of the x-axis. Moreover, it is durable enough to withstand the rigors of all-day use repeatedly.

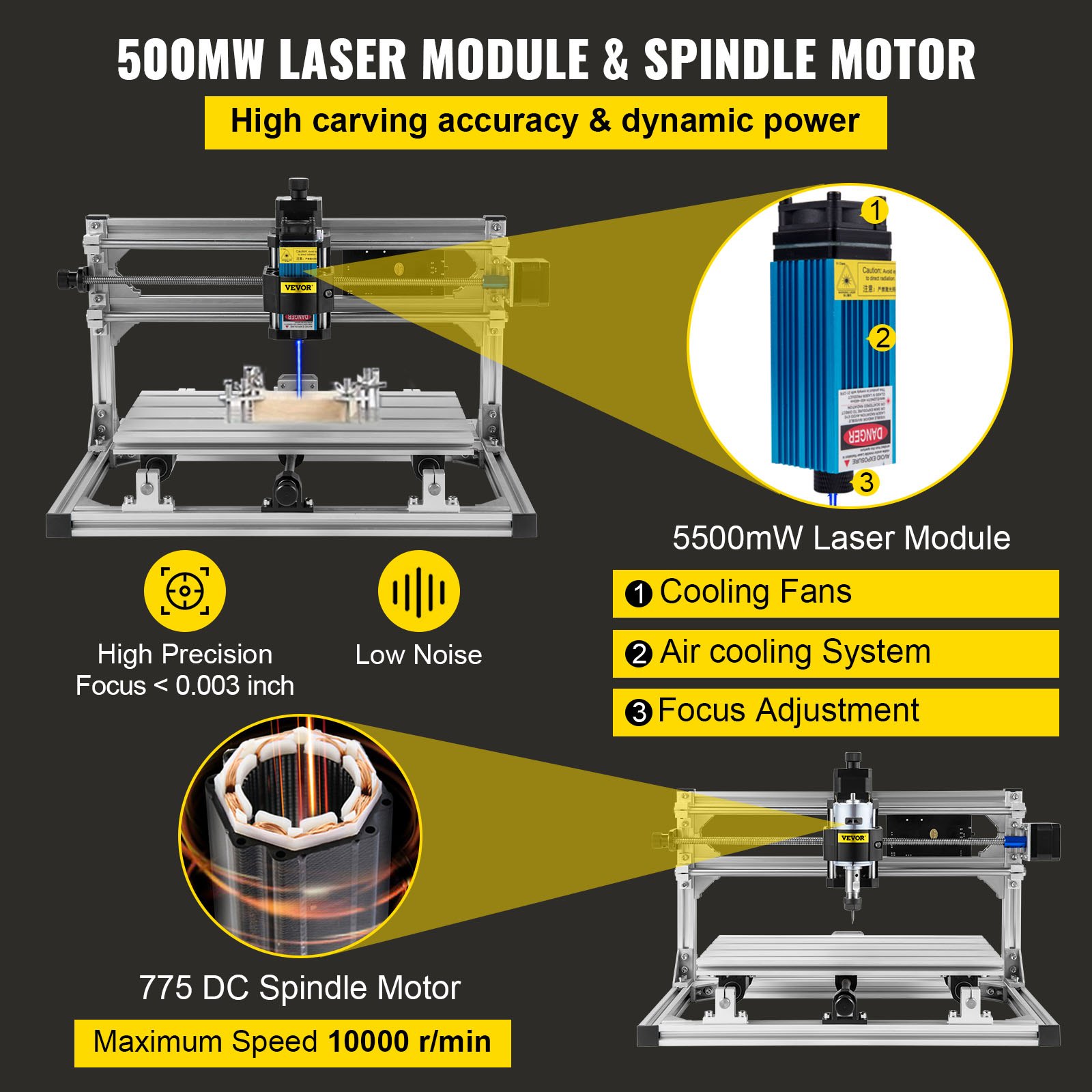

5500mW Laser Module & Spindle Motor

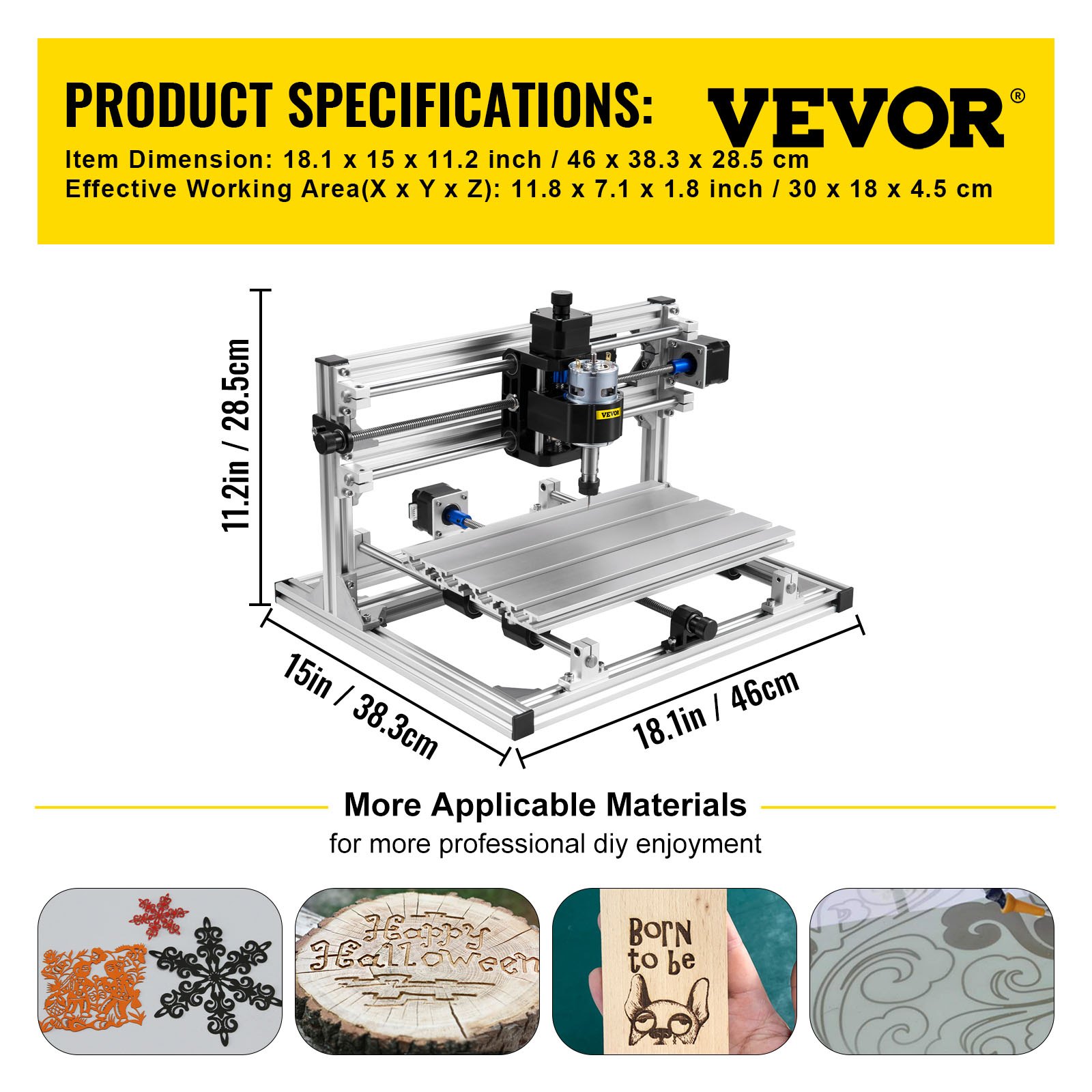

Large Working Area

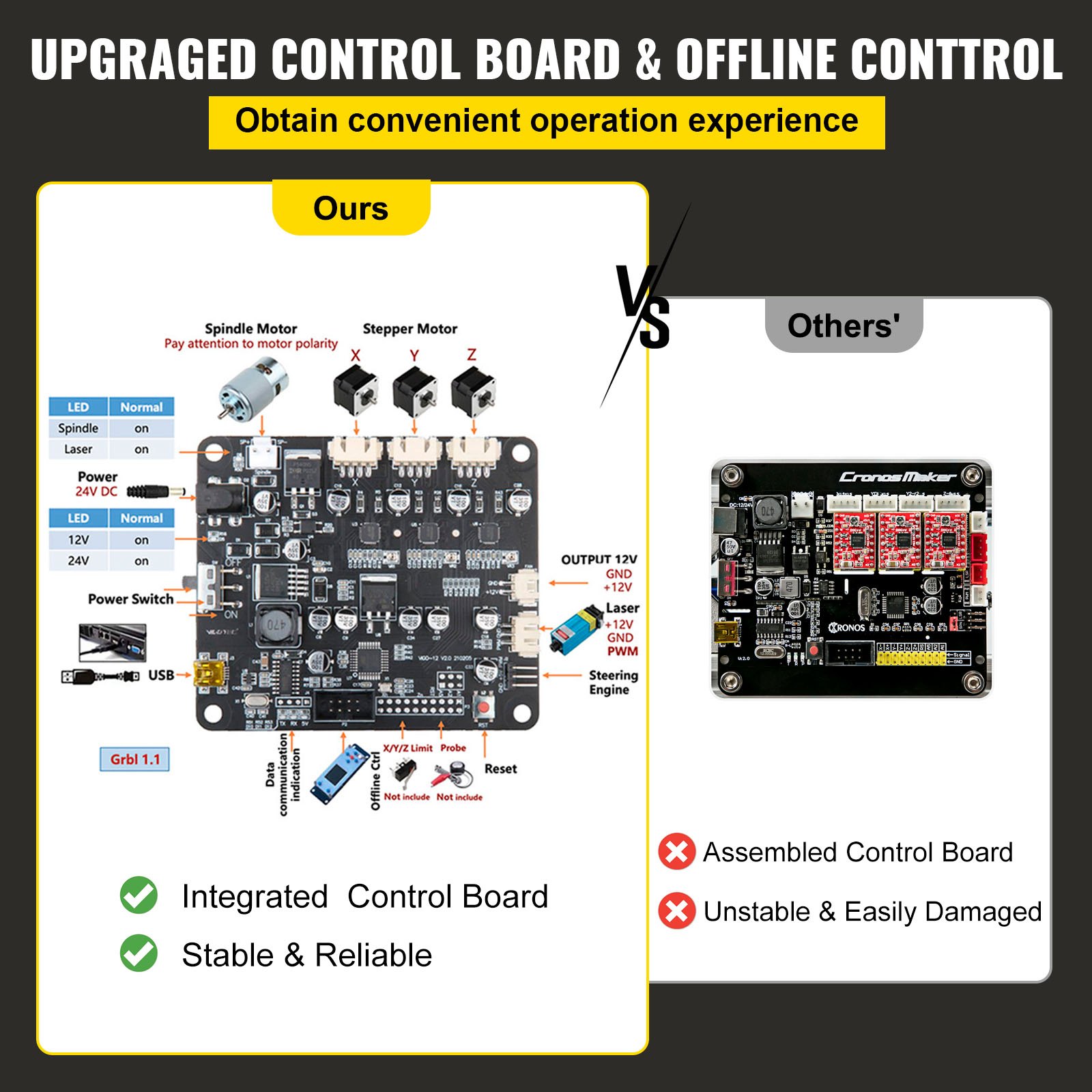

Functional Control Board
Extraordinary Quality
Easy to Install

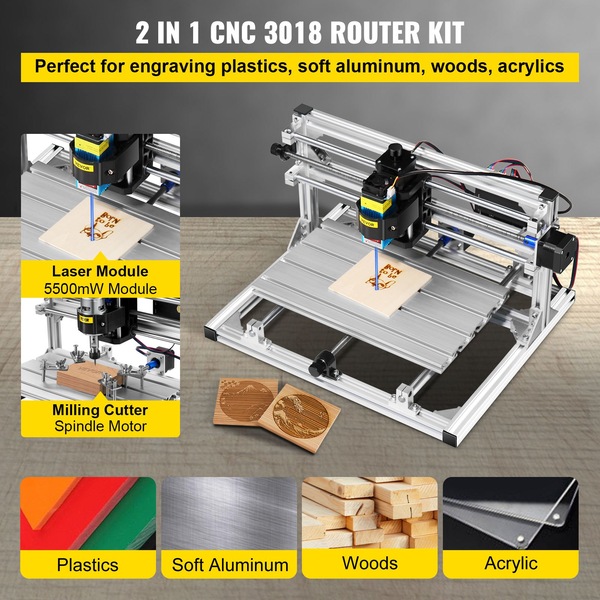

Wide Application
Spindle Speed: 10000 rpm,Control Software: GRBL Control,Effective Working Area(X x Y x Z): 11.8 x 7.1 x 1.8 inch/ 30 x 18 x 4.5 cm,Input Power: DC 24V 5A,Cutter Diameter: 0.125" / 3.175 mm,Item Dimension: 17.7 x 14.4 x 10.9 inch/ 45.1 x 36.6 x 27.6 cm,Driving Units: T8 Stainless Steel Screws,Model: VG-S3018,Material: 2020 Aluminum,Stepping Motor: Size 42, 12V; Torque: 0.25 N/m,Positioning Accuracy: 0.003 inch/ 0.07 mm

SKU: DKJ3Z3018DKJ5500MV3

Estimated Delivery Time Frame:2-6 business days
