XTOOL D8S Automotive Diagnostic Scanner – 2025 Upgraded Version with ECU Coding & Key Programming
Get your hands on the XTOOL D8S, the ultimate all-in-one automotive diagnostic tool designed for professional mechanics, auto shops, and advanced DIYers! This 2024 upgraded version of the XTOOL D8 takes diagnostics to the next level with advanced ECU coding, key programming, bi-directional controls, and 38 special functions, all packed into an 8-inch Android tablet. With 3 years of free updates, CAN FD/DoIP support, and coverage for over 10,000 vehicles, this scanner delivers dealership-level performance at an unbeatable value.
Why Choose the XTOOL D8S?
- Pro-Level Features: ECU coding, topology mapping, and full-system diagnostics for comprehensive repairs.
- Key Programming: Add new keys, disable lost ones, and program fobs with ease.
- Wide Compatibility: Works on 88 brands and 10,000 models globally—keeps growing with updates!
- Fast & Reliable: Ships within 48 hours from XTOOL’s US/UK/CA/EU/AU/RU/BR/MX warehouses, tax-free.
- Trusted Support: 3-year warranty, 24/7 tech help, and a 5-star review gift from XTOOL Official Store.
Standout Features
Advanced ECU Coding & Hidden Features
- Coding Power: Customize settings for VW, Audi, and Skoda with component matching and adaptive data reset.
- Unlock Extras: Flash hidden functions for Ford, Lincoln, Mazda, BMW, Toyota, and more—disable seat belt chimes, tweak daytime running lights, or adjust speed limiters.
- PMI Support: Copy codes to used modules for Ford, Mazda, and Lincoln replacements.
Full Bi-Directional Control
- Send commands to ECUs for active tests like injector buzz, A/C clutch cycling, window/door operation, and more.
- Pinpoint issues fast—ideal for locating faulty components without guesswork.
Note: Test availability varies by vehicle.
OE-Level All-System Diagnostics
- Scans every system—engine, transmission, ABS, airbags, HVAC, and beyond.
- Reads/clears codes, graphs live data (fuel trims, O2 sensors, etc.), retrieves freeze frames, and pulls ECU info.
- Turns off warning lights and resets monitors like a pro.
Intelligent Topology Mapping
- Visualizes your vehicle’s electronic network, showing ECU connections at a glance.
- Speeds up diagnostics by highlighting faults across all systems instantly.
38 Special Functions
- Covers all your maintenance needs: Oil Reset, EPB, SAS Calibration, ABS Bleed, Injector Coding, Throttle Reset, DPF Regen, TPMS Reset, and more.
- Tackles 99% of routine repairs—complex fixes made simple!
Note: Functions vary by vehicle—check compatibility with VIN.
Key Programming & IMMO
- Reads PIN codes, adds keys/fobs, disables lost keys, and supports advanced IMMO tasks.
- Works with optional programmers (KC100/KC501—not included) for enhanced capabilities.
Pre-Scan, Post-Scan & Diagnostic Report 2.0
- Records vehicle status before and after repairs for transparency and quality assurance.
- Customizable reports with your shop logo—professional and shareable.
CAN FD & DoIP Protocol Support
- Covers GM (2020) with CAN FD—no extra adapter needed.
- Supports DoIP for BMW (E/F/G Chassis), Jaguar, and Land Rover diagnostics.
8-in-1 Live Data Graphing
- Displays up to 8 PIDs (e.g., misfire counts, trans temp) in real-time graphs or text.
- Export data as CSV for deeper analysis.
Specifications
- Model: XTOOL D8S
- OS: Android 10.0
- Processor: Quad-Core 1.50GHz
- Memory: 4GB RAM, 64GB ROM
- Display: 8-inch capacitive touchscreen, 1024x768P resolution
- Battery: 5000mAh, 7.3V Lithium-polymer (fast-charging)
- Connectivity: Dual-band WiFi (2.4/5GHz), DB15 to VAG USB
- Power: 12W, 12V input
- Dimensions: 28cm (L) x 18cm (W) x 12cm (H)
- Weight: 3kg
- Certifications: CE, UL, RoHS, FCC
- Languages: 15 options (English default—contact seller for others: Spanish, German, French, etc.)
- Updates: 3 years free via WiFi
- Warranty: 3 years

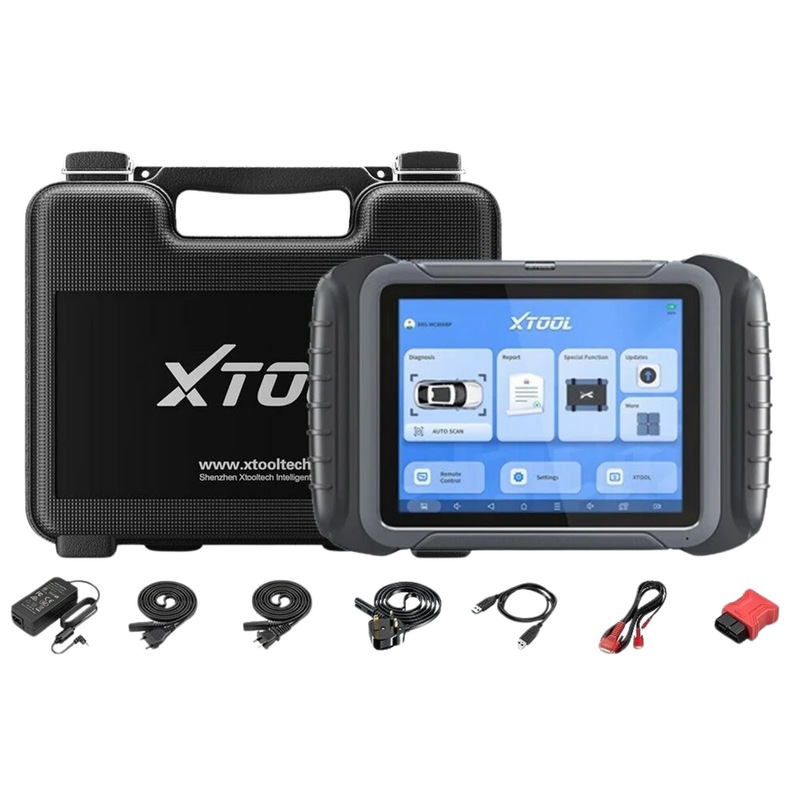

What’s Included
- XTOOL D8S Diagnostic Tablet
- Power Adapter & Charging Cable
- DB15 to VAG USB Cable
- Quick Start Guide
- Certificate of Quality
- Protective Carrying Case
Note: Optional accessories (e.g., KC100, KC501, endoscope) sold separately.
Vehicle Coverage
- Supports 88 brands, 140 models, and 10,000 vehicles worldwide:
- US: Ford, GM, Chrysler, Lincoln, etc.
- Asia: Toyota, Honda, Nissan, Hyundai, Kia, Mazda, etc.
- Europe: VW, Audi, BMW, Mercedes, Skoda, etc.
- Works on 12V sedans, SUVs, light trucks, hybrids, and more (1996 US, 2000 EU).
- Continuous updates expand coverage!
XTOOL Official Store Promise
- 100% Authentic: Direct from XTOOL with a 5-year authenticity guarantee.
- Fast Shipping: Dispatched within 48 hours from global warehouses—tax covered!
- Top Support: 24/7 online help and lifetime technical assistance.
- Bonus Gift: Leave a 5-star review with a photo after delivery and contact us for a free gift!
Condition & Notes
- Condition: Brand new, factory sealed.
- Shipping: Free from your nearest XTOOL warehouse (US/UK/CA/EU/AU/RU/BR/MX).
- Compatibility: Check your vehicle’s VIN with us before purchase—some features vary by model.
Upgrade your diagnostic game with the XTOOL D8S—a powerhouse scanner trusted by pros worldwide. Bid now or message us with questions!
