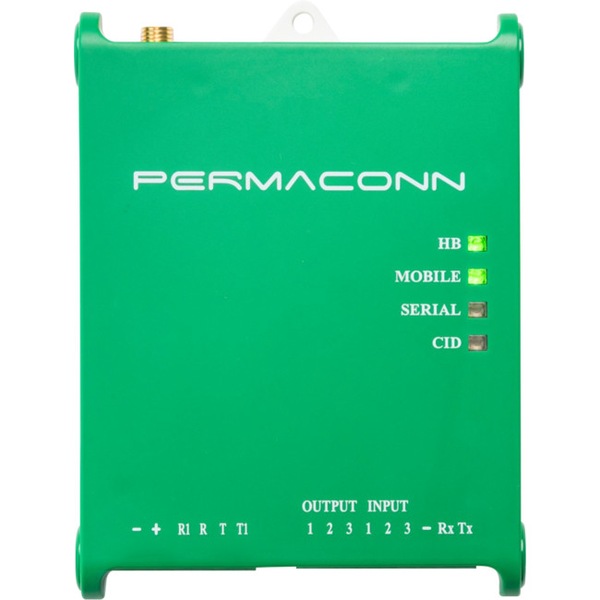

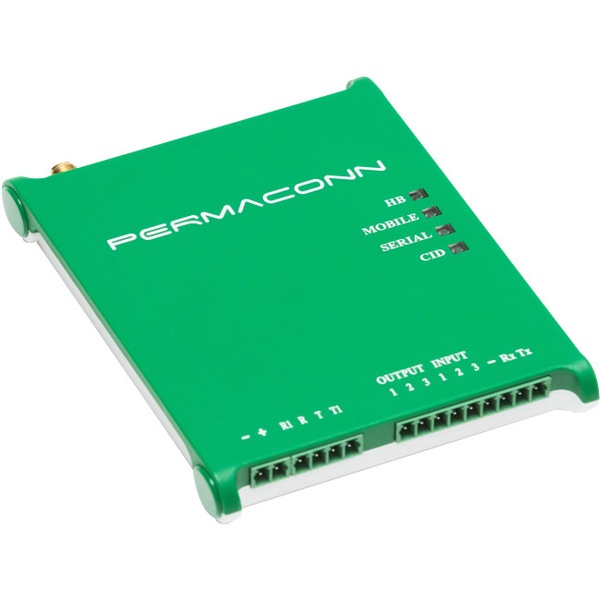

PERMACONN 106-394 Pm24-4G Single Sim 4G Gsm Dialler No Battery Back Up

Image 1
Image 2
Hurry! 9 items left!
$166

Collect 166 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout
Overview
106-394 PM24-4G SINGLE SIM 4G GSM DIALLER - PERMACONN

Single SIM 4G

The smallest and most cost-effective single SIM Communicator in Australia.

This Communicator is compatible with any Contact ID enabled alarm panel.

The PM24 incorporates the latest technology available today - and signals are transmitted over the CAT M1 IoT network, that forms part of the 4GX network.

  • Innovative: Uses the latest Cat M1 network designed for machine-to-machine comms
  • Higher Performance: Longer range and 20% greater penetration into buildings
  • Lower Power Consumption: Easily powered by the alarm panel
  • No Drilling or Screws: Attaches magnetically to the alarm panel enclosure
  • Smartphone Control: Works with Pocket Secure and Atlas

Features
  • Small size: Fits inside alarm panel enclosure and suitable for ATM & M2M applications
  • Secure VPN within Telstra network: Dedicated for Permaconn events only
  • AES128 encryption for alarm data: Secure alarm signalling
  • Various diagnostic LEDs: Easy installation
  • Activate, control and diagnose PM24 using Atlas portal: Seamless installation process
  • Internal watchdog reset function: No unnecessary service call-outs
  • Monitors & reports dialler interface lead status:secure interface from alarm panel dialler to Permaconn
  • Outputs can be configured to arm/disarm the alarm system, control gates and lights. ‘Pocket Secure' smartphone app controls these functions
Specifications
Specifications

Housing Material ABS Plastic - Greeg
Dimensions (H×D×W) 108mm × 15.5mm × 80mm
Weight 80g
LTE FDD B3 / B28
Power 8-15V DC Terminal Supply
Power Consumption
  • Standby: 0.04A @ 13.8V DC
  • Transmitting: 0.19A @13.8V DC
Modem Quectel BG96
Auxiliary Input 3 × 24hr inputs - state change Detected every second EOL 3.3K
Auxiliary Output 3 × Open Collector outputs @ 50mA (max)
Function Control using Atlas web portal and/or "Pocket Secure" App
Data Security AES128 Encryption
Approvals
  • EN62311: 2008, AS/NZS 2772.2: 2016, AS/NZS 60950.1:2015
  • AS/NZS CISPR 22: 2009+A1: 2010
  • AS/CA S042.4: 2015, AS/NZS 60950.1:2015
  • EN 55032: 2015, EN 55024: 2010+A1:2015
  • EN 61000-3-2: 2014, EN 61000-3-3: 2013
  • ETSI EN 301 489-1 V 2.1.1 (2017-02)
  • Draft ETSI EN 301 489-52 V1.1.0 (2016-11)
  • ETSI EN 301 908-1 V11.1.1(2016-07)
  • ETSI EN 301 908-2 V11.1.1(2016-07)
  • ETSI EN 301 908-1 V11.1.1 (2016-07)
  • ETSI EN 301 908-13 V11.1.1 (2016-07), EN62479: 2010
  • EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
