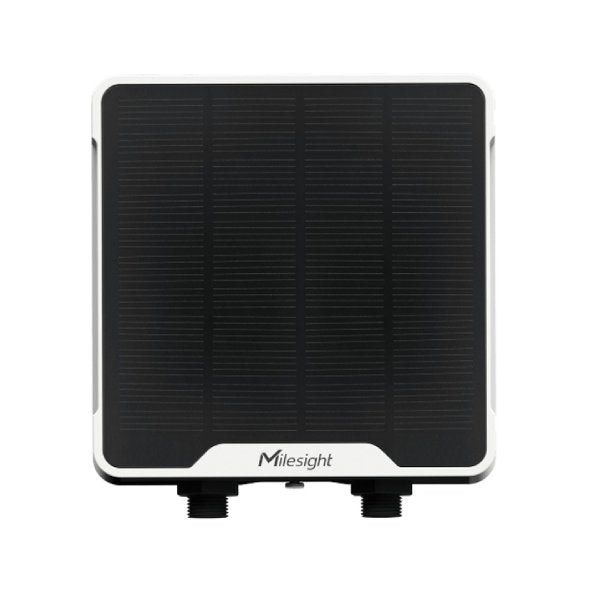

MILESIGHT UC501 AU915/AS923 SOLAR POWERED LORAWAN CONTROLLER WITH GPIO/AI/RS232/RS485

The Milesight UC501 is a LoRaWAN® controller used for data acquisition from multiple sensors. It contains different I/O interfaces such as analog inputs, digital inputs, digital outputs, serial ports and so on, which simplify the deployment and replacement of LoRaWAN® networks.

UC501 can be easily and quickly configured by NFC or wired USB port. For outdoor applications, it provides solar power supply and is equipped with an IP67-rated enclosure and M12 connectors to protect itself from water and dust in harsh environments.

This sensor is perfect for multiple use cases including smart agriculture, smart industrial monitoring and smart cities. You can use this unit for retro-fitting existing sensors to send over LoRaWan, including gas, water or flow meter monitoring.

FEATURES

Easy to connect with multiple wired sensors through GPIO/AI/RS232/RS485 interfaces

Long transmission distance up to 11km with line of sight

Waterproof design including IP67 case and M12 connectors

Solar powered with rechargable

Quick wireless configuration via NFC

Compliant with standard LoRaWAN® gateways and network servers

Quick and easy management with Milesight IoT Cloud solution

SPECIFICATIONS

Manufacturer's Code: UC501-915M

Frequency: AU915/AS923

Tx Power: 20dbm

Sensitivity: -147dBm @300bps

Mode: OTAA/ABP

Interface type: M12 A-Coded Male

IO Ports: 2 x GPIO

Logic Level: Low: 0~0.9V, High: 2.5~3.3V

Work Mode: Digital input, digital output, pulse counter (only support on GPIO2)

Serial Port: 1 × RS232 or RS485 (Switchable)

Baud Rate: 300~230400 bps

Protocol: Transparent (RS232), Modbus RTU (RS485)

Analog Inputs: 2 × Analog input

Resolution: 12 bit

Input Range: 4~20mA or 0~10V (Switchable)

Power Output: 2 × 3.3 V, 2 × 5/9/12 V (Switchable)

Operating Temperature: -20°C to +60°C

Ingress Protection: IP67

Dimension: 120.1 × 120.1× 55.4 mm (4.73 × 4.73 × 2.18 in)

Power Connector: M12 A-Coded Male

Power Input: Rechargeable 4900 mAh battery with solar panel

Power Supply: Solar powered + 2*2550mAh battery backup + 5-24 VDC

Mounting: Wall or Pole Mounting

PACKAGE CONTENTS

1 x Milesight Uc501 Au915 As923 Solar Powered Lorawan Controller With Gpio
2 × Data Cable
1 × USB Cable
1 x Set Mounting screws
1 x Set Screwcaps

SKU: UC501-915M
