Leon Cycle is the manufacturer of NCM and ET.Cycle Electric Bikes. Buy from Leon Cycle & we will guarantee our product quality, & warranty.

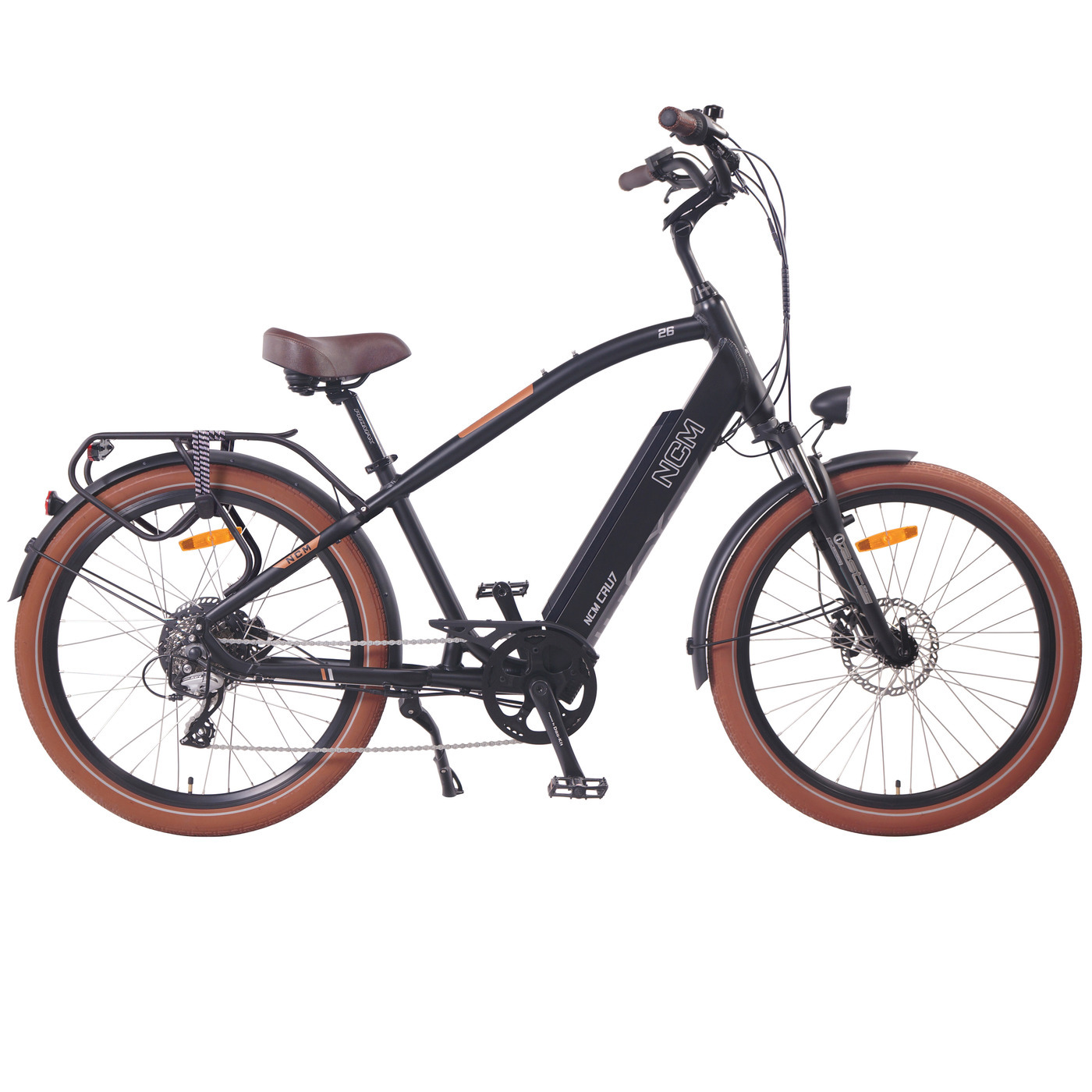

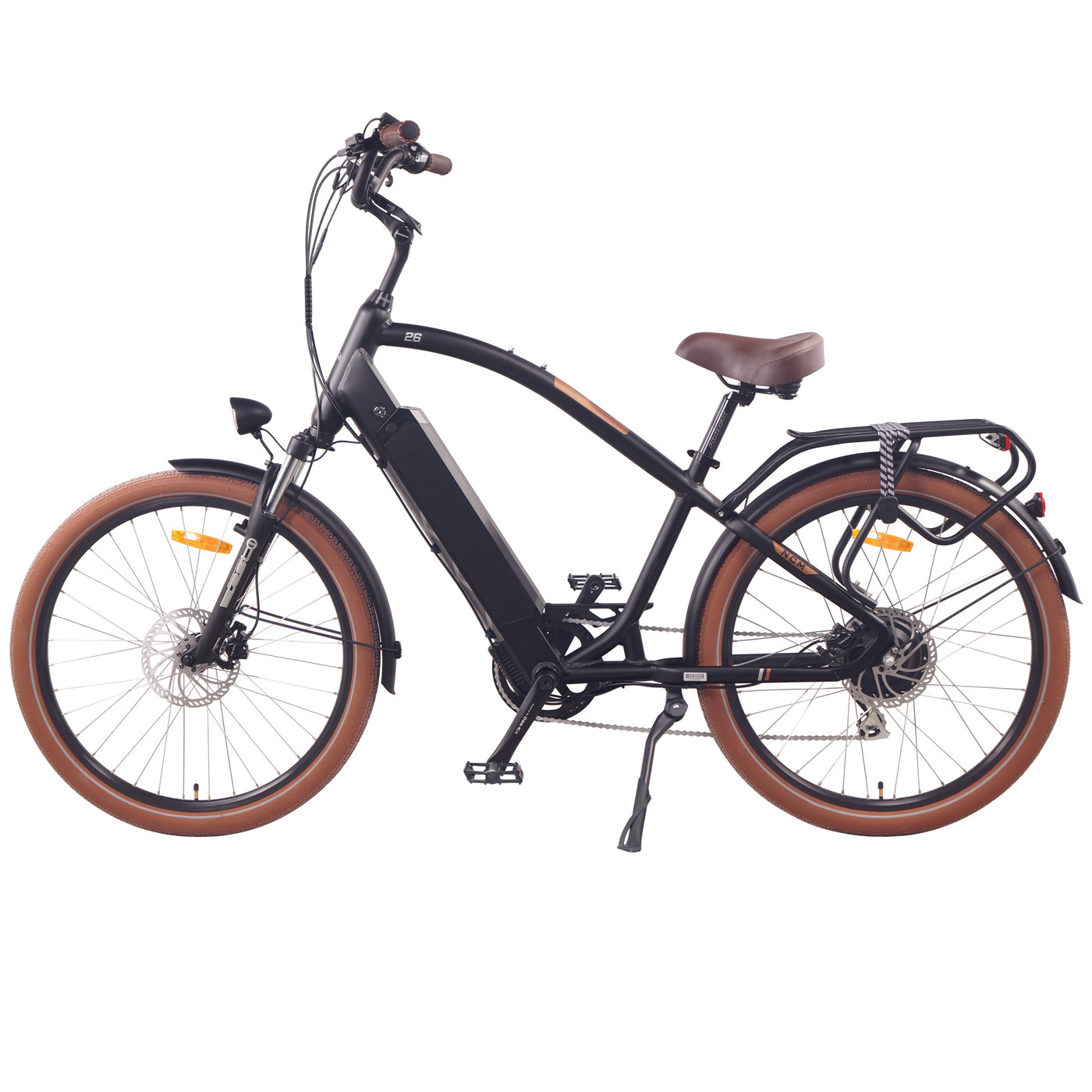

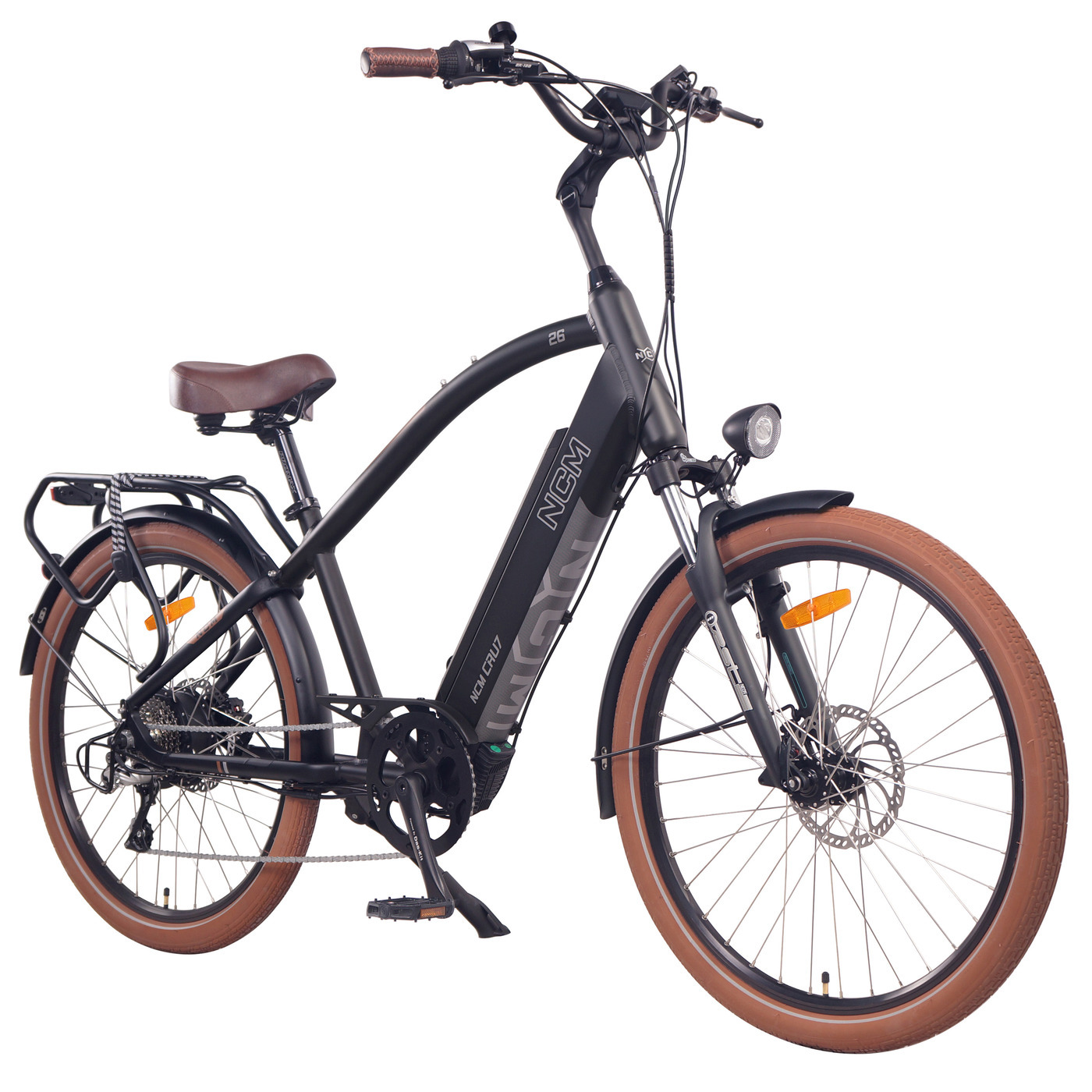

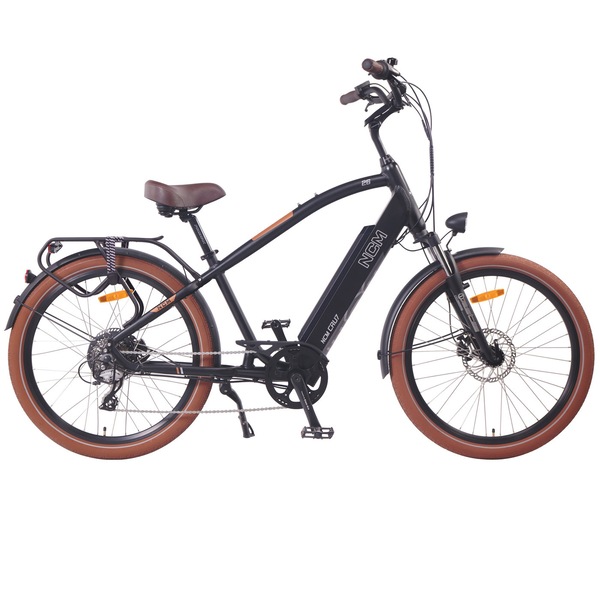

The NCM Crus7 is the upgraded version of NCM Miami that comes with a Das-Kit 48V 19Ah 912Wh long-lasting battery giving you reach up to 180km per charge. This depends on rider weight, terrain, and riding style. High-quality bike components allow for great performance and control on and off-road. With multiple levels of pedal assist, the only thing that will take your breath away is certainly not the climb, but the view you see when you reach your destination. Strength and power are the characteristics that describe our E-Cruisers most accurately and are also reflected in their design.

General Information

Weight: 26"= 29.8kg
Type: E-Cruiser
Wheel size: 26"
Load capacity: Max. 140kg
Maximum speed: 25km/h

Battery Information

Lithium-ion Battery
Model: i5-4819 (Approvals: NSW REAS #CCS-250307-EA)
Ratings: DC 48V, 19Ah, 912Wh

Electric parts

Battery: Das-Kit, i7-4819, 48V 19AH, 912WH with Tag Technology (Approvals: NSW REAS #CCS-250307-EA)
Motor: Das-Kit, X15, Rear drive motor, 48V 250W, top speed 25KM/H
Controller: Das-Kit, T7+, 48V 18A

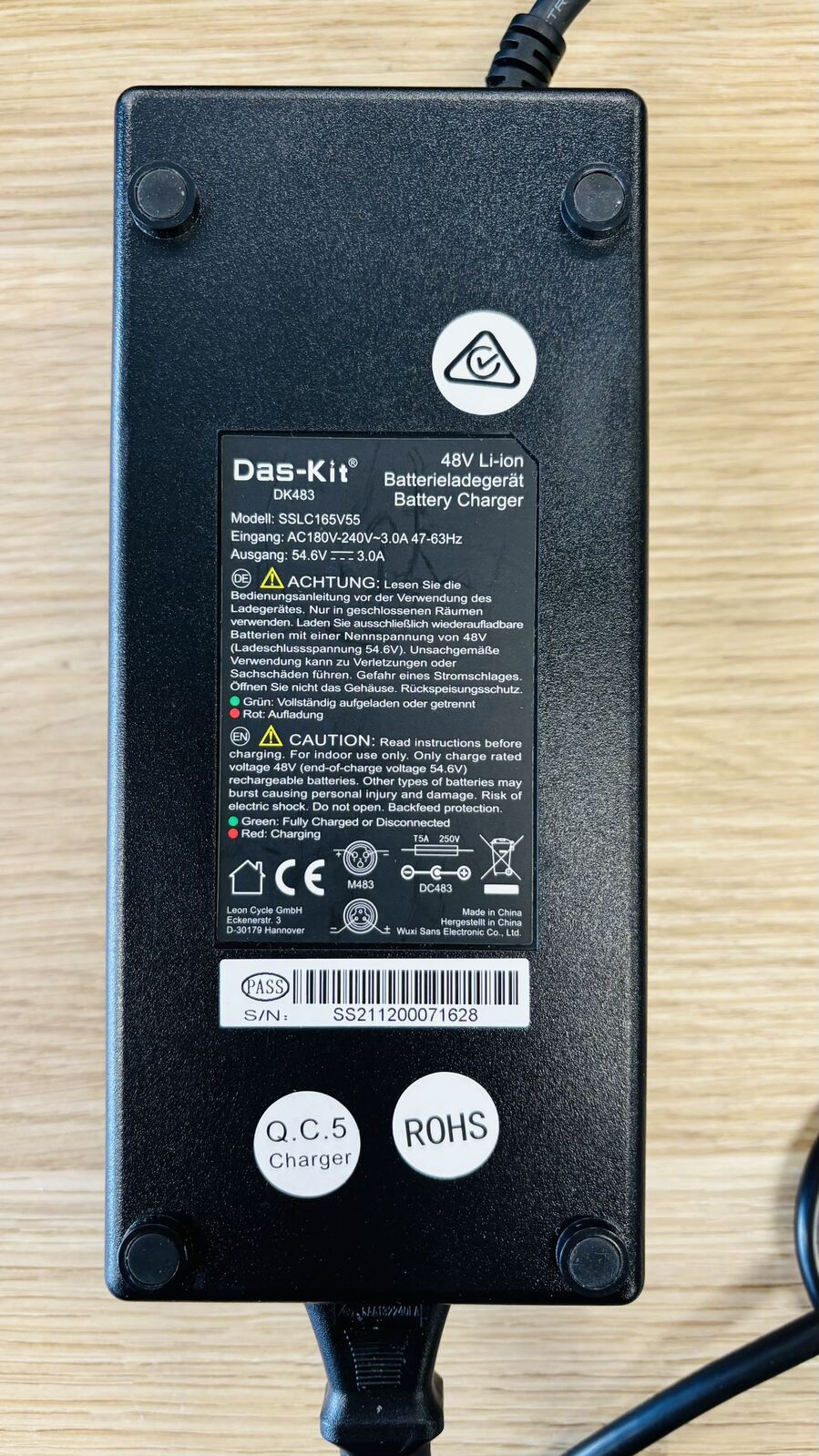

Charger: Das Kit, 48V 3A (Approvals: ERAC, NSW REAS #GMA-514660-EA, EESS Number: E2022081360)

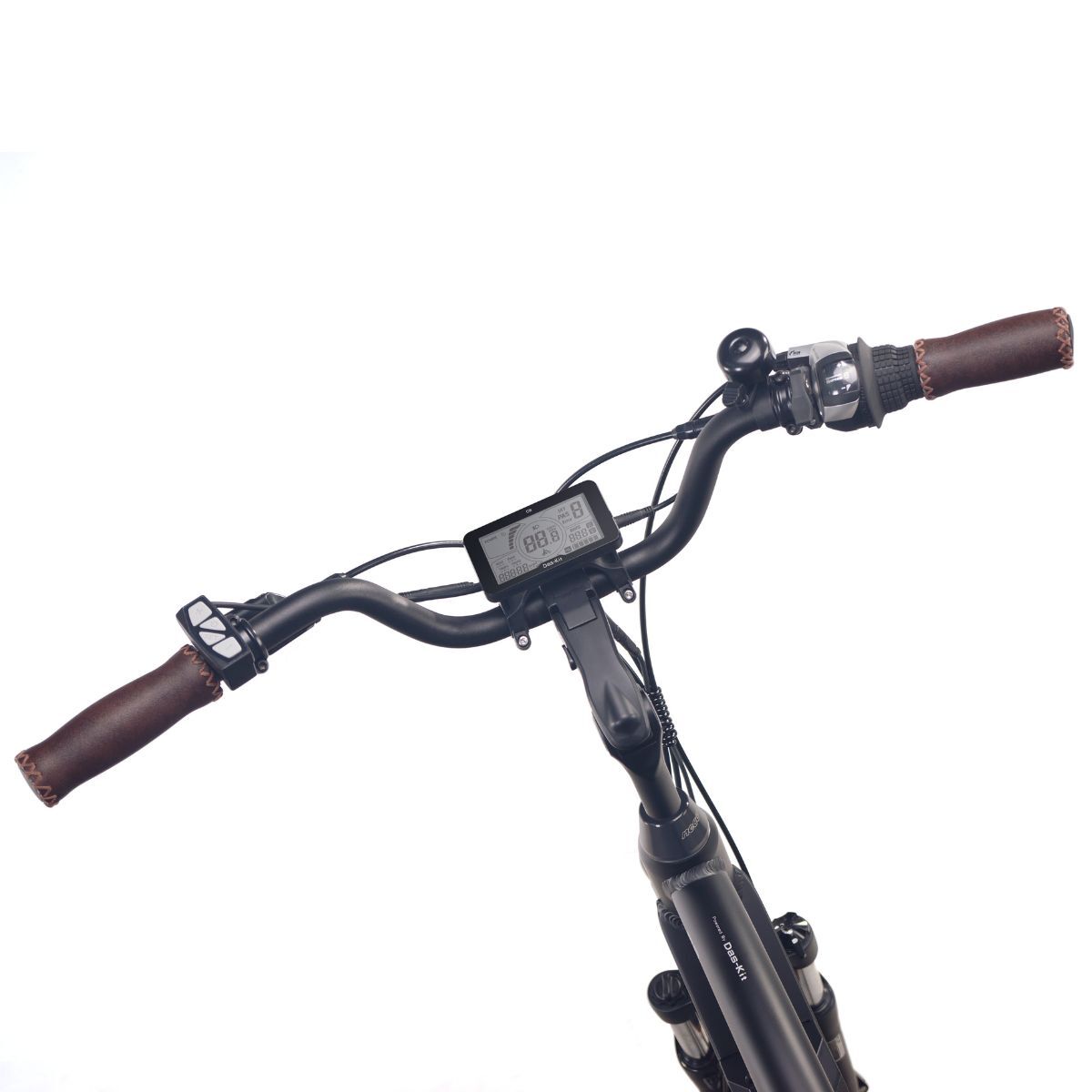

Display: Das-Kit, C8, with USB

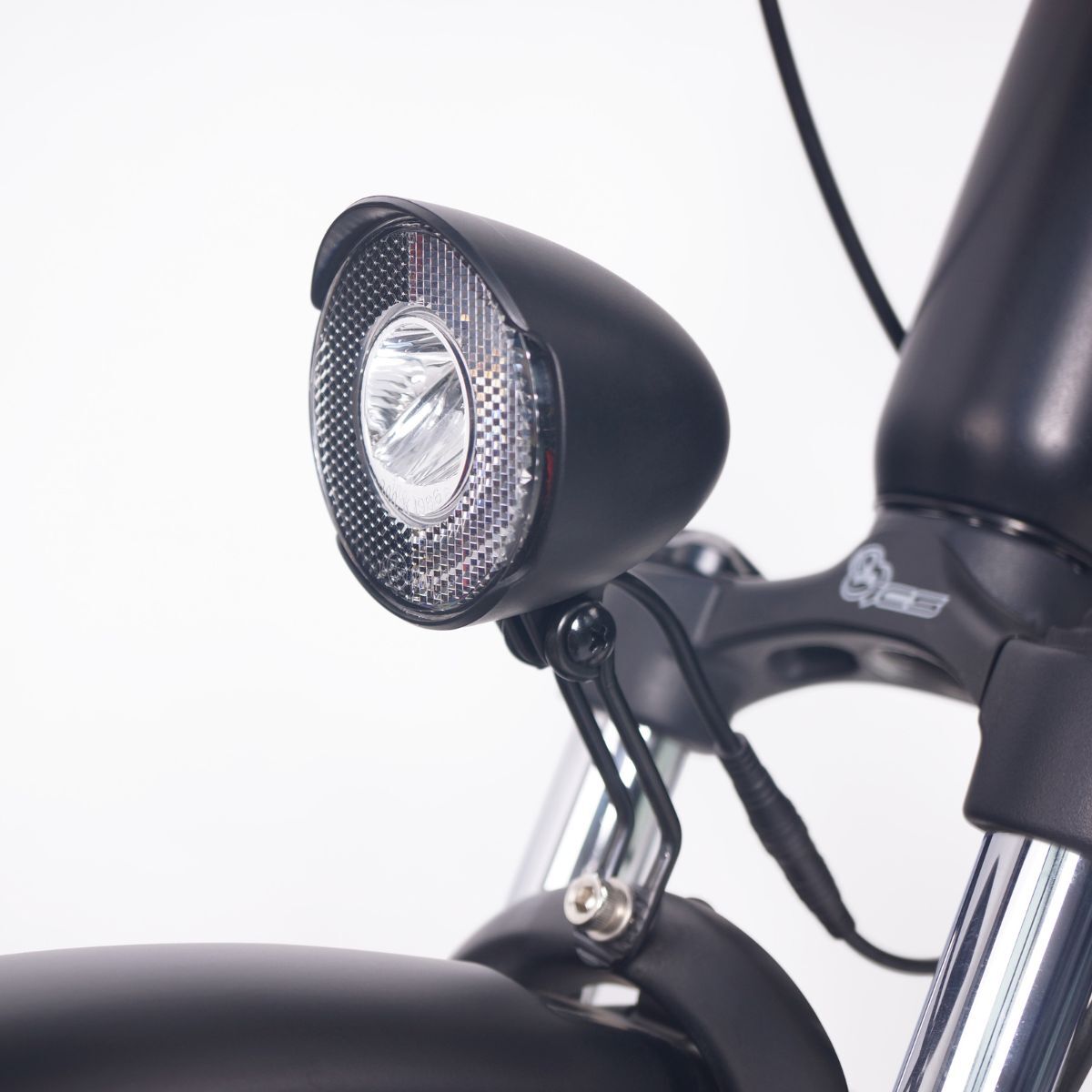

Front Light: DH006, 48V, 25Lux

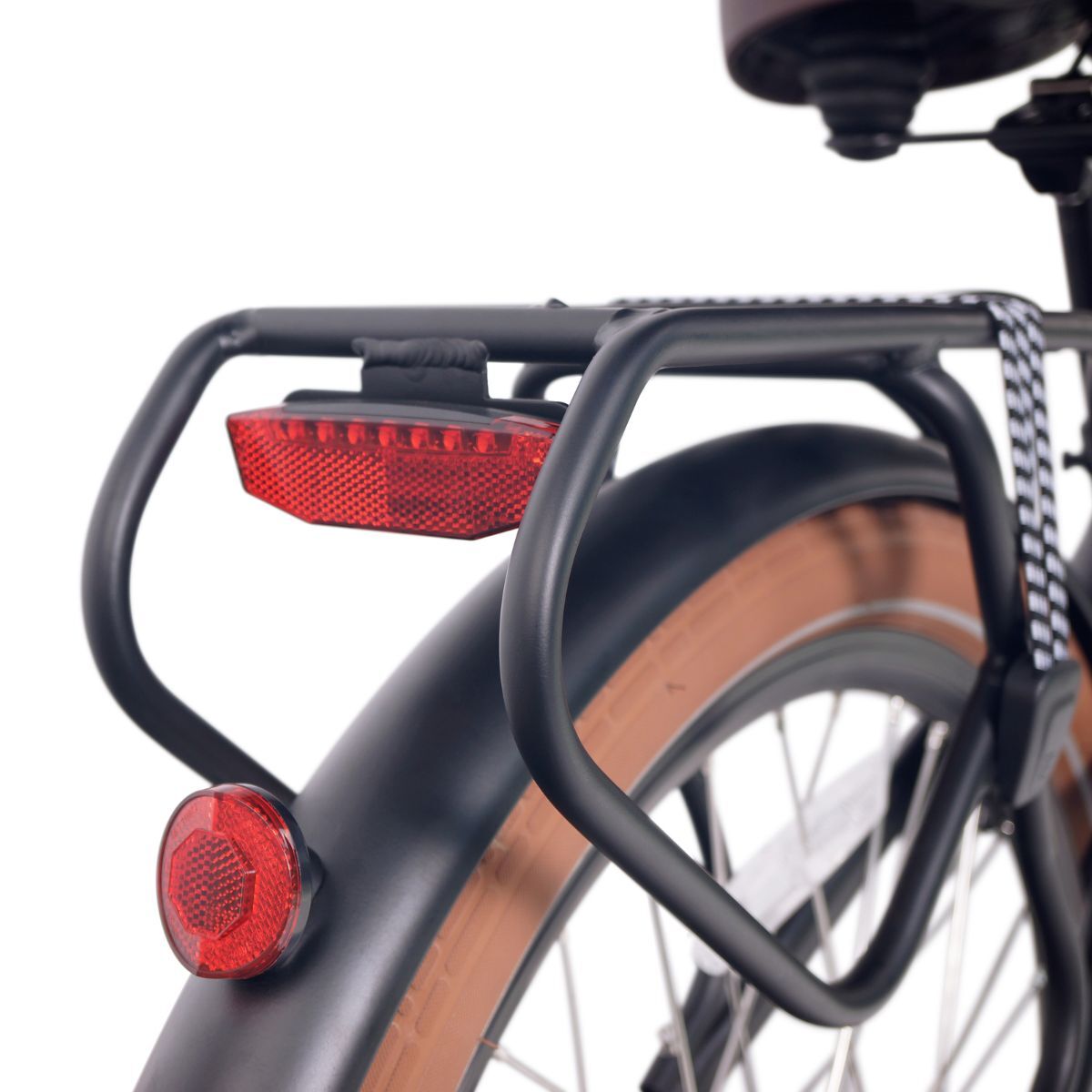

Rear Light: DR009,48V
Distance: Approx. 100-180km depending on assistance level.

Bike parts

Frame: Alu. 6061, 26"*480MM

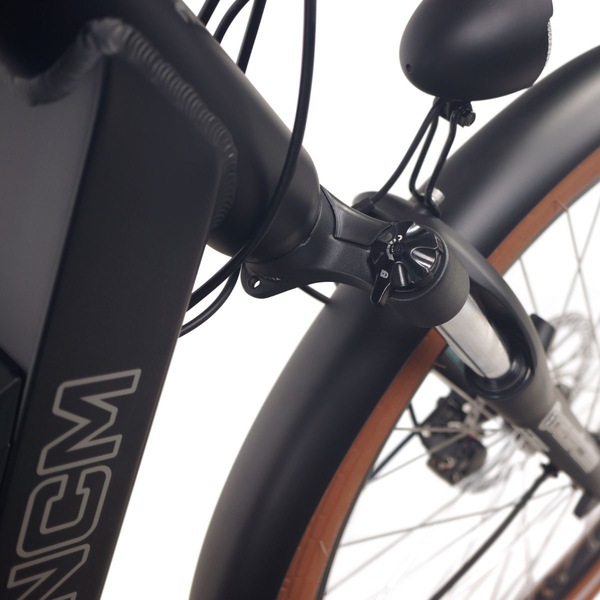

Suspension Fork: RST, NEON-TNL-26, with hydraulic lock system
Front Brake: Das-Kit Hydraulic Disc Brake, DK-100E,180mm rotor
Rear Brake: Das-Kit Hydraulic Disc Brake, DK-100,180mm rotor"
Freewheel: LY, 8 Speed, 11-32T, Silver
Tire: CST, C1779,26*2.15, Brown
Handlebar: Promax, HB-3233N, Width 660mm, Black

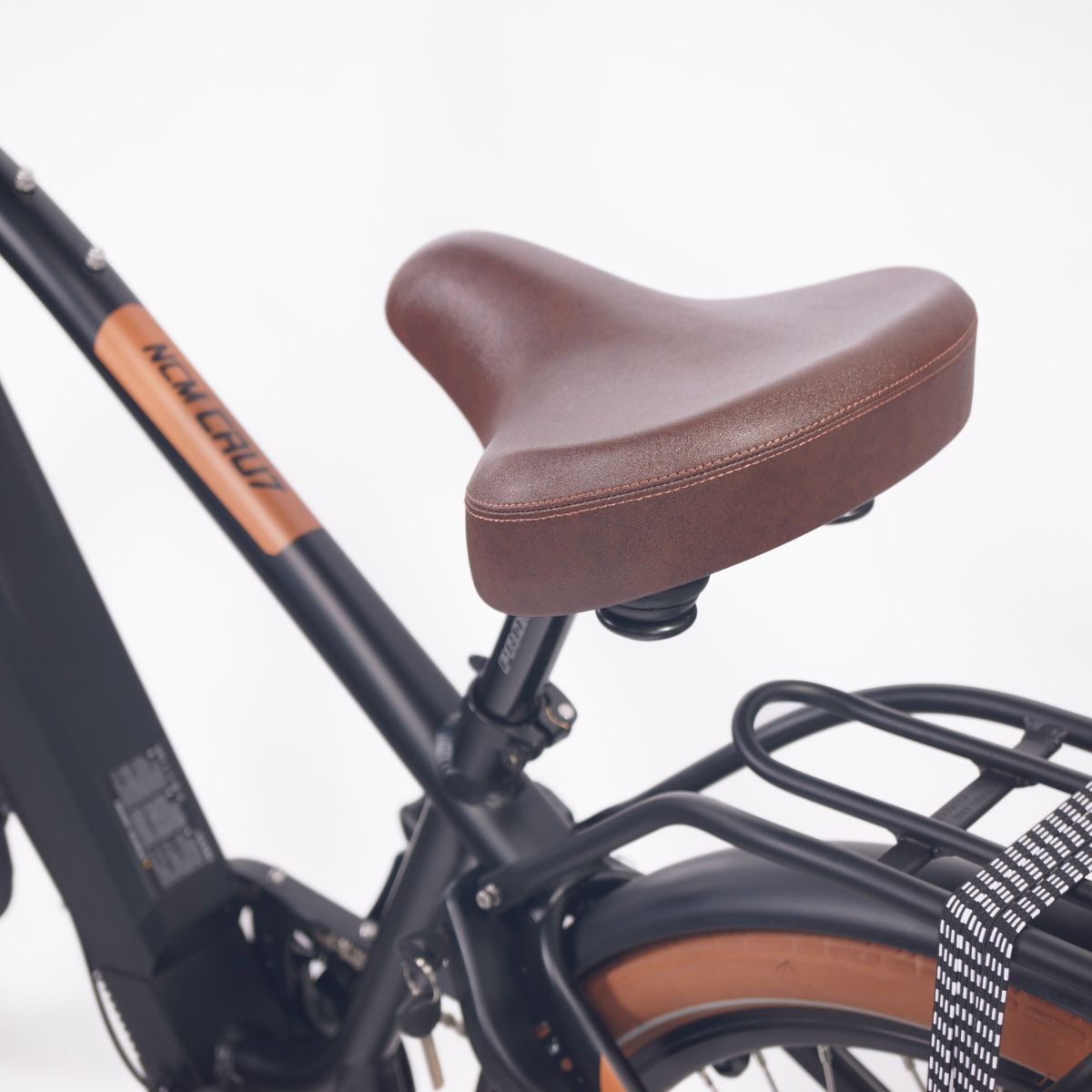

Saddle: Selle Royal, Justek:6534 UEN, Brown
Seat Post: Promax, Alu. SP-252, 30.9*300MM, Black
Grip: Selle Royal, F503, Brown
Stem: Promax, MQ-579
Crank: Das-Kit, 52T

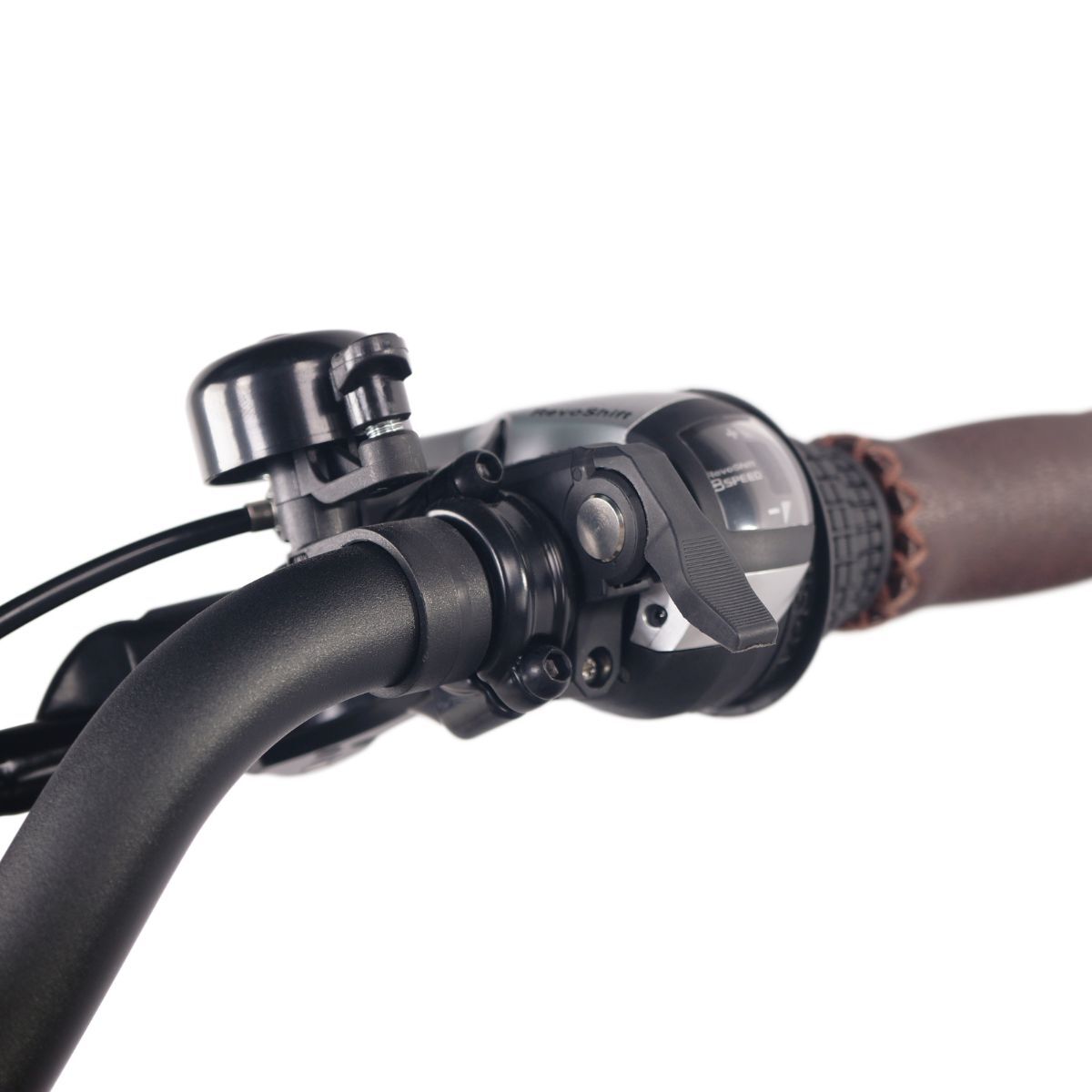

Shifter Right: Shimano, Altus, R: SL-M315-8R, 8 Speed, BK

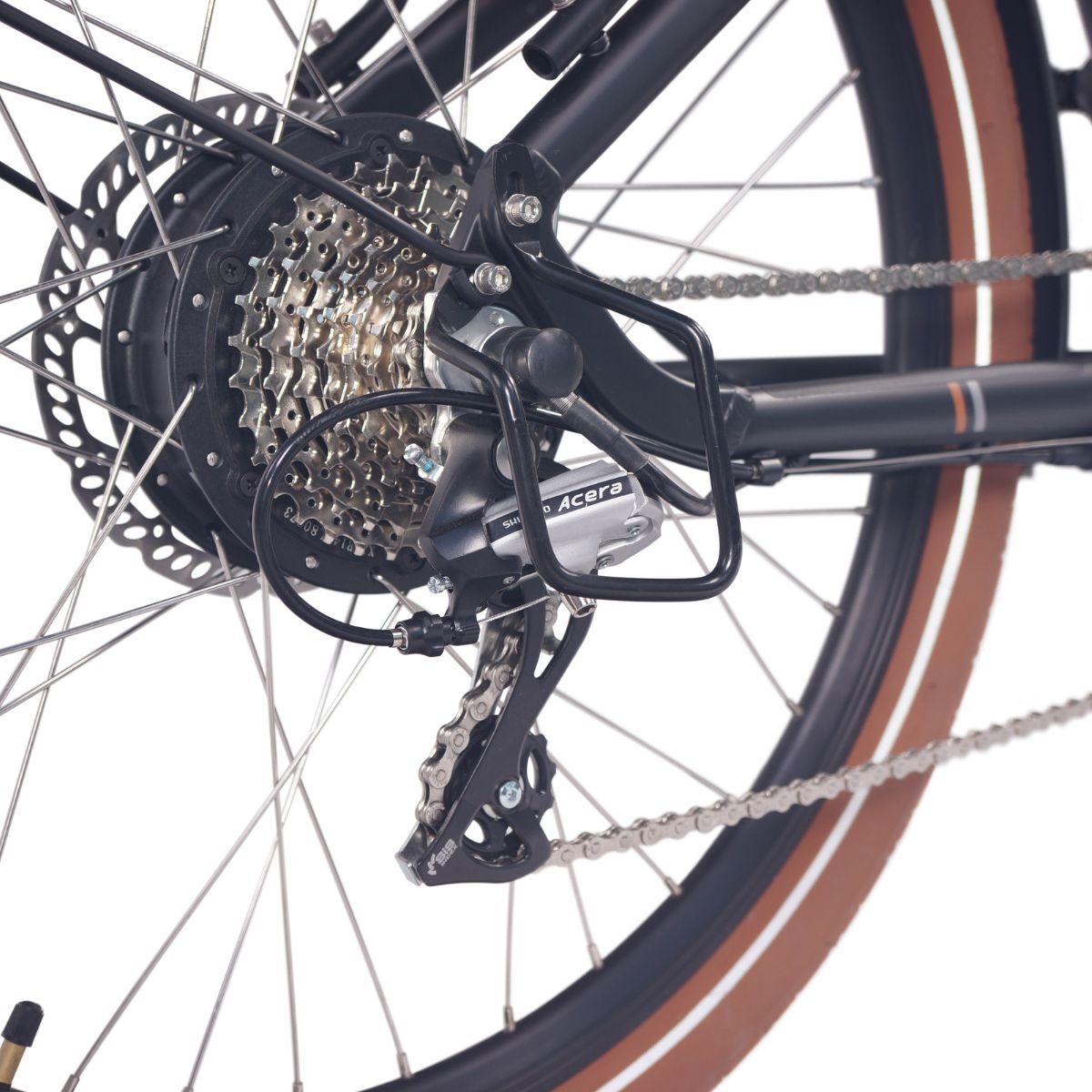

Rear Derailleur: Shimano, Acera, RD-M360
Chain: KMC, Z8.3RB, Silver
Pedal: Wellgo, B087, Black
Mudguard: W:62mm, Black
Rear Rack: Alu., Black

Warranty

1 year warranty on all electronic parts (including battery, motor, controller, display, and lights)
2 year warranty on the bike frame
Apart from manufacturing defects that could be present, parts that wear due to normal use (such as tyres, brake pads, chains, etc) are not included in the warranty but may be replaced on a case-by-case basis within the first 6 months.
