Inspired by the Fashion Capital of Europe the NCM Milano Max is designed to ride as elegant as it looks. This E-bike is designed with a tough aluminum frame, and an adjustable handlebar/stem setup, with a sprung seat post for improved comfort. The low-top tube makes the bike sturdy and strong yet comfortable and easy to mount whilst providing additional protection to the battery.

Key Features​​​​​​​

• Ergonomic bicycle Grips
• Comfortable sitting posture
• All important controls easily accessible
• Supplied with 36V to deliver a high output power
• Up to 500W Peak motor power
• Over 576Wh capacity for a longer distance
• Up to 120 km Battery range (depending on the conditions)
• Easily removable battery so you can charge it anywhere
• A built-in USB port with 5V to charge mobile phones

General Information

Weight: 27kg (55lbs)
Type: Folding Wheel size: 28”
Load capacity:125kg (275lbs)
Maximum speed: 25km/h

Electric parts

Display: Bafang Max, LCD Display
Controller: Bafang Max
Charger: DC362DE 36V 2A (EESS Number: E2022081360)
Motor: Bafang, MAX, 36V 250W-500W, 25KM/H, Mid drive motor
Battery: Das-kit, I5-3616,36V 16AH, 576WH, with USB port

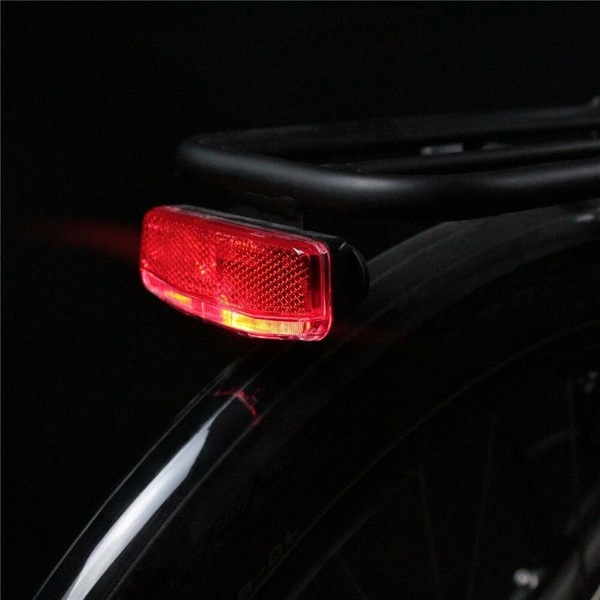

Front/Rear Light: Spanninga, KENDO, 36V, 20 Lux over bike battery / Spanninga, SOLO with 2xAA batteries

Battery Information

Lithium-ion Battery
Model: I5-3616
Ratings: DC 36V, 16Ah, 576WH

Bike parts

Frame: Alu. 6061, 28"*480MM
Fork: Zoom, 106, Disc-brake, with suspension
Brake Levers: Tektro, with brake sensor on both sides
Brakes F/R: Tektro, L:CL535F-RS, R:CL530-TS, BK
Crank: Bafang, MAX, 38Tx3/32
Rear Derailleur: Shimano, NEXUS, SG-C6001-8R, 8 Speed with rollar brake
Tyres: CST, C1446 28"*1.75

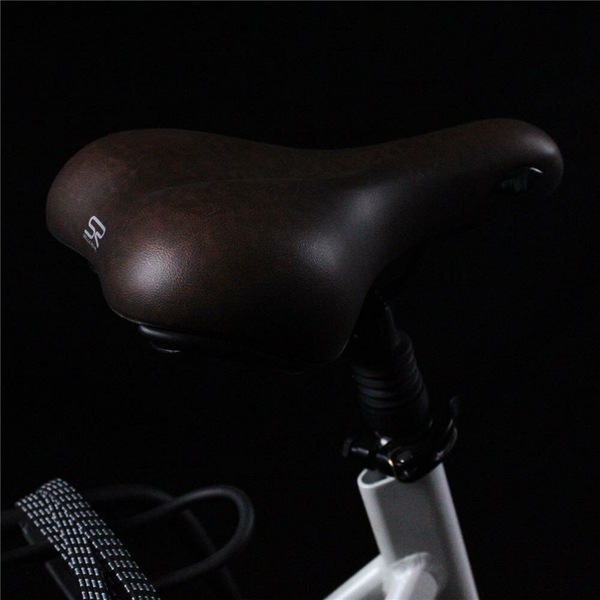

Saddle: Selle Royal, Freeway, Brown with Gel
Seat Post: Promax, Alu., SP-884, 27.2*350MM, with suspension, BK
Grips: Selle Royal, JF510, Brown
Pedals: Wellgo, B087, BK
Mudguard: Yungfang, 700C, BK

Warranty

• Leon Cycle provides 1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
• Leon Cycle provides 2 years warranty on the bike frame. For more warranty information visit our FAQs.
• Apart from manufacture defects that could be present, parts that wear due to normal use (such as tyres, brake pads, chains, etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months. For more contact Leon Cycle.

​​​​Disclaimer: Once you received the e-bike, we recommend to have it assembled by a professional in bike shops near you and also get your bike serviced after 1 month of use to ensure all aspects of the bike are set and calibrated correctly.​​​​​​​​
