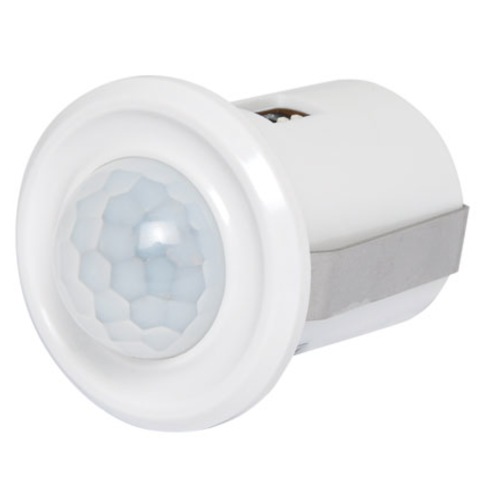

Passive Infra-Red PIR 360Degree In-Ceiling Detector Alarm System 40Ø x 52mm

Image 1
Image 2
Image 3
$80

Collect 80 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Bourne Superstore
Secure ways to pay at checkout
Pay in 4 interest-free payments of $20.00 with PayPal

Popular Products

An ultra compact PIR motion detection unit suitable for installation directly into the ceiling. 120° beam provides 8 metres of conical detection coverage when mounted on the typical 2.4-3m ceiling. 12V DC input. Mounting hole size: 31mm. Dimensions: 40Ø x 52mm.

Features
  • High-Quality Low Noise Quad-Element Pyro-Sensor with 6-14μM Spectral
  • Alternate Polarity Single / Dual Pulse Counting Signal Processor
  • Security Control Logics Integrated in Proprietary MCU
  • On-Board DIP Switch for Feature Settings
  • Walk-Test LED Selectable for ON, OFF, or 30-Minute Auto OFF after Power-UP

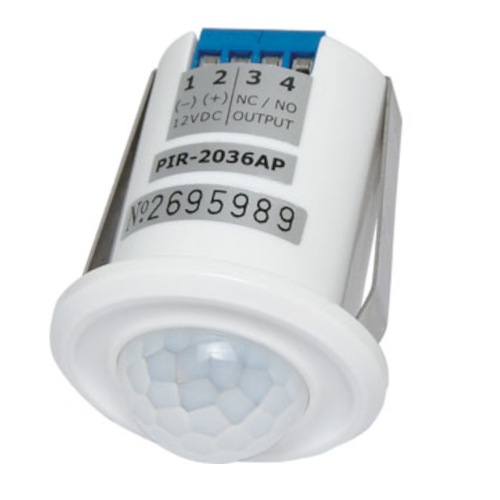

  • On-Board Terminal Block for External Wiring Connections
  • (N.C.) / (N.O.) Alarm Output Dry Contact in Series with 10 Ohm Resistor
  • Flush-Mount on Ceiling without Screw
  • Operation Voltage: 12VDC Nominal, 8-16VDC
  • Current Consumption: 15mA Typical at 12VDC
  • Power-up Delay: 2 Minutes with LED Indication
  • Detection Range: 6/8M at 25°C
  • Alarm Output Time: 3 Seconds
  • Operation Temperature : -10°C C to 55°C
  • Relative Humidity: 95% Non-condensing
  • Weight: 30gm net

GTIN: 9321758240205
