Features:

1.PIR motion sensor detect switch, a good choice for matching with lamp(not included),Perfect for security lighting at night.

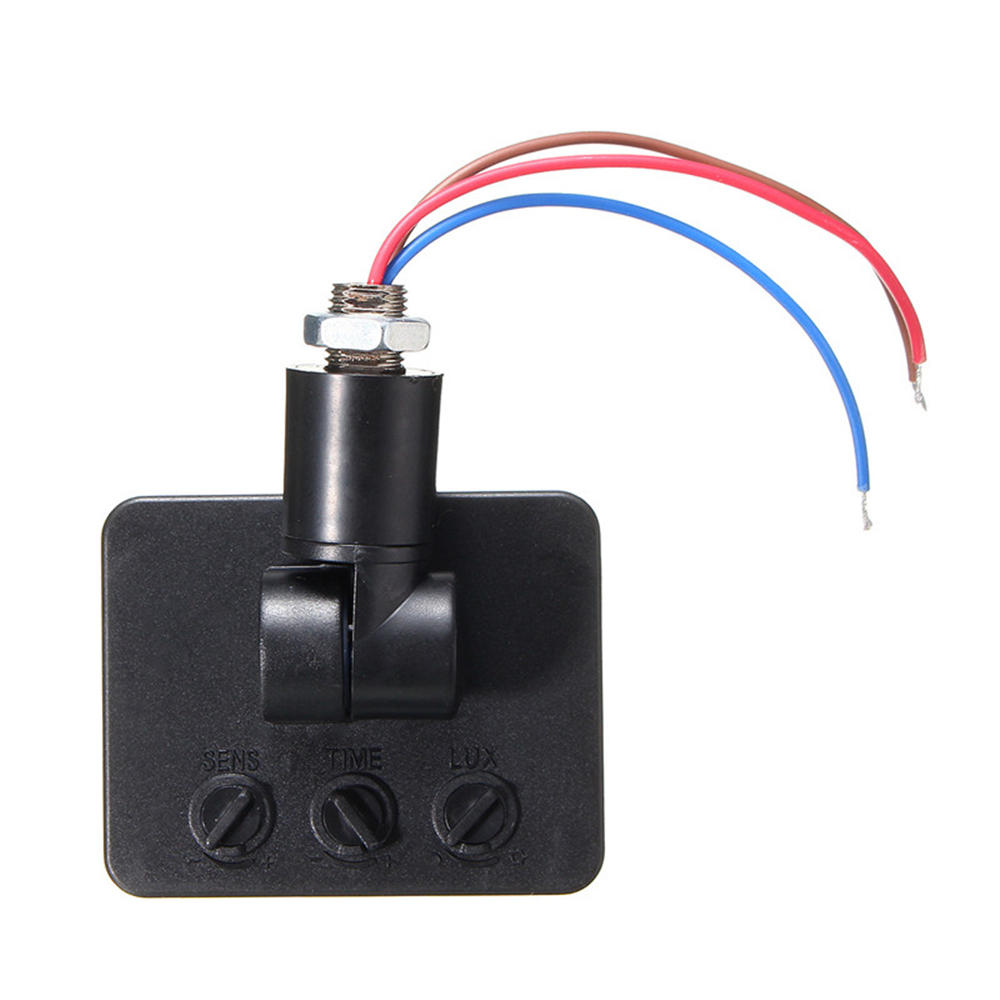

2.Three adjustable switch. Build-in three switch that can adjust sensitivity, delay time (5+/-2 second - 4+/-1 min), light illumination (2-2000lux), select the appropriate parameters according to the specific situation. Flexible choice and energy-saving.

3.Light illumination function: it can work all-day choose the sun location. It only work in the night choose the moon location. It is suggested that sensor installation height is about 1.8m- 2.5m / 5.9- 9.2ft.

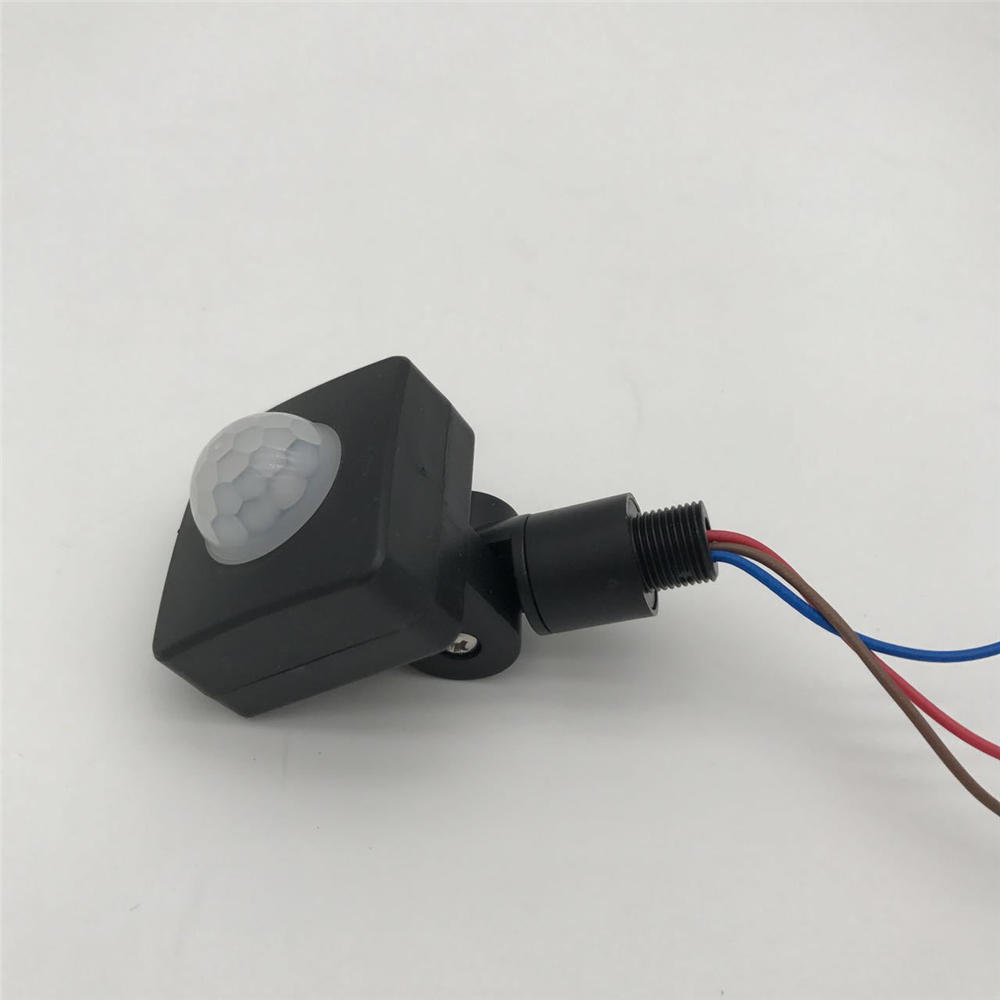

4.Sensor Head rotate 180°. Head can rotate 180° can adjust angle to best state easily.

5.Motion Sensor scope. Motion sensor can detect 180-degree-angle scope and up to 8m / 26.2 feet distance.

6.Waterproof Ip65. perfect for use in the home garden or workplace, protect you from danger.

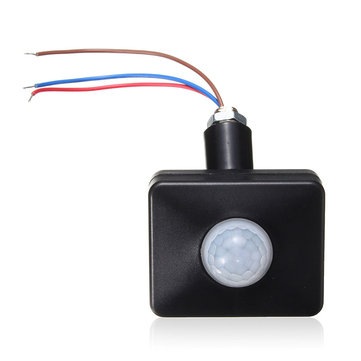

Wiring Instructions:

Blue Line-Neutral Line

Brown-Live Line

White- Light Inductor Output Line

Blue and brown line connect power supply

Blue and white line connect lamp

Specifications:

Material: PC(Polycarbonate)

Size: Approx. 40x 38 x 6mm

Detection Angle: 120 degree

Power Source: AC110-240V/AC

Power Frequency: 50/60Hz

Rated Load: Max. 100W

Sensing scope: 3-12m

Certification: FCC CE ROHS

Package:

1*Sensor Switch
