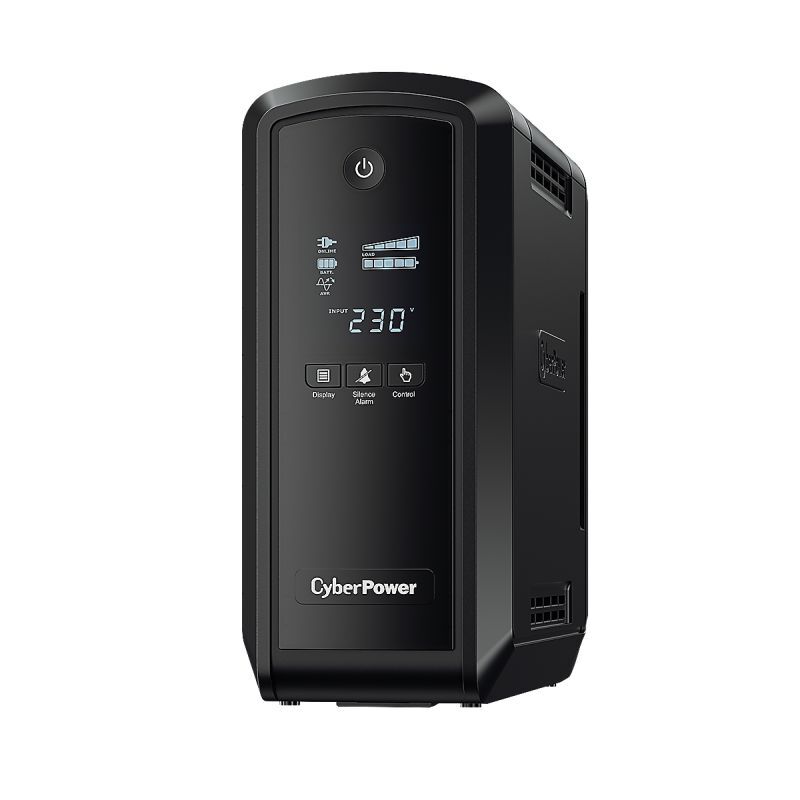

CyberPower BRIC LCD Surge Protected Outlets/RJ45/USB Port 900VA UPS for Desktop
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 364 Everyday Rewards points
Collect 364 Everyday Rewards points
Designed for home, office, and back oce applications, the PFC Sinewave Series adopts line-interactive topology with Automatic Voltage Regulation (AVR) function to offer stabilized Pure Sine Wave output.
The products are compatible with equipment requiring an active PFC power supply. Other features include RJ11/RJ45 port to provide data line protection against surge and spike, and power management software to perform PC graceful shutdown.
Features:
Line-interactive UPS Topology
Energy Saving Technology
Active PFC Compatible
Pure Sine Wave Output
Automatic Voltage Regulation (AVR)
LCD Status Display
LED Status Indicator
PowerPanel® Management Software
Surge and Spike Protection
DSL/Network Protection
Tower Form Factor
Application:
Home
SOHO Office
Office
Back Office
Workstations

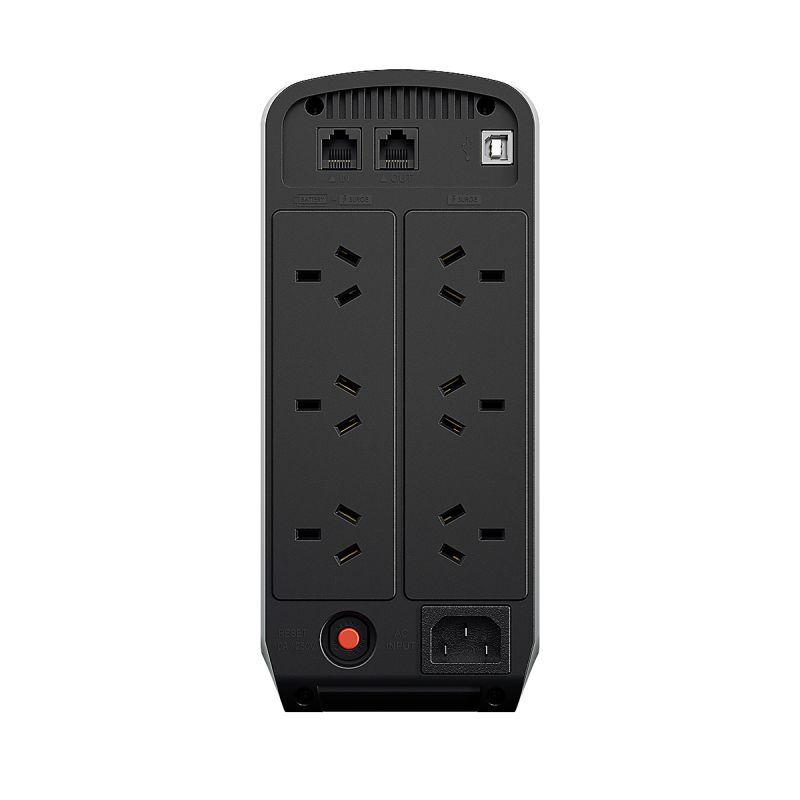

Product Callouts:
Power On Indicator
Power On/Off Switch
LCD Display Panel
Function Buttons
Battery Backup & Surge Protected Outlets
Surge Protected Outlets
Communication Protection Ports RJ45
USB Charging Ports
Input Circuit Breaker
AC Inlet
USB Port
Serial Port
Includes:
1x CP PFC Sinewave Series 900VA
General
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPS™ Bypass Technology
Active PFC Compatibility: Yes
Input
Nominal Input Voltage (Vac): 230
Input Voltage Range (Vac): 170 ~ 270
Input Frequency (Hz): 50 ± 3, 60 ± 3
Input Frequency Detection: Auto-sensing
Rated Input Current (A): 10
Input Connector Type: IEC C14
Output
Capacity (VA): 900
Capacity (Watts): 540
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) (Vac): 230 ± 10%
On Battery Frequency (Hz): 50 ± 1%, 60 ± 1%
Automatic Voltage Regulation (AVR): Single Boost
Overload Protection: Internal Current Limiting, Circuit Breaker
Outlet(s) - Total: 6
Outlet Type: AU x 6
Outlet(s) - Battery & Surge Protected: 3
Outlet(s) - Surge-Only Protected: 3
USB Charging Port(s): -
USB Charging Current (A): -
Typical Transfer Time (ms): 4
Battery
Runtime at Half Load (min): 7
Runtime at Full Load (min): 1
Typical Recharge Time (Hours): 8
User-replaceable: Yes
Battery Type: Sealed Lead-acid
Replacement Battery Pack: RBP0051
RBP Quantity (pcs): 1
Surge Protection & Filtering
Surge Suppression (Joules): 405
EMI/RFI Filtration: Yes
Network Protection RJ45: 1-in, 1-out
Management & Communications
LCD Panel: Yes
LED Indicators: Power On
HID Compliant USB Port(s): 1
Serial Port: -
Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault
Power Management Software: PowerPanel® Personal
Physical
Form Factor: Tower
Physical Size - UPS Module
Dimensions (WxHxD) (mm.): 100 x 230 x 275
Weight (kg.): 7.1
Environmental
Operating Temperature (°C): 0 ~ 40
Operating Relative Humidity (Non-condensing) (%): 0 ~ 95
Online Thermal Dissipation (BTU/hr): 31
Certifications
Certifications: CE, EAC, RCM
RoHS: Yes
This item comes with a 2-year warranty.
GTIN: 4712856279474
