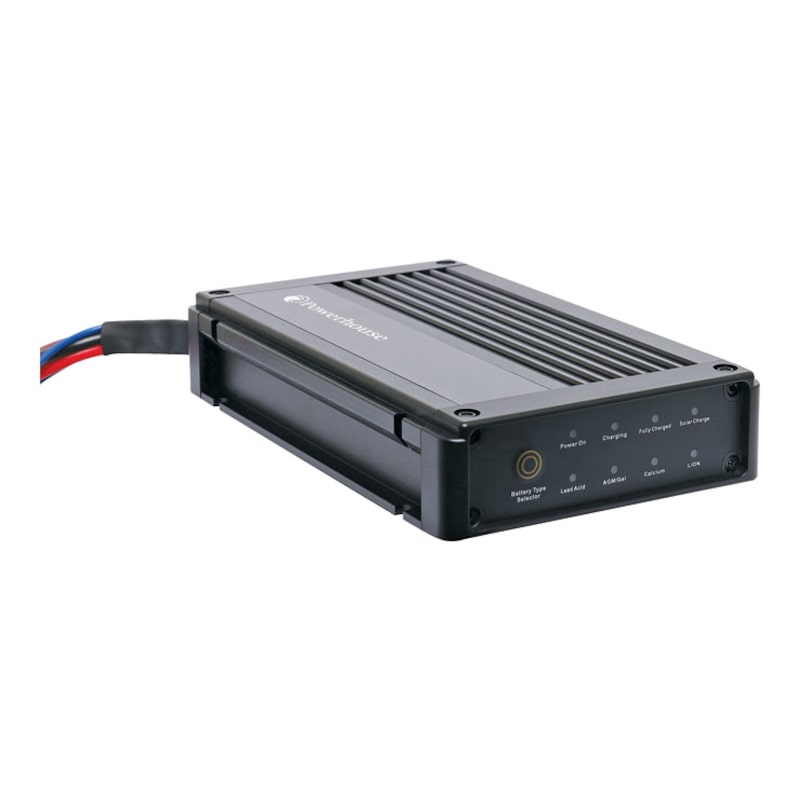

20A DC To DC Dual Battery Charger With MPPT Solar Input

20A DC To DC Dual Battery Charger With MPPT Solar Input

Be the first to review this product

Hurry! 3 items left!

Price	$234.21
	Earn 3x points and collect 702 Everyday Rewards points. Promotion ends 16/05/2024. Create a MyDeal Account or Login to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

This 20A DC to DC battery charger with MPPT solar input has been designed for in-vehicle use where auxiliary batteries are required to be charged from solar panels or the vehicles main battery. The charger offers fully automatic, set-and-forget operation, isolating the main vehicle battery when the engine is off, preventing discharge so you can still start your vehicle when required. It provides multi-stage charging for lead acid, AGM/Gel, Calcium, LiON and LiFePO4 battery types. The in-built MPPT solar charge controller accepts PV solar panels with an output voltage range of 16-25V (minimum panel size 60W).

Please note: These chargers feature a battery chemistry type lockout feature that prevents changes while the auxiliary battery is connected.

Features

Heavy duty aluminium case and mounting bracket
Microchip monitoring and control
Fully automatic high frequency multi stage charging
MPPT solar regulator input
Compatible with vehicles fitted with smart alternators
Pulse mode technology that reduces oxidation, evens electrolyte consistency and minimises temperature equating to longer battery life
Easy push button chemistry select: AGM/Gel, Calcium, LiON, Deep Cycle, VRLA and conventional flooded Lead-Acid batteries
Internal charger temperature monitoring and power output control
LED indicators showing state of charge
Over charging, short circuit and over temperature protection
Reverse polarity protection: Input reverse polarity protection and Output reverse polarity protection
Thermal overload protection
Solar input overload protection
Power cut memory function; once selected, the charger will remain on this battery type until it is changed

I/N: 17429
Barcode: 9321758146026
Shipping Weight: 1.08900Kg
Packaging Sizes
EACH: 1
CARTON: 6

General
Type: Multi Stage
DC Battery Input: 12.5-16.0V
Solar Input: 16.0-25.0V
Output/Charging Voltage: 14.4 - 15.4 V (stops charging when alternator output or vehicle battery below 12.5V)
DC Output Current: 20A
Solar Output Current: 20A
Minimum Start Voltage: 2.5V - for battery being charged.
Minimum Solar PV Panel Size: 60W
Charge Control
Soft Start: Yes
Soft Charge Current: 20A
Bulk Charge Voltage: 14.7V (AGM/Gel), 13.5V (Lead Acid), 15.4V (Calcium), 14.4V (LiON)
Absorption: Constant voltage with automatic amperage control
Float Charge Current: 13.5V (AGM/Gel), 14.4V (Lead Acid), 13.5V (Calcium)
Float Charge Current: 100mA
Battery Range: 18-250Ah
Recommended Cable Cross-Section
0-1 metres: 10AWG
1-5 metres: 8AWG
5+: 6AWG
