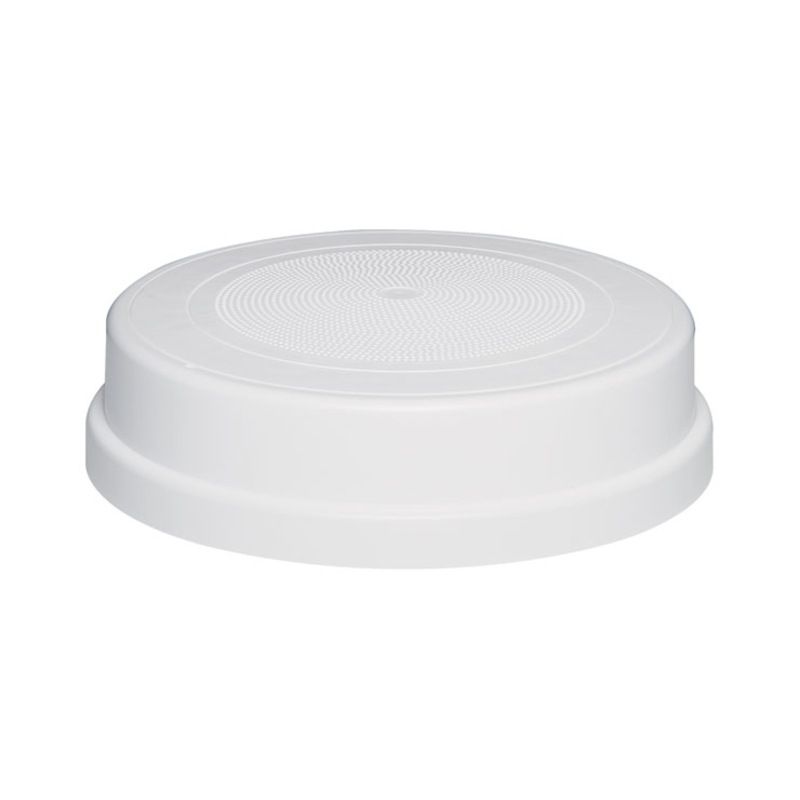

5W 100V 200mm (8”) Fire Speaker White AS ISO7240.24

5W 100V 200mm (8”) Fire Speaker White AS ISO7240.24

Hurry! 3 items left!

Price	$110.13
	Collect 110 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Designed to meet AS ISO7240.24 standard for fire & evacuation warning systems
Excellent speech intelligibility
High quality speaker driver developed for BGM, paging and emergency warning applications
Patented 2 way latching system reduces installation time.
Fitted with 4 way wire protect terminal block for loop in, loop out wiring as required by Australian Standards.
Fitted with supervisory capacitor for line monitoring.
High impact fire retardant enclosure & grille.
Australian designed & assembled.
5 year warranty.
Rated Noise Power: 5 Watts (100V line)
Power Taps & Impedance (100V line): 0.33W (30kΩ), 0.66W (15kΩ), 1.25W (8kΩ), 2.5W (4kΩ), 5W (2kΩ)
Sensitivity: 93dB (1W@1M), 81dB (1W@4M)
Maximum Sound Pressure Level: 101dB (5W@1M), 89dB (5W@4M)
Frequency Response: 100 Hz - 15kHz; 500 - 4kHz O 8dB
Coverage Angle (-6dB): 500 Hz: > 180 o , 1000Hz: 81o , 2000Hz: 93o , 4000Hz: 58o
Environmental Type: A (for indoor applications as per standard)
Speaker Component: 200mm (8”) paper cone speaker
Mounting Method: Surface Attachment
Line Monitoring: Yes, 22μF bipolar capacitor
Applicable Cable: 2.5mm2 (14AWG) max conductor area
Connection: 4 way screw terminal
Finish:
White flame retardant ABS grille and housing (Taitalac 8540T)
Black Flame retardant ABS spring clips (Cycoloy C2950HF)
IP Rating: IP 21C
Dimensions: 310Ø x 85mm
Weight: 1.36kg

SKU: 49.1131.DG0715_Bmuspojdt
