Aten CamLive (HDMI to USB-C Video Capture)

Overview

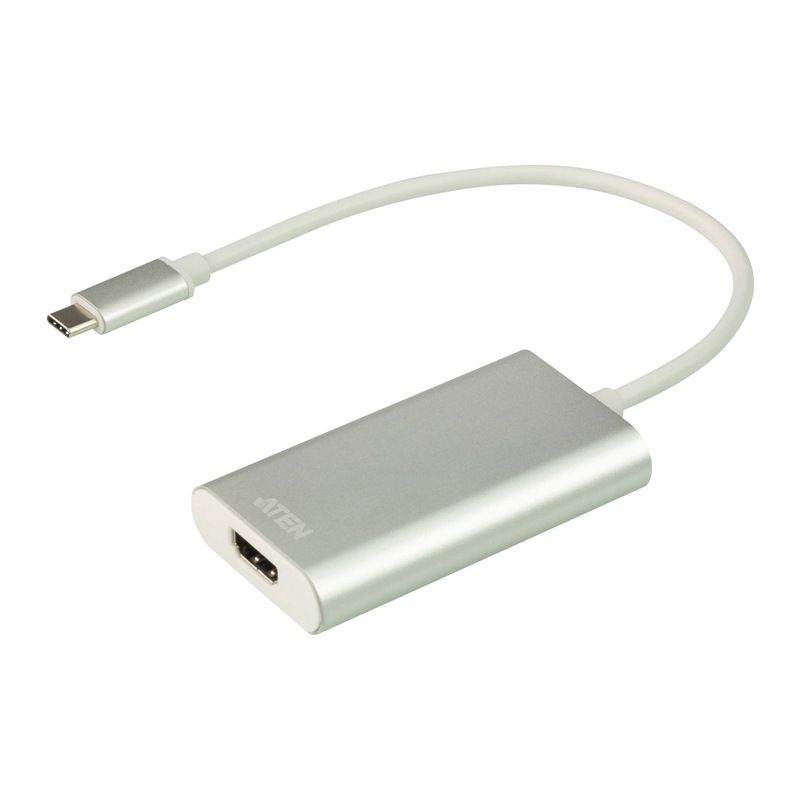

"CAMLIVE" is an HDMI UVC Video Capture device to send unencrypted HDMI video to your USB-C or Thunderbolt 3 laptop (or USB-A with the included adapter). It’s compliant with latest USB 3.1 Type-C specification.

CAMLIVE is designed to Plug & Play. Its built-in UVC and UAC standard support allows system operation without installing drivers and, at the same time, delivers eye-popping, highquality video on Windows and Mac

systems at 1080/60fps. By sending captured RAW data, you can enjoy video editing or live streaming with various popular third-party video-editing software/platforms - Open Broadcaster Software (OBS), Xsplit,Twitch, YouTube, Facebook, to name a few.


Having a slim and aesthetic design, CAMLIVE provides you with an enjoyable, high-quality live streaming/video editing experience with style whether at work or on the go.

Package Contents
  • 1x UC3020 CAMLIVE HDMI to USB-C UVC Video Capture
  • 1x USB-C to USB-A Adapter*
  • 1x User Instructions
  • * When using the adapter, if you are only detecting MJPG video, please disconnect the USB-C head from the adapter, flip the USB-C head around and reconnect it to the adapter.
Features
  • Captures unencrypted HDMI video signal from camcorder or DSLR up to 1080P @ 60*
  • Supports live video streaming, webcasting and video conferencing
  • Compatible with popular streaming software, such as OBS, Xsplit, YouTube, Facebook and Twitch
  • Plug & Play – Supports UVC/UAC v1.1
  • Compatible with USB3.1 Gen1 Type-C standard
  • Works with all major operating systems: Windows® and OS X®

    *CAMLIVE cannot display or capture HDCP protected content
Diagram

Specifications

Connectors
Video In 1 x HDMI Type A Female (Black)
USB Port USB 3.1 Gen1 Type-C Male (White)
or USB 3.1 Gen1 Type-A Male (via Dongle, Black )
Video Input
Compliance HDMI 1.4b, up to 1080p@60 (non-HDCP)
Video Resolution 480P, 720P, 1080P
Audio Sampling 16-bit PCM audio, 32KHz, 44.1KHz and 48KHz
Output Up to 1080P UVC video stream with UAC audio
(Uncompressed video stream is only available on
USB3.1 connection)
Environmental
Operating Temperature 0 - 40 ºC
Storage Temperature -20 – 60 ºC
Humidity 0 - 80% RH, Non-Condensing
Minimum Hardware Requirements CPU: Intel® i3 Dual Core 2.8Ghz or higher
RAM: 4GB or more
OS Support Windows 7 and above with UVC support
Mac OS X 10.13 and above with UVC support
Physical Properties
Housing Aluminum
Weight 0.04 kg ( 0.09 lb )
Dimensions (L x W x H) 4.20 x 7.30 x 1.40 cm
(1.65 x 2.87 x 0.55 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.


Product Specifics
SpecificationValue
MPNUC3020-AT
Product ConditionBrand New/Unused
SKU318577
GTIN: 04719264647475
