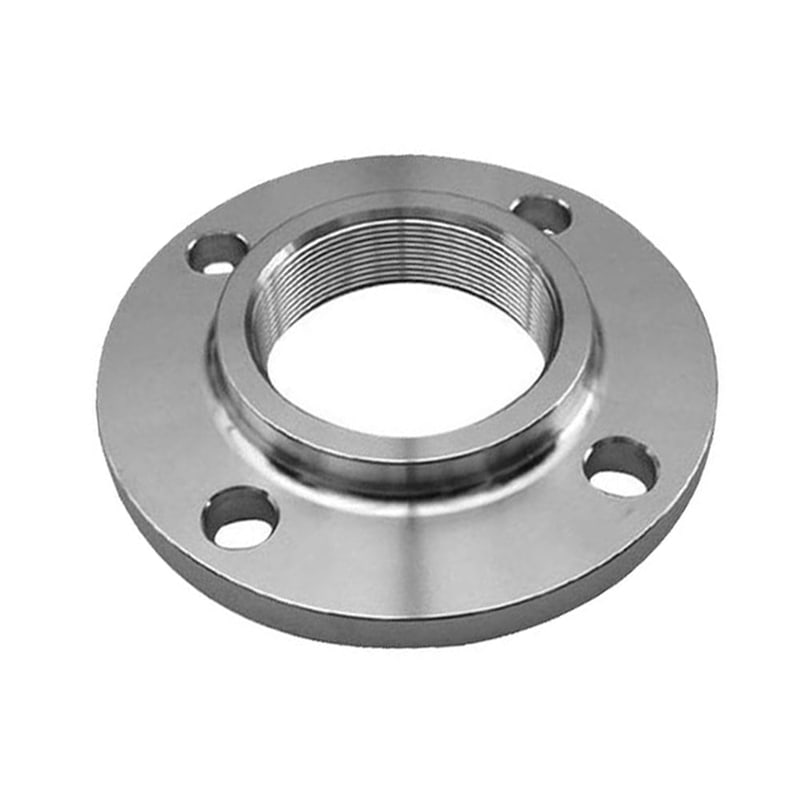

BS10 Boss Flange Forged Steel AS2129 Table H BSP Thread

Features:

Material: Plate Steel
Pressure Rating: 3500 kPa
Dimensional: AS2129

Forged Steel Plate Flange BS10 ( Table H - Screwed )
ITEM CODE	IMPERIAL SIZE	A	B	J	E	F	G	H	BOLT SIZE	NUMBER OF HOLES	RADIUS OF BOSS	APPROX. KG/PC
7609.04.20	3/4"	114.3	82.6	47.6	12.7	11.1	23.8	18	M16	4	6.3	1.1
7609.04.25	1"	120.7	87.3	52.4	14.3	11.1	25.4	18	M16	4	6.3	1.2
7609.04.32	1. 1/4"	133.3	98.4	63.5	17.5	11.1	28.6	18	M16	4	6.3	1.8
7609.04.40	1. 1/2"	139.7	104.8	69.9	17.5	12.7	30.2	18	M16	4	6.3	1.9
7609.04.50	2"	165.1	127	92.9	19	12.7	31.7	18	M16	4	6.3	3
7609.04.65	2. 1/2"	184.1	146	111.9	19	15.9	34.9	18	M16	8	6.3	3.7
7609.04.80	3"	203.2	165.1	130.2	22.2	15.9	38.1	18	M16	8	6.3	5.1
7609.04.94	4"	230	191	152	25	19	N/A	18	N/A	8	N/A	6.81
