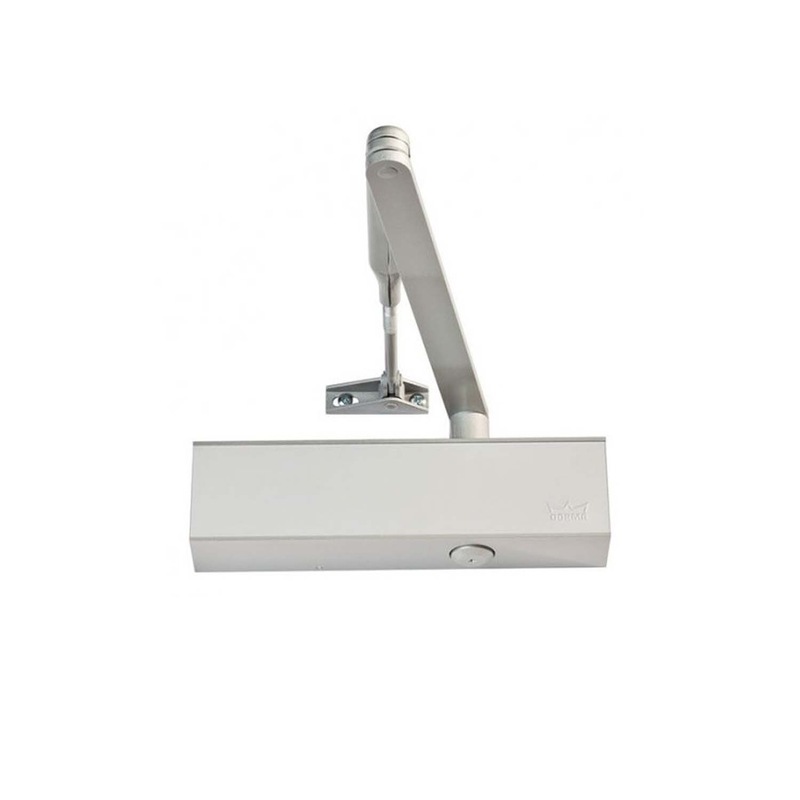

Dorma TS73 EN1-4 Door Closer Back Check Non Hold Open Silver 37020401

Dorma TS73 EN1-4 Door Closer
37020401

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Features:

• Regular door closer
• Ideal for commercial applications
• Variable closing force size EN1-4
• Overhead surface mounted door closer
• Adjustable latching action by valve
• Adjustable backcheck
• Adjustable delay action
• For standard internal doors up to 1100 mm
• Includes parallel arm bracket
• Parallel arm mounting doors up to 950 mm
• Standard arm assembly
• Fire rated

Specifications:

• Length: 245mm
• Width: 46mm
• Height: 60mm
• Back Check: Yes
• Delayed Action: Yes
• Fire Tested: Yes
• Hold Open: No
• Include PA Bracket: Yes
• Includes Fixing Screws: Yes
• Material: Aluminium
• Max Door Width:  1100mm
• Max Opening: 180 Degrees
• Spring Strength: EN 1-4
• Max Door Weight: 80kg
• Finish: Silver
