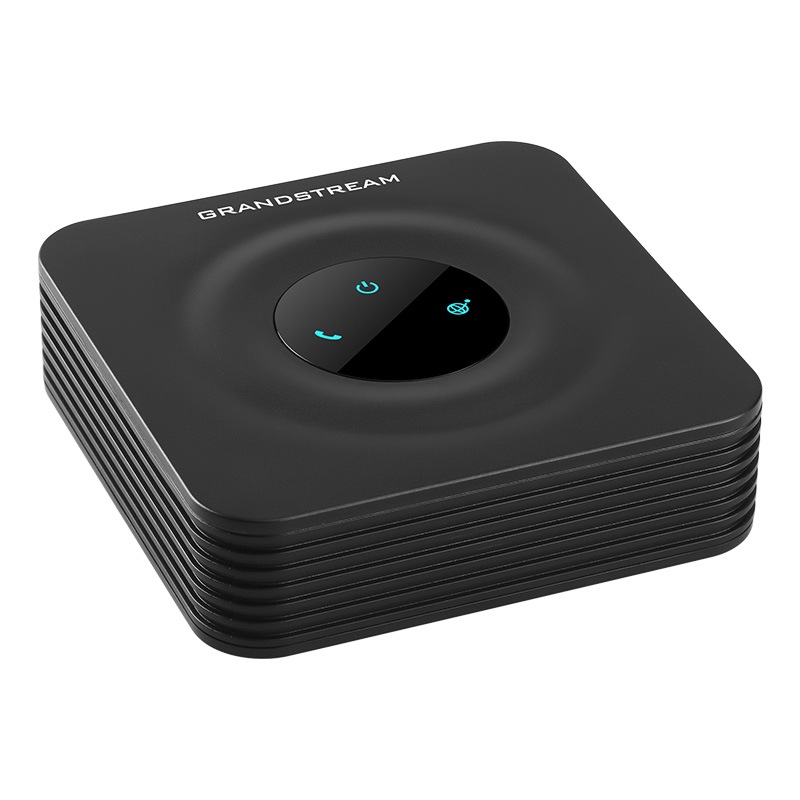

Grandstream Analog Telephone 1-Port VoIP Adapter
The HT801 delivers powerful VoIP technology and routing capabilities to home and office environments, and allows users to successfully connect their analog devices to a manageable and powerful VoIP network. Built upon Grandstream’s market-leading SIP ATA/gateway technology, with millions of units successfully deployed worldwide, this powerful ATA features exceptional voice quality in various applications and environments. The HT801 comes with 1 easy-to-use FXS ports, state-of-the-art encryption with a unique security certificate per unit, automated provisioning for volume deployment and device management and outstanding network performance
Supports 1 SIP profile through a single FXS port and a single 10/100Mbps port
TLS and SRTP security encryption technology to protect calls and accounts
Automated provisioning options include TR-069 and XML config files
Supports 3-way voice conferencing
Failover SIP server automatically switches to secondary server if main server loses connection
Supports T.38 Fax for creating Fax-over-IP
Supports a wide range of caller ID formats
Use with Grandstream’s UCM series of IP PBXs for Zero Configuration provisioning
Supports advanced telephony features, including call transfer, call forward, call-waiting, do not disturb, message waiting indication, multilanguage prompts, flexible dial plan and more
SPECIFICATIONS:
Telephone Interfaces | One (1) FXS port |
Network Interfaces | One (1) 10/100Mbps auto-sensing ethernet port (RJ45) |
LED Indicators | POWER, INTERNET, PHONE |
Factory Reset Button | Yes |
Telephony Features | Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference |
Voice Codecs | G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.722, G.723.1, G.729A/B, G.726-32, iLBC, OPUS, dynamic jitter buffer, advanced line echo  cancellation |
Fax Over IP | T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through |
Short/Long Haul Ring Load | 5 REN: Up to 1km on 24 AWG |
Caller ID | Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID |
Dial Methods | DTMF, Pulse |
Disconnect Methods | Busy Tone, Polarity Reversal/Wink, Loop Current |
Network Protocols | TCP/IP/UDP, RTP/RTCP (RFC1889,1890), HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, SSH, Telnet, STUN (RFC3489, 5389), SIP (RFC3261), SIP over TCP/TLS, SRTP, SNMP, TR-069, IMS/3GPP, IPoE |
QoS | Layer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, DiffServ, MPLS) |
DTMF Method | In-audio, RFC2833 and/or SIP INFO |
Provisioning and Control | HTTP, HTTPS, SSH, TFTP, TR-069, secure and automated provisioning using AES encryption, syslog |
Media | SRTP |
Control | TLS/SIPS/HTTPS |
Management | Syslog support, SSH, remote management using web browser |
Universal Power Supply | Input: 100-240VAC, 50-60Hz Output: 5.0VDC/1.0A |
Environmental | Operational: 32º – 104ºF or 0º – 40ºC Storage: 14º – 140ºF or -10º – 60ºC Humidity: 10 – 90% Non-condensing |
Dimension and Weight | Dimensions: 100mm x 100mm x 29.5mm Weight: 102 g |
Compliance | FCC: Part15B CE: EN55032, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1 RCM: AS/NZS CISPR22, AS/NZS60950.1, S003 K.21 |
