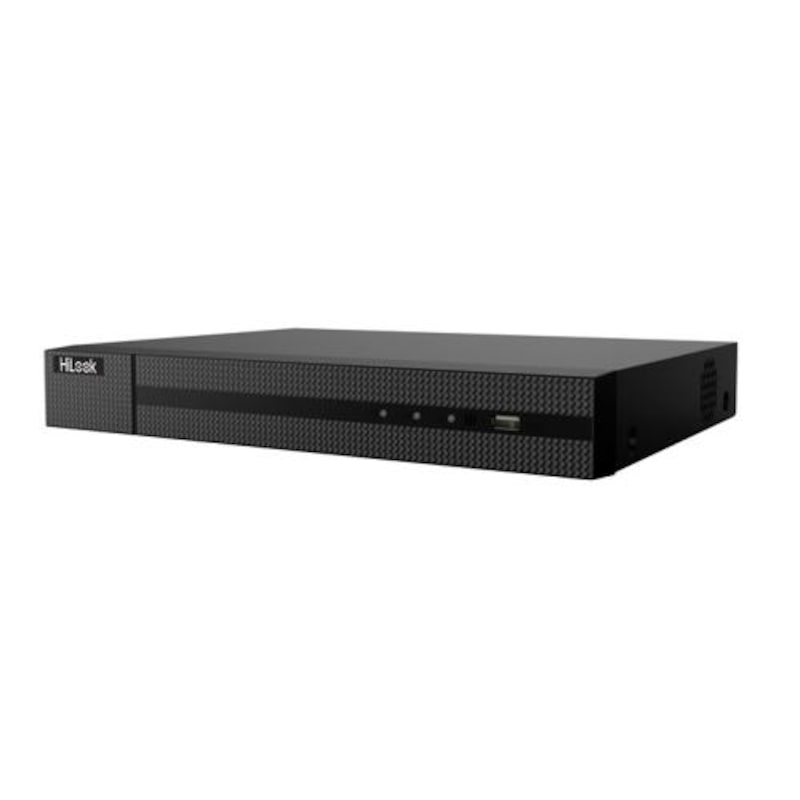

HiLook NVR-216MH-C/16P 16 Channel NVR, 4K & H.265+, HDMI & VGA, 2 x HDD Bay, 16 x PoE Ports (Max 280W), Support up to 2 x 6TB Storage [NVR-216MH-C-16P-NOHDD]

HiLook NVR-216MH-C/16P 16 Channel NVR, 4K & H.265+, HDMI & VGA, 2 x HDD Bay, 16 x PoE Ports (Max 280W), Support up to 2 x 6TB Storage [NVR-216MH-C-16P-NOHDD]


HiLook NVR-216MH-C/16P 16 Channel NVR, 4K & H.265+, HDMI & VGA, 2 x HDD Bay, 16 x PoE Ports (Max 280W), Support up to 2 x 6TB Storage

HiLook NVR-216MH-C/16P 16 Channel NVR, 4K & H.265+, HDMI & VGA, 2 x HDD Bay, 16 x PoE Ports (Max 280W), Support up to 2 x 6TB Storage
HD Input
-H.265+/H.265/H.264/H.264+ video formats
-Connectable to the third-party network cameras
-Up to 16 IP cameras can be connected
-Recording at up to 8 MP resolution
-Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
HD Output
-HDMI and VGA simlutaneous outputs
-HDMI Video output at up to 4K (3840 x 2160) resolution
HD Storage
-2 SATA interfaces connectable for recording and backup
-H.265+ compression effectively reduces the storage space and costs by up to 75%
HD Transmission
-1 self-adaptive 10/100/1000Mbps network interface
-16 independent PoE network interfaces are provided
VariousApplications
-Centralized managementof IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.
-Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized
-VCA detectionalarm is supported
-Instant playback for assigned channel during multi-channel display mode
-Smart search forthe selected area in the video; and smart playback to improve the playback efficiency
-Hik-Connect for easy network management

Video/Audio Input
Two-way audio input:
1-ch, RCA (2.0 Vp-p, 1kO)
IP video input:
16-ch
IP Video input:
Up to 8 MP resolution
Network
Incoming bandwidth:
160Mbps
Outgoing bandwidth:
80Mbps
Video/Audio Output
LCD/HDMI/VGA output resolution:
HDMI:
1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA:
1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Recording Resolution:
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output:
1-ch, RCA (Linear, 1kO)
Synchronous Playback:
8-ch
Decoding
Capability:
1-ch @ 8 MP / 4-ch @ 1080p
Live view / Playback:
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Hard Disk
SATA:
2 SATA interfaces for 2 HDDs
Capacity:
Up to 6TB capacity for each HDD
External Interface
Network Interface:
1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface:
2, USB2.0
POE
Supported Standard:
AF and AT
Interface:
16 independent 10/100 Mbps PoE Ethernet interfaces
Max. Power:
280W
General
Power Supply:
100 to 240 VAC
Consumption(without hard disk and POE):
= 15W
Working Temperature:
-10 oC ~ +55 oC (+14 oF~ + 131 oF)
Working Humidity:
10 % ~ 90 %
Chassis:
1U chassis
Dimensions:
385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
Weight(without HDD):
= 3 kg (6.6 lb)
- MPN: NVR-216MH-C-16P-NOHDD
GTIN: 6954273658533
