Kings 100W Fixed Solar Panel + 15A PWM Solar Controller

Kings 100W Fixed Solar Panel + 15A PWM Solar Controller

SOLD OUT

The Adventure Kings 100W fixed solar panel is great for permanent roof mounting on 4WDs, utes, vans, camper trailers, caravans and even boats! It has a 3.2mm thickened glass panel with a reinforced custom aluminum frame, ensures durability when fixed mounted on a vehicle. The slim custom extruded frame reduces wind resistance.

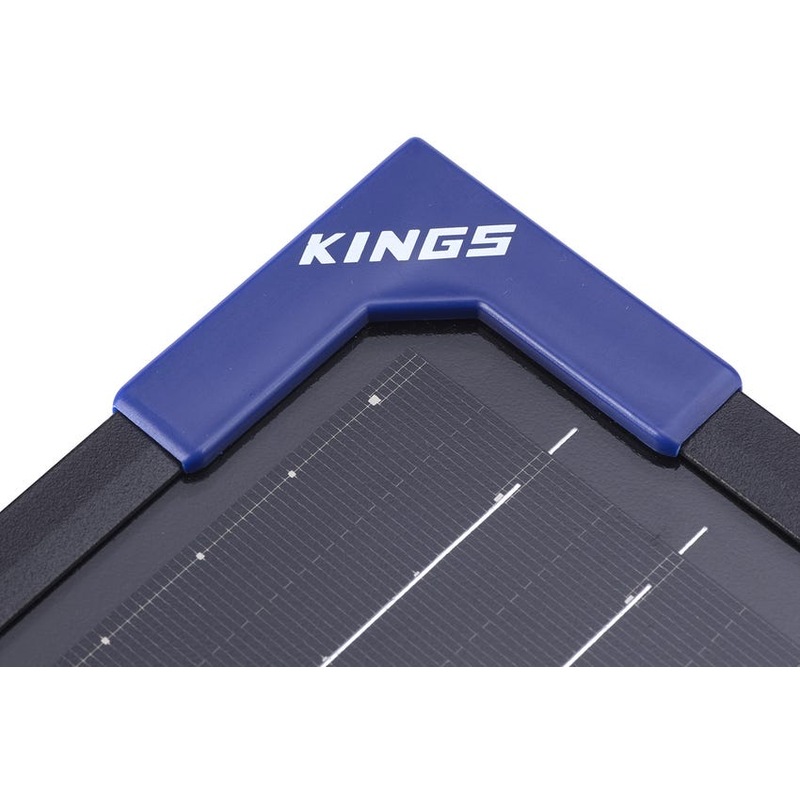

• With the ability to parallel, join two panels together to boost your charging capacity. This ensures your big battery banks stay fully charged, providing a reliable power source for energy-intensive appliances like Inverters, Induction cooktops and off grid air conditioners. measuring at 70cm wide, by 80cm high and 2cm thick including the corner protectors. Even better, two side by side will perfectly fill the roof rack of most common dual cabs

• A Controller is a must for safeguarding your battery from the high voltage output of solar panels. This controller uses Pulse Width Modulation (PWM )to reduce the solar input voltage to a safer, lower output voltage, ideal for charging 12V batteries. Along with this, the PWM employs a 3-stage charging program: boost, equalise and float. Keeping your battery charged properly and ready to operate at peak performance.

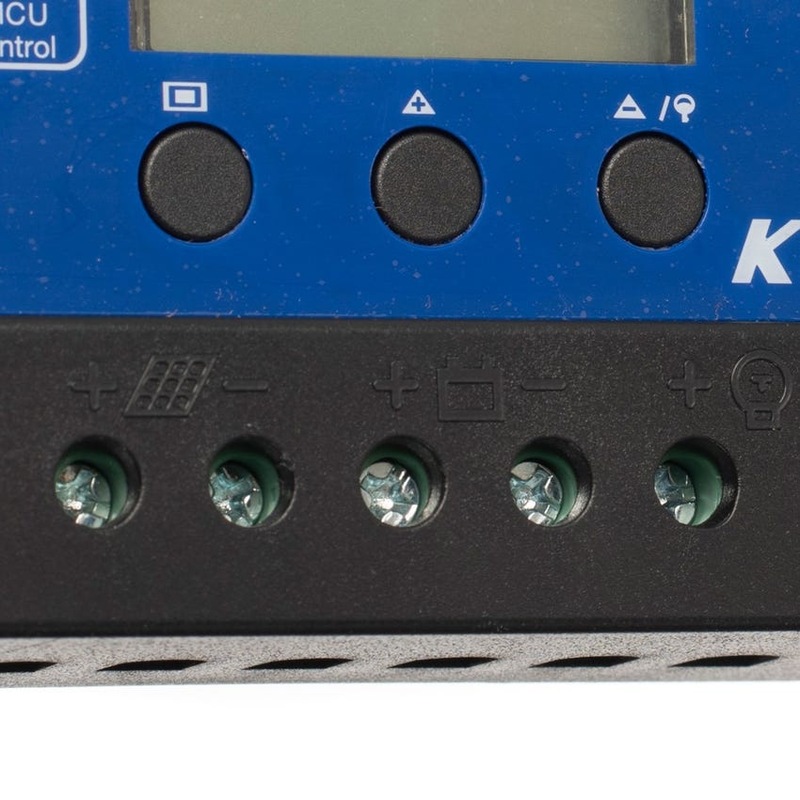

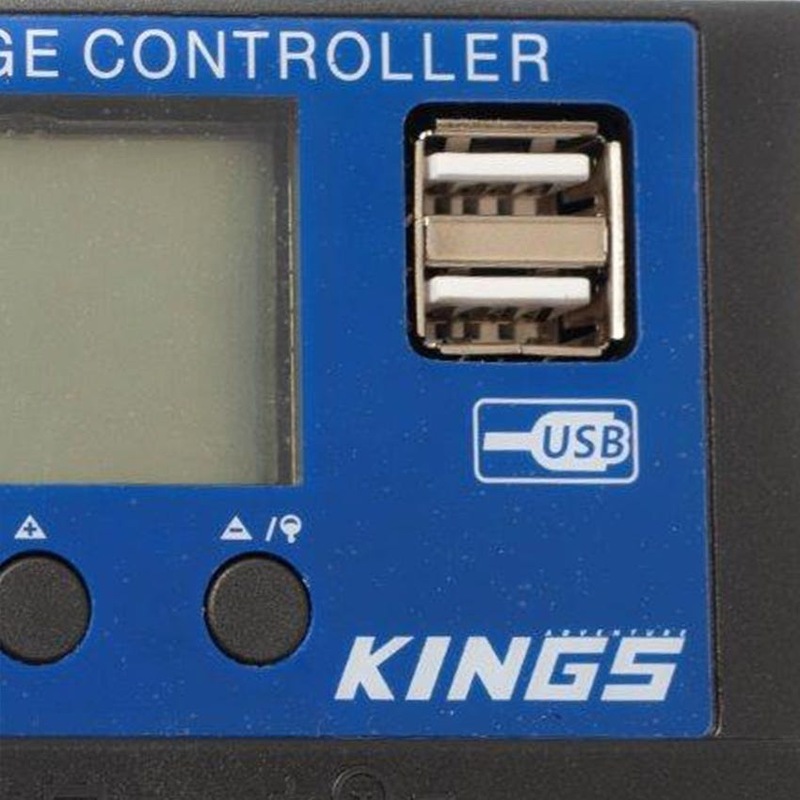

• Utilising screw in terminals, you can easily connect up to your solar panel and 12V system. The LCD screen allows you to easily change settings to best suit your setup. You can keep an eye on charging performance and battery voltage while it’s connected, it even features two USB ports so you can charge your devices directly from the PWM Controller.

• Overcharge, over-discharge, overload, short-circuit, reverse-connection protection and transient voltage suppression diode to protect. ability to charge sealed lead acid, AGM, gel batteries* plus user adjustable settings and the option to use a load circuit this is a feature packed controller that’ll work well in any setup!

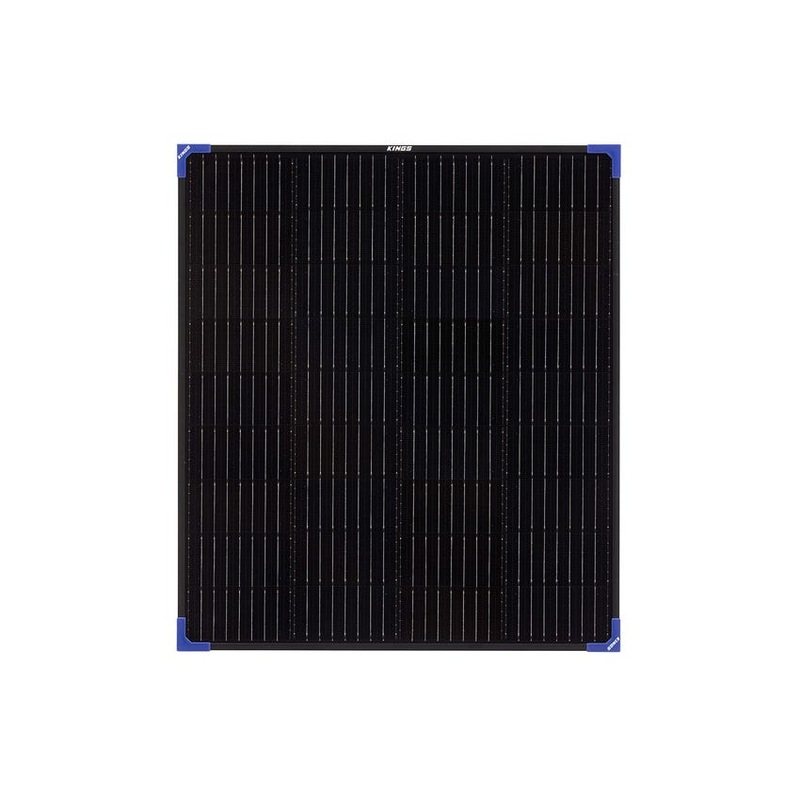

KINGS 100W FIXED SOLAR PANEL

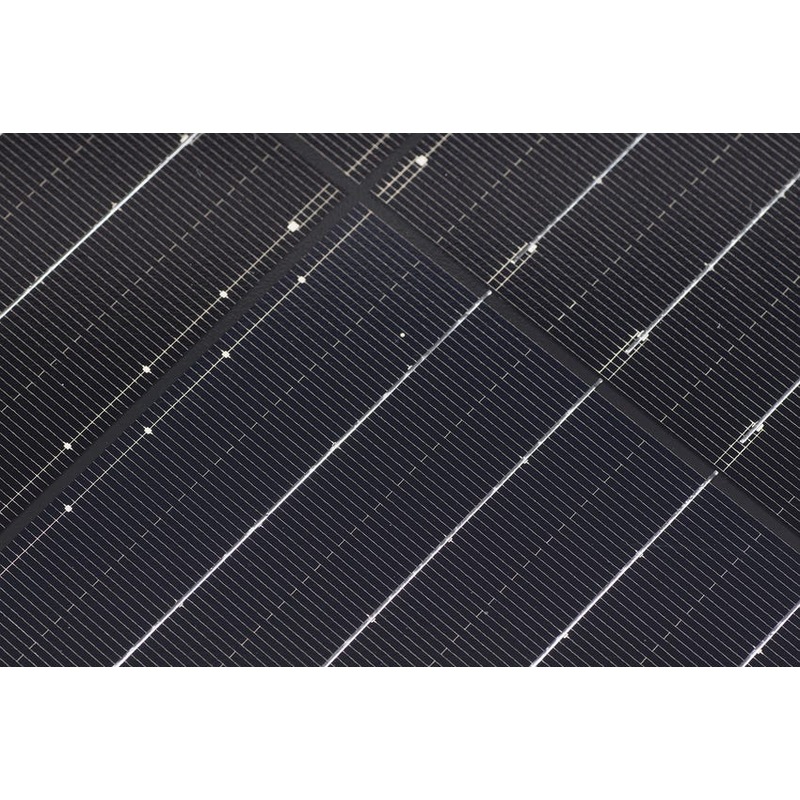

Up to 8.33A of charge at 12V | Grade A cells | 1.8cm Slim Frame

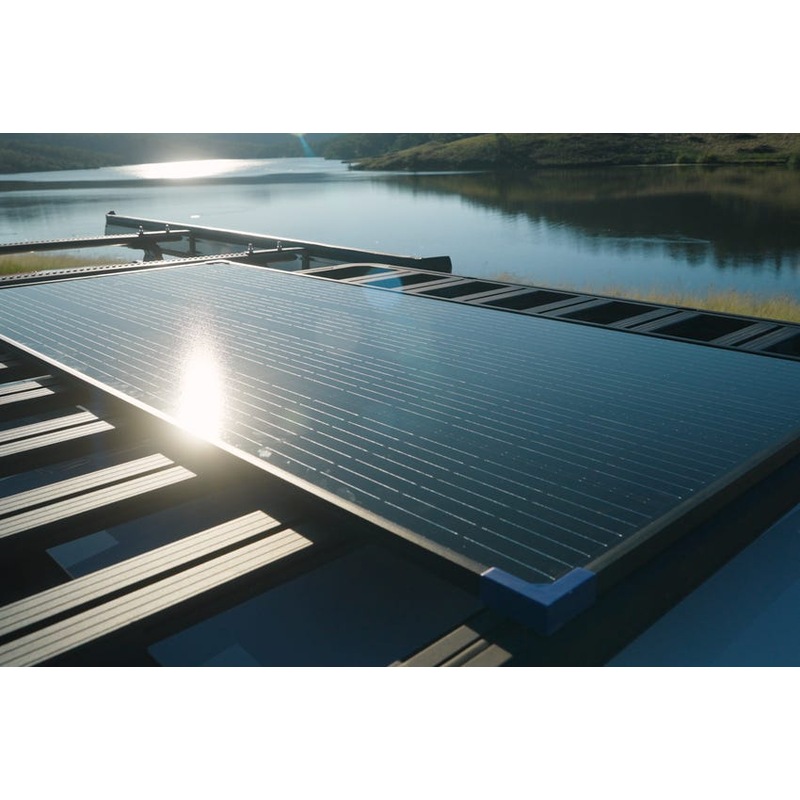

The Adventure Kings 100W fixed solar panel is great for permanent roof mounting, for the roof of your 4WDs, utes, vans, camper trailers, caravans and even boats! It has a 3.2mm thickened tempered glass with a reinforced custom aluminum frame.
Output 100W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 24.18V
ISC (Short Circuit Current) 5.51A
Note VOC and ISC can vary by up to +/-1v and +/-1A Review regulator for max voltage and current rating
VMP (Maximum Power Voltage) 20.35V
IMP (Maximum Power Current) 4.95A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.39%/°C
Pmax Temperature Coefficient -0.44%/°C
Standard Test Condition 1000W/m2, 25ºC, AM1.5
Connection Quick Connect (Anderson Style) Plug
Dimensions 70 x 80 x 1.8 cm
Weight 6.6kg

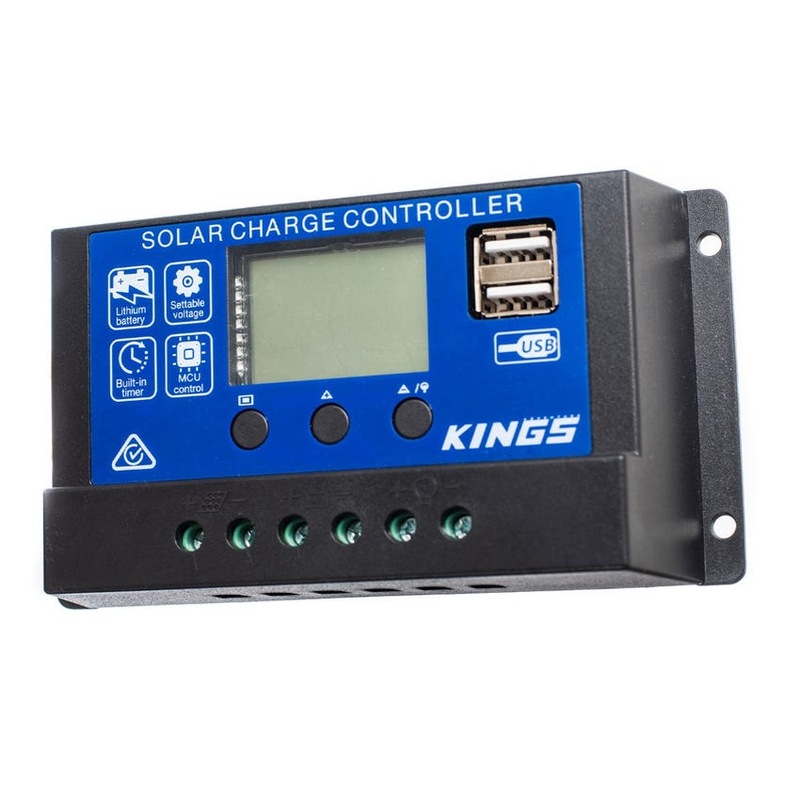

15A PWM SOLAR CONTROLLER
a must for safeguarding your battery from the high voltage output of solar panels. Using screw in terminals, you can easily connect up to your solar panel and 12V system. The LCD screen allows you to easily change settings to best suit your setup. With the ability to charge sealed lead acid, AGM, gel batteries
Dimensions 133 x 70 x 34mm
Mounting Holes 126 x 49mm
Max Solar Input <50V
Float Charge 13.7 – Default, Adjustable
Discharge Stop 10.7 – Default, Adjustable
Discharge Reconnect 12.6V – Default, Adjustable
USB Output 5V / 2A
Weight 154g
• Overcharge, over-discharge, overload, short-circuit, reverse-connection protection
• Transient – Voltage – Suppression (TVS)
• Diode – Protects against voltage spikes
• Use with the 110W & 160W Adventure King Panels

MPN: SC-CO-100WFX-PWNREG
