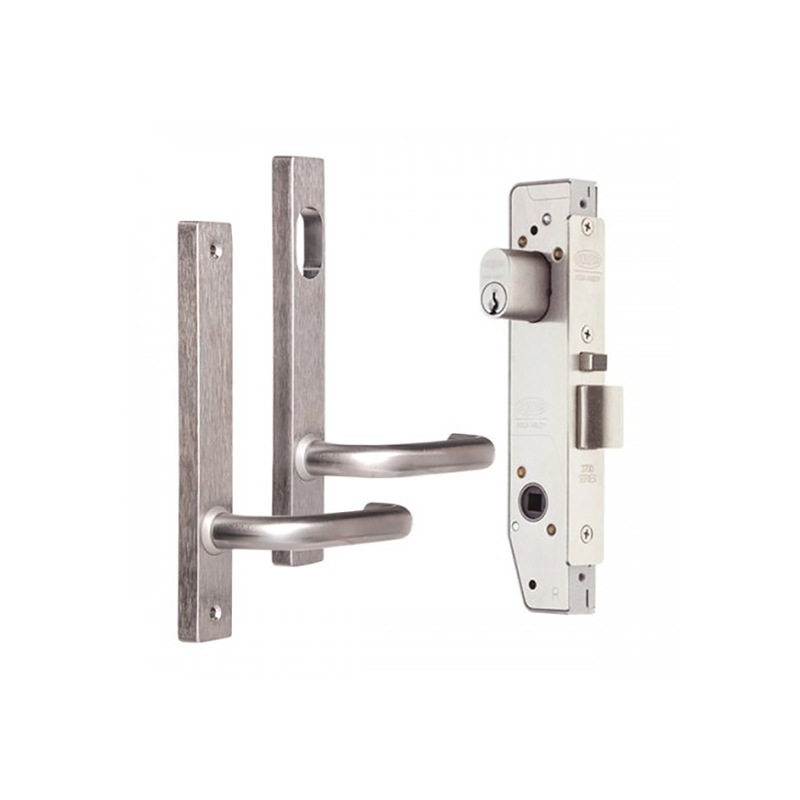

Lockwood 3782 Narrow Classroom Mortice Lock Kit Inc Furniture Cylinder 3782KIT05

Specifications:

Mortice lock

• Short backset universal primary mortice lock.
• Easy Red /Green function setting.
• All lock settings are made from under the faceplate allowing for simple in-door configuration.
• Standard primary locks include holdback and anti-lockout capabilities.
• Lock is always holdback capable, no setting is required. Holdback can be activated at any time - unless anti-lockout is selected.
• Operated by key or handle outside or by turnsnib, key or handle inside.
• Zinc diecast body with stainless steel chassis plates for improved strength.
• Electric Strike compatibility.
• 23 mm backset as standard, 25.4, 30 and 38 mm available upon request.
• Suits metal door thickness 35-50 mm.
• 15 mm stainless steel reversible latch bolt.
• Supplied with cylinders.
• Supplied with Selector® 'V' cam.
• Compatible to most restricted keying systems.
• Finished in stainless steel.

External furniture

• Narrow stile exterior square end plate.
• Cylinder hole and 70 series tubular lever.
• Concealed fixing.
• Plate size 185 mm x 26 mm x 11.5 mm.
• Plates are designed to fit back to back.
• Suits door thickness from 32 to 50 mm.
• External plates supplied with fixing screws.
• Screw fixing centres 160 mm.
• Disabled access AS1428.1 compliant lever.
• Finished in satin chrome.

Internal furniture

• Narrow stile internal square end plate.
• Plain plate and 70 series tubular lever.
• Visible fixing.
• Plate size 185 mm x 26 mm x 11.5 mm.
• Plates are designed to fit back to back.
• Suits door thickness from 32 to 50 mm.
• Fixing holes centres 160 mm.
• Disabled access AS1428.1 compliant lever.
• Finished in satin chrome.
