Specification | Details |

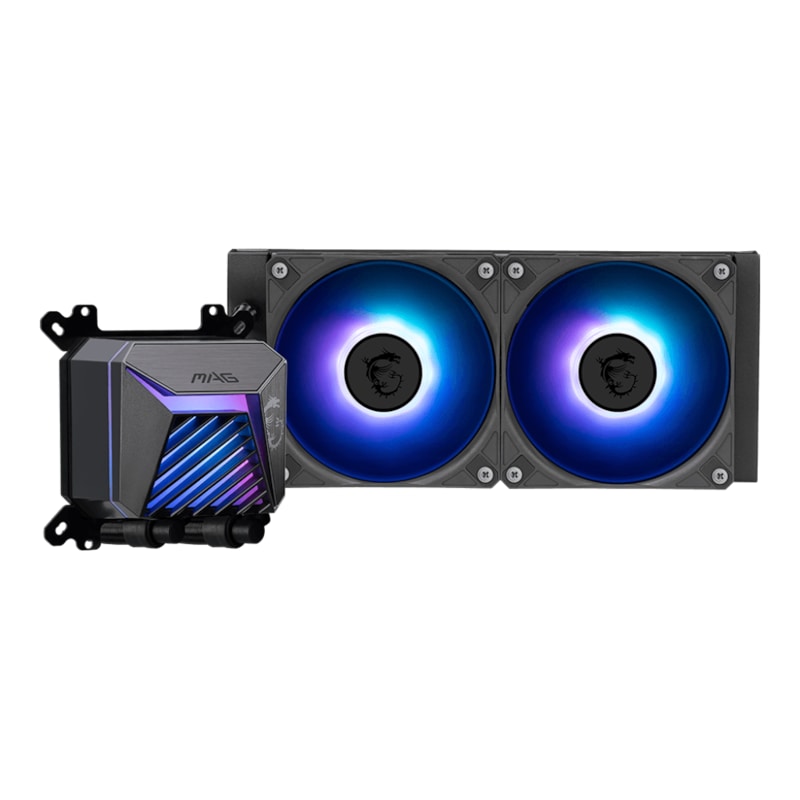

Model | MAG CORELIQUID A15 240 |
Radiator Size | 240 mm |
Radiator Dimensions (WxDxH) | 277 x 119.6 x 27 mm (10.90 x 4.69 x 1.06 inches) |
Radiator Material | Aluminum |
Water Cooling Tube Material | EPDM + IIR |
Water Cooling Tube Length | 390 mm (15.35 inches) |
Number of Fans | 2 |
Fan Dimensions (WxDxH) | 120 x 120 x 25 mm (4.7 x 4.7 x 0.98 inches) |
Fan Air Flow | 64.89 CFM |
Fan Noise Level | 28.7 dBA |
Fan Static Pressure | 2.59 mmH O |
Fan Bearing | Rifle Bearing |
Fan Speed | 500~2050 150 RPM |
Fan Life Expectancy | 40,000 hrs @ 40 |
Fan Rated Current | 0.14 A 0.028 A |
Fan Power Consumption | 1.68W 0.336W |
PWM Mode | Yes |
Cable Length (PWM Cable) | 600 mm (23.62 inches) |
Fan Connector | 5V ARGB 3-PIN Header |
Block Lighting | ARGB GEN2 |
Fan Lighting | ARGB GEN2 |
Pump Life Expectancy | 50,000 hours in typical use |
Pump Noise Level | 20 dBA (Max) |
Pump Rated Current | 0.21A 0.042 |
Pump Power Consumption | 2.52W 0.504W |
Pump Speed | 3400 RPM 10% RPM |
Pump Connector | 4-PIN Header |
Cold Plate Material | Copper |
Block Dimensions (WxDxH) | 71.23 x 69.47 x 75.05 mm |
Intel Socket Support | LGA 1851 / 1700 |
AMD Socket Support | AM5 / AM4 |
Accessories | Thermal paste x 1, Screws x 12 |
