Msi.Sdr 10Khz To 2Ghz Panadapter Sdr Receiver Lf Hf Vhf Uhf Compatible Sdrplay Rsp1

Description:

The main function of this Panadapter is to convert the intermediate frequency signals of various types of radio stations into USB bus and plug them into the USB port of the PC, and then process them through HDSDR software. Display spectrum, demodulation signals, etc., can also be processed by other software. The price is similar to the price of a CW filter. After the Panadapter conversion is sent to the HDSDR software, the software can achieve much more additional functions than the CW filter. It can display the spectrum on the computer, set the receiving bandwidth arbitrarily, signal recording, saving, playback and other functions. Of course, it also includes the filter function that can set the bandwidth arbitrarily.

The Panadapter is a panoramic spectrum display that can be connected to your radio, allowing you to view the entire band (up to 10MHz) spectrum received by your station. Combine it with a basic CAT controller to create a powerful tool that allows real-time discovery of multiple signals in the spectrum, click on any one of the signals, and your station will automatically switch to that frequency immediately.

Feature:

1. Exquisite and sturdy aluminum casing

2. Frequency continuous coverage from 10kHz to 2GHz

3.12-bit ADC chip (not the kind of RTL chip)

4. Built-in front end filter

5. Spectrum bandwidth of up to 10Mhz

6. Higher sensitivity and good selectivity

7. More often low background noise

8. Simple USB interface (micor jack)

9. SMA antenna connector

10. USB power supply No separate power supply

11.Compatible with all SDRPlay RSP1 software.

12.System Requirements:

Support Windows 7, 8, or 10

Package included:

1 x Panadapter Host

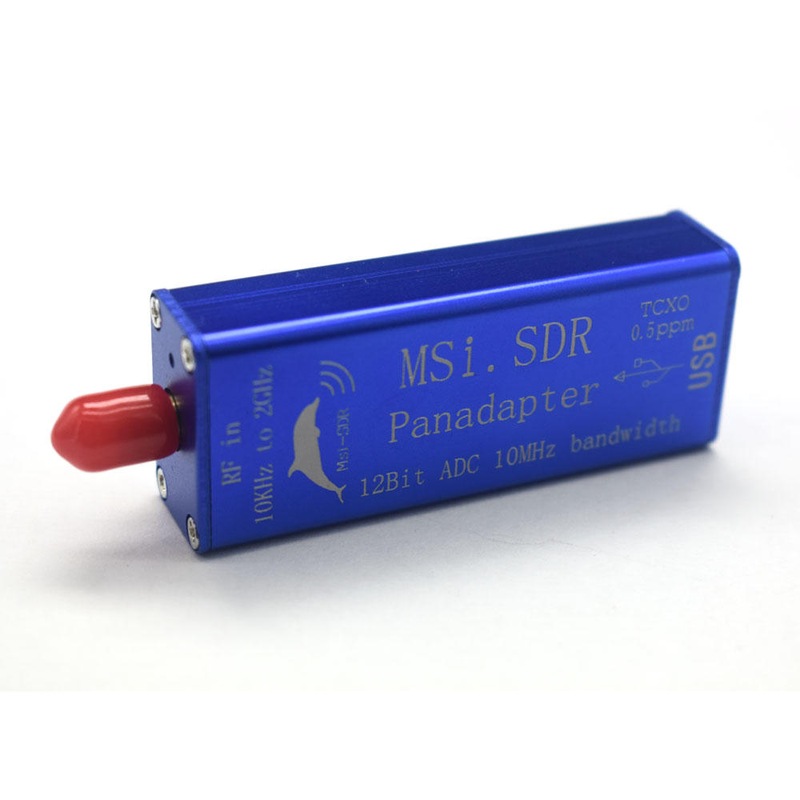

Details Pictures:
