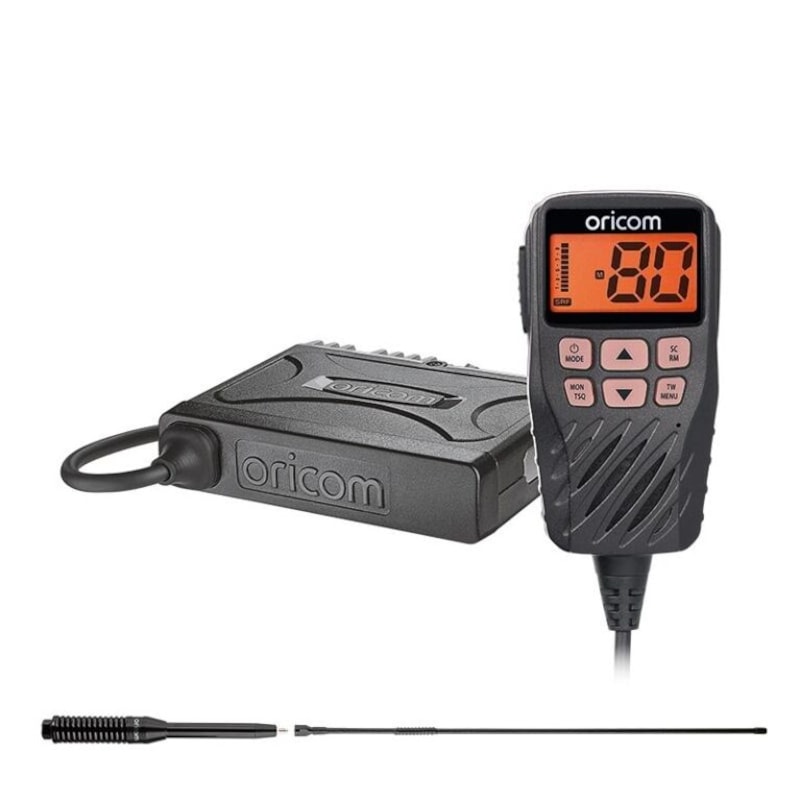

Oricom UHF360 5 Watt UHF CB Radio AND ANU240 6.5dBi UHF CB Antenna with Parallel Spring Base (UHF360PS)

The Oricom Bundle Pack includes the UHF360 5 Watt UHF CB Radio AND ANU240 6.5dBi UHF CB Antenna with Parallel Spring Base (UHF360PS). The UHF360 removes the need for a head unit, with all of the radio’s controls in the microphone. The integrated speaker in the controller mic works with the transceiver speaker to deliver exceptional sound quality and volume. Perfect for modern vehicles where space is limited.Transceiver Dimensions 27 (h) x 102 (w) x 85 (d) mm. General UHF360 Technical Specification:Frequency Range TX/RX 476.425 - 477.4125 MHz, Number of TX/RX Channels 80 UHF CB (75 Voice channels), Channel Spacing TX/RX 12.5KHz, Operating modes Simplex, Repeater TX offset (+750kHz), Scanning Speed 130 msec per channel, Antenna Impedance 50 Ohms, Operating Volts nominal 13.8VDC, Operating Volts Range 10 to 15 VDC, Over Voltage Protection voltage regulator, Over Current Protection 2 AMP fuse, Reverse Polarity, Protection Shunt diode, Frequency stability +/- 2.5ppm. Pack Includes: 1 X UHF CB Radio (UHF360), 1 X Heavy Duty Controller Speaker Microphone, 1 X Microphone mounting bracket, 1 X Transceiver mounting bracket, 1 X Pack of supplied mounting screws and User Guide. The ANU240 is a 6.5dBi ground independent UHF CB Antenna with elevated feed, heavy duty parallel spring base and fibreglass whip. The ANU240 allows for a variety of mounting options for bullbars. A specific bracket will be required depending on the mounting option chosen (bracket not supplied). The ANU240 is finished in a black powder coating. Length of antenna is 977mm including spring base. The thread size for the whip (not the spring base) is 5/16 UNC

Specifications:

The Oricom Bundle Pack includes the UHF360 5 Watt UHF CB Radio AND ANU240 6.5dBi UHF CB Antenna with Parallel Spring Base (UHF360PS). The UHF360 removes the need for a head unit, with all of the radios controls in the microphone. The integrated speaker in the controller mic works with the transceiver speaker to deliver exceptional sound quality and volume. Perfect for modern vehicles where space is limited.Transceiver Dimensions 27 (h) x 102 (w) x 85 (d) mm. General UHF360 Technical Specification:Frequency Range TX/RX 476.425 - 477.4125 MHz, Number of TX/RX Channels 80 UHF CB (75 Voice channels), Channel Spacing TX/RX 12.5KHz, Operating modes Simplex, Repeater TX offset (+750kHz), Scanning Speed 130 msec per channel, Antenna Impedance 50 Ohms, Operating Volts nominal 13.8VDC, Operating Volts Range 10 to 15 VDC, Over Voltage Protection voltage regulator, Over Current Protection 2 AMP fuse, Reverse Polarity, Protection Shunt diode, Frequency stability +/- 2.5ppm. Pack Includes: 1 X UHF CB Radio (UHF360), 1 X Heavy Duty Controller Speaker Microphone, 1 X Microphone mounting bracket, 1 X Transceiver mounting bracket, 1 X Pack of supplied mounting screws and User Guide. The ANU240 is a 6.5dBi ground independent UHF CB Antenna with elevated feed, heavy duty parallel spring base and fibreglass whip. The ANU240 allows for a variety of mounting options for bullbars. A specific bracket will be required depending on the mounting option chosen (bracket not supplied). The ANU240 is finished in a black powder coating. Length of antenna is 977mm including spring base. The thread size for the whip (not the spring base) is 5/16 UNC

Specifications:
UHF360 Key Features:

• 5 watt (max TX power)
• Heavy duty controller speaker microphone
• Rugged micro size transceiver
• Large easy to read LCD display
• Audio equaliser
• 38 CTCSS and 104 DCS codes
• Duplex (range extender)
• Open/Priority scan
• Priority channel
• Tri colour backlit LCD display (Amber/Red/Green)
• 3.5mm external speaker jack
• Transceiver Dimensions 27 (h) x 102 (w) x 85 (d) mm
• Designed for Australian conditions. Made in Korea.

ANU240 Antenna Key Features:

• • Heavy duty parallel spring base
  • Fibreglass whip
  • Length of antenna is 977mm*
  • Includes grub screw and hex key to secure the fiberglass pole Low-loss coaxial cable (4.5m)
  • Pre-terminated FME connector and PL259 adaptor

*Length of antenna includes spring base.
