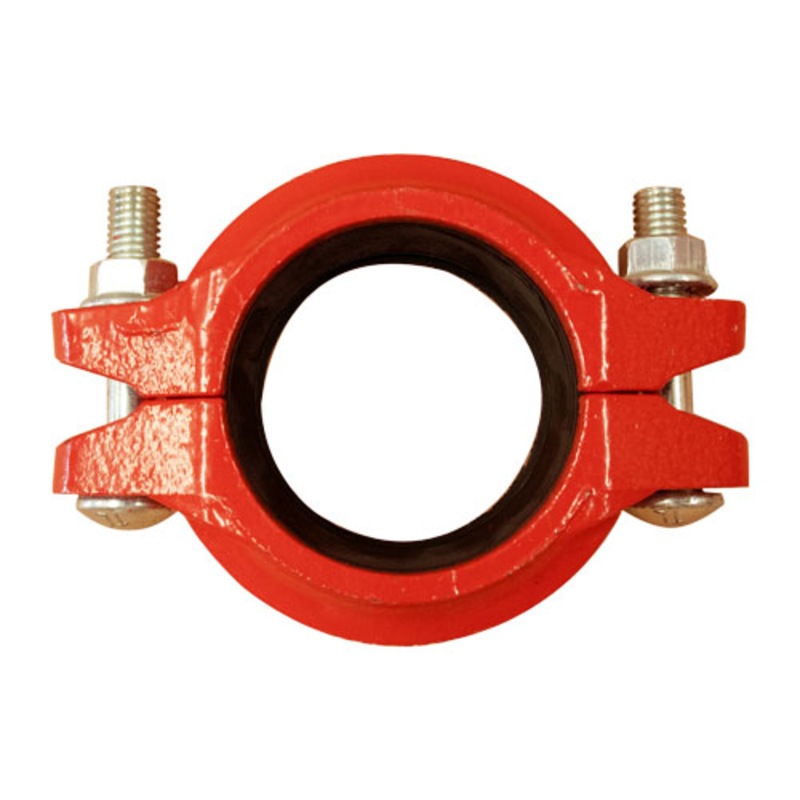

Painted Roll Groove Coupling UL/FM

Painted Roll Groove Coupling UL/FM

Hurry! 11 items left!

Price	From $7.47
	Collect 7 Everyday Rewards points Log in to MyDeal to link your card
Size	Please select an option
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Roll Groove Coupling UL/FM - Painted

Material Specifications

Material - Ductile Iron conforming to ASTM A-536 Grade 65-45-12
Design - AWWA C606
Coatings - Painted
Bolts and Nuts - Black or Zinc Plated / Oval Neck bolts and heavy hexagon nuts at ASTM A-183 with minimum tensile strength of 110,00PSI
Gaskets - EPDM Elastomers with properties as designated by ASTM D-2000

Specifications

Maximum working temperature 100oC
Maximum working pressure 1600kPa / 300Psi

Roll Groove Coupling - Painted
SKU	DN SIZE (mm)	SUIT OD (mm)	A (mm)	B (mm)	C (mm)	BOLT SIZE (mm)	WEIGHT (kg)
7102.03.25	25	33.4	59	100	44	2 x M10 x 40	0.52
7102.03.32	32	42.2	66	105	45	2 x M10 x 40	0.61
7102.03.40	40	48.3	72	112	45	2 x M10 x 40	0.64
7102.03.50	50	60.3	85	130	45	2 x M10 x 55	0.72
7102.03.65	65	76.1	100	140	45	2 x M10 x 55	0.85
7102.03.80	80	88.9	114	160	45	2 x M10 x 55	1.25
7102.03.94	100	114.3	140	187	50	2 x M12 x 65	1.88
7102.03.96	150	165.1	195	250	50	2 x M12 x 65	2.71
7102.03.98	200	219.1	255	322	58	2 x M16 x 85	5.73
7102.03.X25	250	273	318	410	63	2 x M20 x 90	7.79
7102.03.X30	300	323.9	370	465	63	2 x M20 x 90	9.77
