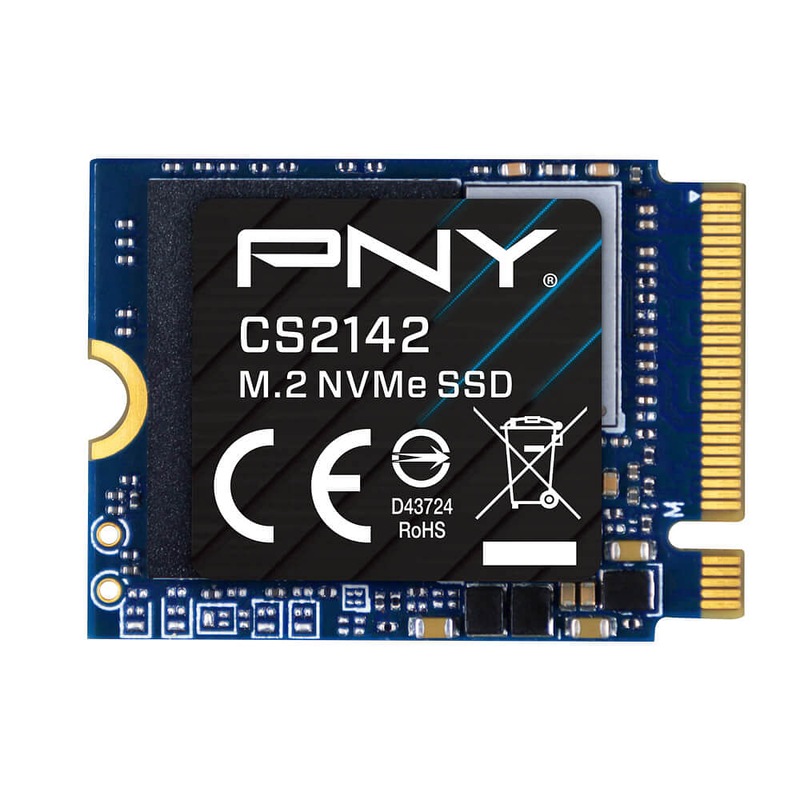

PNY CS2142 2TB PCIe Gen 4 M.2 2230 NVMe SSD
Perfect storage expansion for handhelds. M.2 2230 SSD is compatible for handheld gaming consoles like ROG ALLY, Steam Deck, and others that support M.2 2230 SSDs. It can effectively expand storage capacity and enhance overall system performance.
PNY CS2142 1TB PCIe M.2 2230 NVMe Gen4x4 SSD 5,000MB/s 3200MB/s 5yrs
- NVMe Gen4 upgrade from a SATA based solid state drive (SSD) in an NVMe enabled computer or handheld
- High performance SSD with up to double the performance as compared to entry Gen3 x4 based SSDs
- Sequential Read of up to 5,000 MB/s and Write of up to 3,200 MB/s
- Faster boot up, quicker application launch, and better overall system performance
- Cost effective and high performance is ideal for demanding applications, games and workloads
- Backed by a 5 year limited warranty or TBW*
Specification
Usable Capacities 2TB
NAND Components 3D NAND Flash Memory
Interface PCIe Gen4x4 NVMe 1.4
Form Factor M.2 2230
Package Dimensions (L -W -H) 123 x 85 x 4.3 mm
Product Dimensions (L -W -H) 30 x 22 x 1.35 mm (Max)
Weight 2.8g
Max Sequential Read* 2TB: Up to 5,000MB/s
Max Sequential Write* 1TB - 2TB: Up to 3,200MB/s
PCIe Link Power Management PS0/PS1/PS2/PS3/PS4/ APST, ASPM, L1.2
Operating Temperature 0 DegC to 70 DegC
Storage Temperature -40 DegC to 85 DegC
Certifications BSMI, CE, FCC, KCC, REACH, RoHS, VCCI
MTBF 1,500,000 Hours
Error Correction Code LDPC (Low Density Parity Check) ECC Algorithm
Secure Erase Secure Erase,Crypto Erase
Product Health Monitoring Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T)
Full End-to-End Data path protection Supported
Performance Optimization HMB (Host Memory Buffer)
Warranty 5-year Limited Warranty
Specification | Value |
---|---|
Connection Data Interface | PCIe Gen 4 NVMe M.2 |
MPN | M230CS2142-2TB-TB |
Product Condition | Brand New/Unused |
Product Use | General |
SKU | 760823 |
Storage Form Factor | PCIe |
