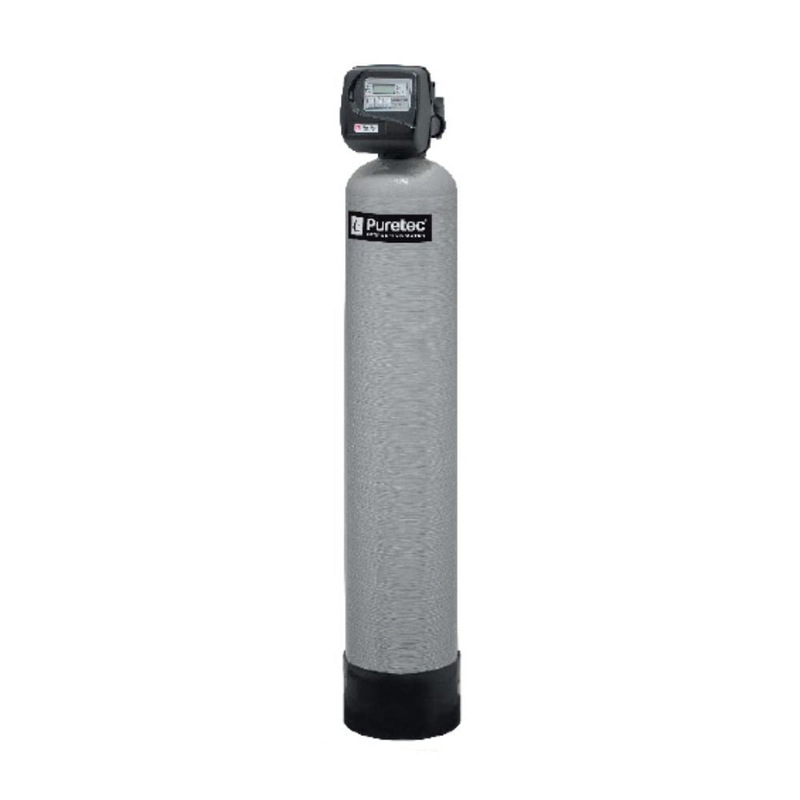

Puretec SFS2000 Sediment Filtration System Auto Backwash Service 80 Lpm

The Puretec SFS2000 sediment filtration system removes sediment, silt, sand and other particulate, preventing a build-up of sludge in your pipe work, hot water systems and appliances. It delivers a fully automatic and highly dependable control valve, which helps minimise energy and water waste. Features a fully automatic operation that provides a reliable design and simple programming for ease of use.

Automatically reduces dirt, rust and other sediment in your water.

Sediment filtration systems remove sediment, silt, sand and other particulate presenting a buildup of sludge in your pipe work, hot water systems and appliances. The Puretec SFS Series effectively protects your system with little or no maintenance by automatically back washing the graded filter bed.

FEATURES & BENEFITS

Reduces sediment, silt and suspended solids in high flow dirt applications.

Filters sediment and particulate down to 3 micron.

Complete system, no extra parts required.

Automatic backwash set and forget.

Stores system configuration and operation data in non-volatile memory.

Solid state microprocessor with easy access front panel settings.

Front panel display for time of day, days until next regeneration.

Weather resistant cover for controller.

Weatherproof transformer.

SPECIFICATIONS

Ordering Code

SFS2000

Valve

Automatic E1-matic

Maximum Suspended Solids

500 mg/L

Flow Rate

30 /40/70 Lpm

Maximum Flow Rate

80/90/100 Lpm

Connection

1 Male BSPT, ¾ Drain

Min/Max Pressure

200 - 690 kPa

Operating Temperature

4 - 43°C (40 - 110°F)

Power Supply

230V AC / 50 Hz

Warranty

1 year

Replacement Media Kits

RMK-SFS2000

Accessories

WTV5090 - Micro switch for automation of external equipment.

WTV5000 - Bypass assembly for testing, and maintenance.

WTV5092 - Differential pressure switch for load based backwashing.
