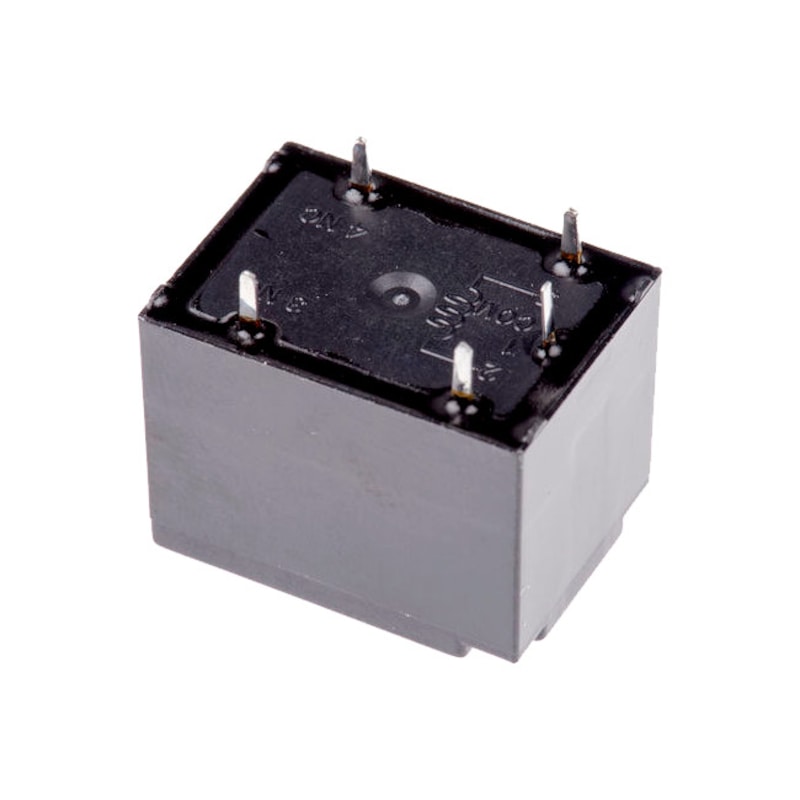

RWSH105D 5V DC 10A SUB-MINIATURE RELAY

RWSH105D 5V DC 10A SUB-MINIATURE RELAY

Hurry! 10 items left!

Price	$12.42
	Collect 12 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

FEATURES:

RW Series Relay covers switching capacity by 10A is spite of miniature size to comply with user’s wide selection.
RWH is approved C-UL & TÜV safety standard.
The employment of suitable plastic materials is applied under high temperature condition and various chemical solutions.
Complete protective construction is designed form dust and soldering flux. The plastic sealed type is available for washing procedure.
12A at 120VAC for RW & 12A at 240VAC for RWH are UL approved.

SPECIFICATIONS:

Nominal Load (Resistive Load Cosφ=1)
- Contact Capacity:

RW
- 12A at 120VAC.(UL)
- 10A at 120VAC.
- 10A at 24VDC.
RWH
- 12A at 250VAC.(UL)
- 10A at 277VAC(TUV)
- TV-5 at 120VDC.
- 15A at 24VDC.

Rated Carrying Current........RW: 10A & RWH: 15A.
Max. Allowable Current .......RW: 10A & RWH: 15A.
Max. Allowable Voltage ........AC 240V, DC 110V.
Max. Allowable Power Force.
- RW: 1500 VA, 240W.
- RWH: 1800VA, 360W.
Min. Switching Load
- RW: DC 5V, 10mA.
- RWH: DC5V, 15mA.

Contact Material
- RW: Ag Alloy.
- RWH: AgSnO2.
Contact Form..........................SPST & SPDT.
Contact Resistance .................100mΩ Max.@1A,6VDC
Operate Time..........................10 mSec. Max.
Release Time ...........................5 mSec. Max.
Dielectric Strength :
- Between Coil & Contact........1,000VAC at 50/60 Hz for one minute.
- Between Contacts ..................500VAC at 50/60 Hz for one minute.
Surge Resistance .....................3,000V (betweenCoil & Contact 1.2x50μSec.)
Insulation Resistance..............100 MegaΩ Min. at 500VDC.
Max. On/Off Switching :
- Electrical.................................. 30 Ops per Minute.
- Mechanical.............................. 300 Ops per Minute.
Temperature Range ................ -30 - 55°C
Humidity Range..................... 45 - 85% RH.
Coil Temperature Rise............ 35°C Max.
Vibration :
- Endurance ............................... 10 to 55 Hz dual amplitude width 1.5mm.
- Error Operation ...................... 10 to 55 Hz dual amplitude width 1.5mm.
Shock :
- Endurance ............................. 1,000 m/S2 Min.
- Error Operation ...................... 100 m/S2 Min.
Life Expectancy :
- Mechanical ............................ 100,000,000 Operations at No Load condition.
  Electrical ................................ 1,000,000 Operations at Rated Resistive Load.
Weight..................................... About 11 g.
Safety Standard & Its File Number :
- RW:
  - UL ............................................ E141060
  - CSA.......................................... LR76598
- RWH:
  - C-UL........................................ E141060
  - TÜV......................................... R9854380
